Transmission Control Systems

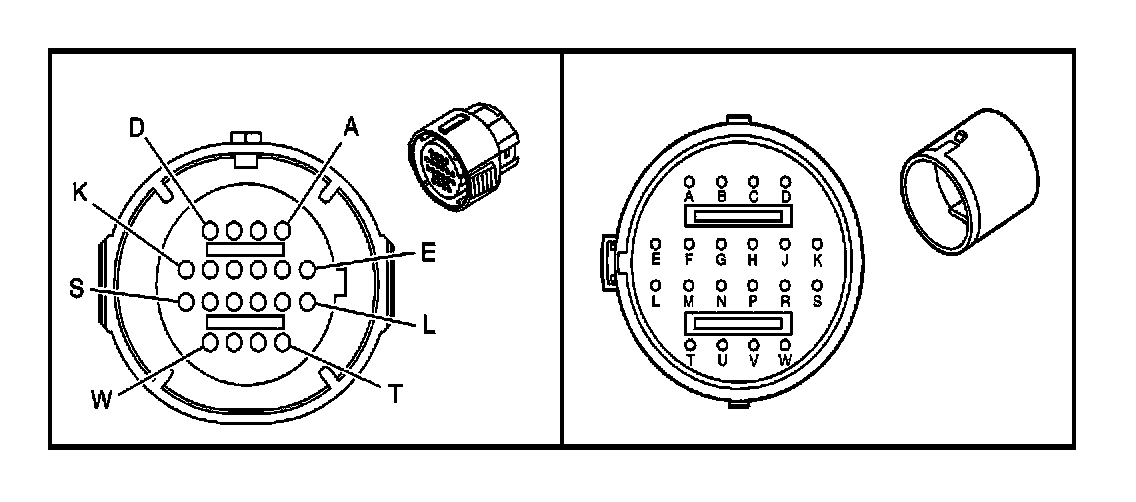

Automatic Transmission Inline 20-Way Connector End View

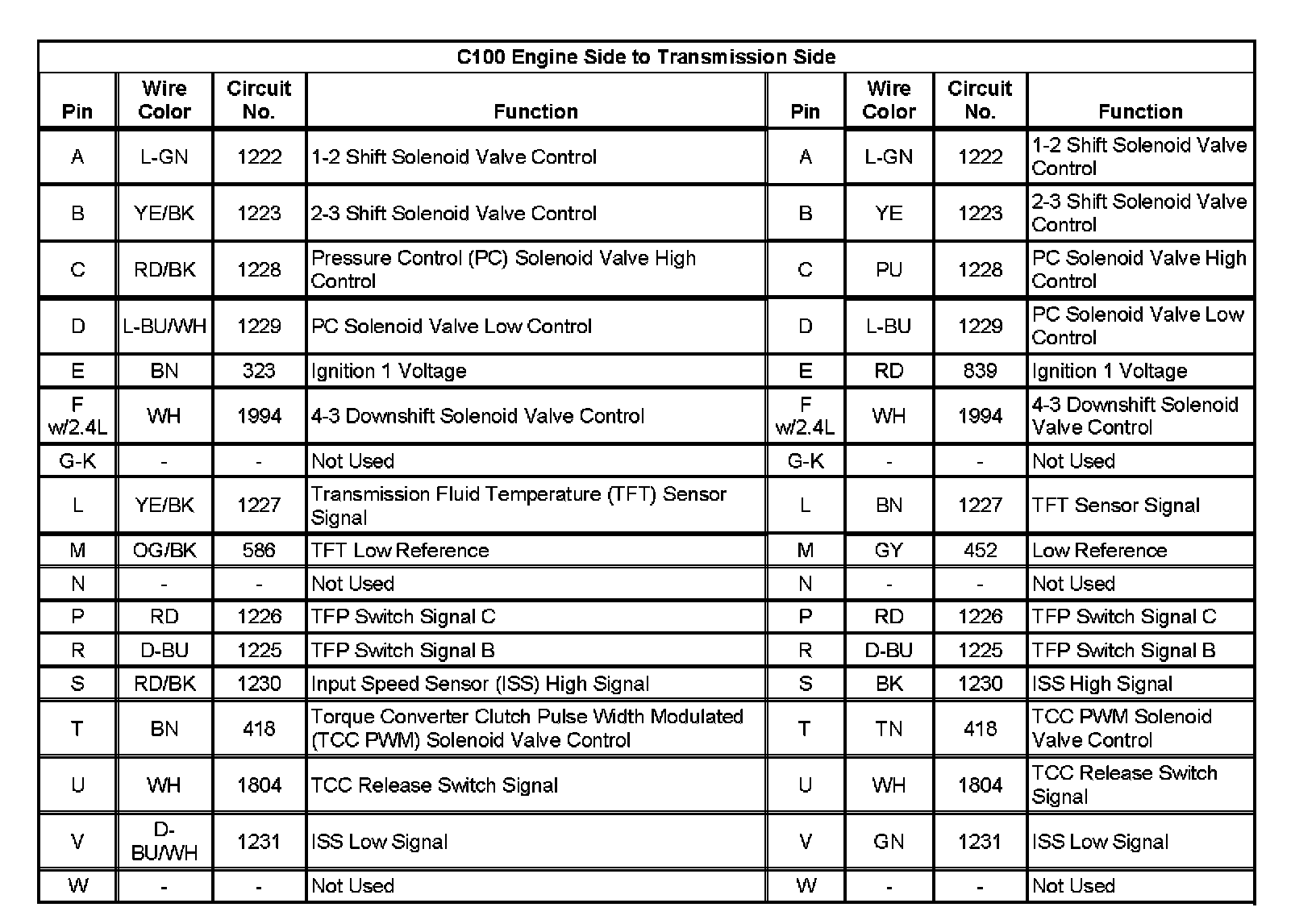

C100 Engine Side to Transmission Side







C100 Engine Side to Transmission Side:
