Sunroof / Moonroof Module
Sunroof / Moonroof Module
Sunroof Connector End Views

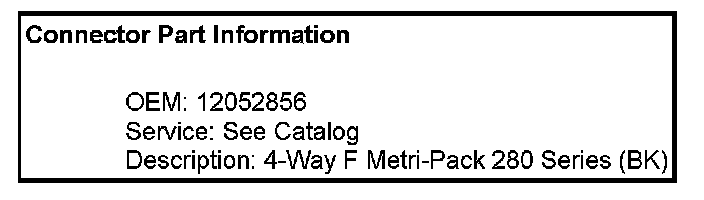

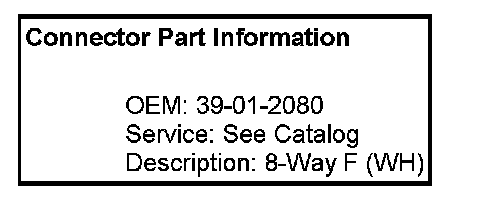

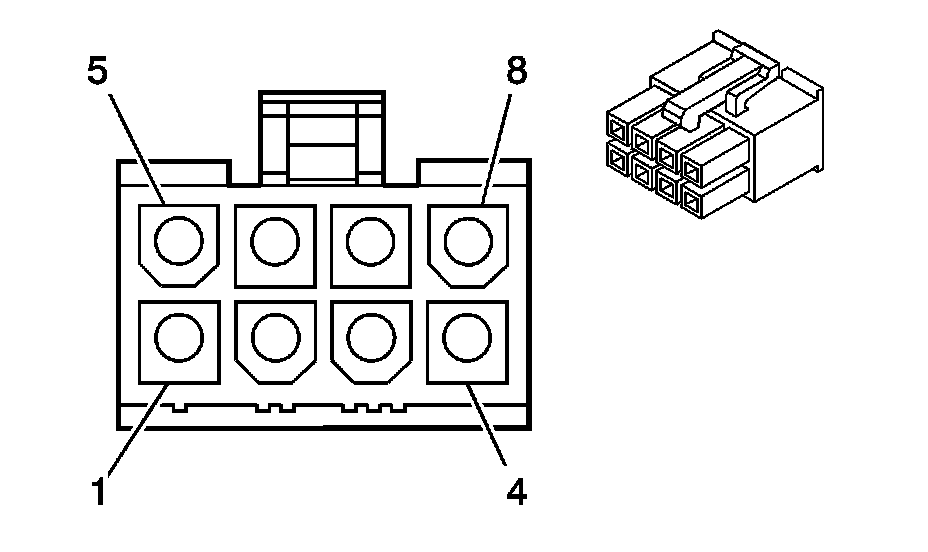

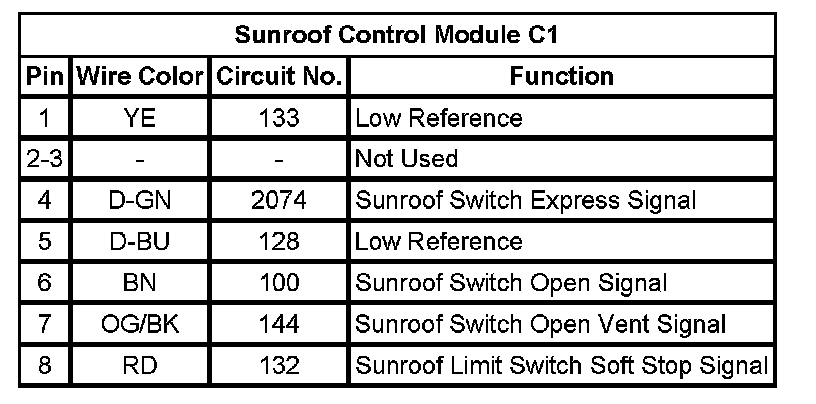

Sunroof Control Module C1

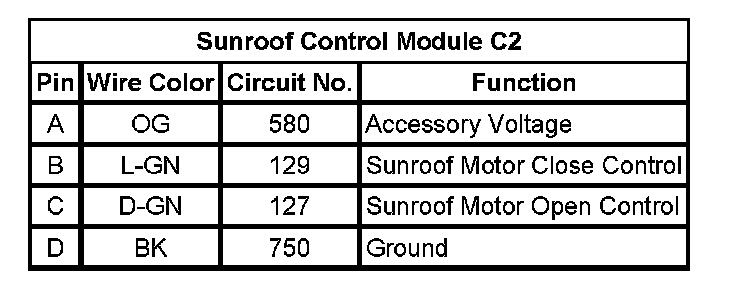

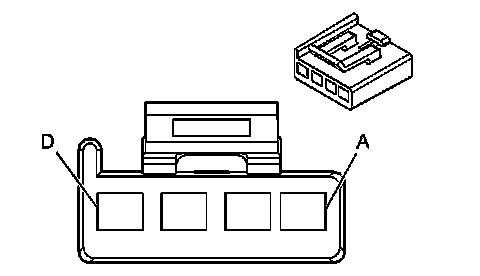

Sunroof Control Module C2
Transfer Case Shift Control Module - C3:
