Seat Temperature Control Module

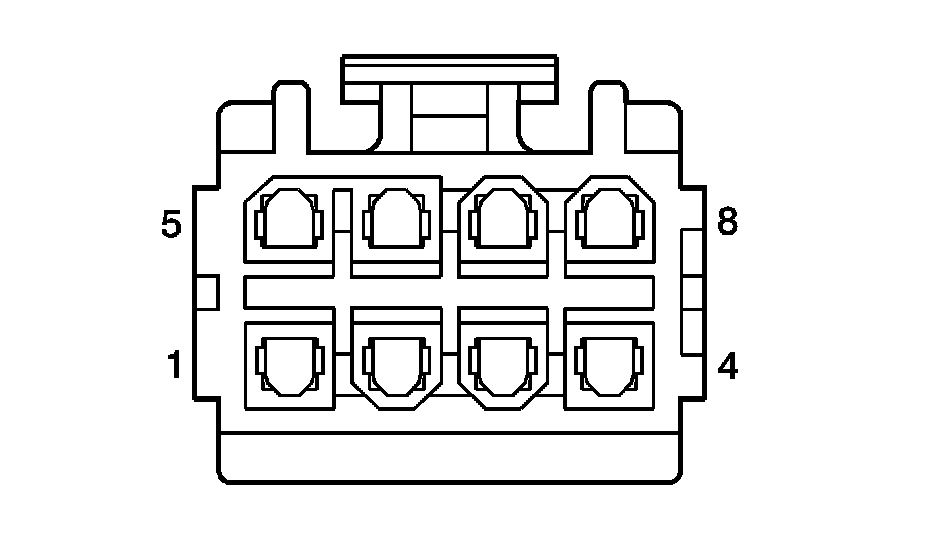

Heated/Cooled Seat Connector End Views

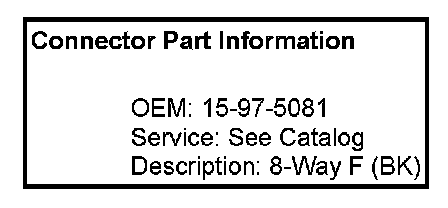

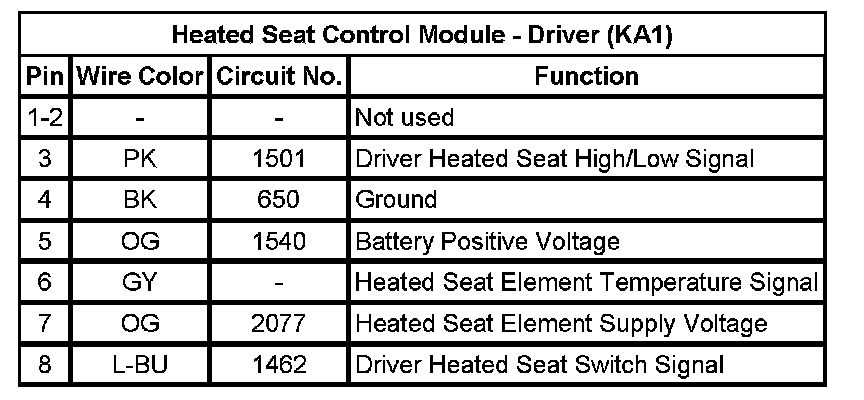

Heated Seat Control Module - Driver (KA1)

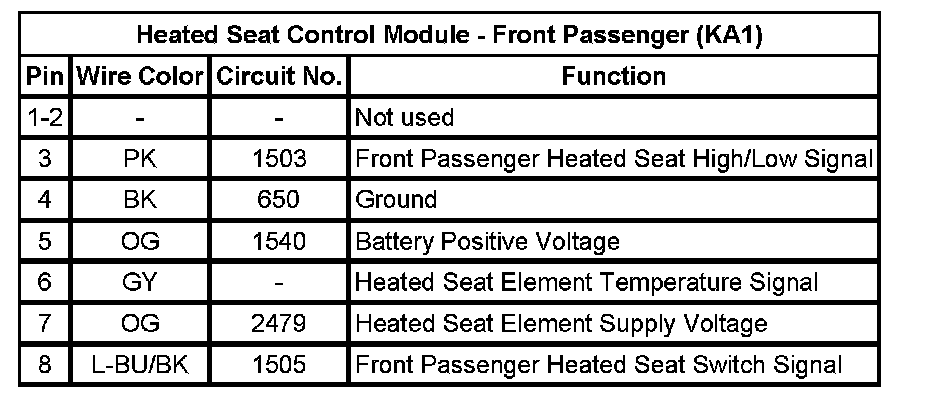

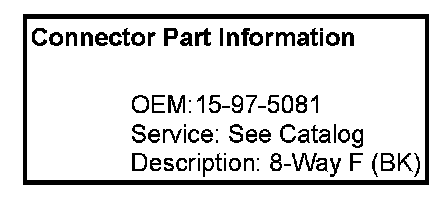

Heated Seat Control Module - Front Passenger (KA1)
