Power Window Switch



Window Systems Connector End Views

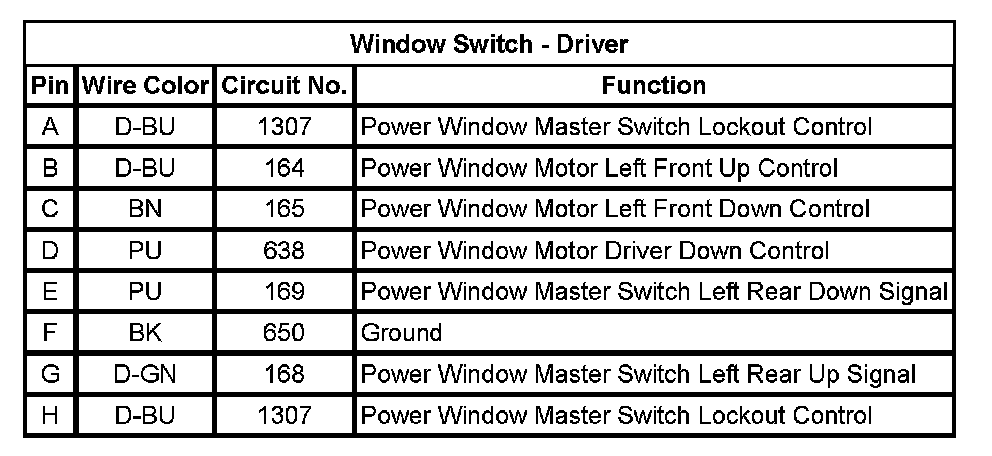

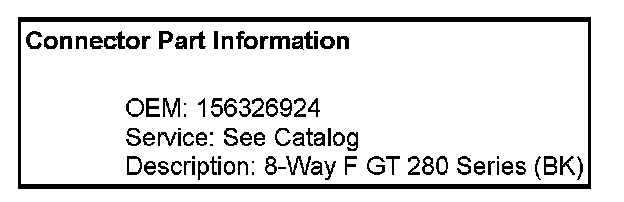

Window Switch - Driver

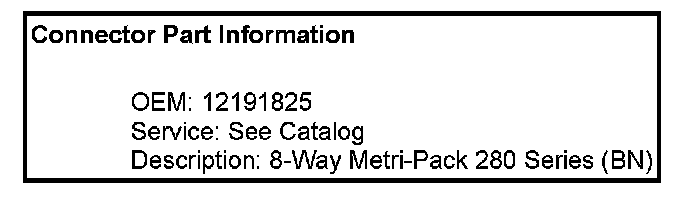

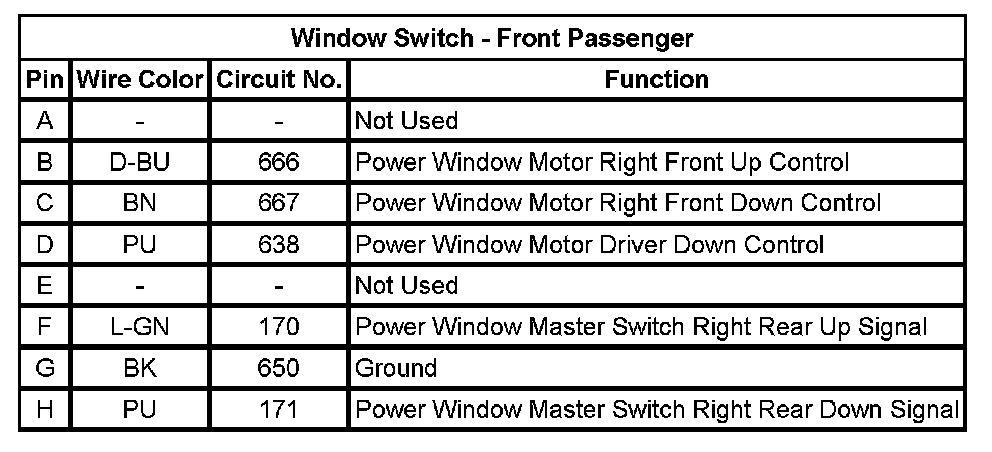

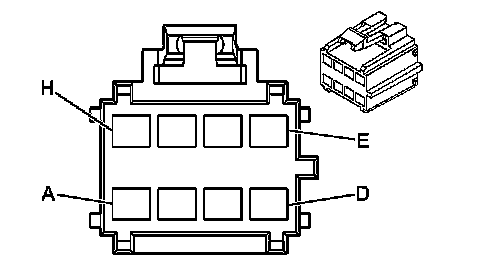

Window Switch - Front Passenger

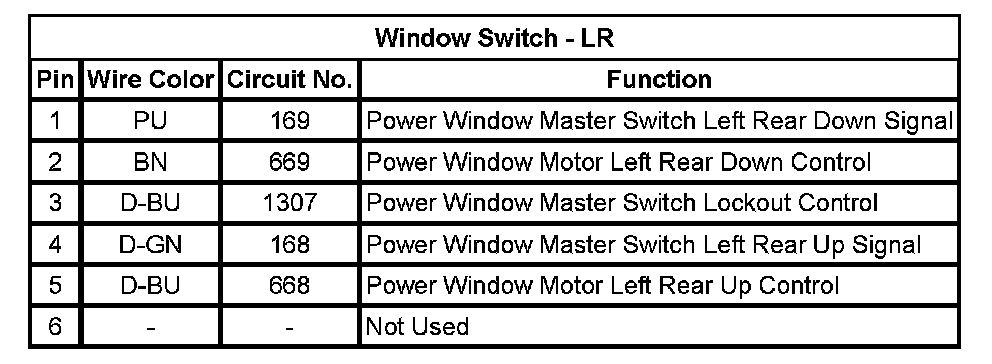

Window Switch - LR

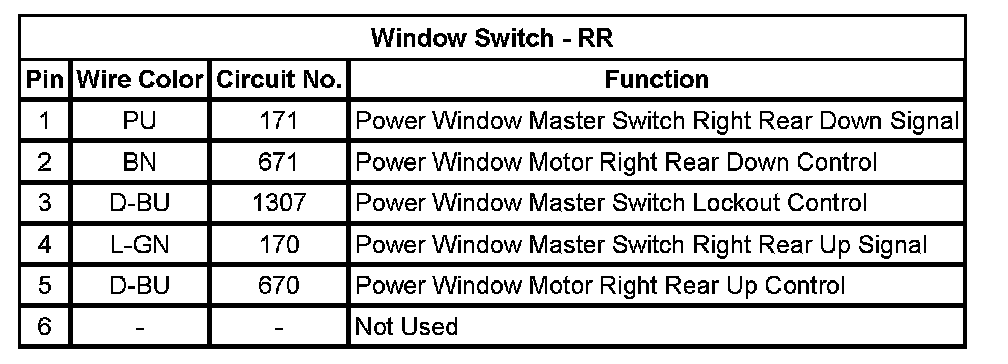

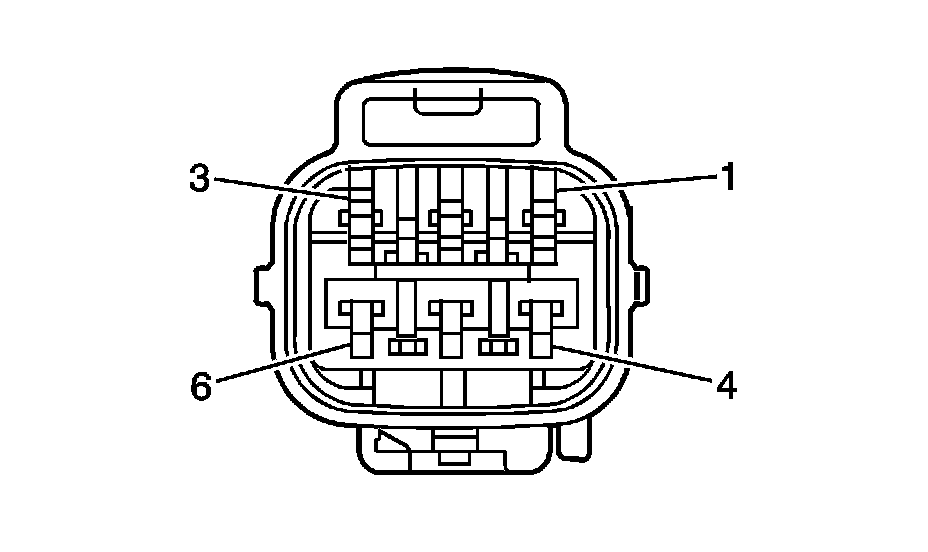

Window Switch - RR
