Engine Control Module

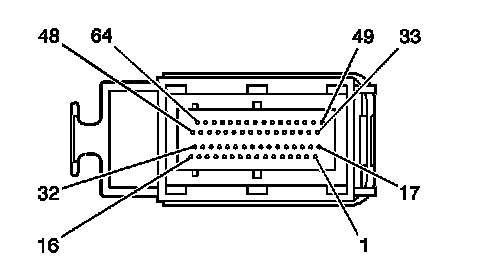

Engine Control Module Connector End Views

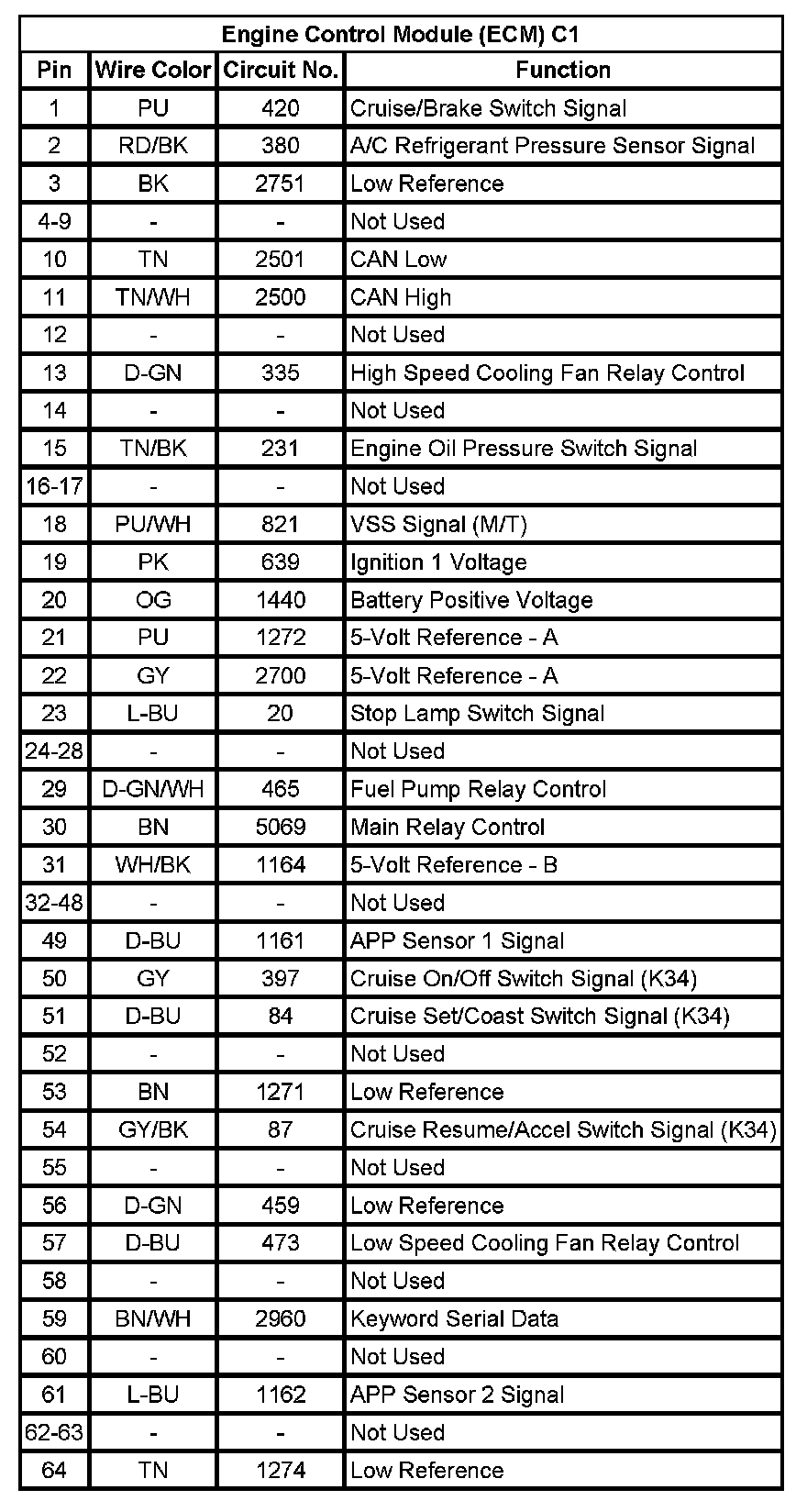

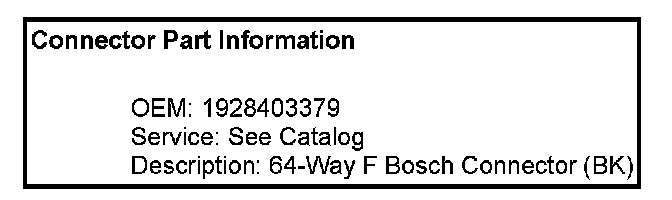

Engine Control Module (ECM) C1

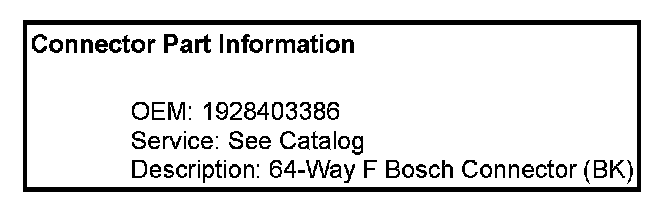

Engine Control Module (ECM) C2

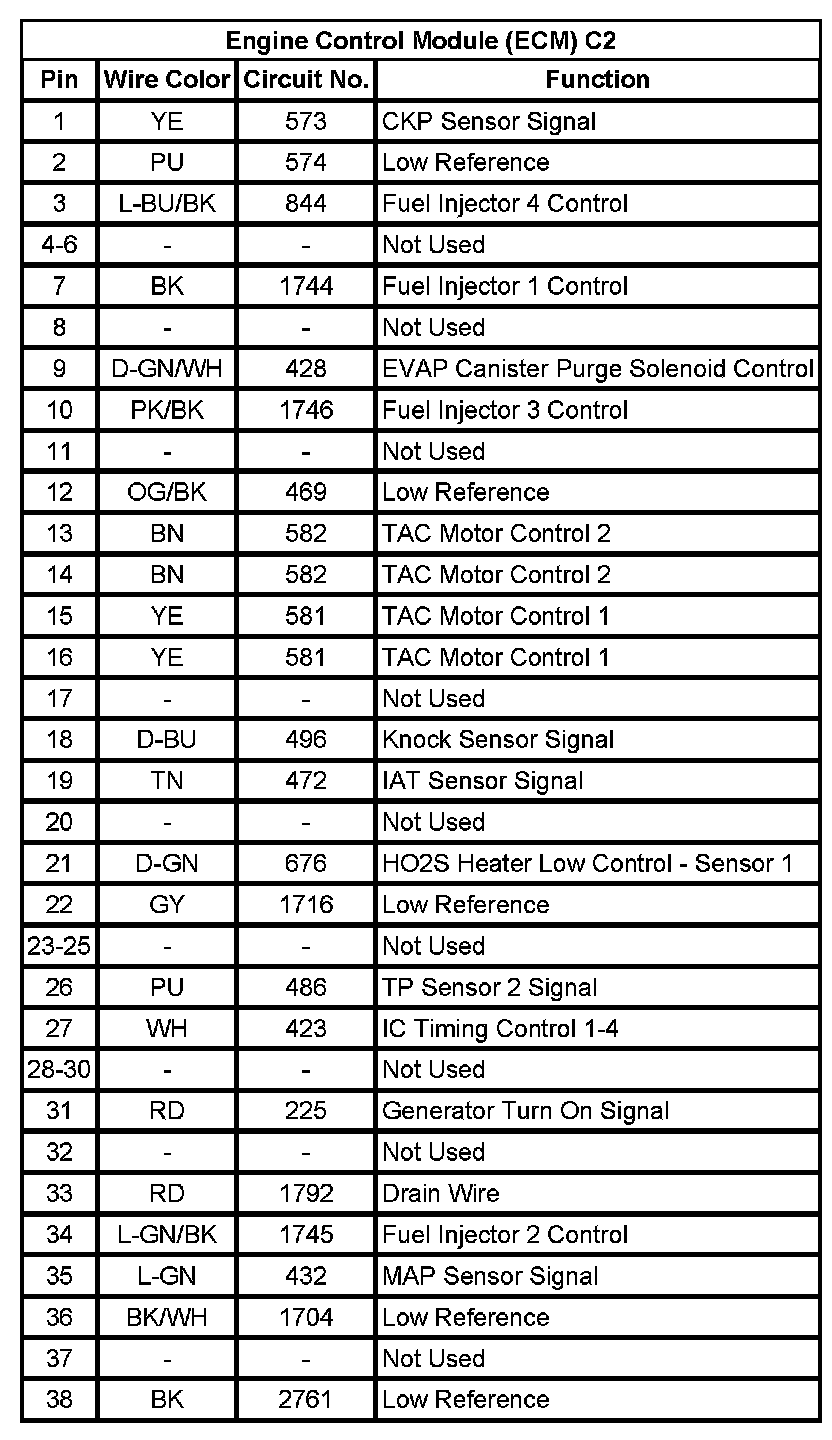

Engine Control Module (ECM) C2 (Pin 1 To 38):

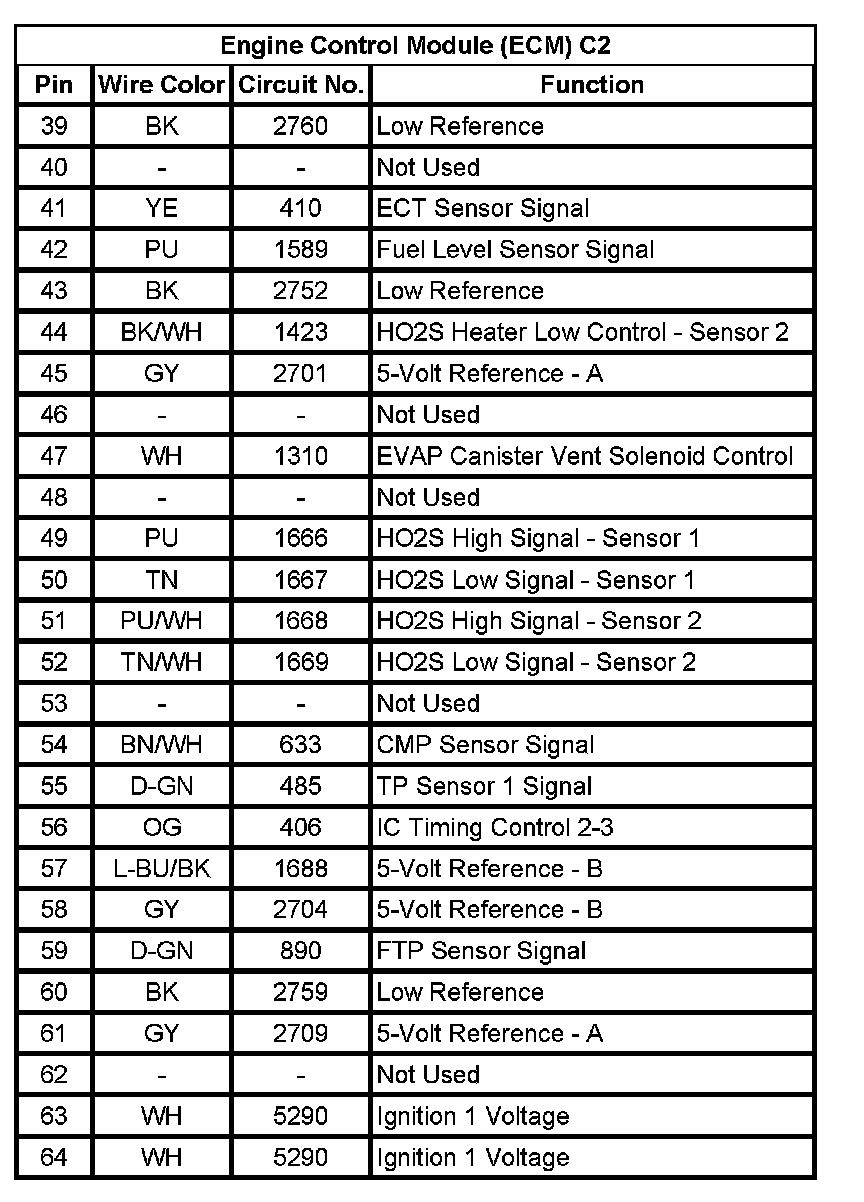

Engine Control Module (ECM) C2 (Pin 39 To 64):
