Home >> Saturn >> 2007 >> VUE FWD L4-2.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Electronic Brake Control Module

Electronic Brake Control Module

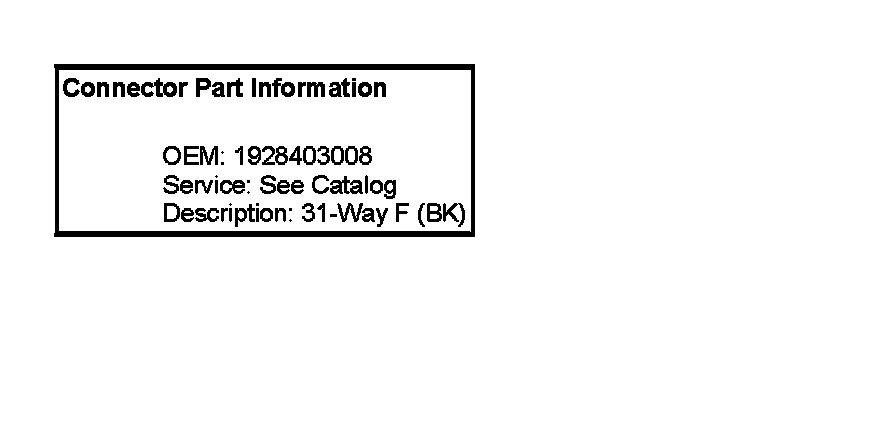

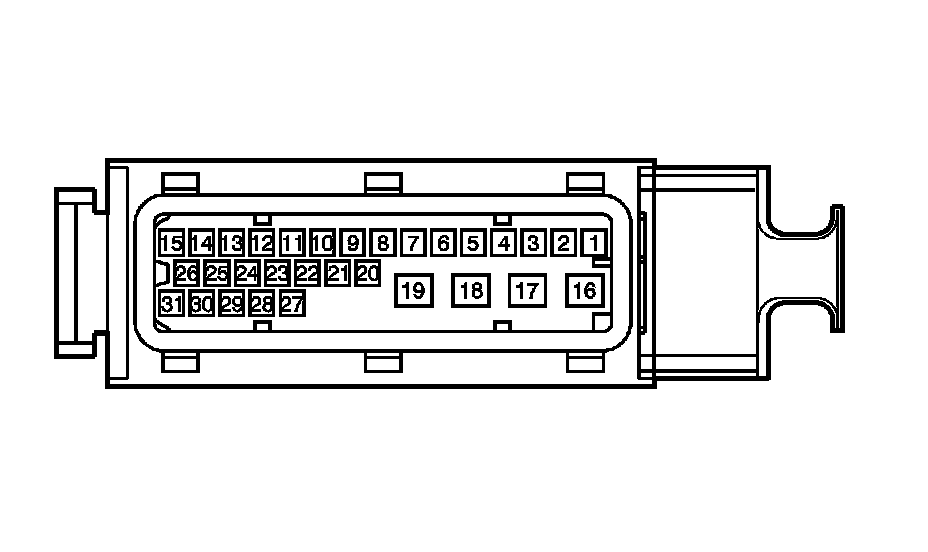

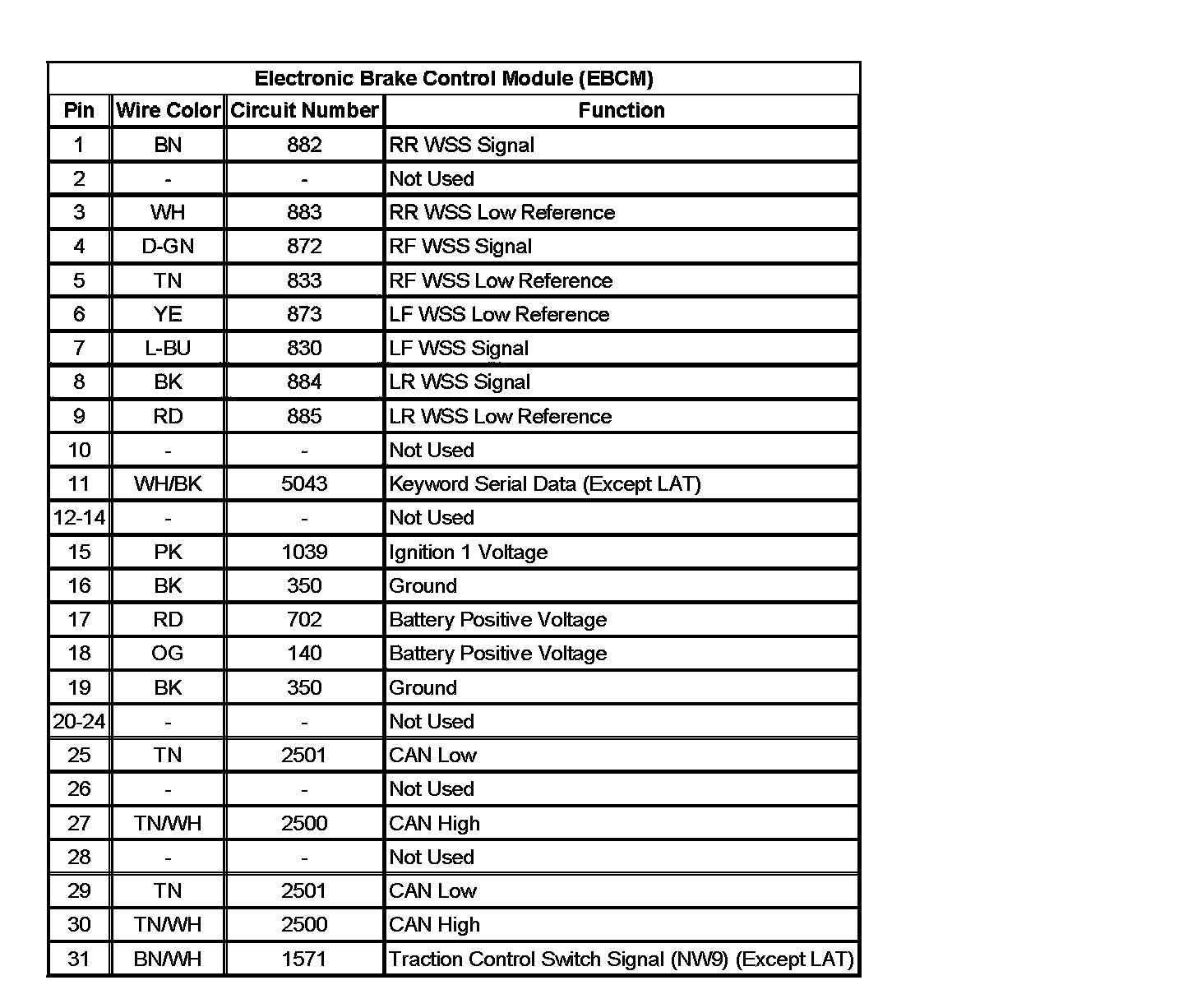

Electronic Brake Control Module (EBCM)







Electronic Brake Control Module (EBCM):
