Home >> Saturn >> 2007 >> VUE FWD L4-2.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Brake Fluid Level Sensor/Switch

Brake Fluid Level Sensor/Switch

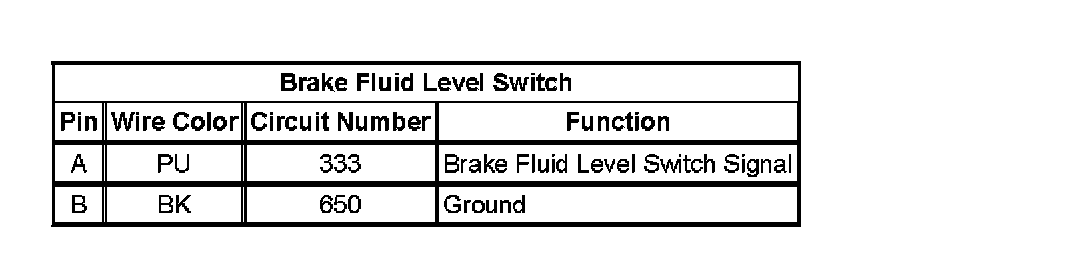

Brake Fluid Level Switch

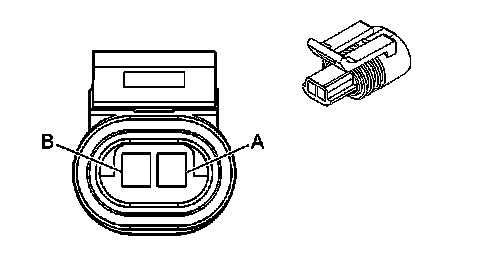

Brake Fluid Level Switch:
