Home >> Saturn >> 2007 >> Sky L4-2.4L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Locations >> Body Control Module

Body Control Module

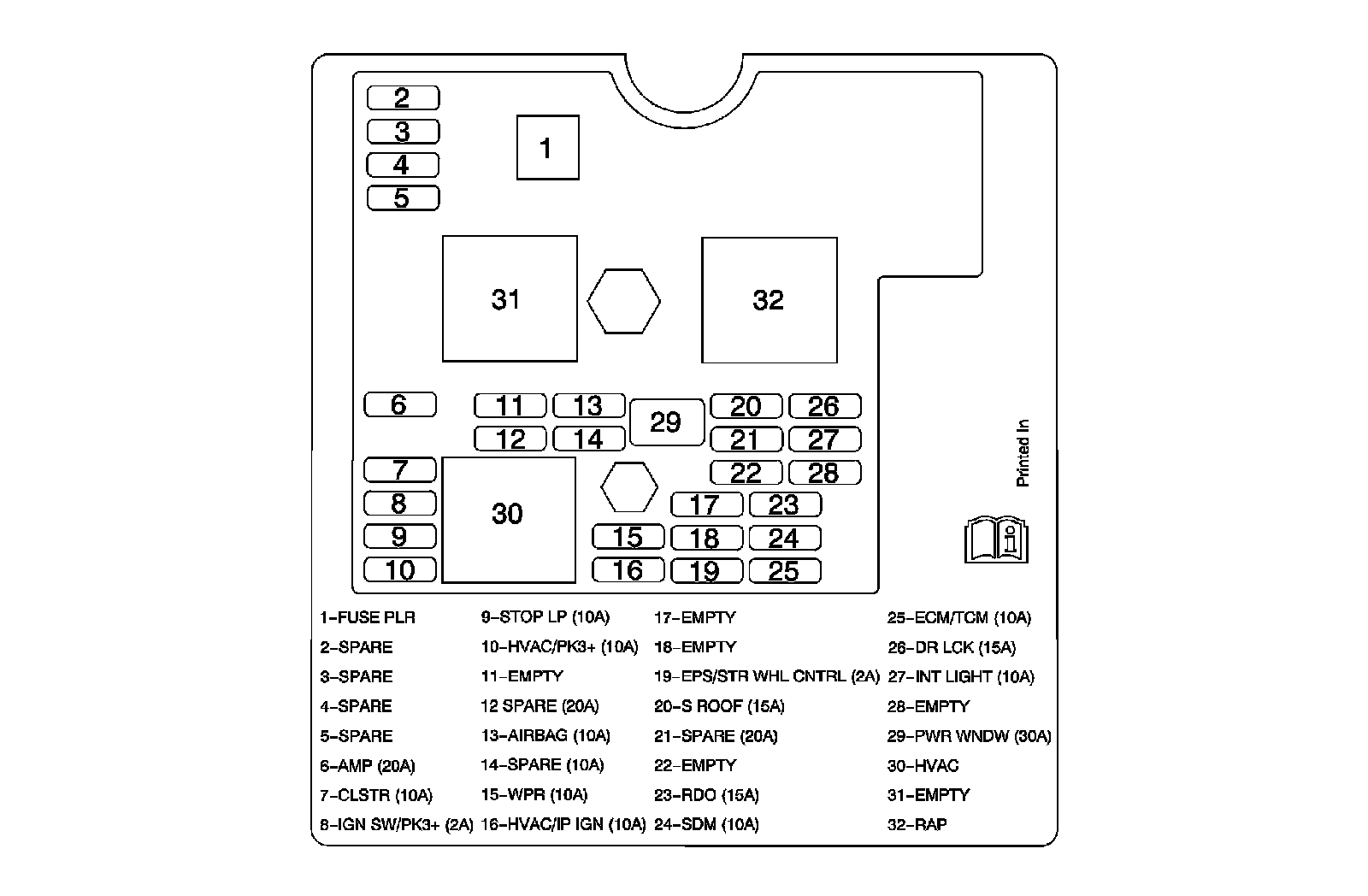

Electrical Center Identification Views

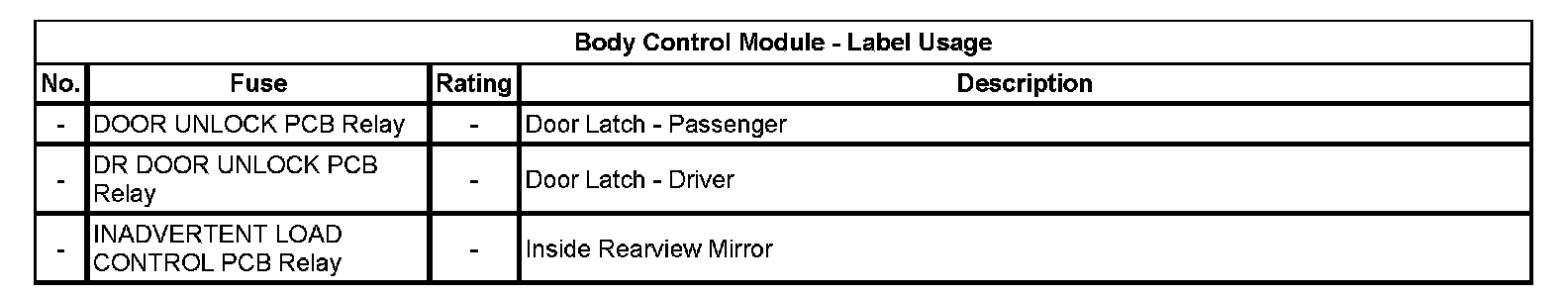

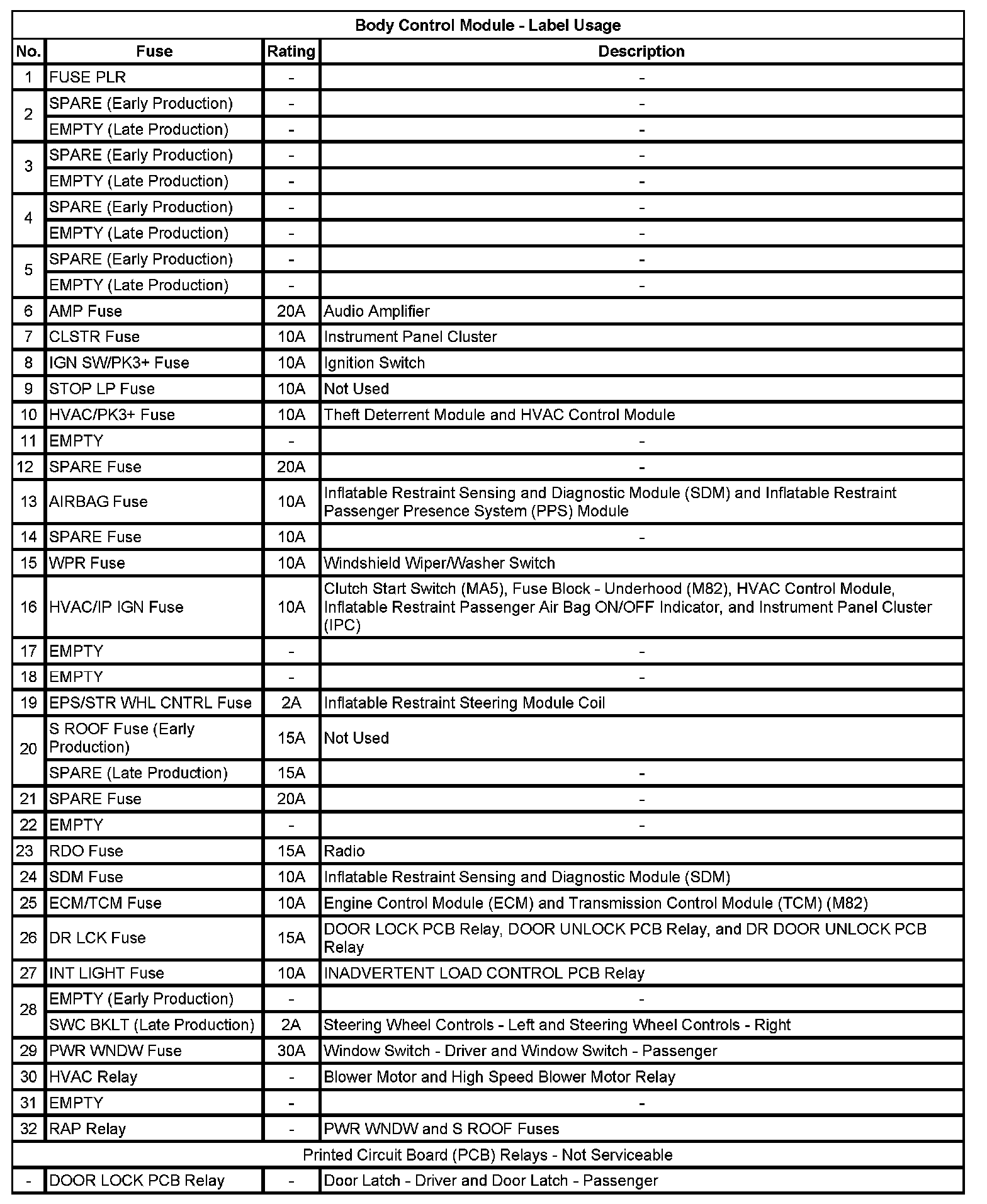

Body Control Module Label (Early Production)






Body Control Module Label (Late Production)
