Home >> Saturn >> 2007 >> Sky L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Control Module

Air Bag Control Module

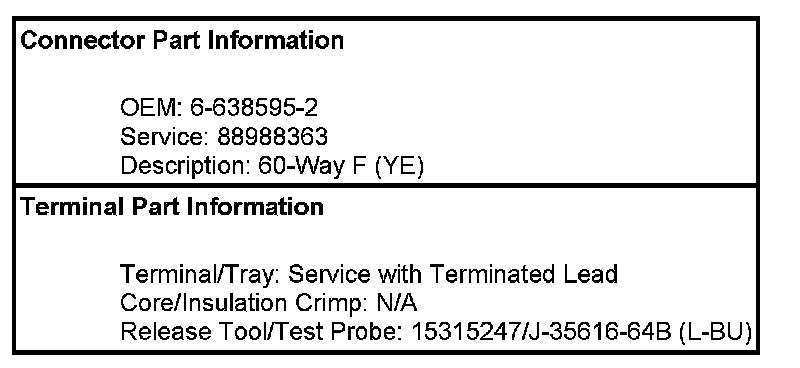

SIR Connector End Views

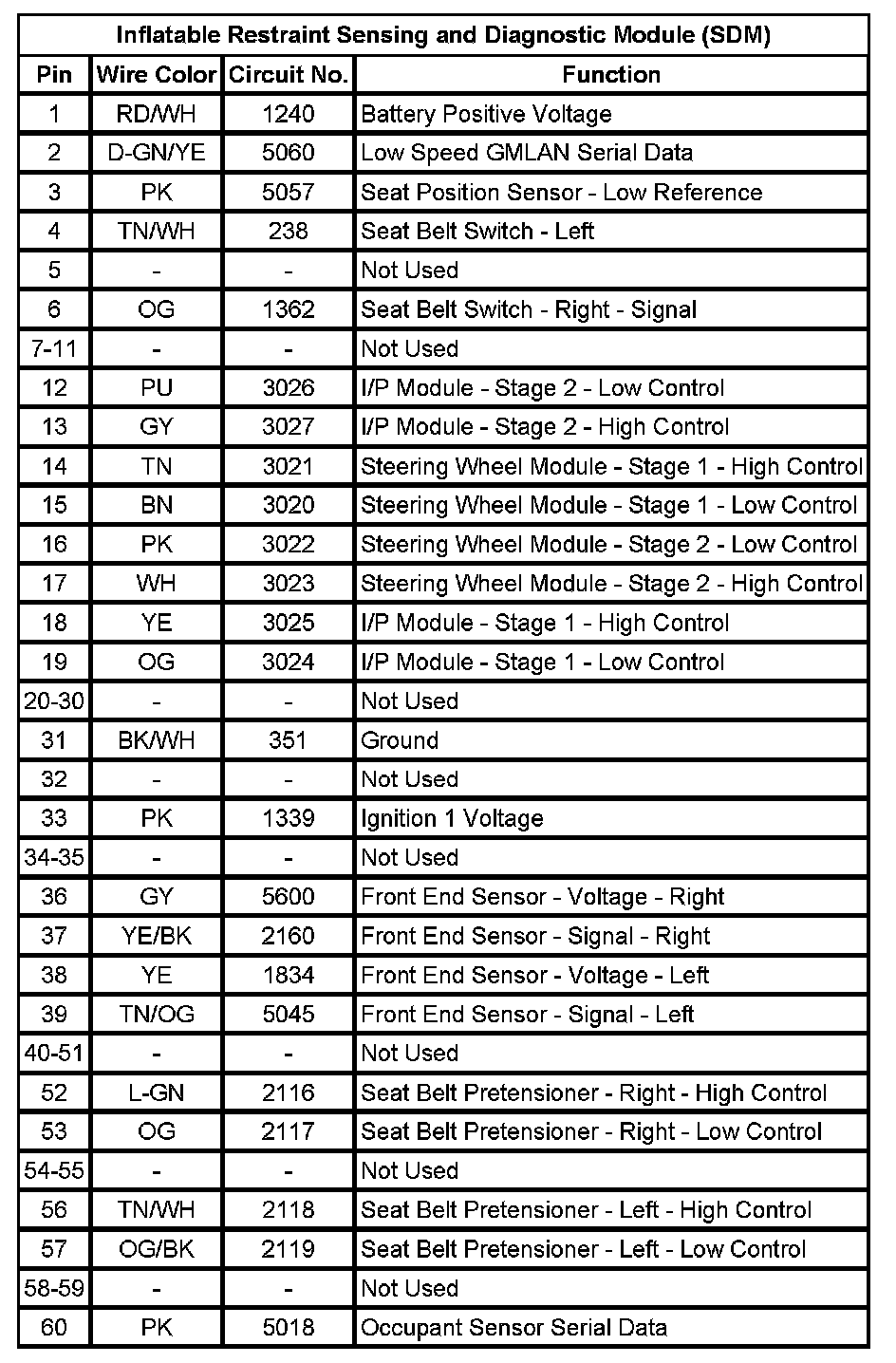

Inflatable Restraint Sensing and Diagnostic Module (SDM)
