Home >> Saturn >> 2007 >> Sky L4-2.0L Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Electronic Brake Control Module

Electronic Brake Control Module

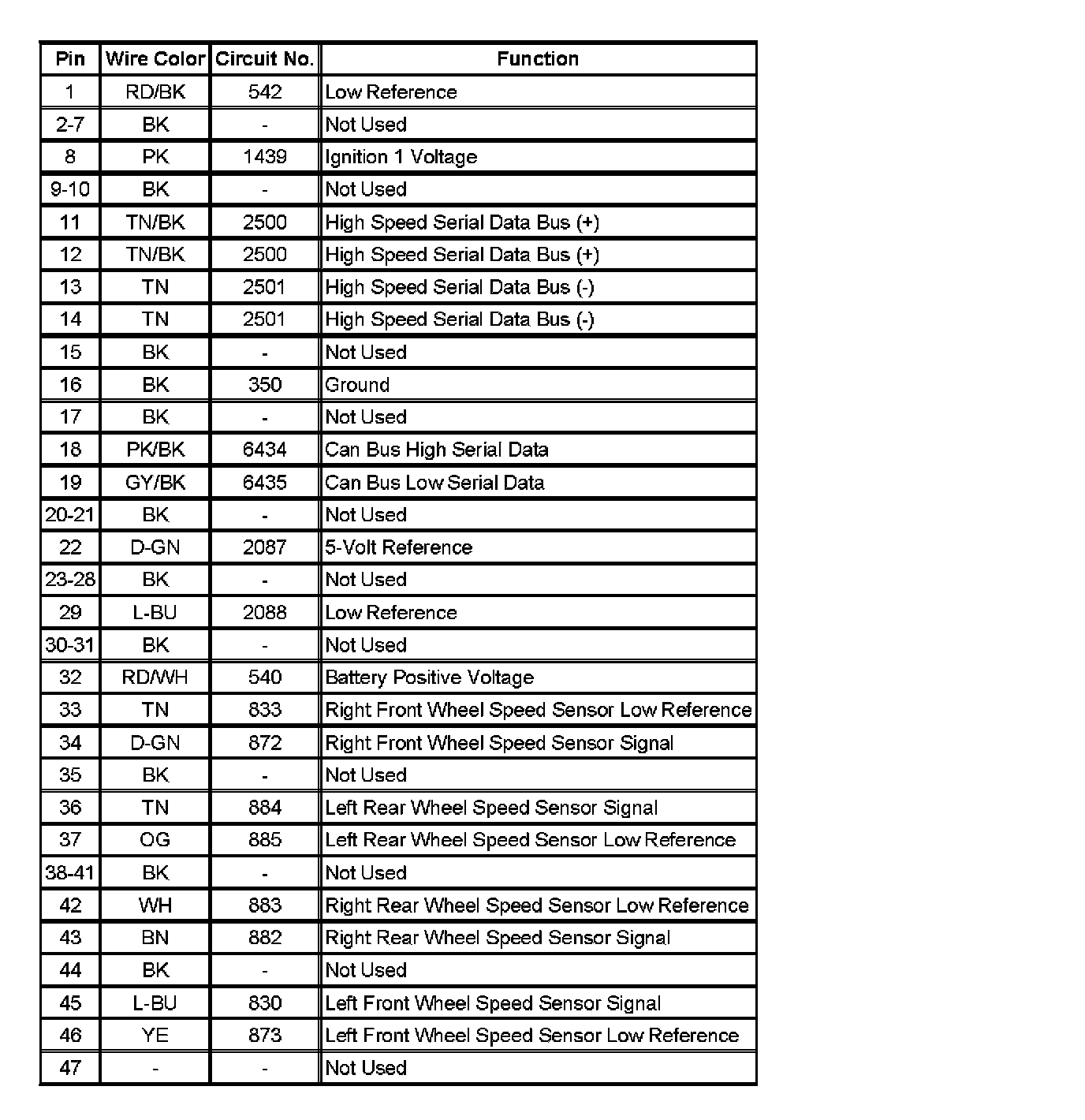

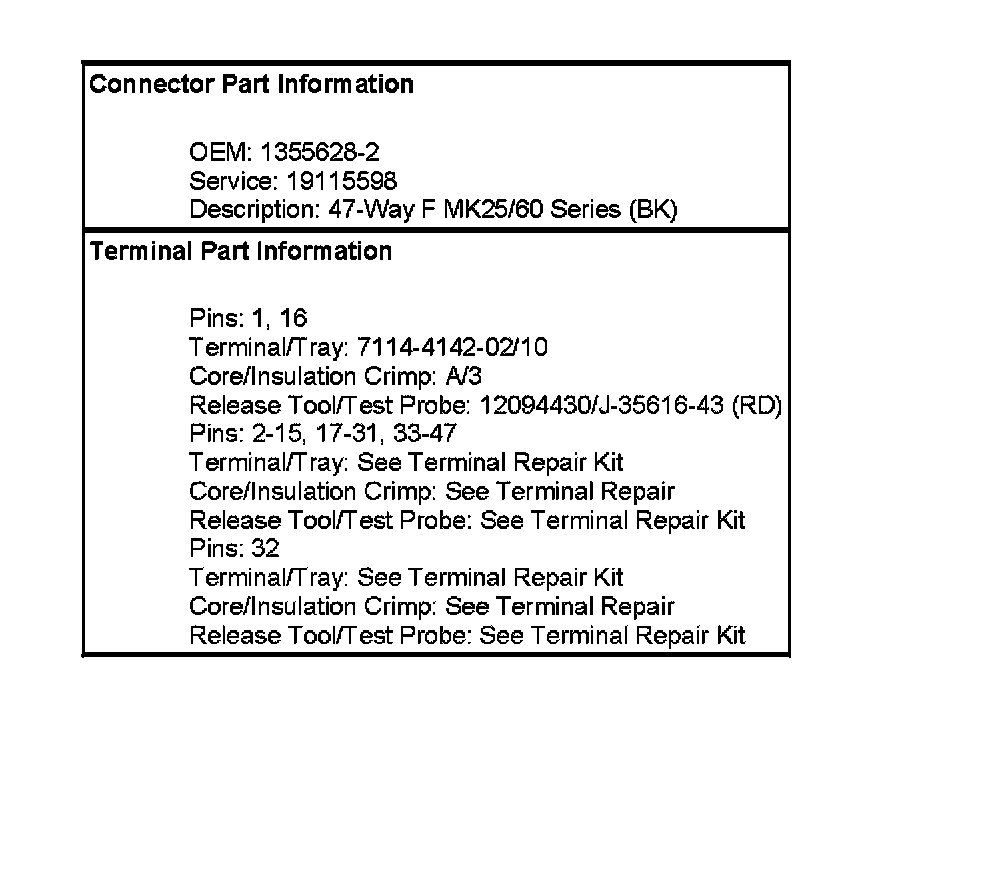

Electronic Brake Controls Module (EBCM) (LNF)







Electronic Brake Controls Module (EBCM) (LNF):
