Power Trunk / Liftgate Control Module

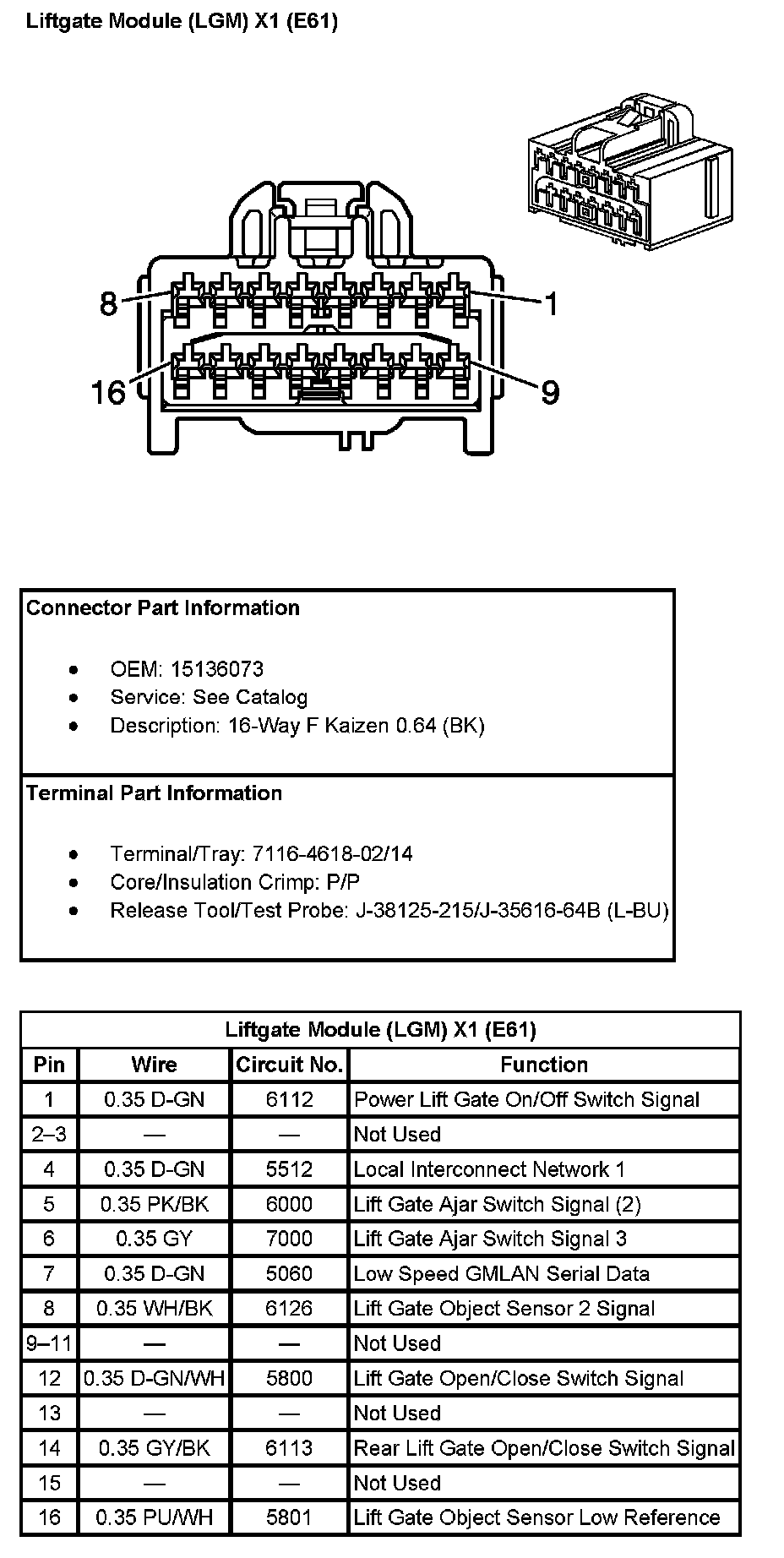

Liftgate Module (LGM) X1 (With RPO Code E61):

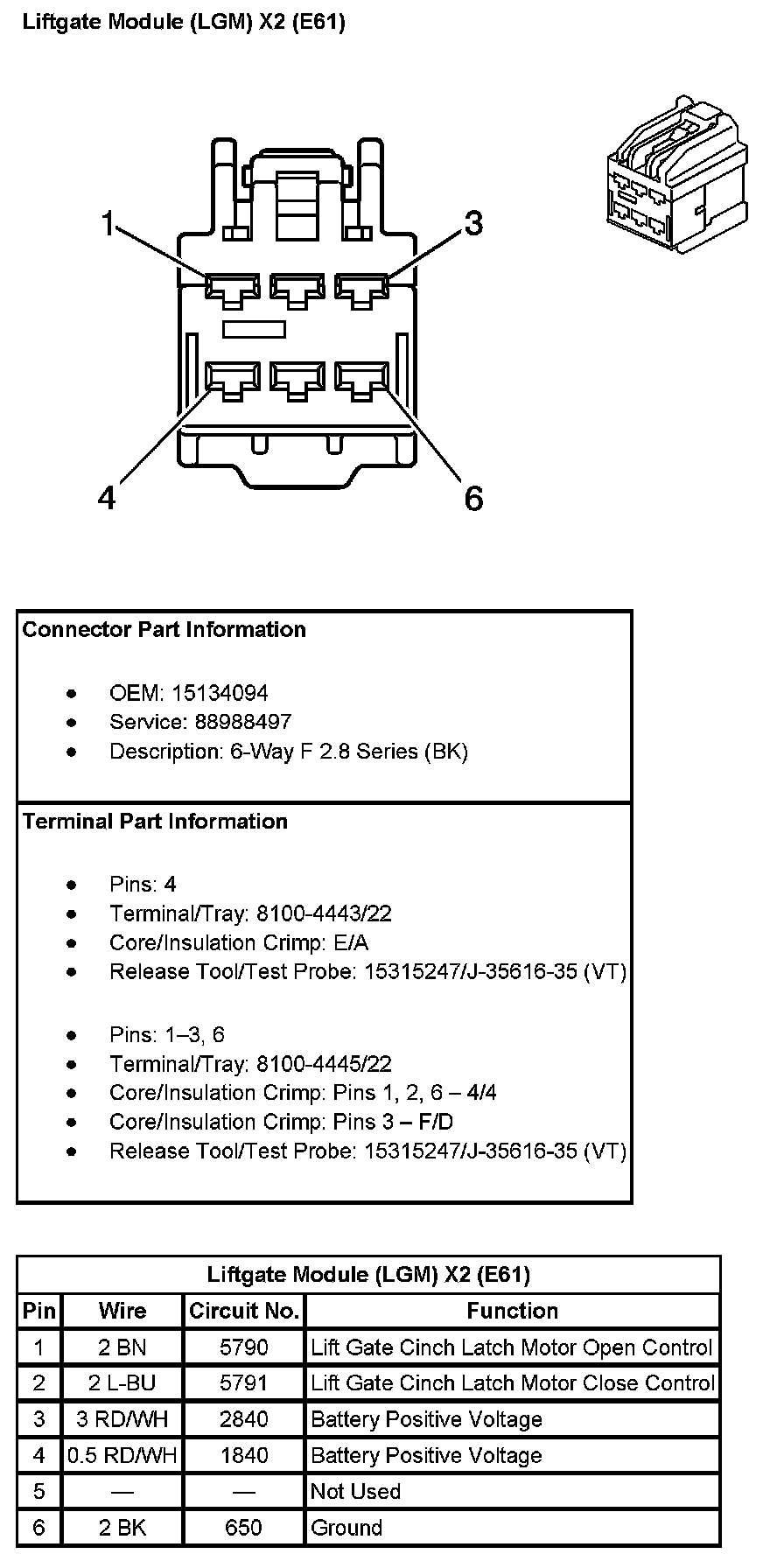

Liftgate Module (LGM) X2 (With RPO Code E61):

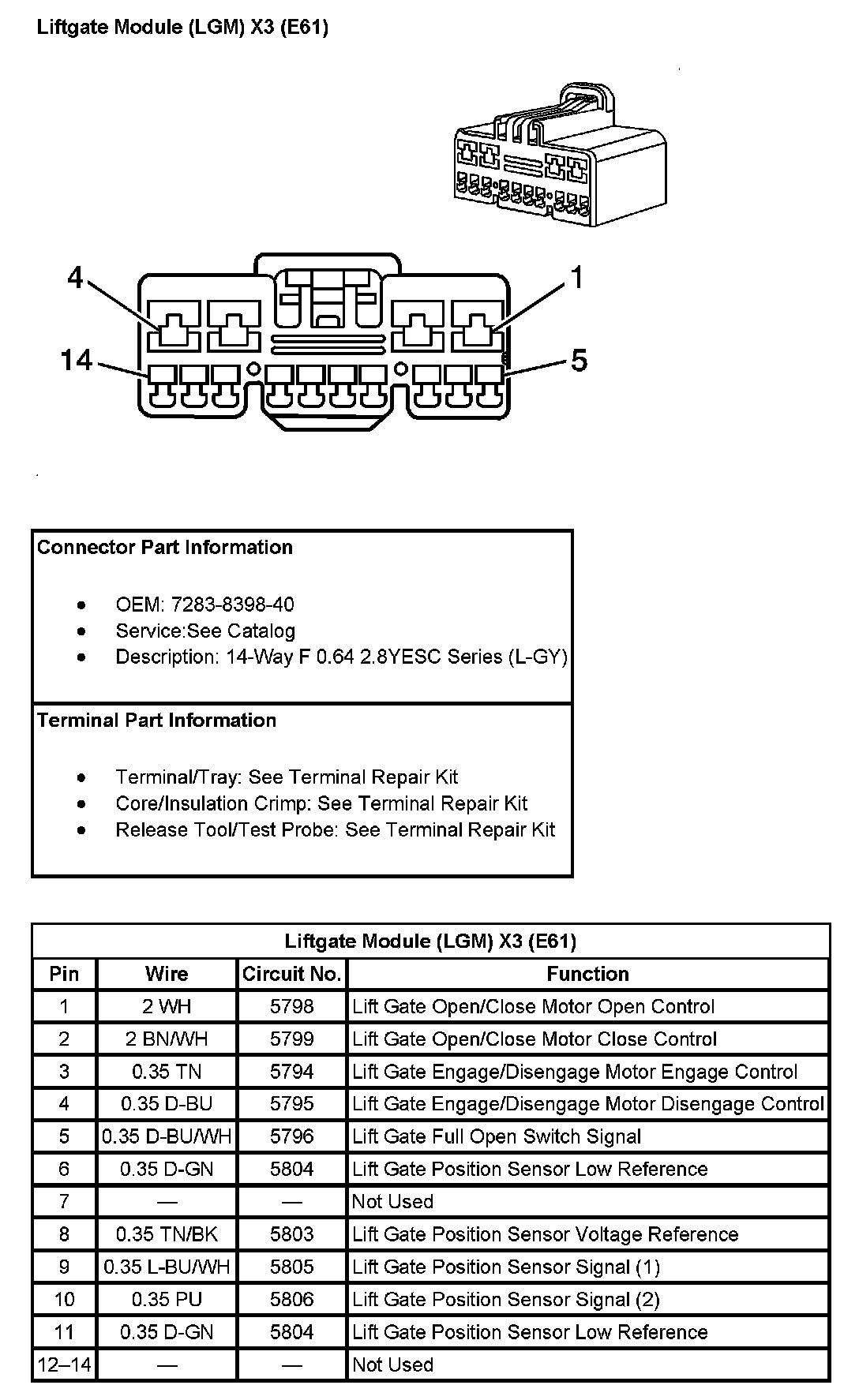

Liftgate Module (LGM) X3 (With RPO Code E61):
