Home >> Saturn >> 2007 >> Outlook V6-3.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> Engine Control Module (ECM) X2

Engine Control Module (ECM) X2

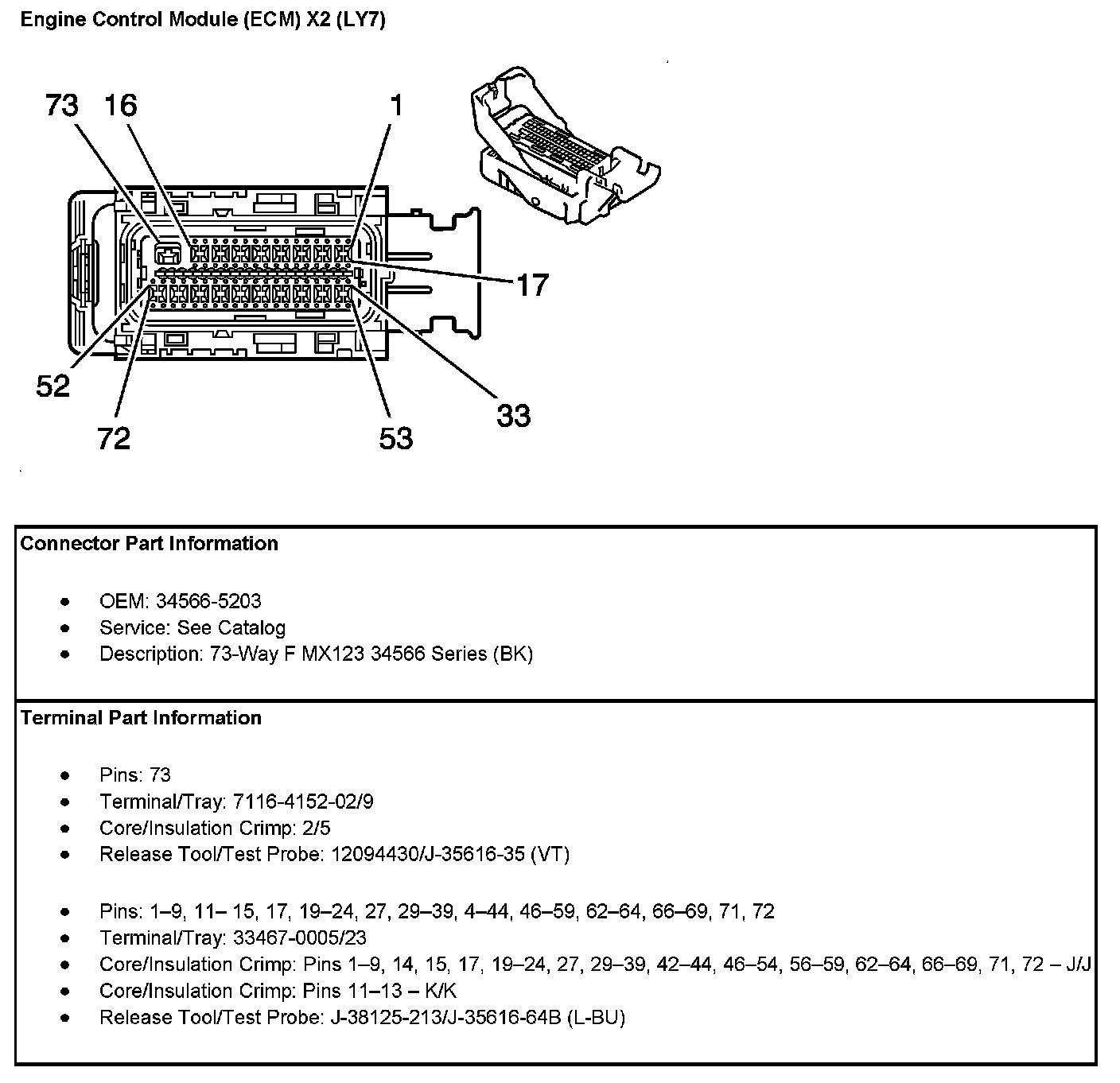

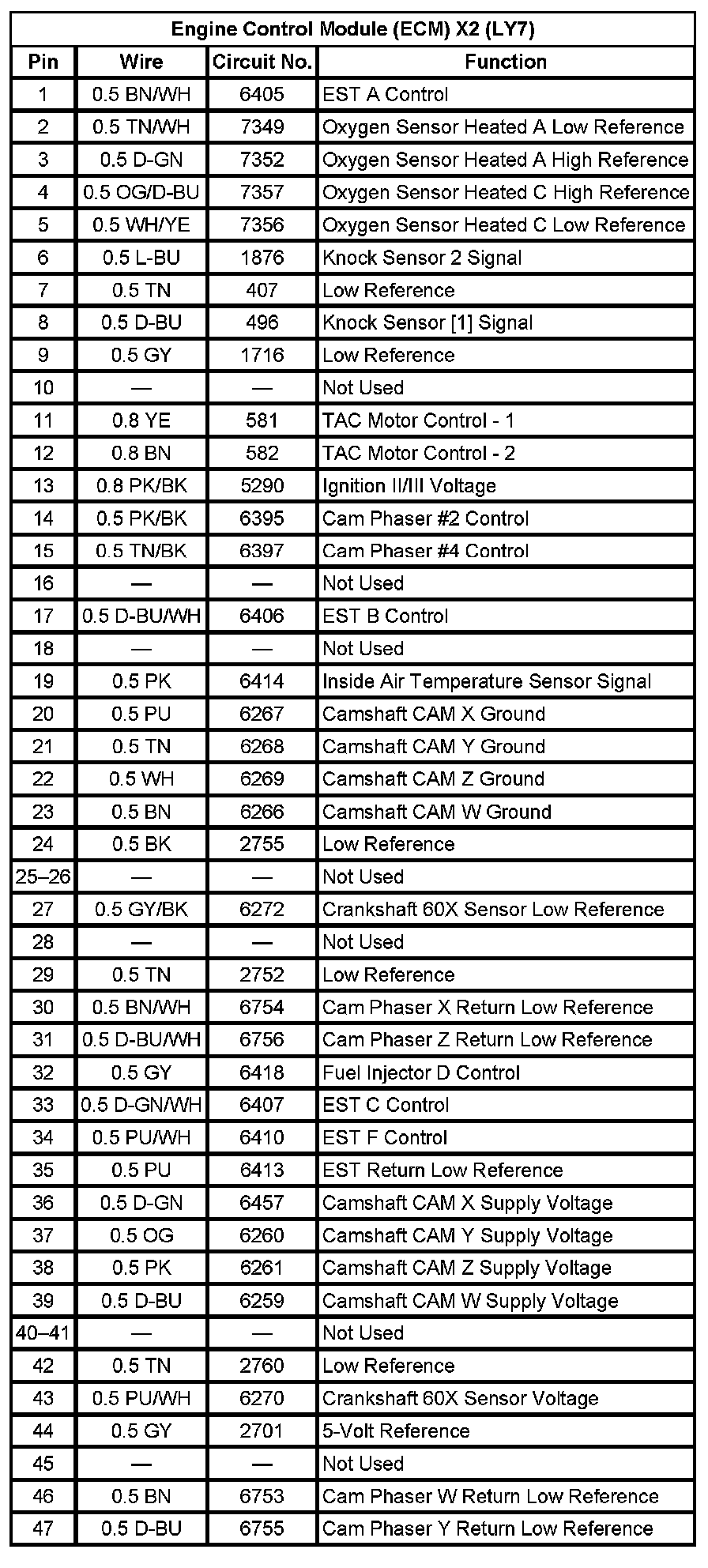

Engine Control Module (ECM) X2 (Part 1):

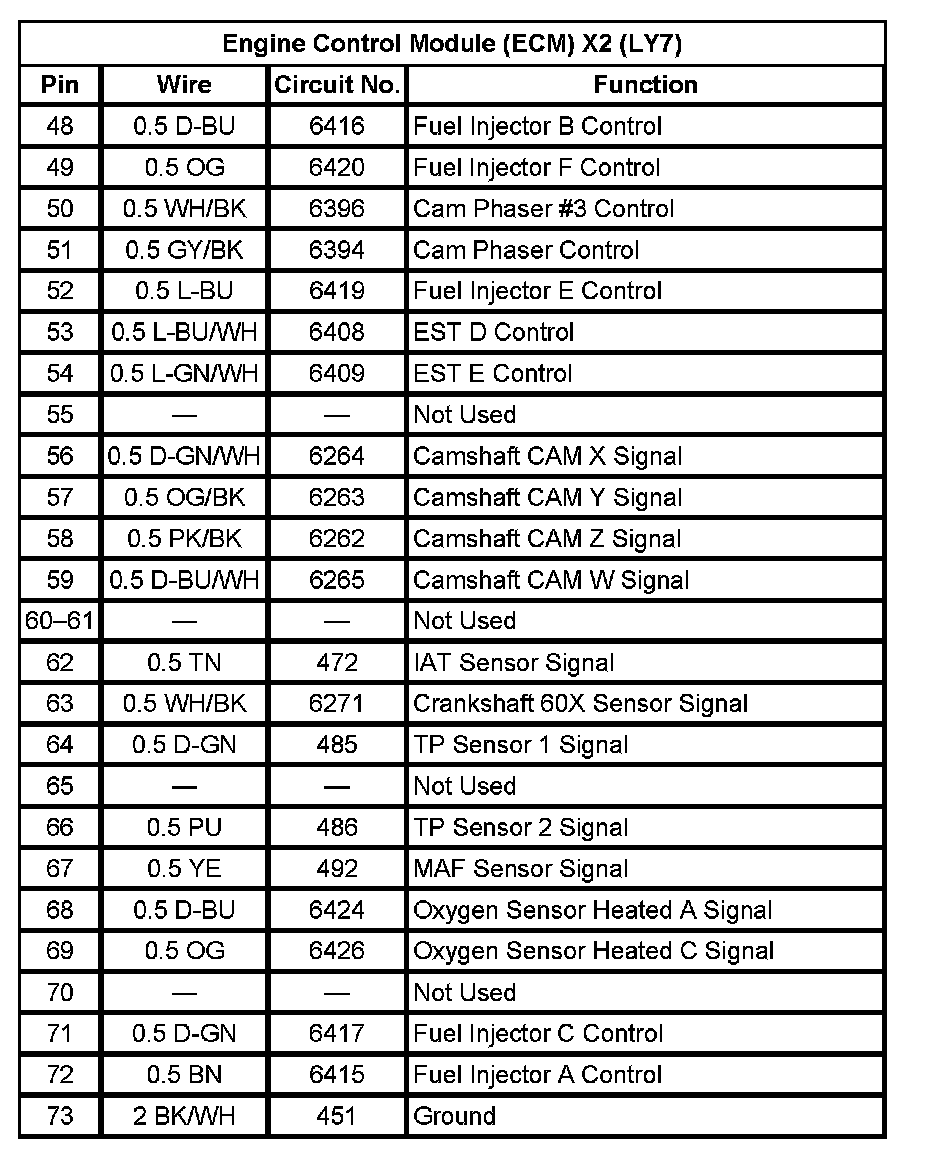

Engine Control Module (ECM) X2 (Part 2):

Engine Control Module (ECM) X2 (Part 3):
