Home >> Saturn >> 2007 >> Outlook V6-3.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Electronic Brake Control Module

Electronic Brake Control Module

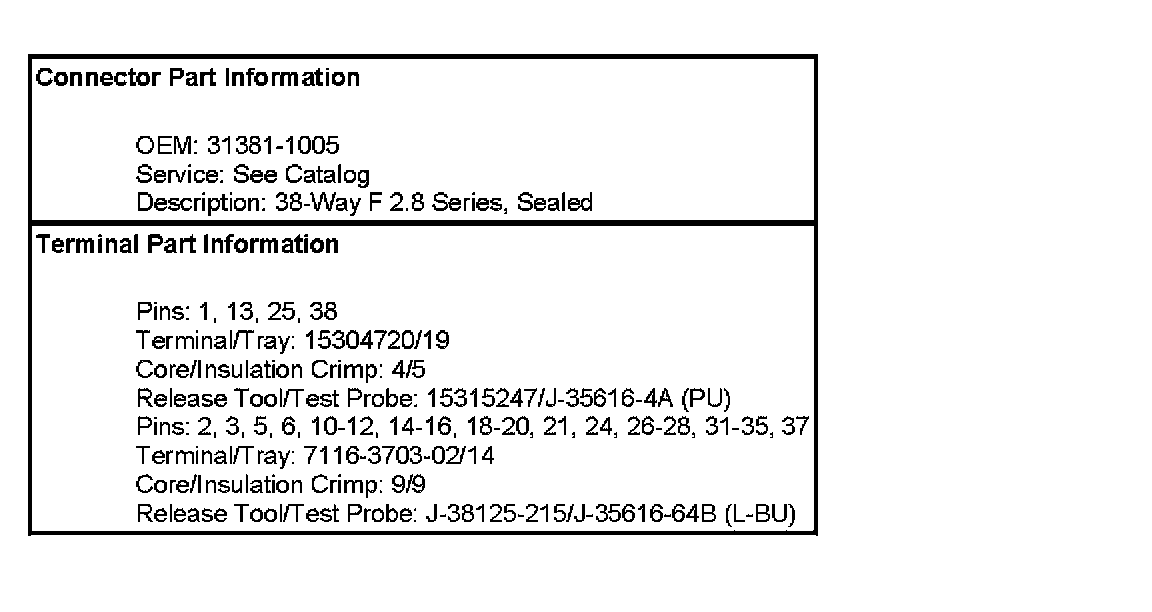

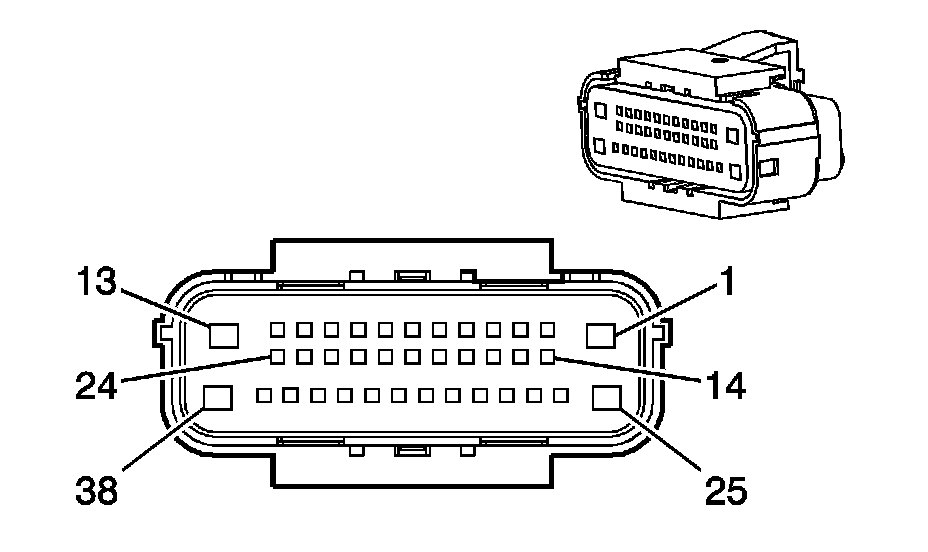

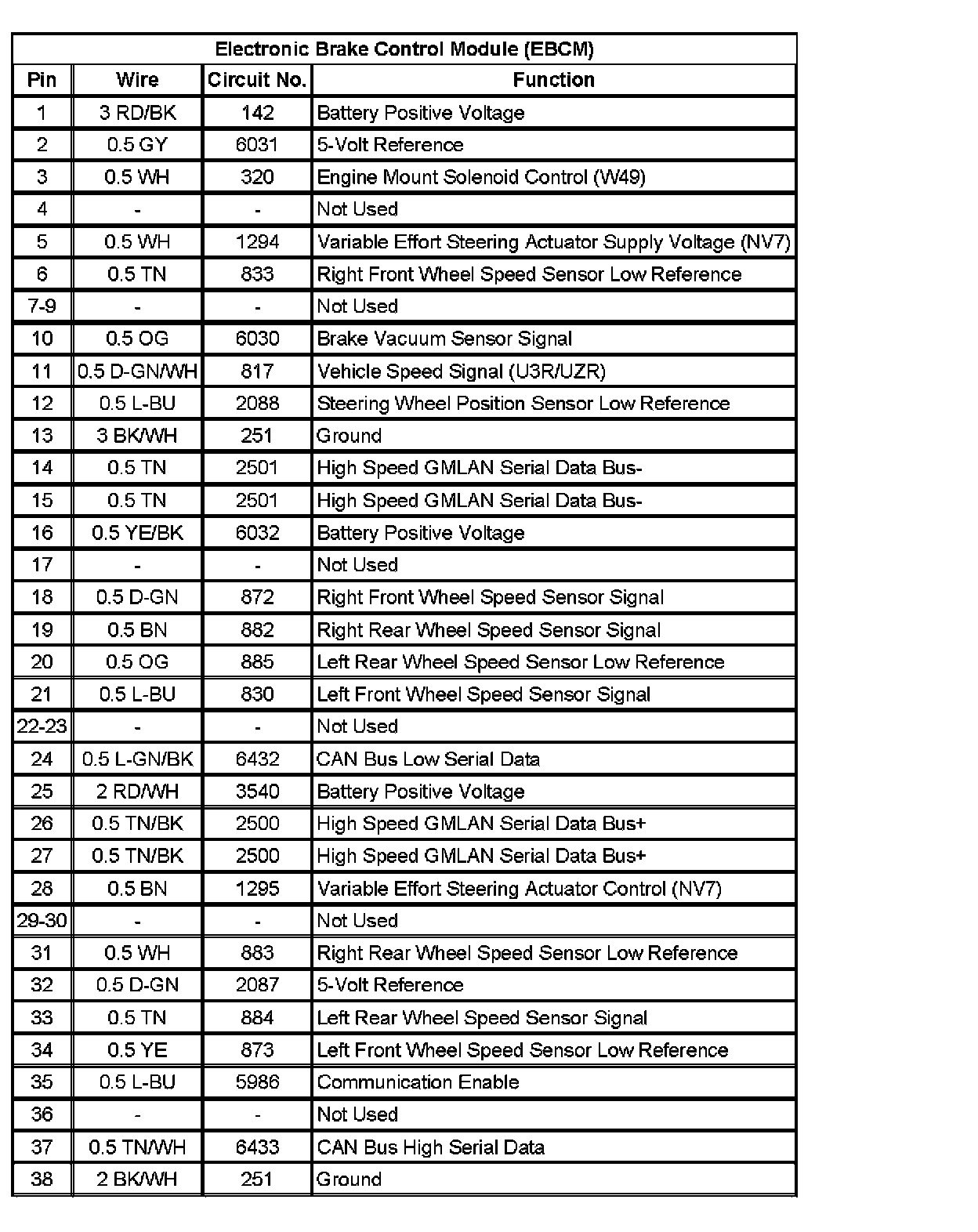

Electronic Brake Control Module (EBCM)







Electronic Brake Control Module (EBCM):
