Control Module, Transfer Case
Control Module, Transfer Case
Transfer Case Control Connector End Views

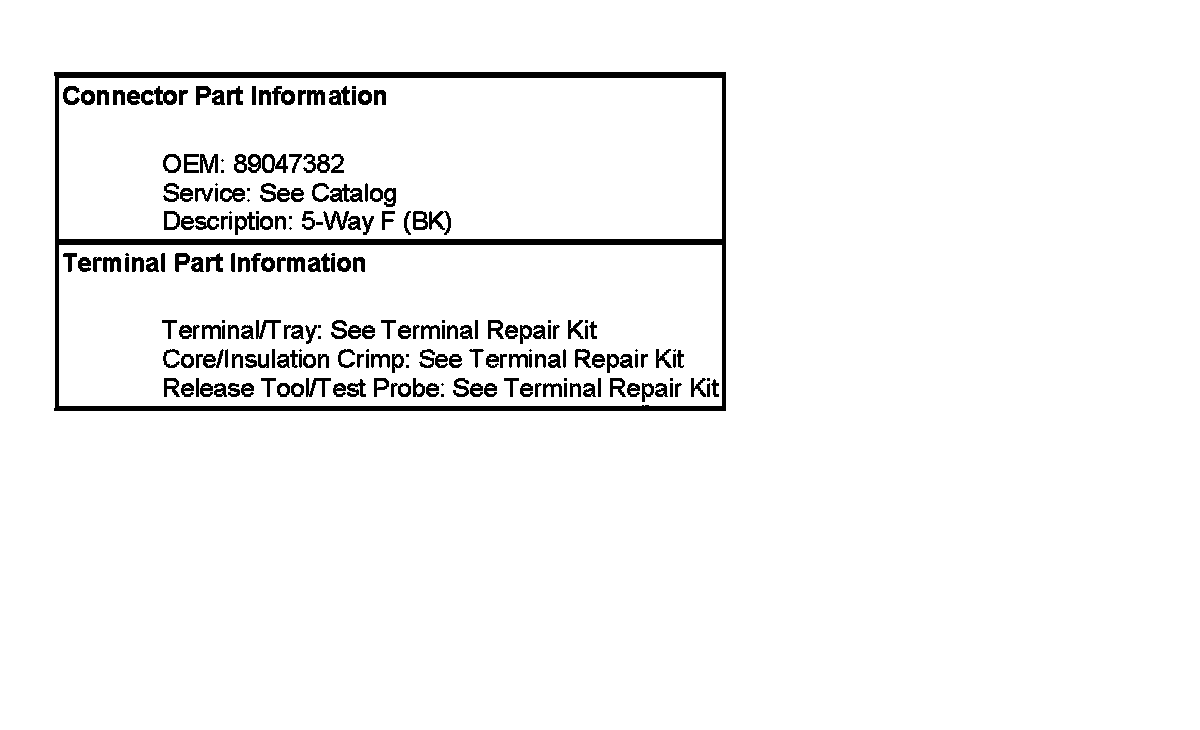

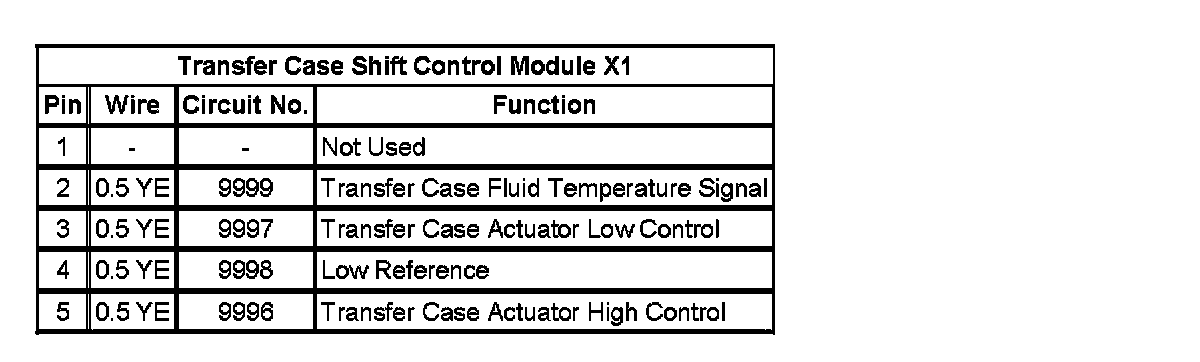

Transfer Case Shift Control Module X1:

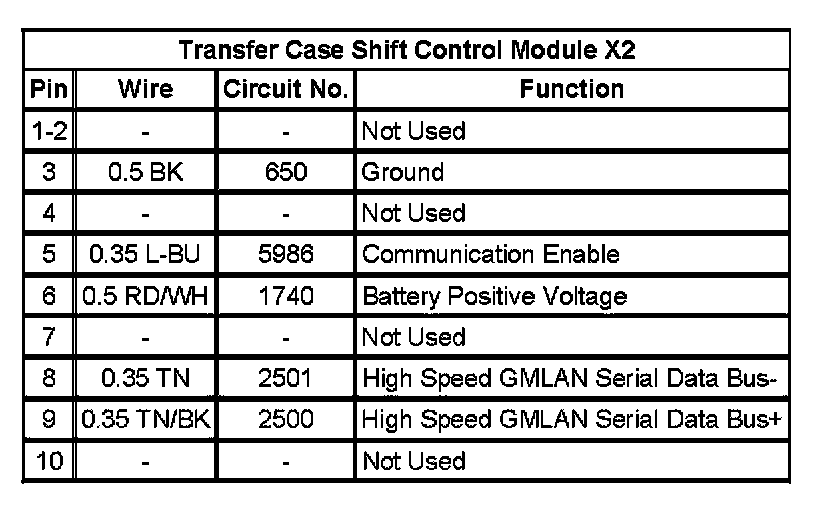

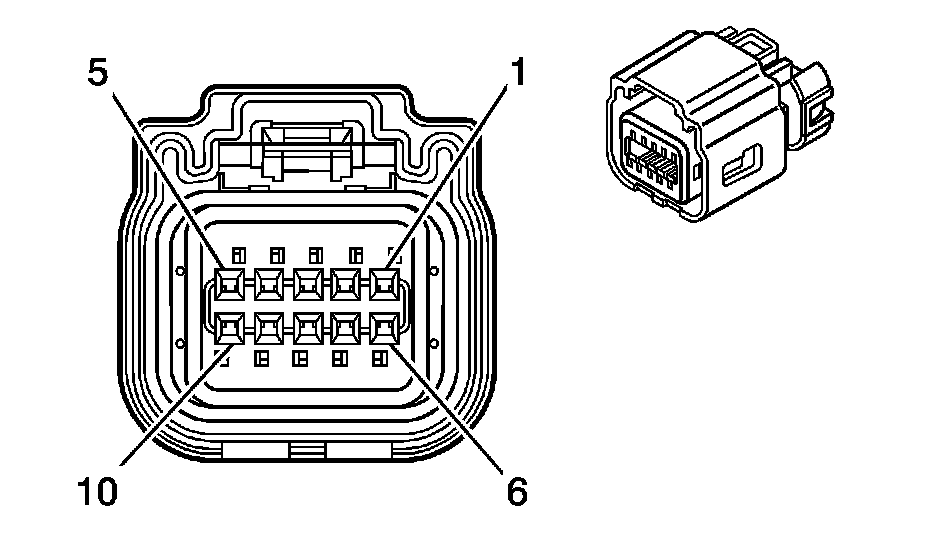

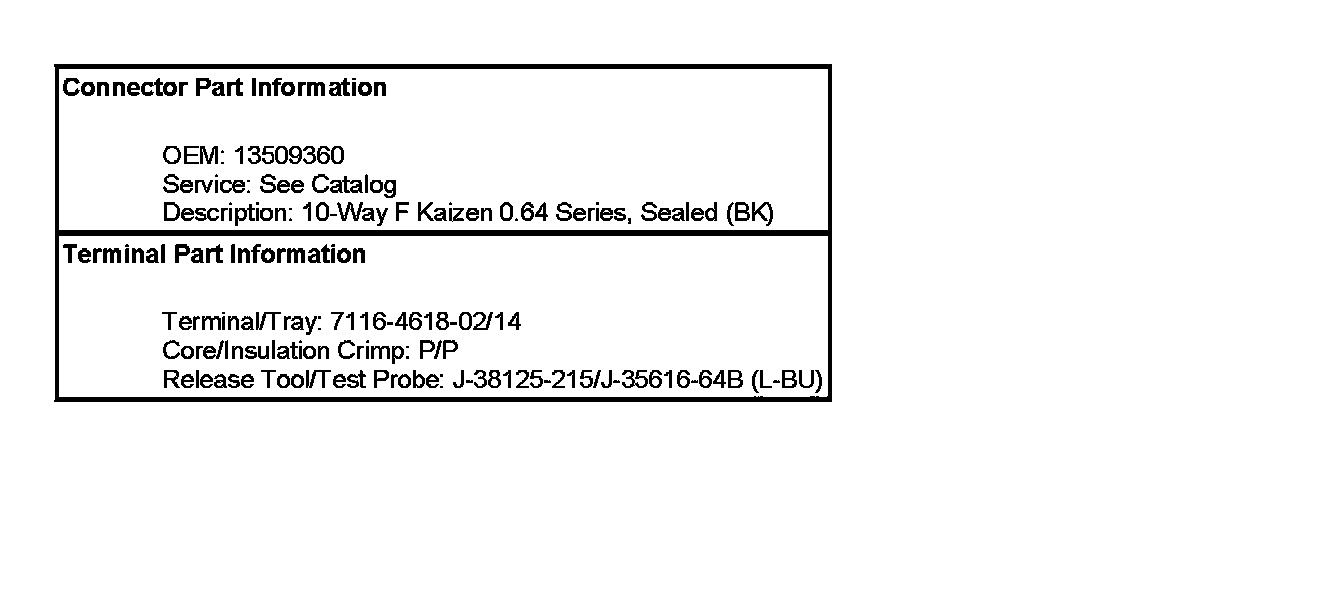

Transfer Case Shift Control Module X2:
