Home >> Saturn >> 2007 >> Outlook V6-3.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Control Module

Air Bag Control Module



SIR Connector End Views

Inflatable Restraint Sensing and Diagnostic Module (SDM) (WDA)

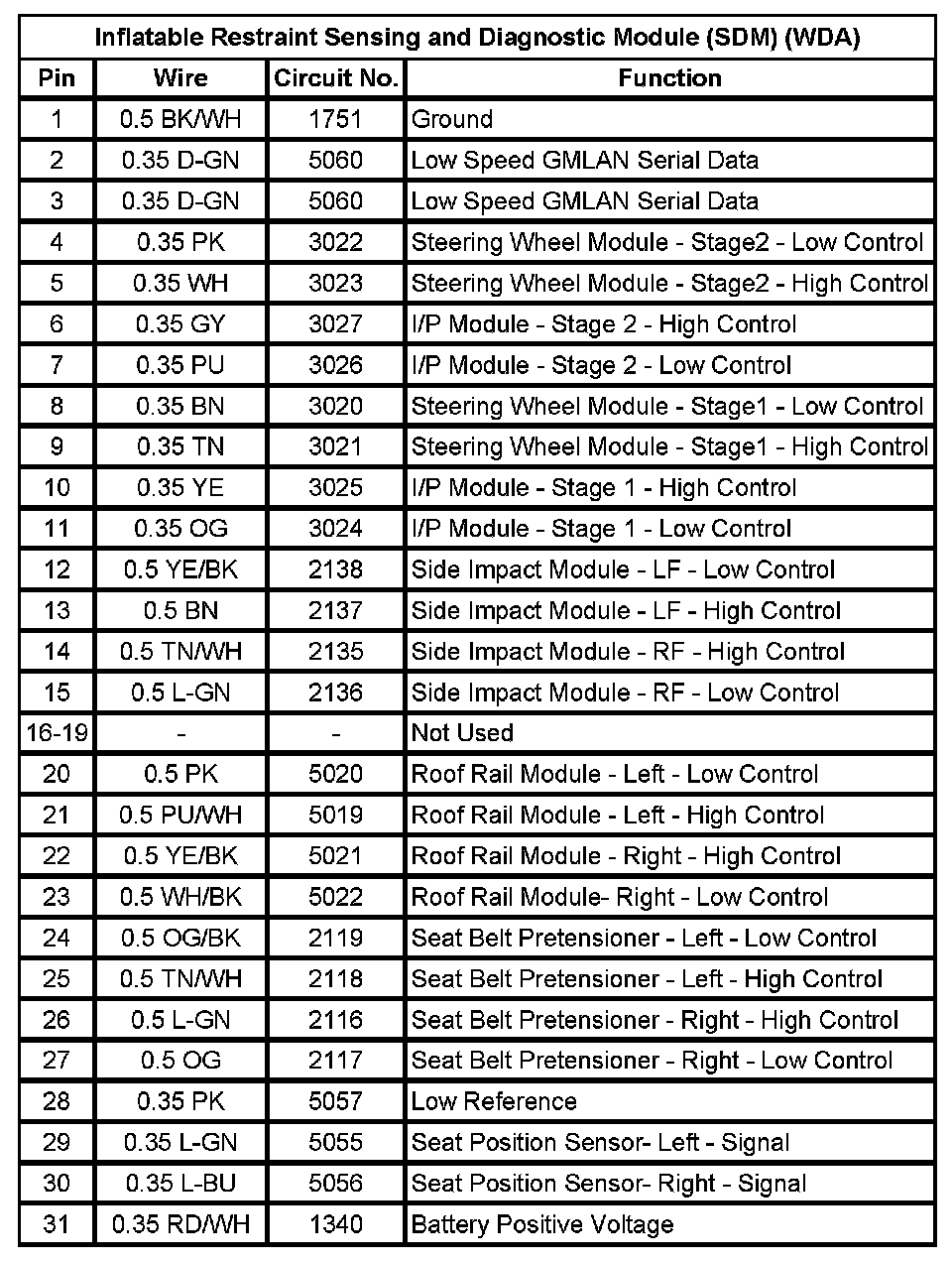

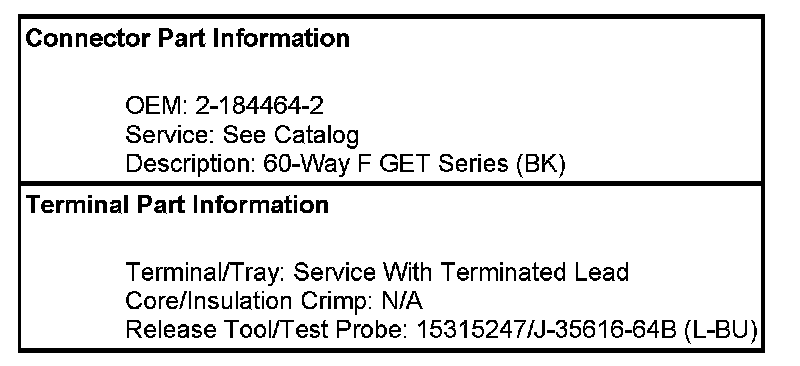

Inflatable Restraint Sensing And Diagnostic Module (SDM) (WDA) (Pin 1 To 31):

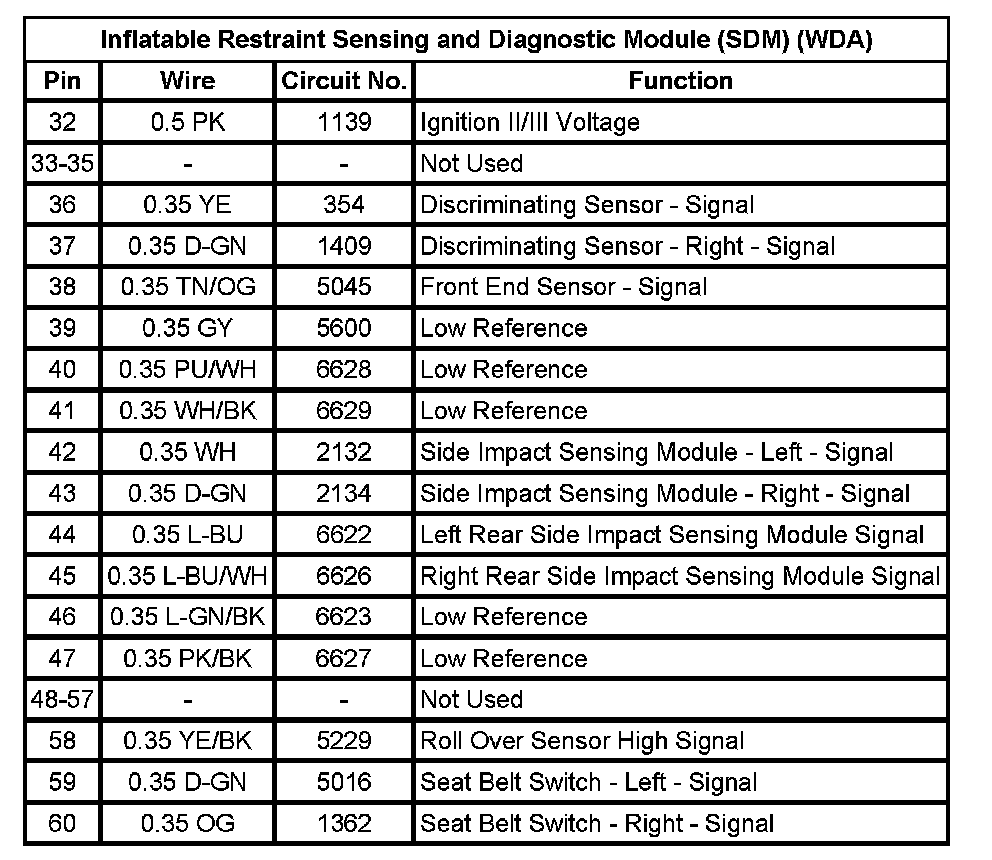

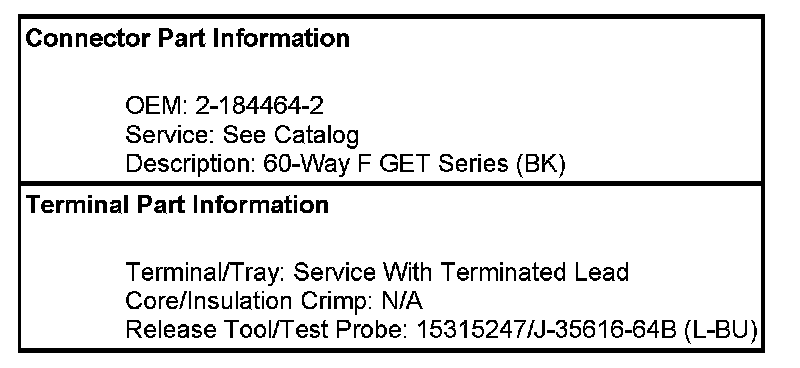

Inflatable Restraint Sensing And Diagnostic Module (SDM) (WDA) (Pin 32 To 60):






Inflatable Restraint Sensing and Diagnostic Module (SDM) (Z88)

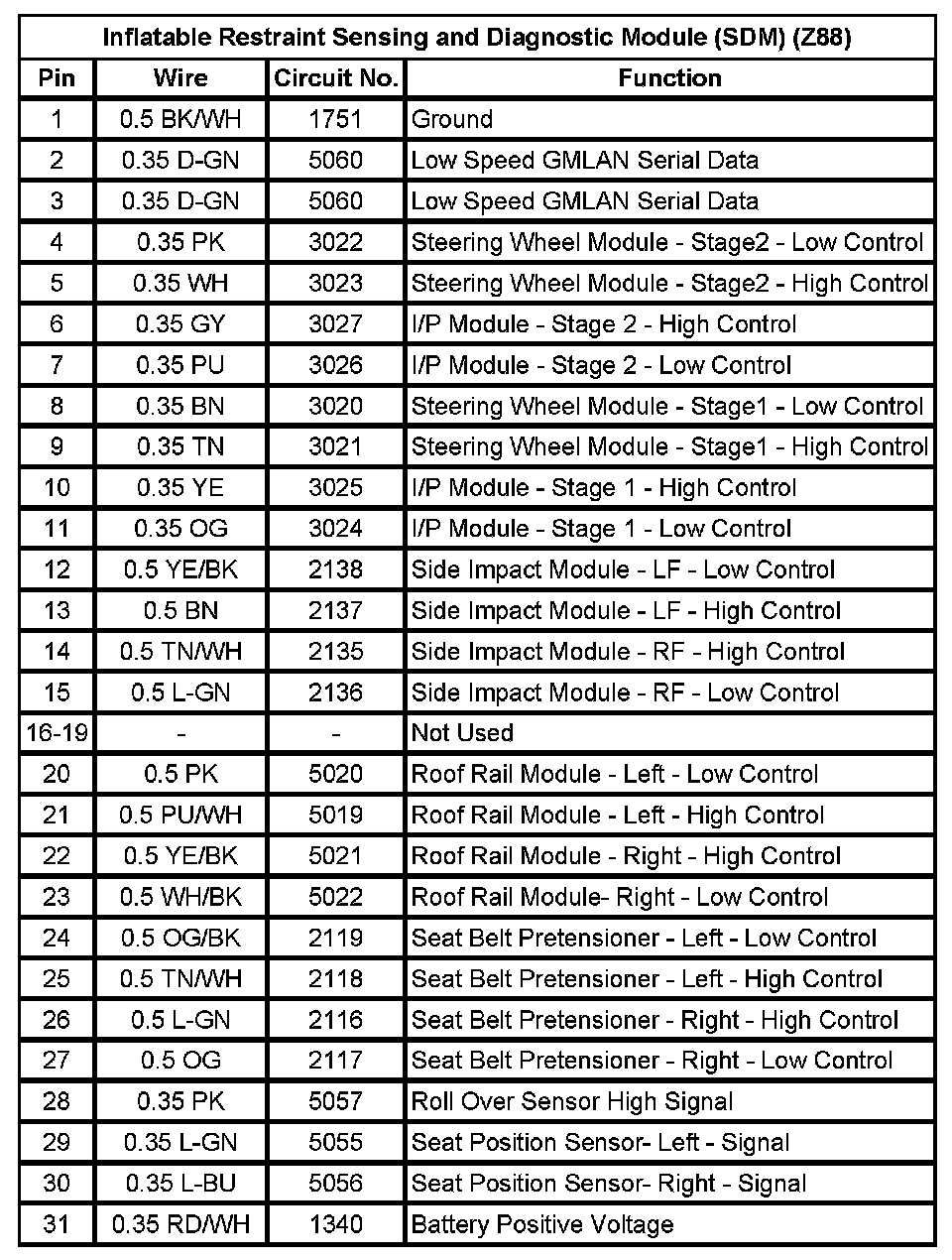

Inflatable Restraint Sensing And Diagnostic Module (SDM) (Z88) (Pin 1 To 31):

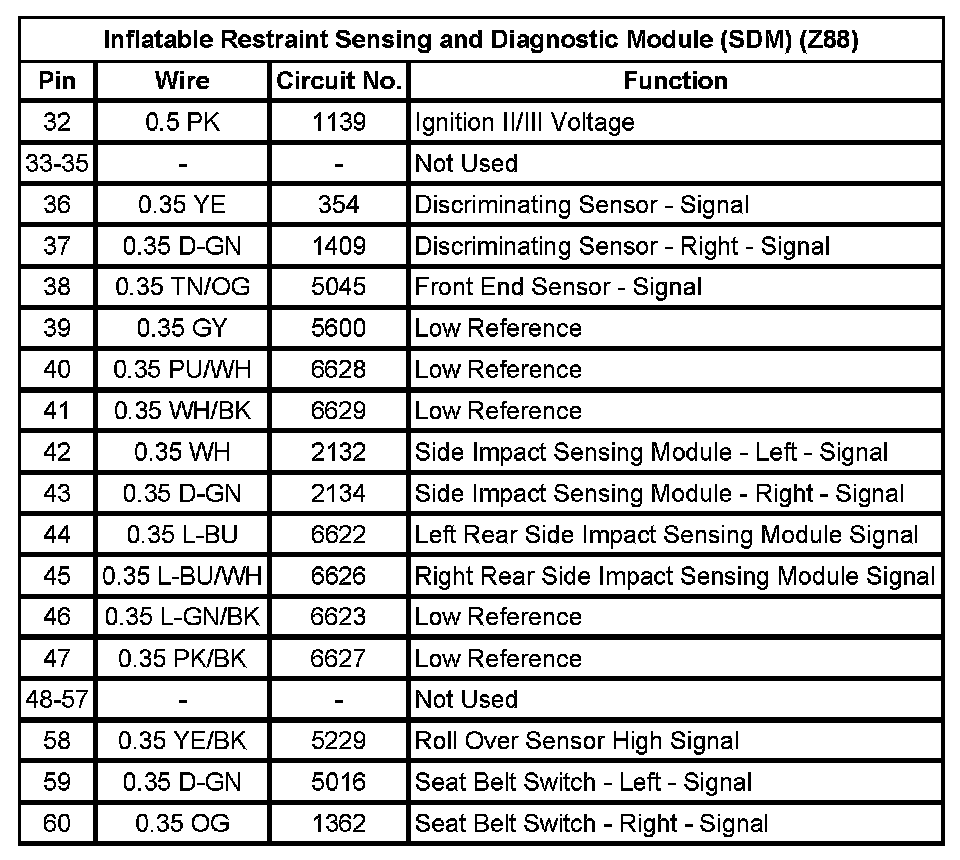

Inflatable Restraint Sensing And Diagnostic Module (SDM) (Z88) (Pin 32 To 60):
