Home >> Saturn >> 2007 >> Outlook V6-3.6L >> Repair and Diagnosis >> Body and Frame >> Locks >> Testing and Inspection >> Scan Tool Testing and Procedures >> Scan Tool Output Controls

Scan Tool Output Controls

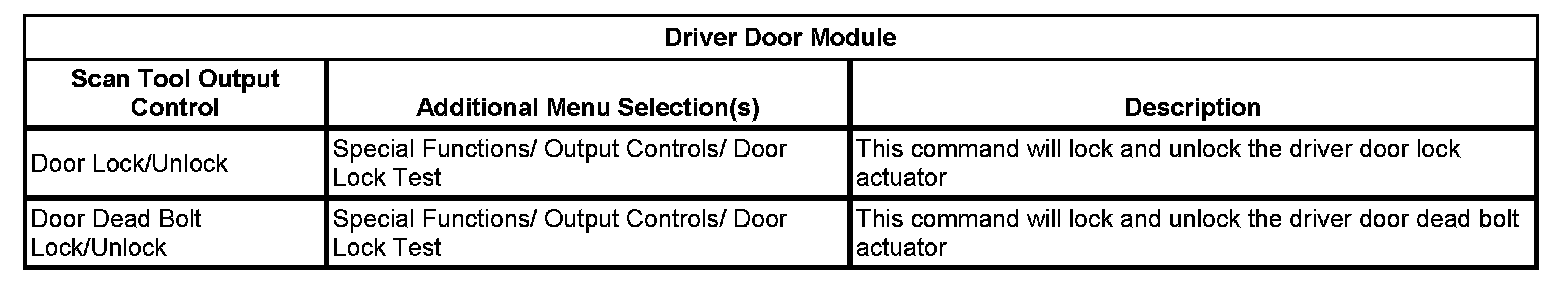

Driver Door Module:

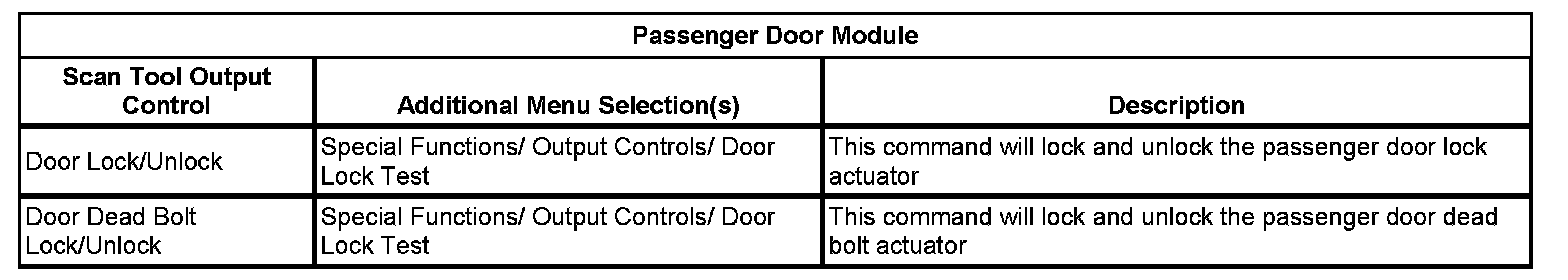

Passenger Door Module:

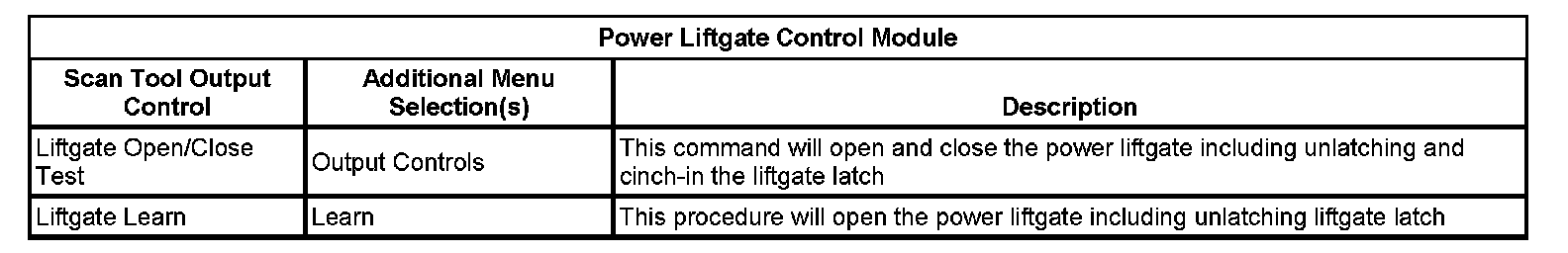

Power Liftgate Control Module:

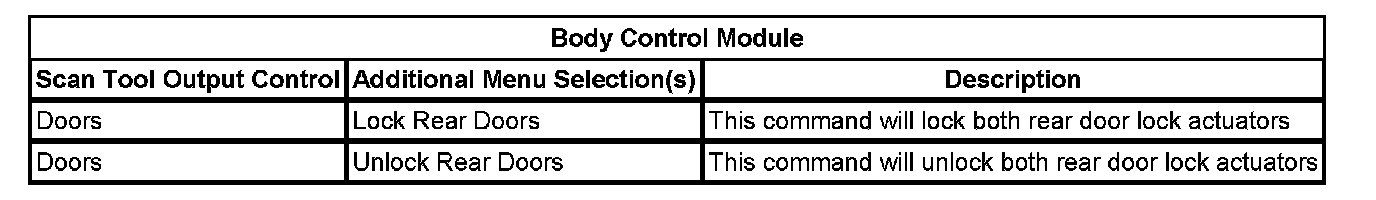

Body Control Module:
