Flywheel: Service and Repair

Engine Flywheel Replacement

Removal Procedure

1. Remove the transmission.

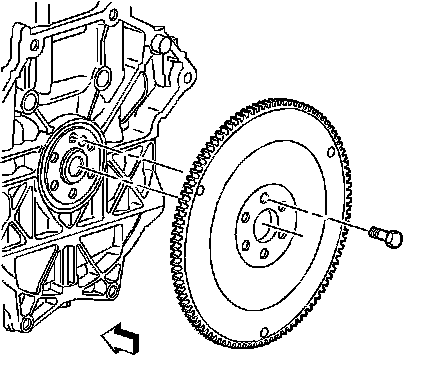

2. Remove the flywheel.

Installation Procedure





Notice: Refer to Fastener Notice.

1. Install the flywheel.

Tighten the flywheel bolts to 53 N.m (39 lb ft) plus 25 degrees.

2. Install the transmission.
