Transmission Position Sensor/Switch: Diagrams



Automatic Transmission Related Connector End Views

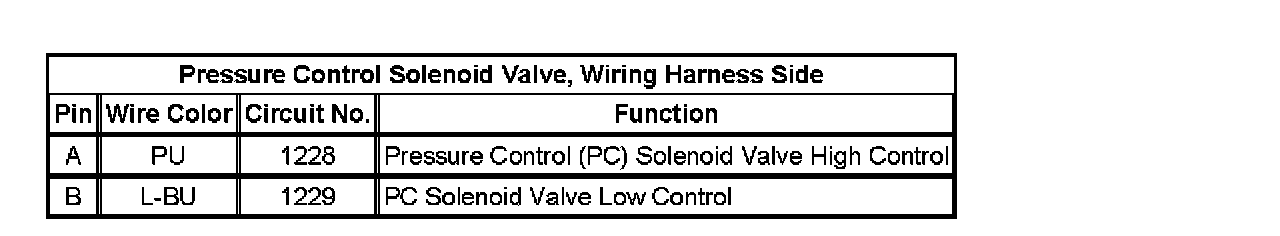

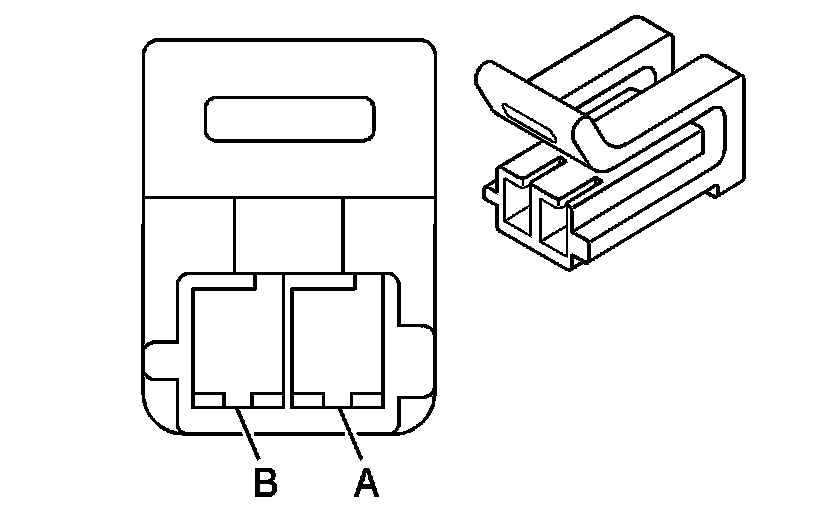

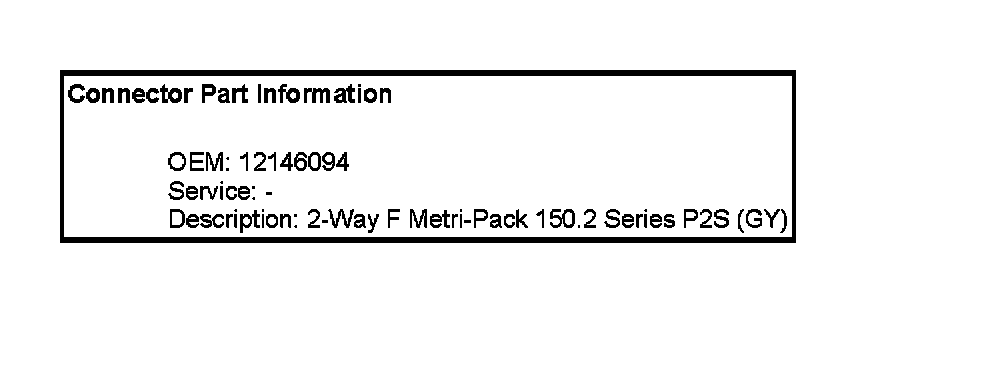

Pressure Control Solenoid Valve, Wiring Harness Side:
