Accelerator Pedal Position Sensor: Diagrams

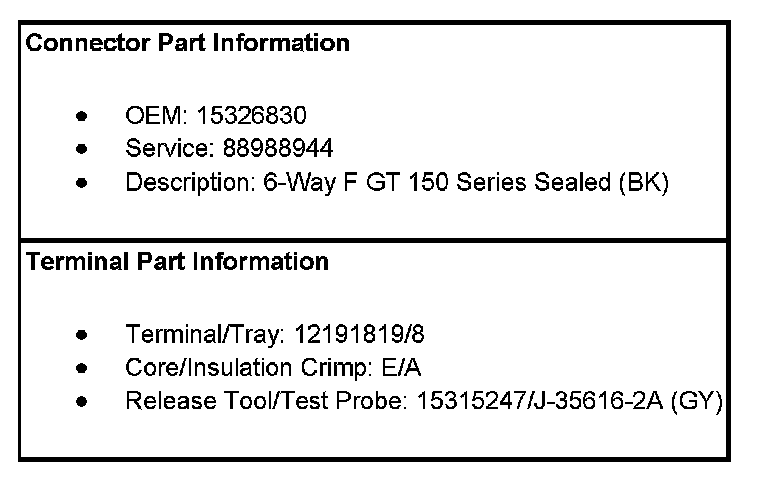

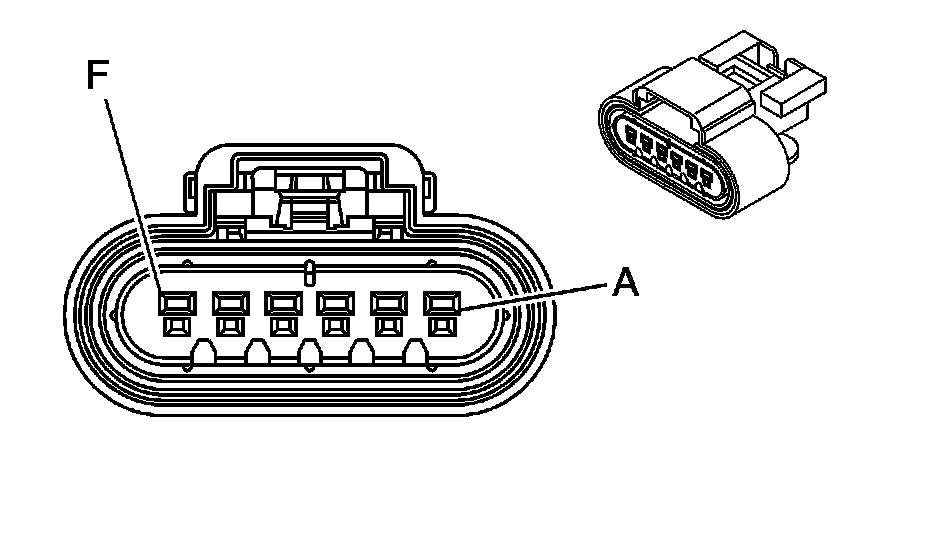

Engine Controls Connector End Views

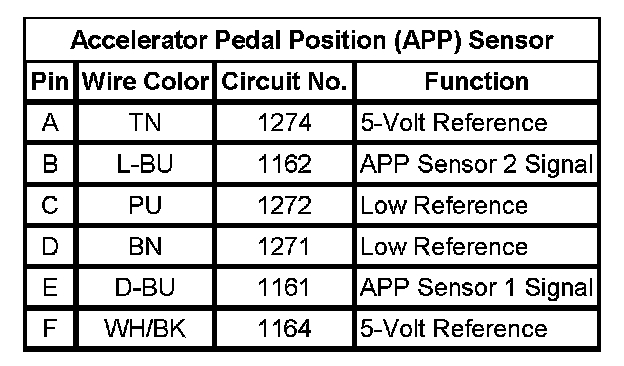

Accelerator Pedal Position (APP) Sensor
