Fluid - A/T: Testing and Inspection



Transmission Fluid Checking

Transmission Fluid Check:

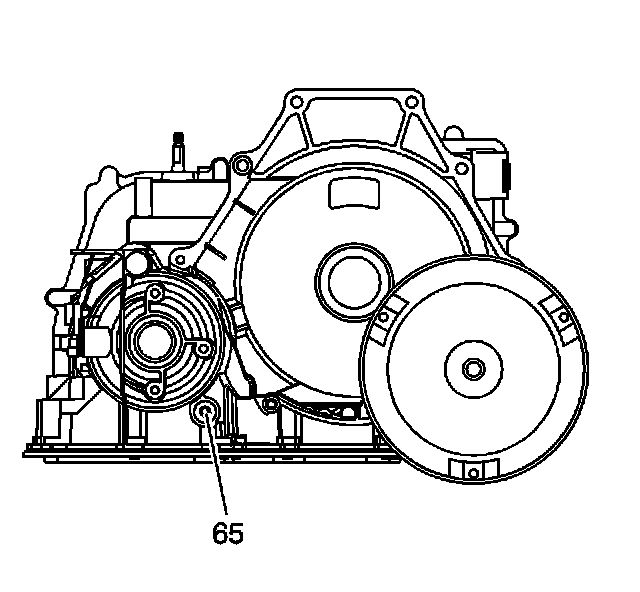

The oil level control plug (65) is located on the torque converter side of the transmission.

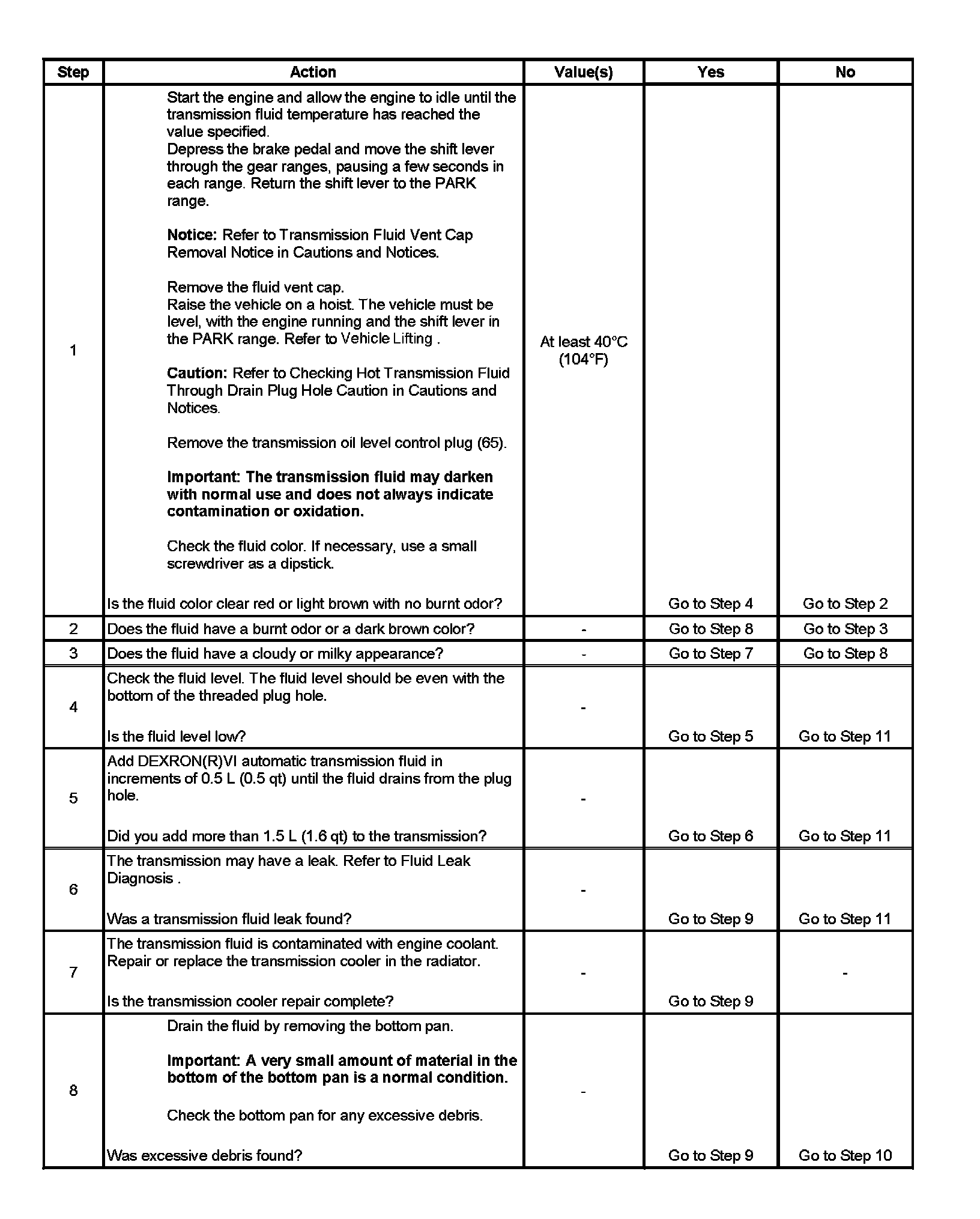

Step 1 - Step 8:

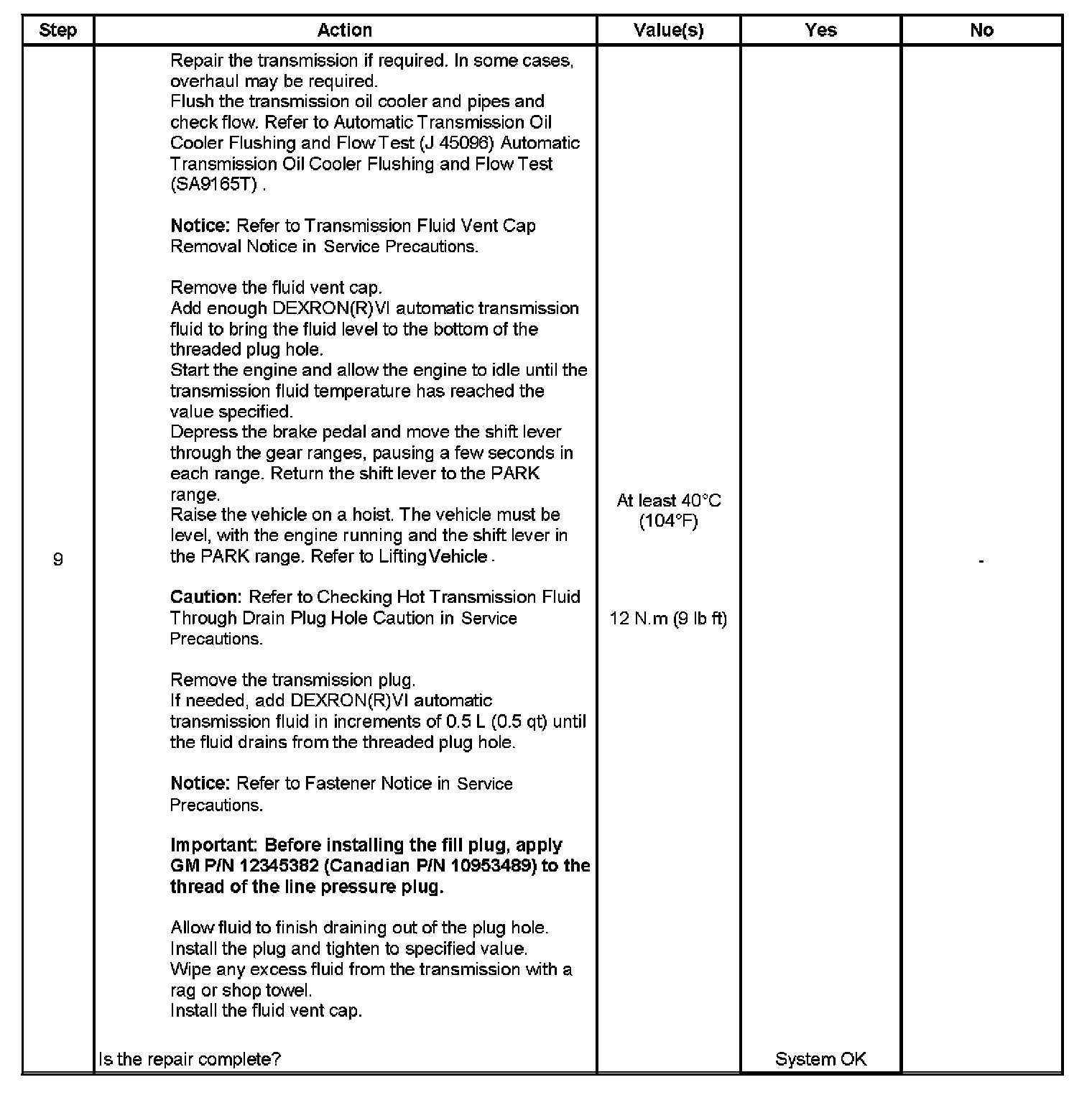

Step 9:

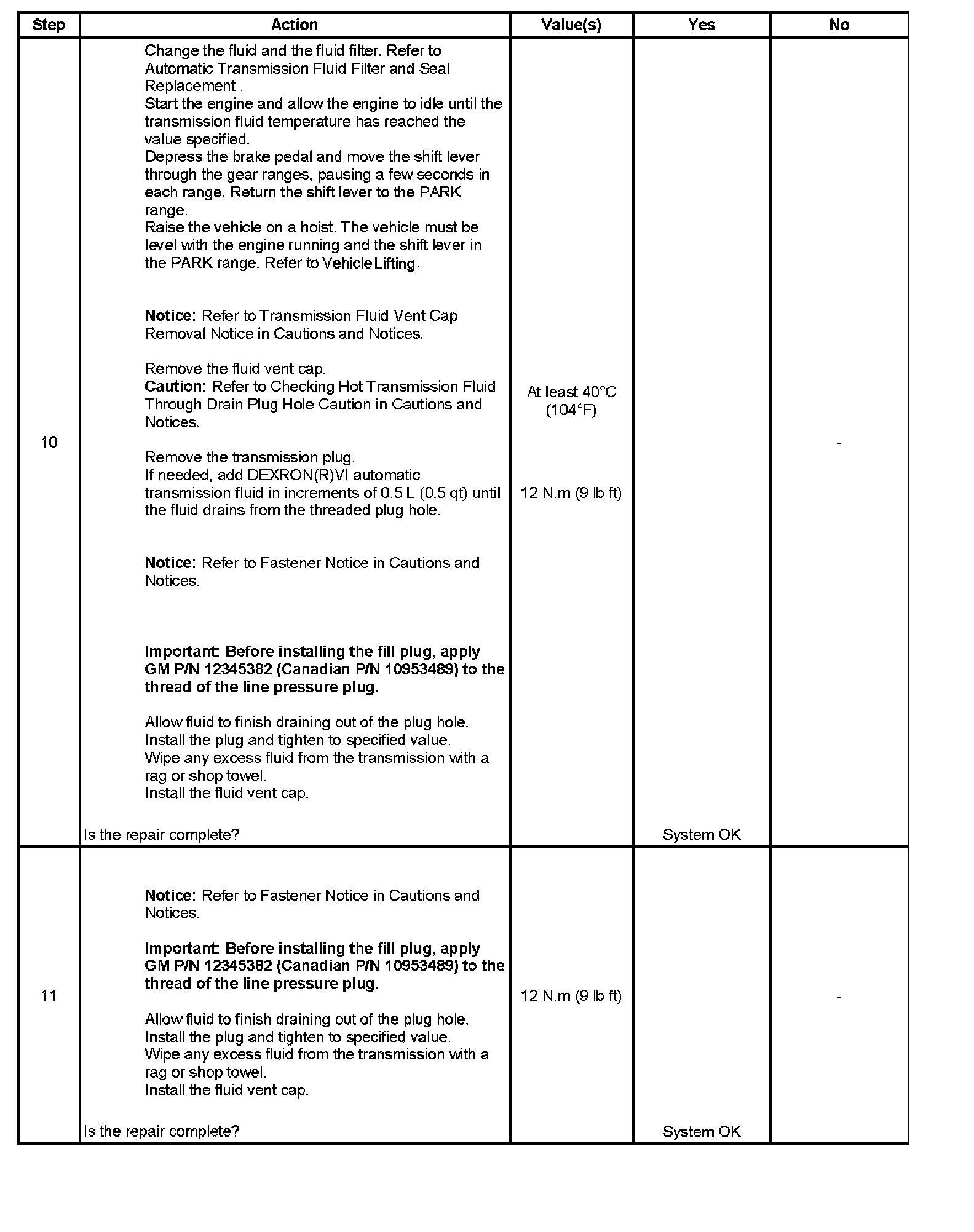

Step 10 - Step 11:
