Engine Control Module: Locations



Engine Controls Component Views

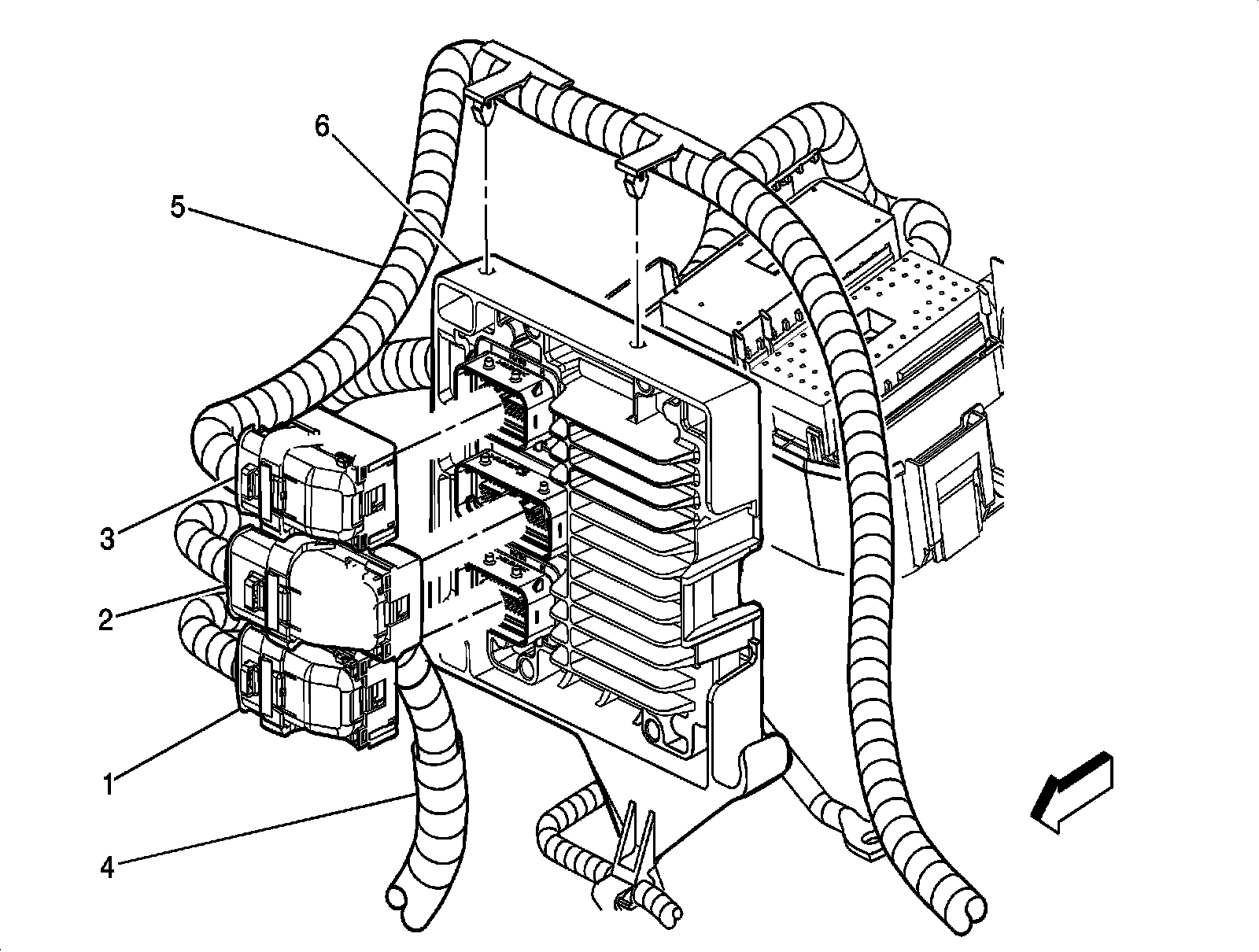

Powertrain Control Module (PCM)




1 - Powertrain Control Module (PCM) C1
2 - Powertrain Control Module (PCM) C2
3 - Powertrain Control Module (PCM) C3
4 - Engine Harness
5 - Body Harness
6 - Powertrain Control Module (PCM)
