Barometric Pressure Sensor: Diagrams

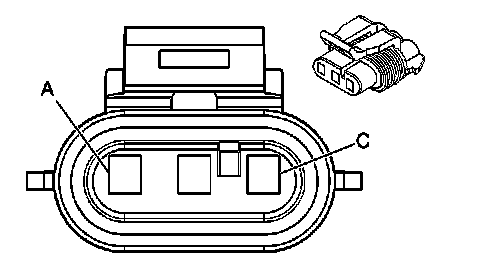

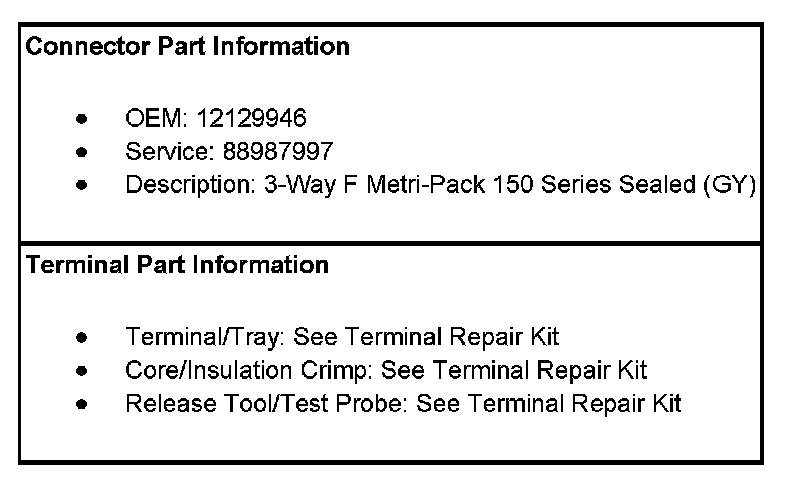

Engine Controls Connector End Views

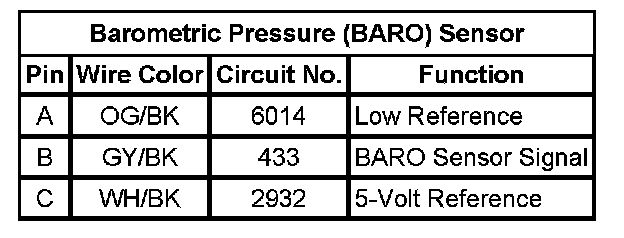

Barometric Pressure (BARO) Sensor
