Air Flow Meter/Sensor: Service and Repair

MASS AIR FLOW (MAF)/INTAKE AIR TEMPERATURE (IAT) SENSOR REPLACEMENT

REMOVAL PROCEDURE

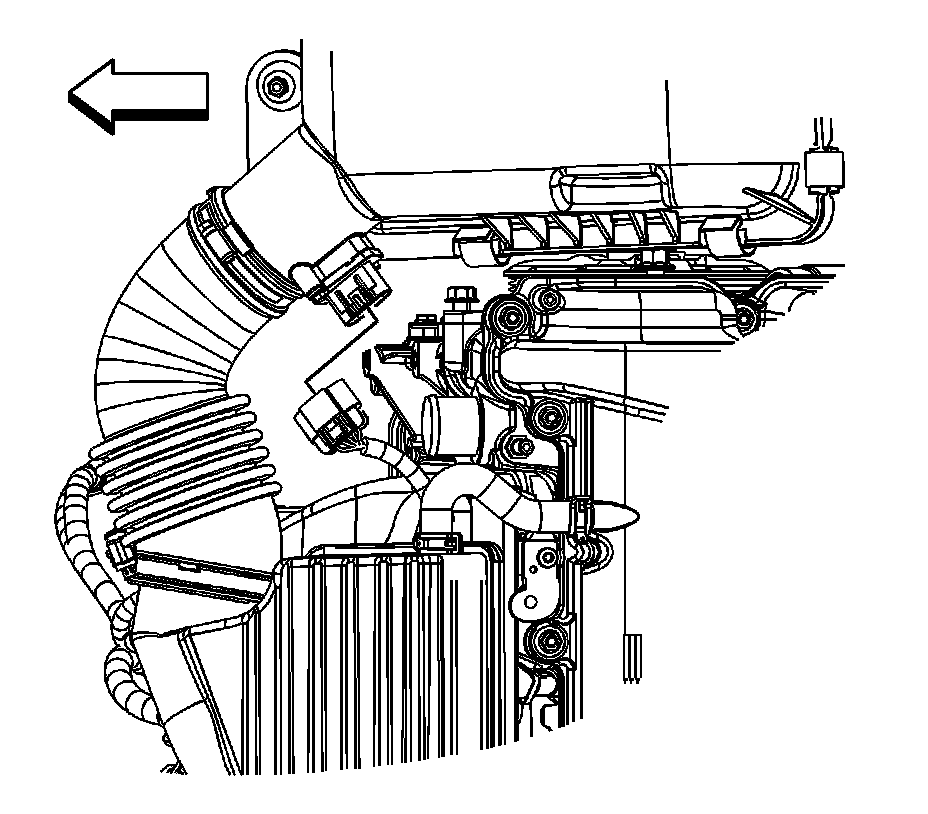

1. Disconnect the engine harness electrical connector from the mass air flow (MAF)/intake air temperature (IAT) sensor.

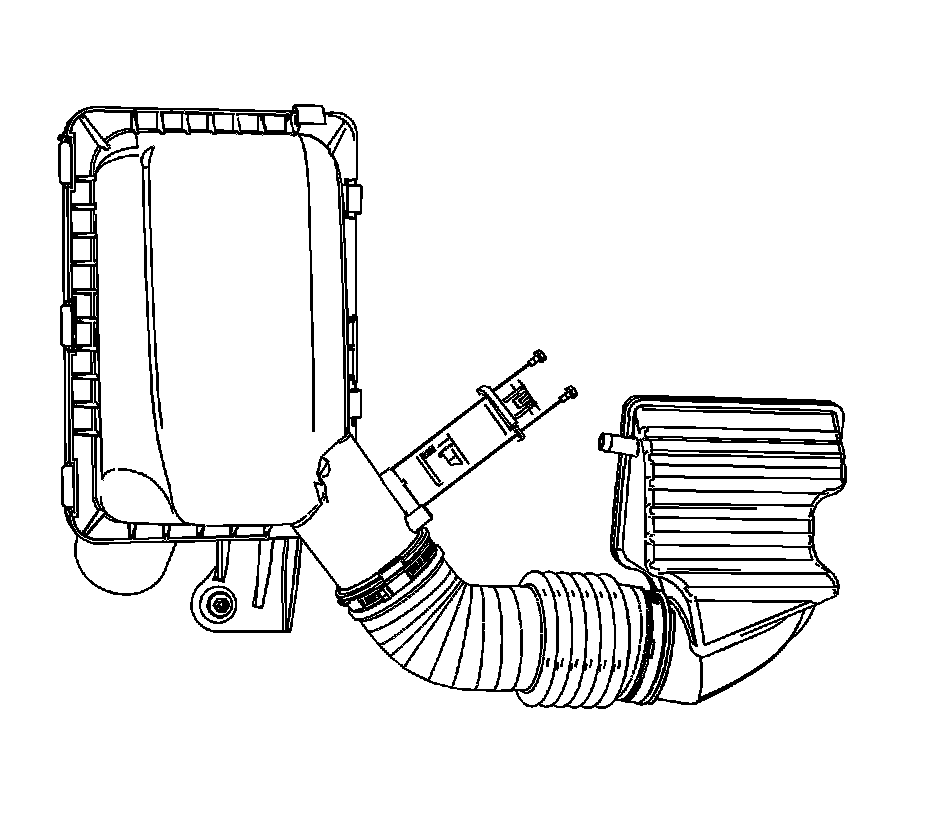

2. Remove the MAF/IAT sensor screws.
3. Remove the MAF/IAT sensor.

INSTALLATION PROCEDURE




1. Install the MAF/IAT sensor.
2. Install the MAF/IAT sensor screws.

NOTE: Refer to Fastener Notice.

Tighten the screws to 10 N.m (89 lb in).




3. Connect the engine harness electrical connector to the MAF/IAT sensor.
