Body Control System Diagrams



Body Control System Schematics

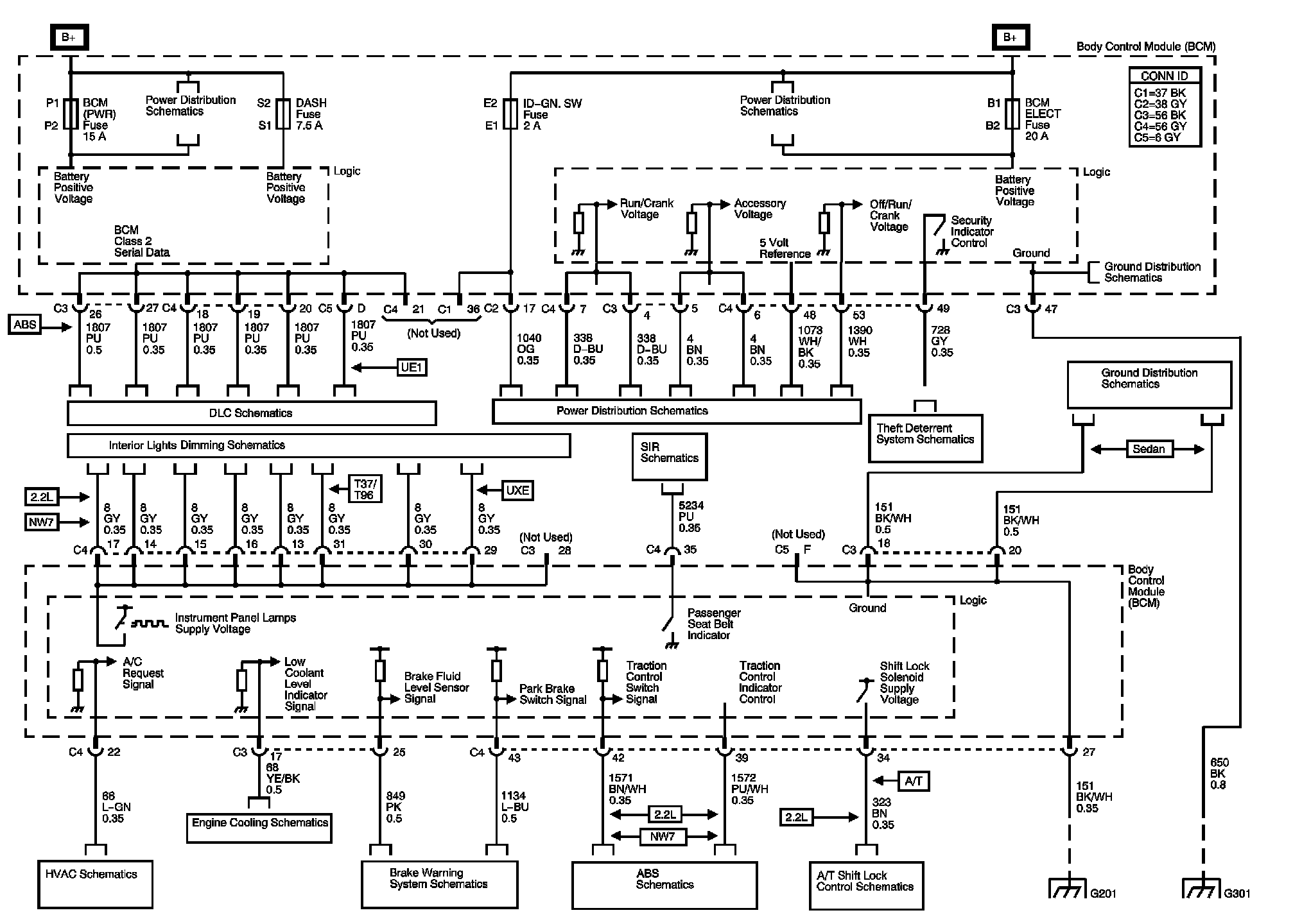

BCM Power, Ground, and References to Brakes, Lights Dimming, DLC, HVAC, Shift Lock, and Theft Deterrent:

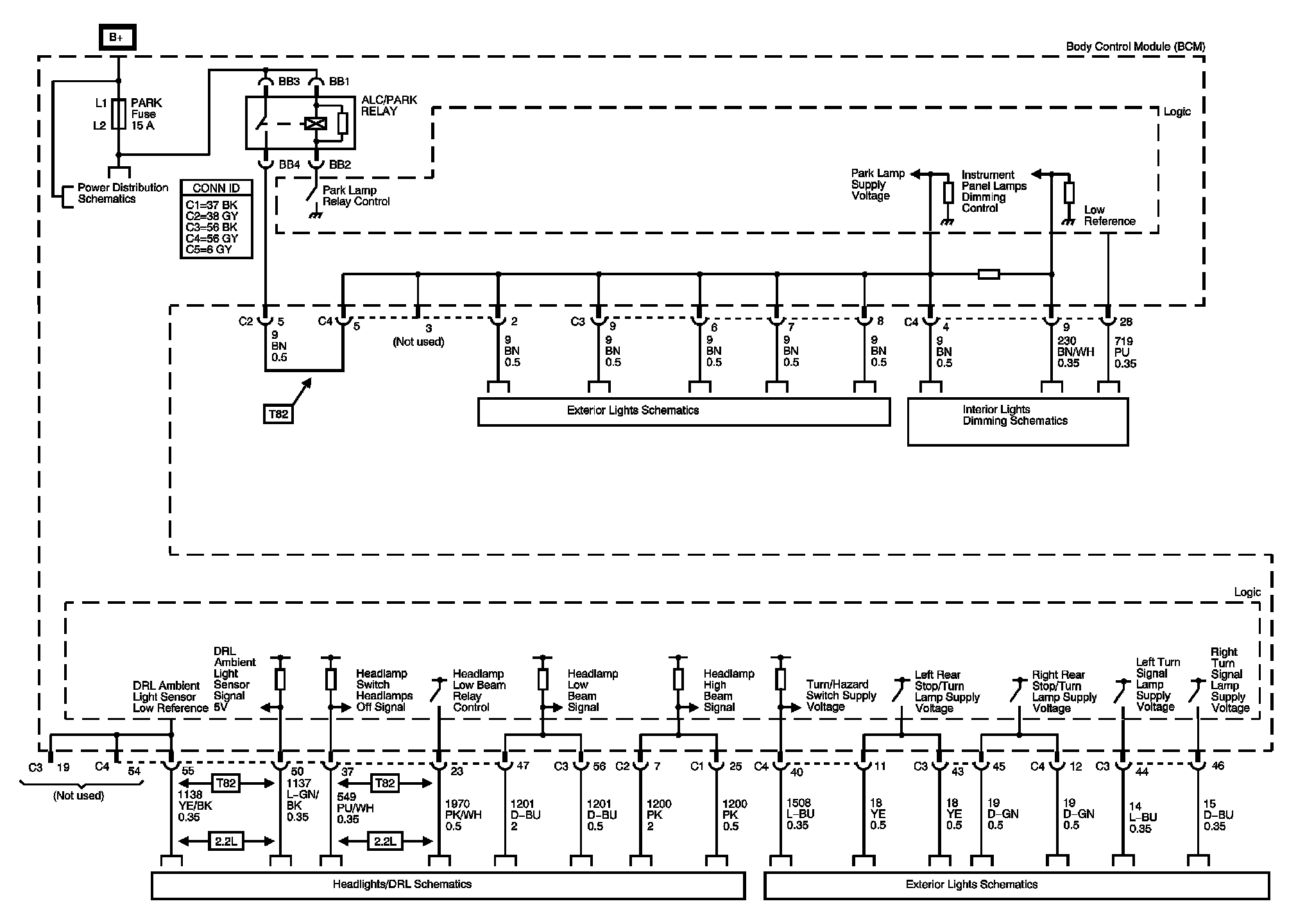

References to Lighting 1 of 2:

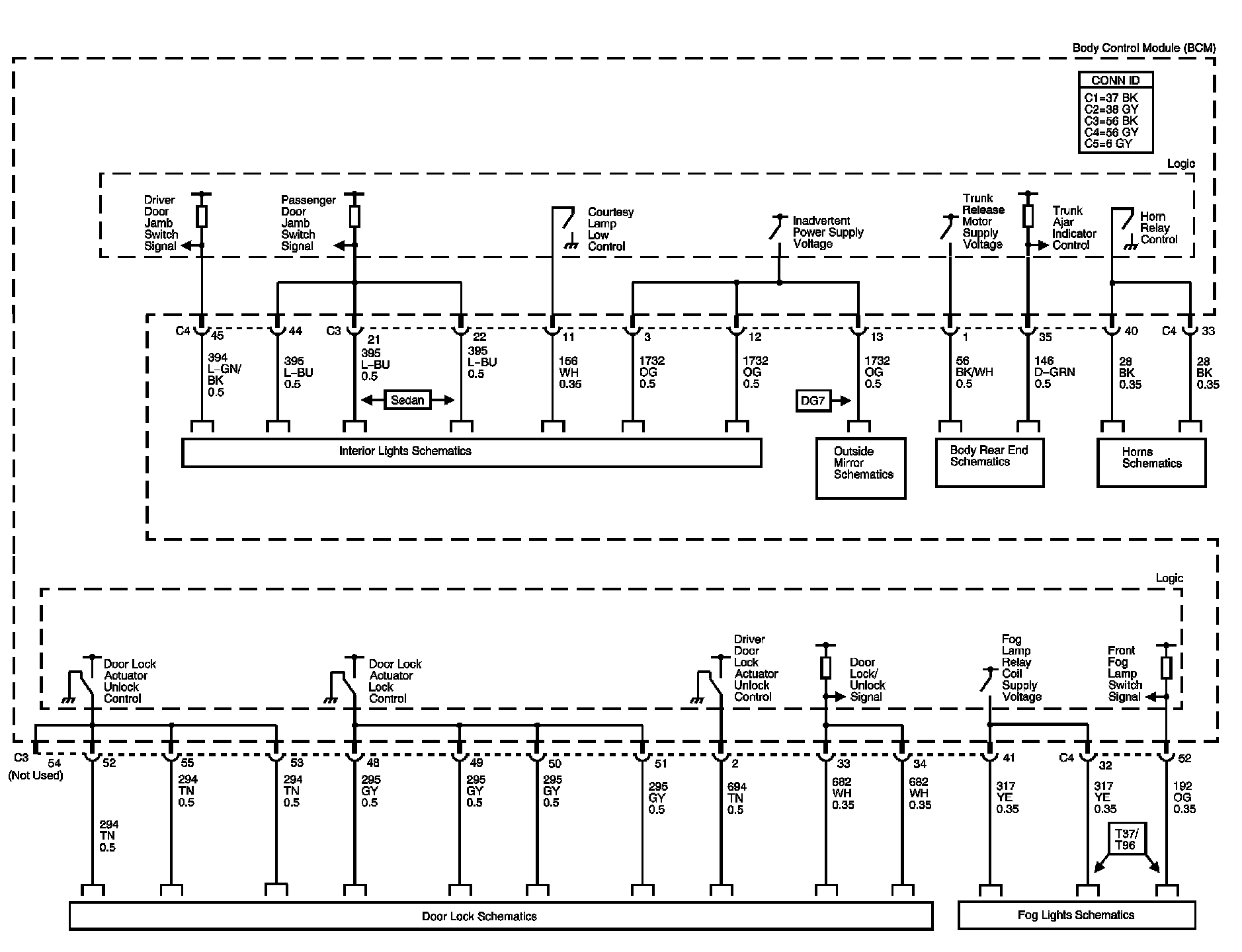

References to Body Rear End, Doors, Horns, and Lighting 2 of 2:

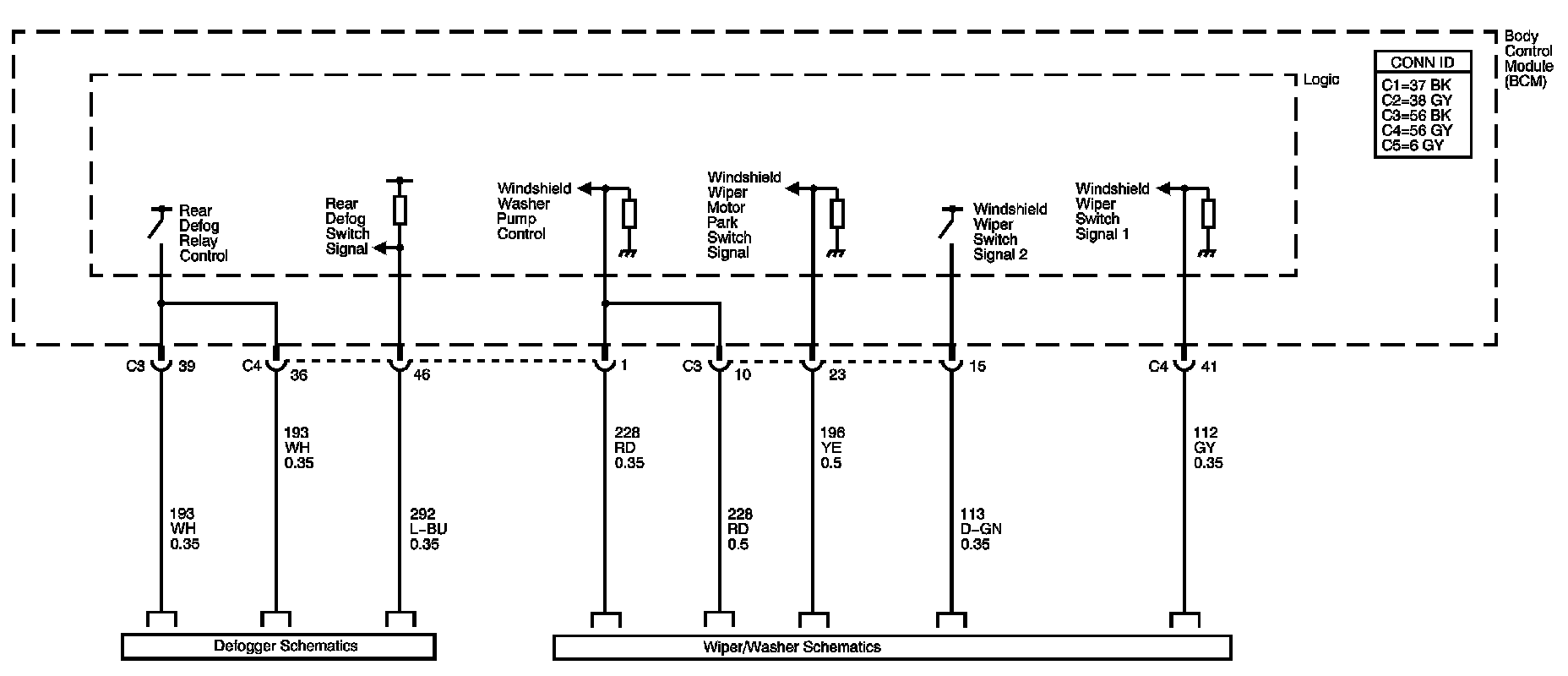

References to Rear Defogger and Wiper/Washer:
