Home >> Saturn >> 2006 >> ION L4-2.0L SC VIN P >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> Powertrain Control Module (PCM) C2

Powertrain Control Module (PCM) C2

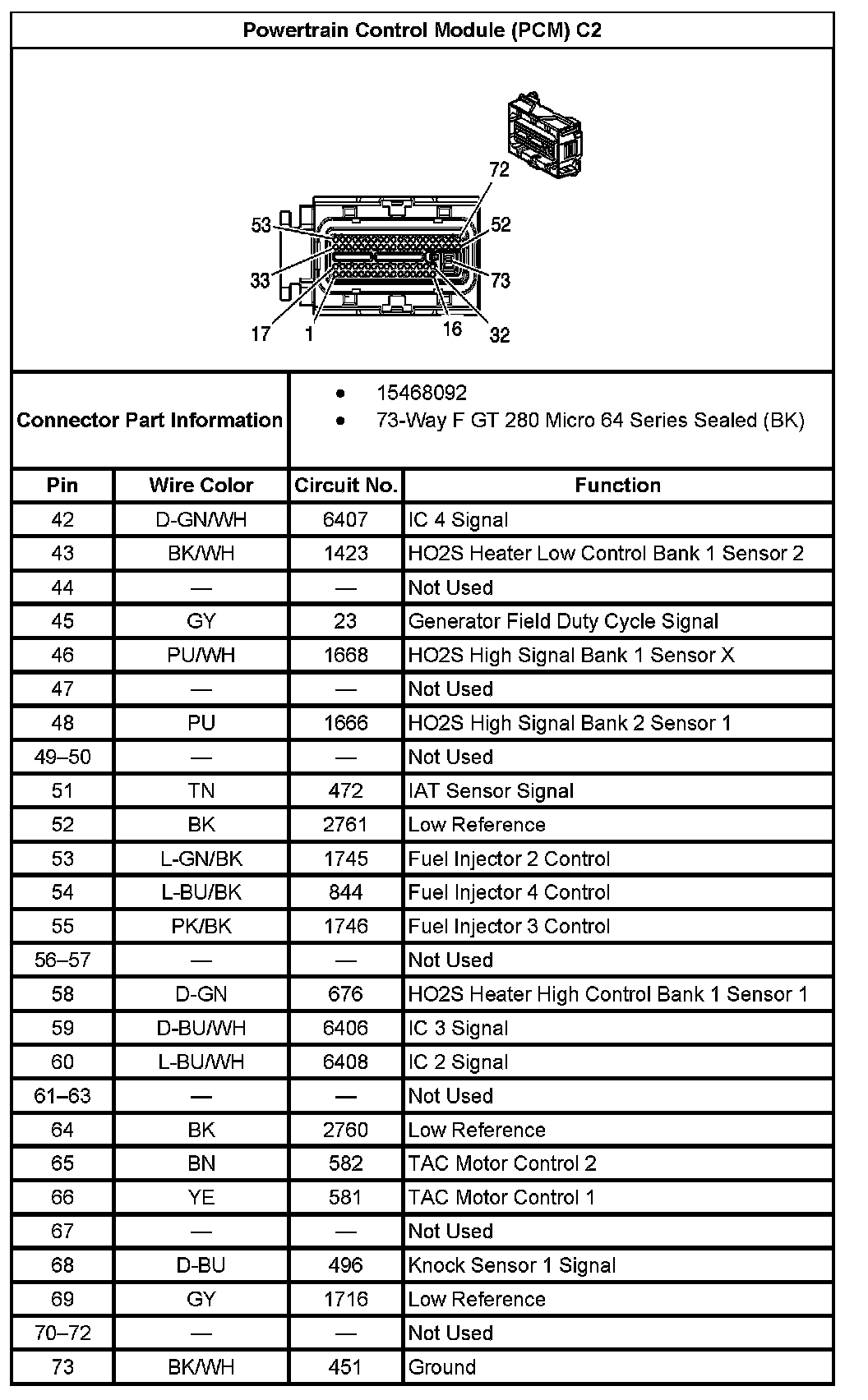

Powertrain Control Module (PCM) C2 (Part 1):

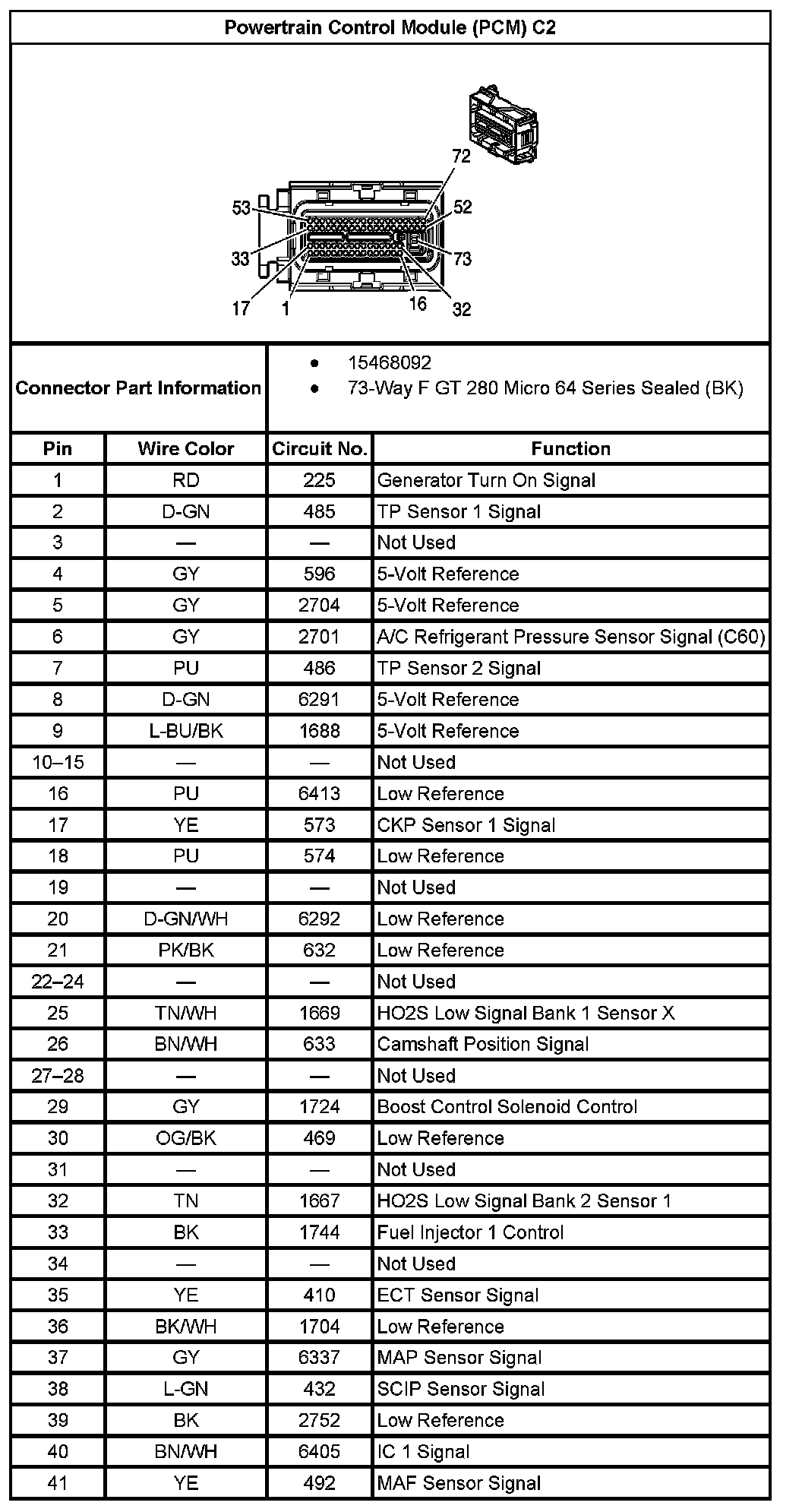

Powertrain Control Module (PCM) C2 (Part 2):
