SCAN TOOL DATA LIST

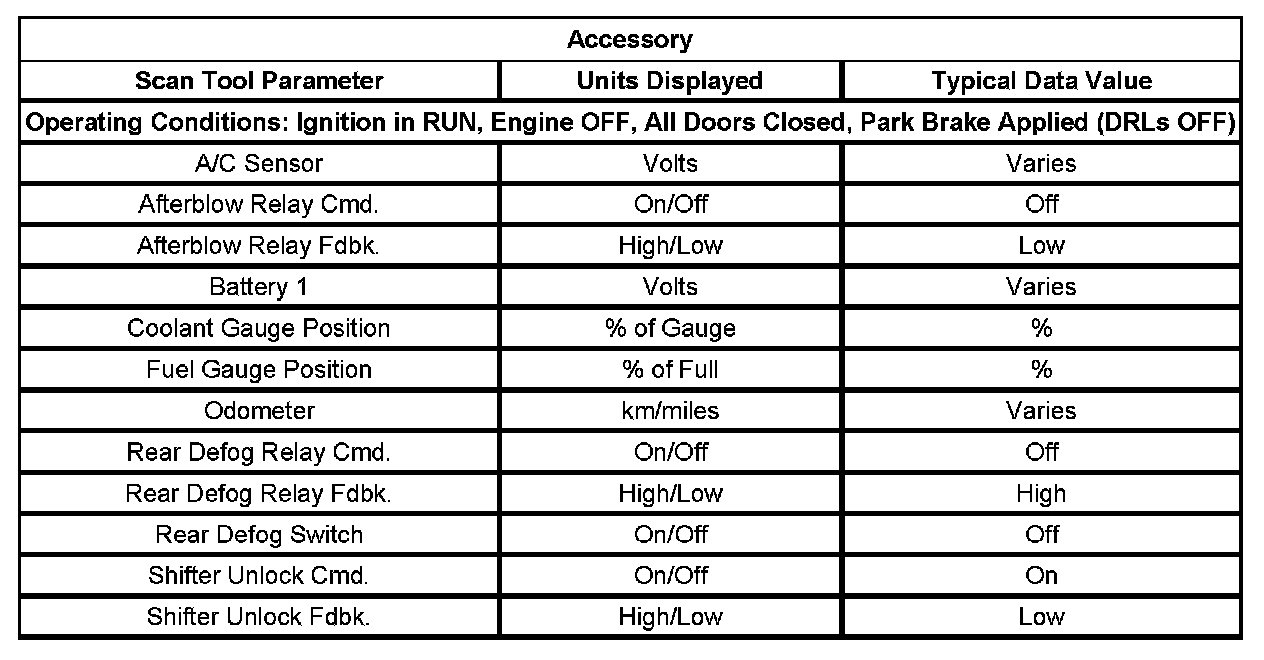

Accessory:

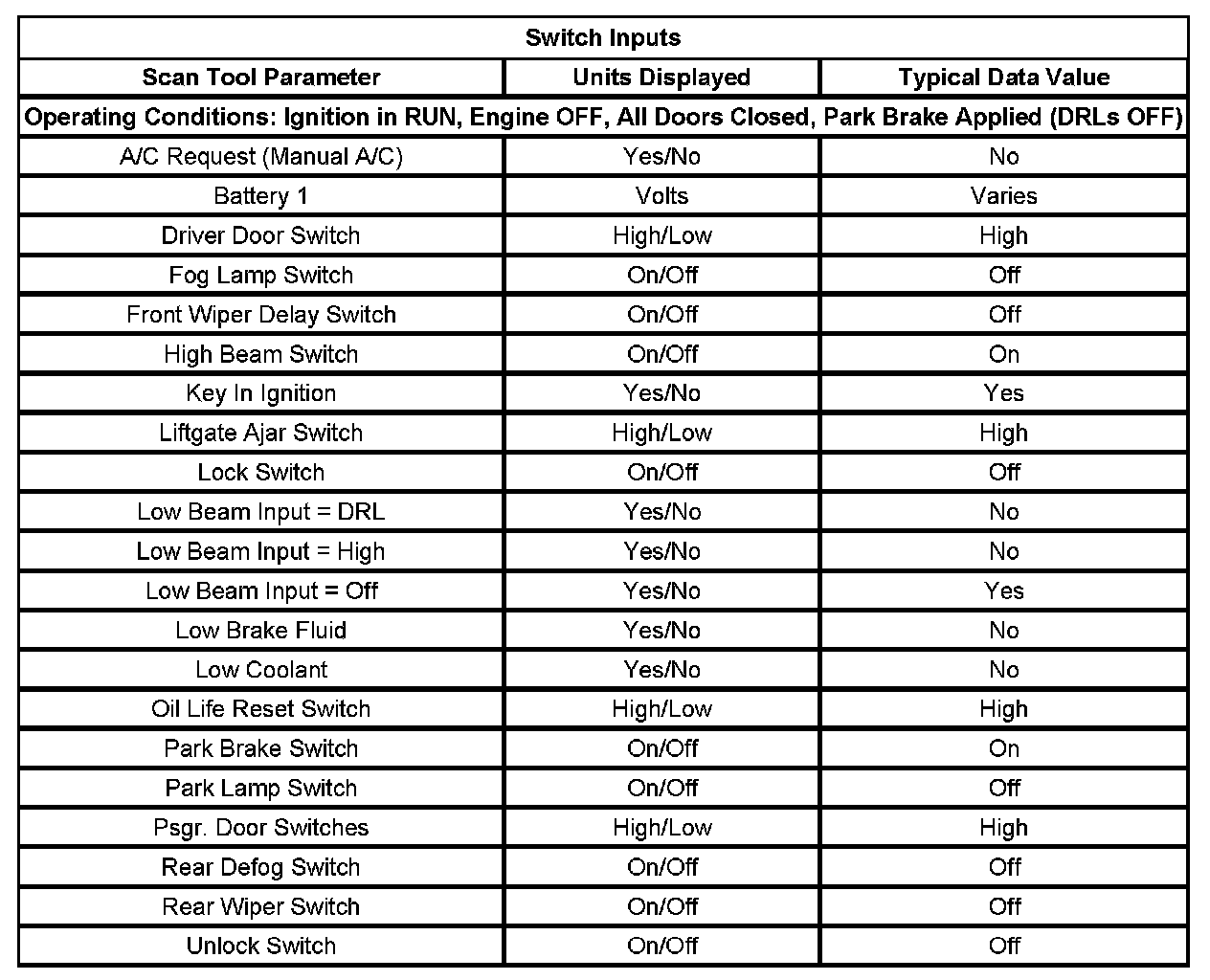

Switch Inouts:

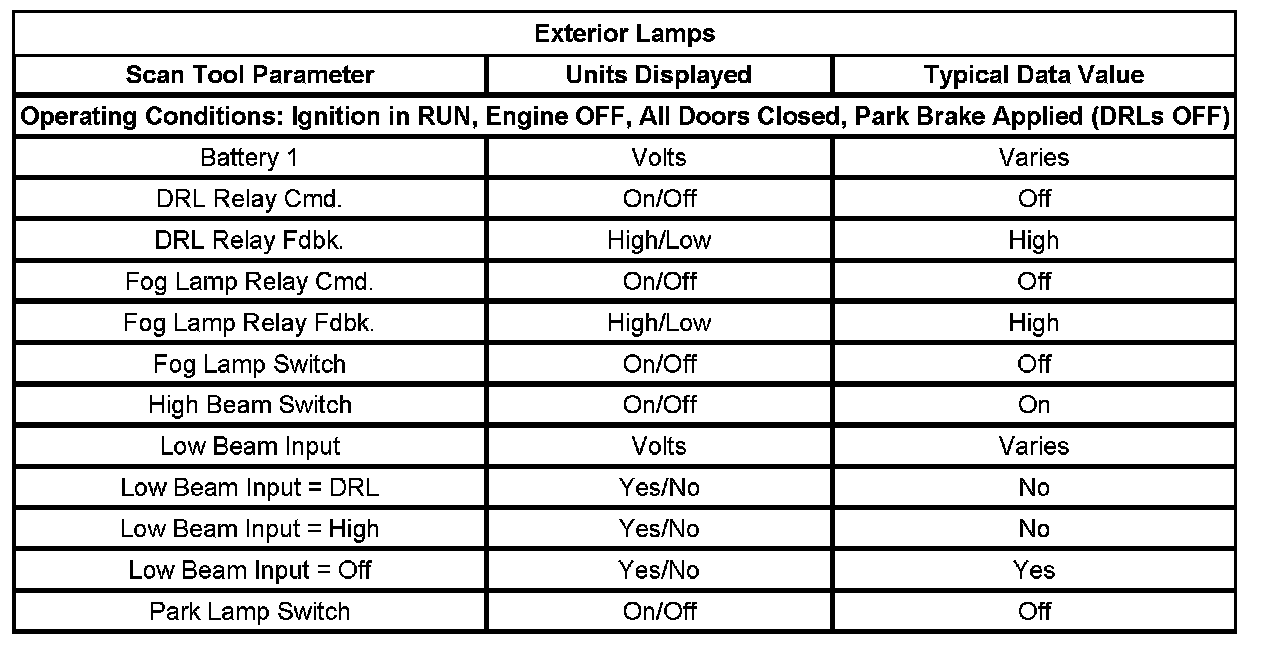

Exterior Lamps:

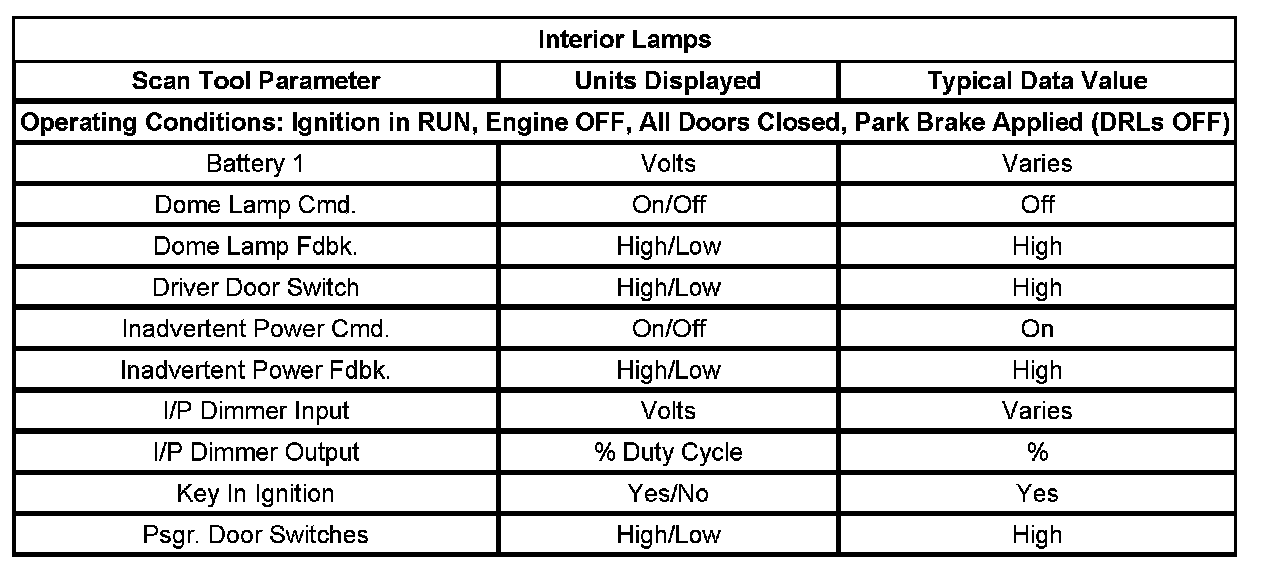

Interior Lamps:

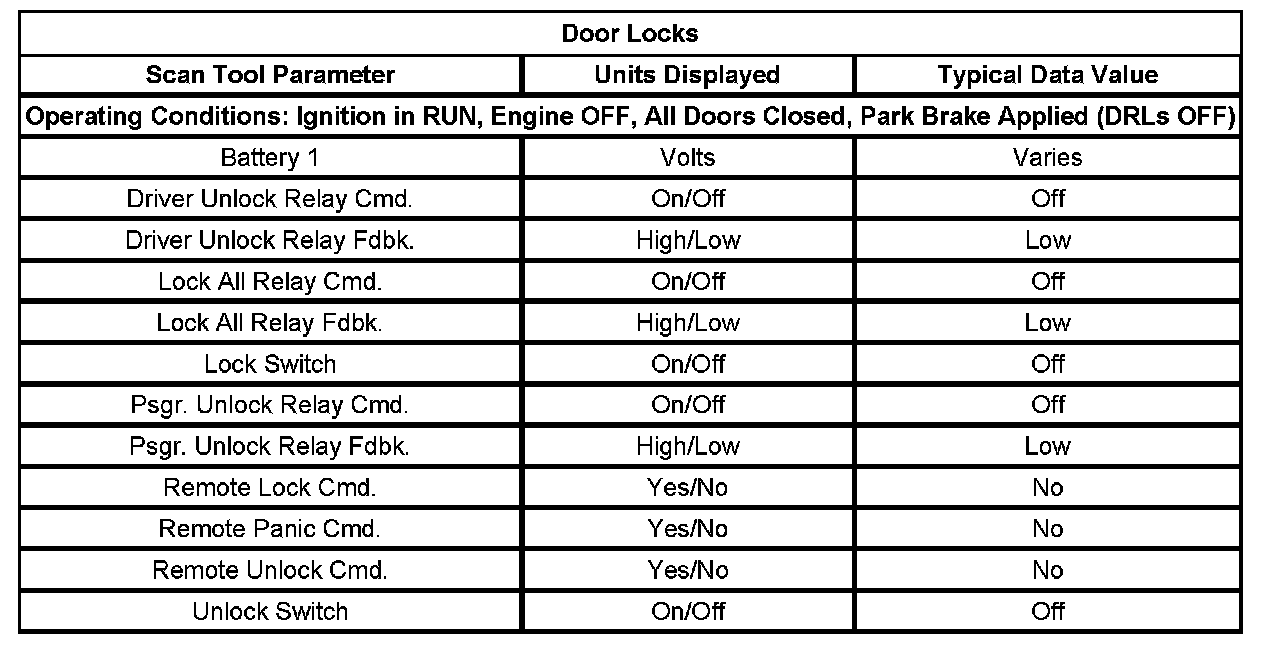

Door Locks:

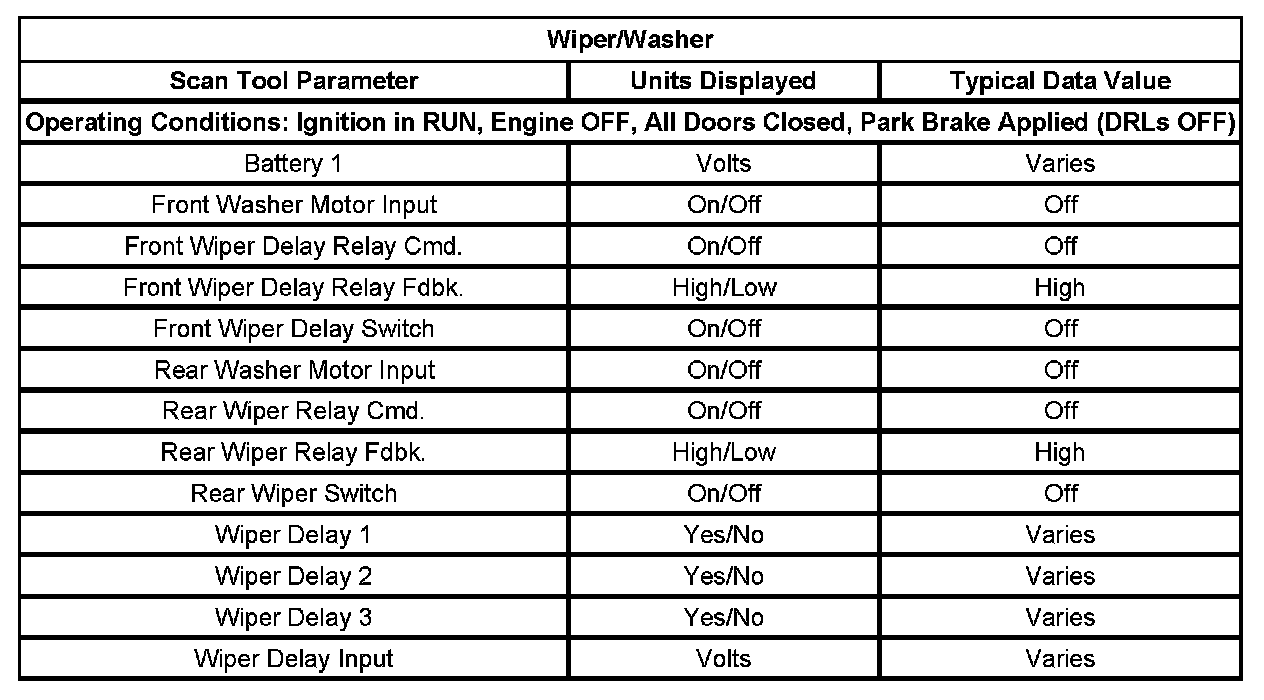

Wiper/Washer:

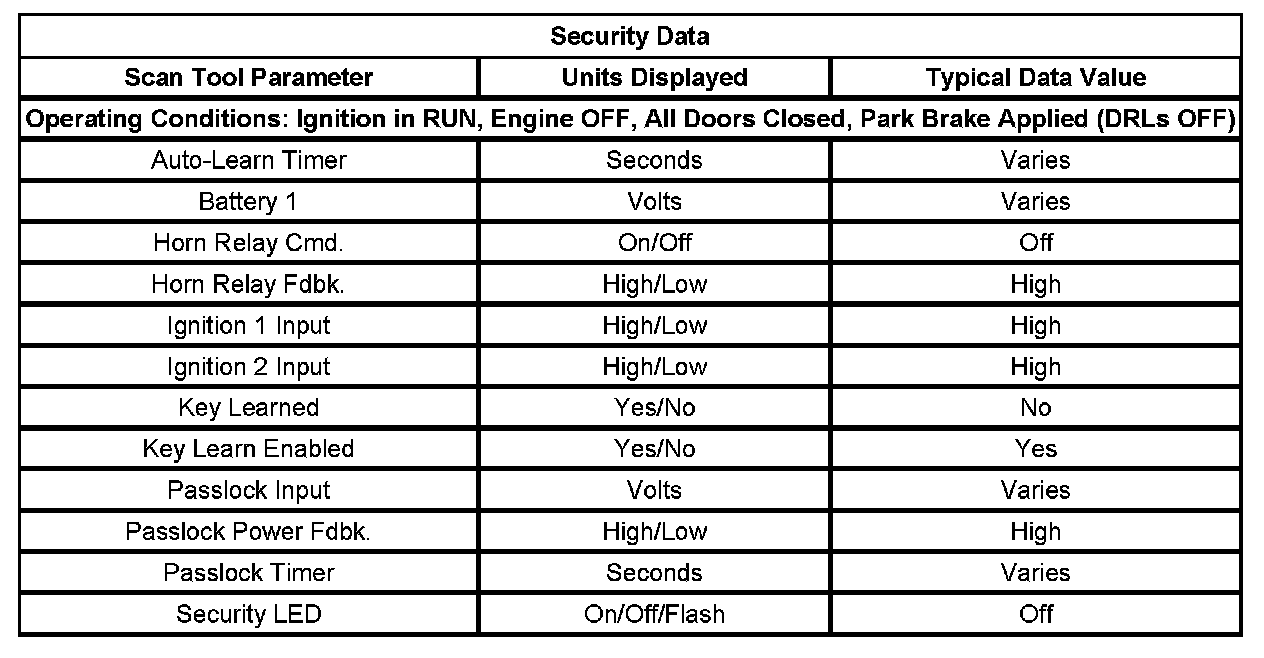

Security Data:
