VUE AWD L4-2.2L VIN D
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Electronic Brake Control Module
Electronic Brake Control Module

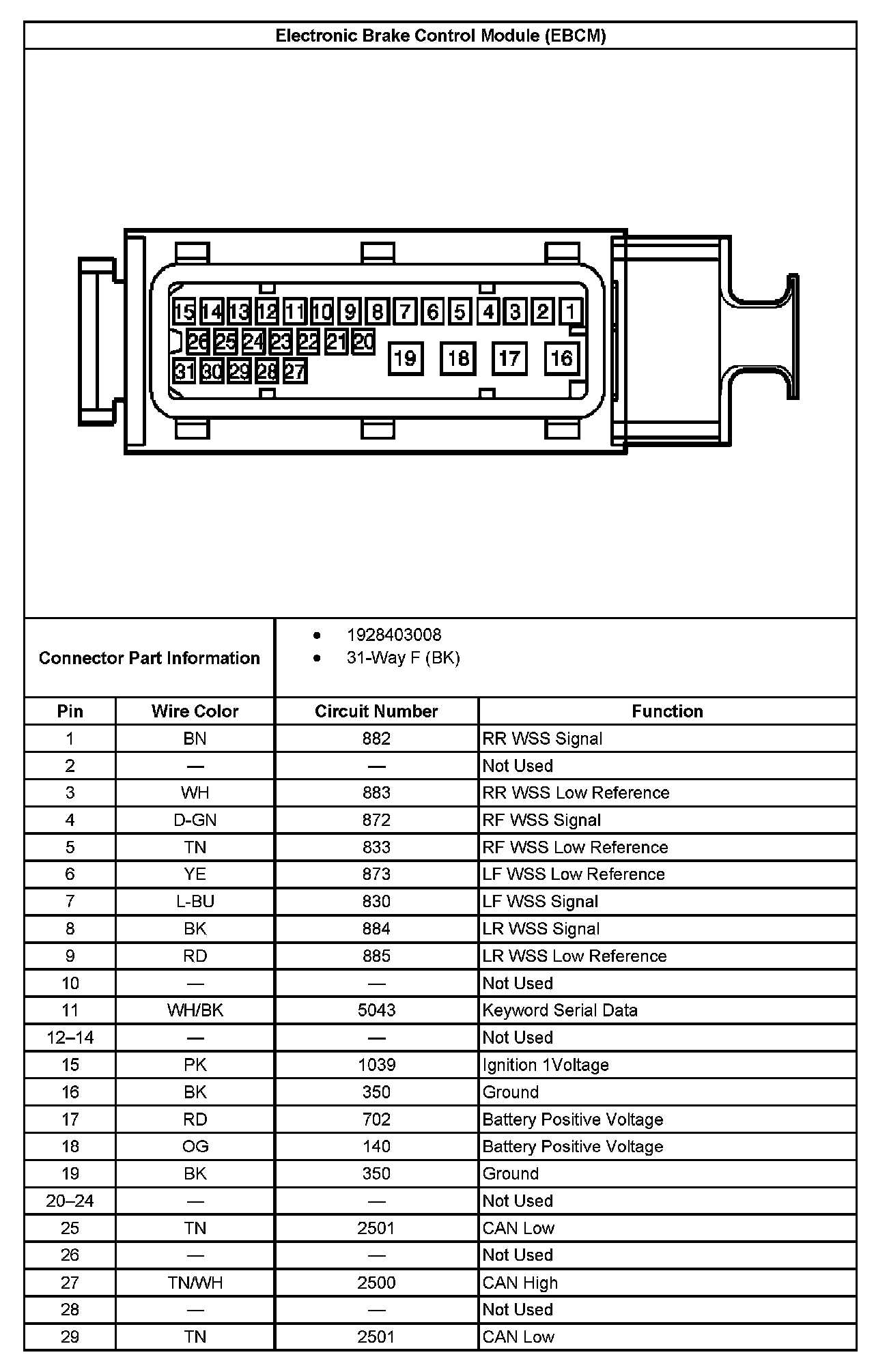

Electronic Brake Control Module (EBCM) 31-Way (BK) Part 1:

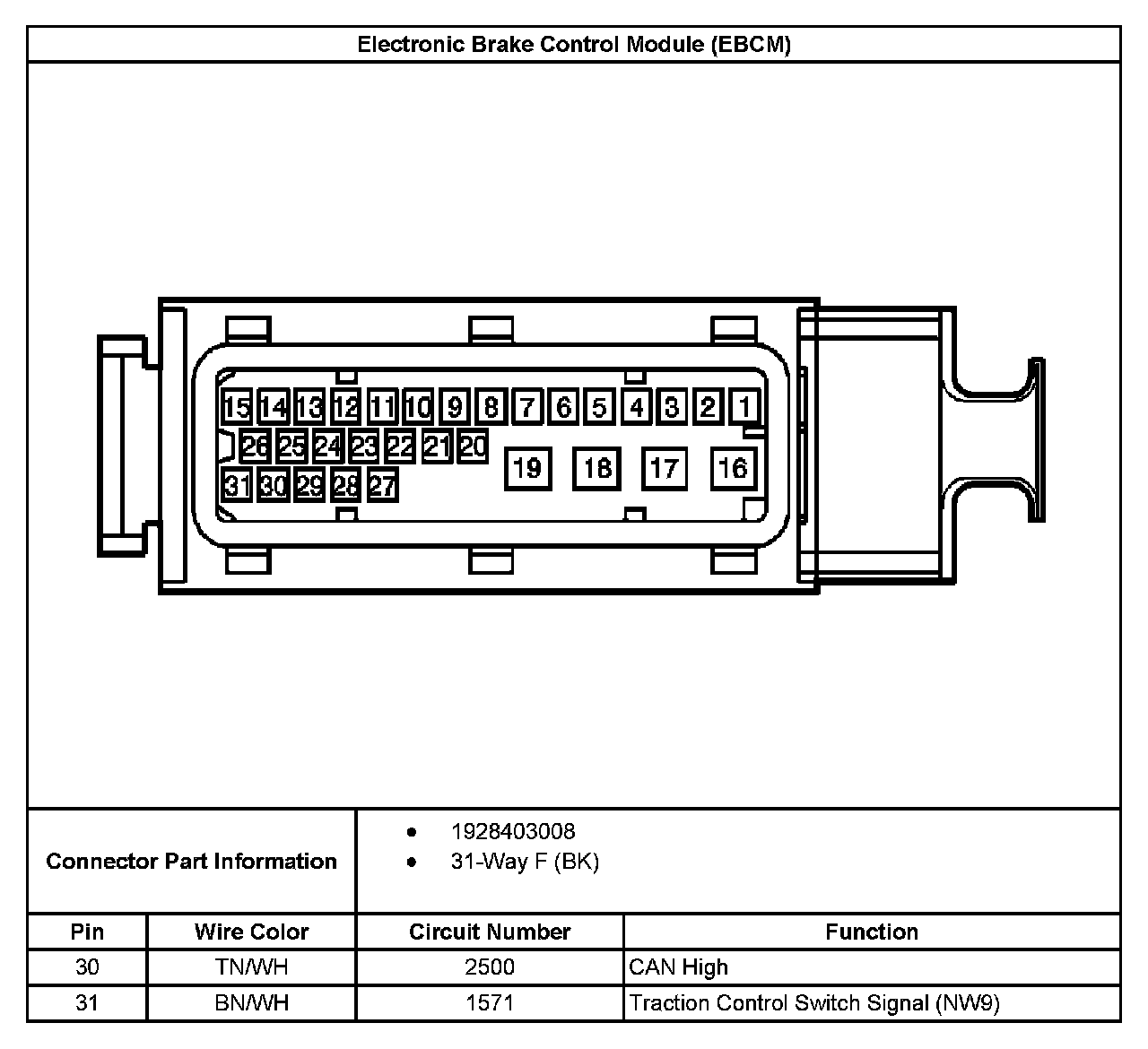

Electronic Brake Control Module (EBCM) 31-Way (BK) Part 2:
