Control Module: Diagrams

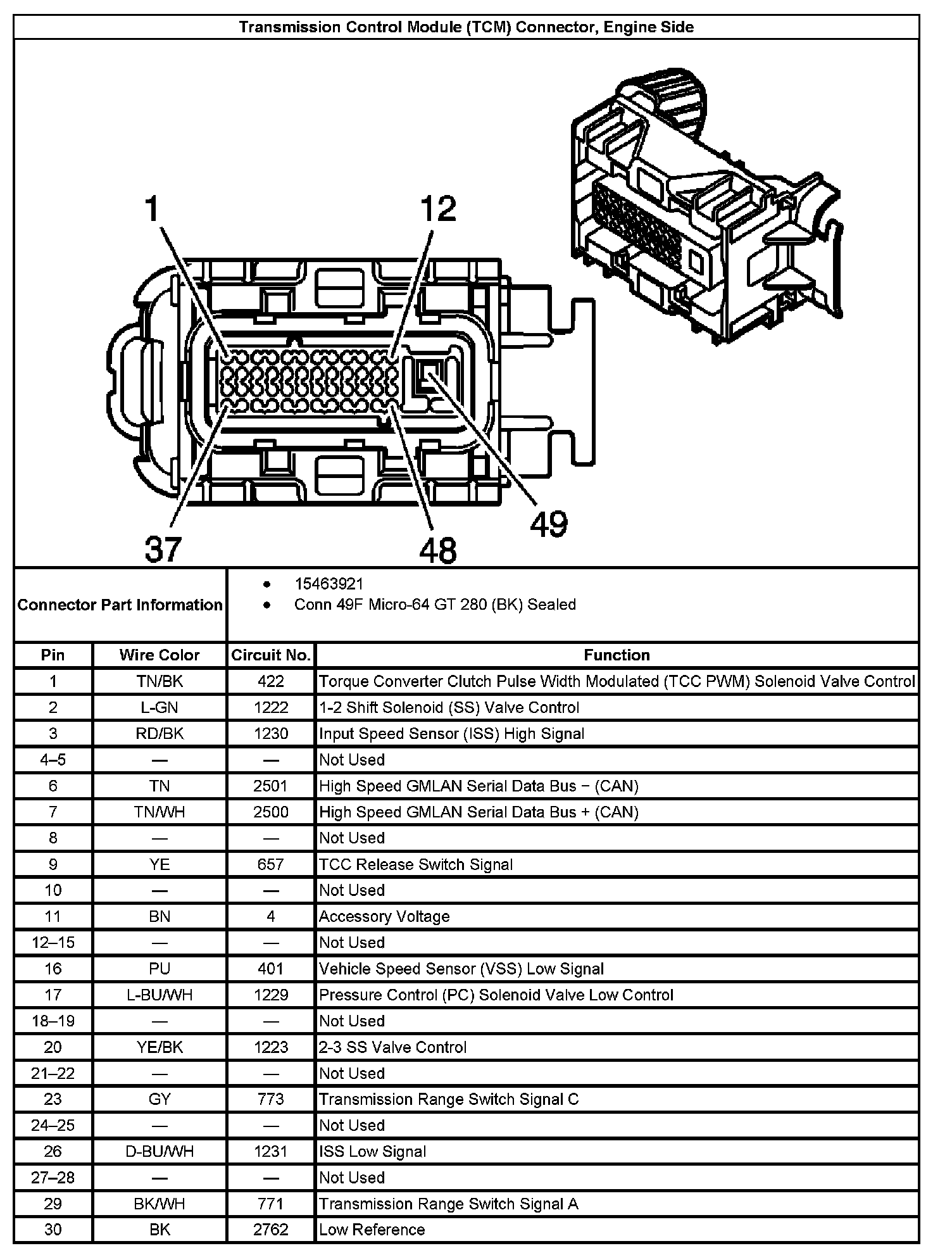

Transmission Control Module (TCM) Connector, Engine Side:

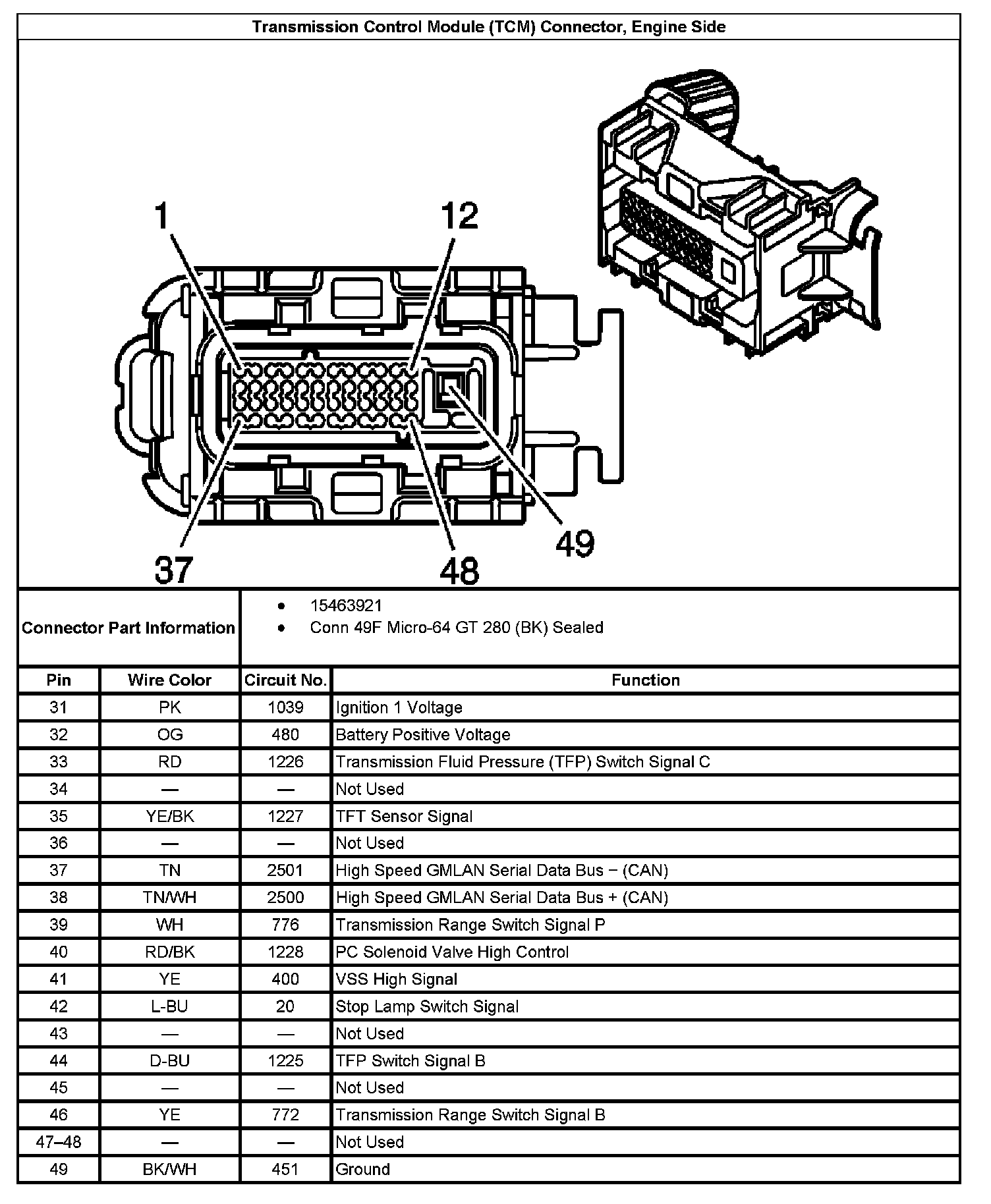

Transmission Control Module (TCM) Connector, Engine Side:
