Home >> Saturn >> 2005 >> ION L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> ECM C2

ECM C2

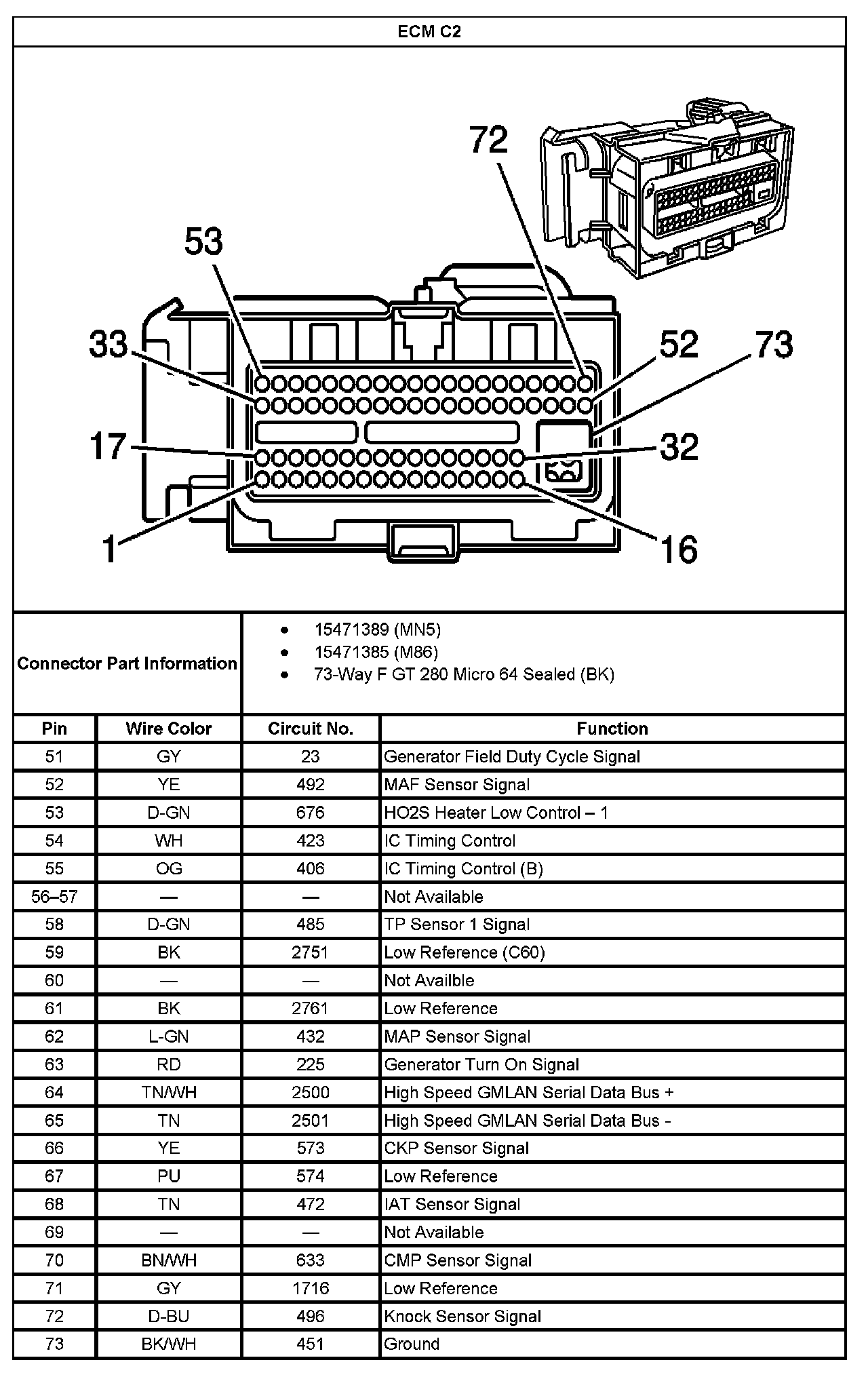

ECM C2 Part 1:

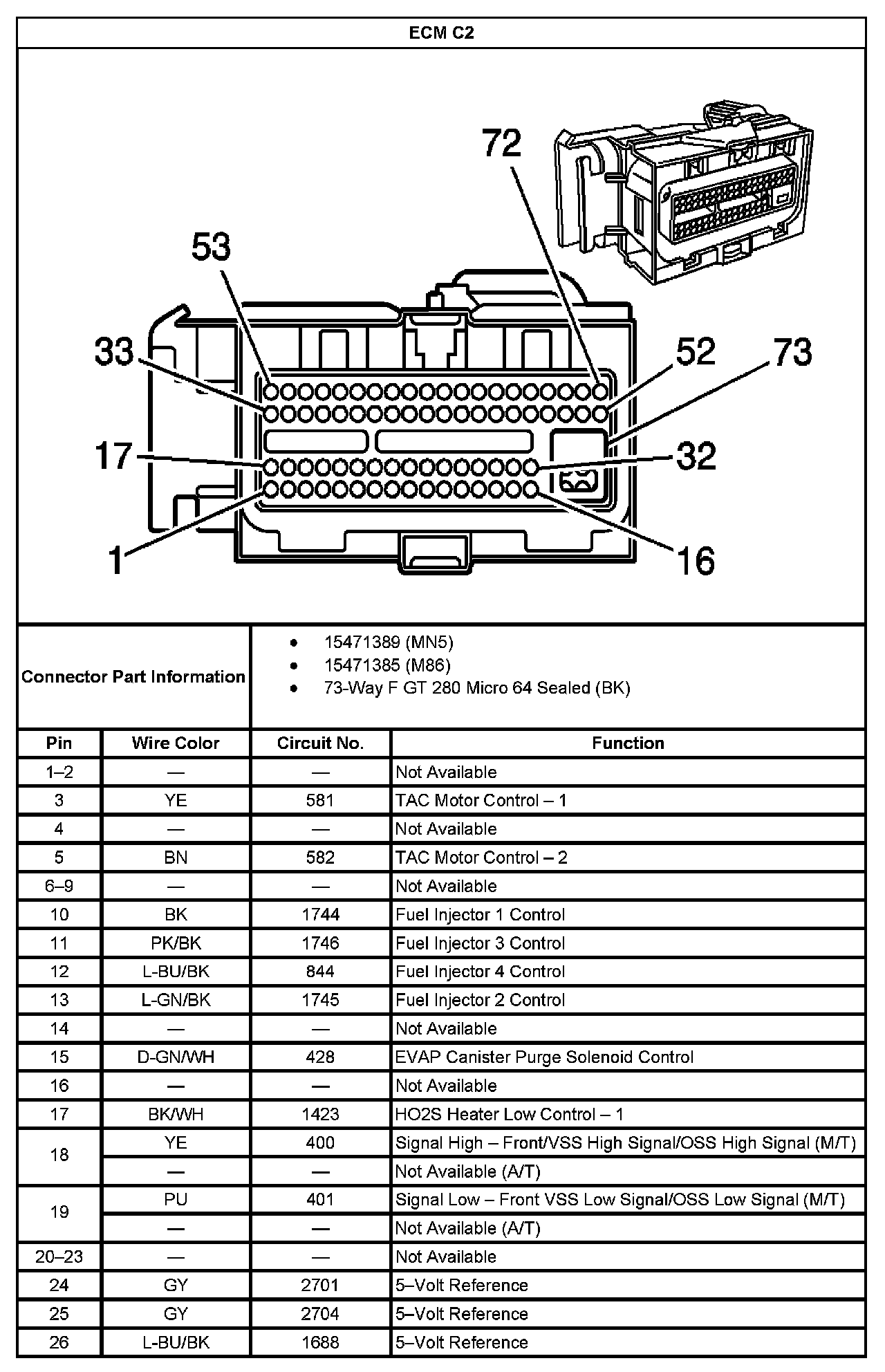

ECM C2 Part 2:

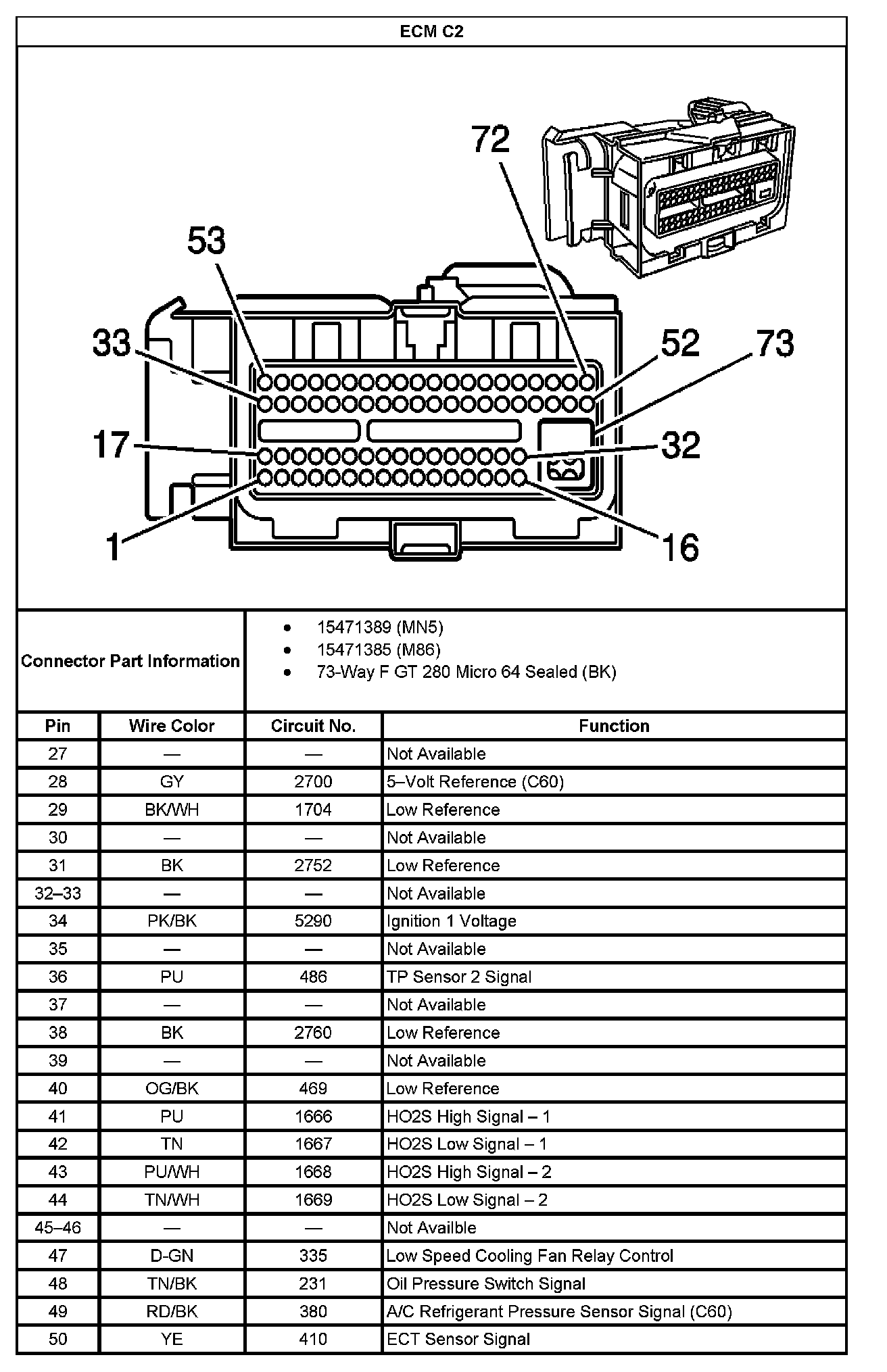

ECM C2 Part 3:
