Home >> Saturn >> 2005 >> ION L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> ECM C1

ECM C1

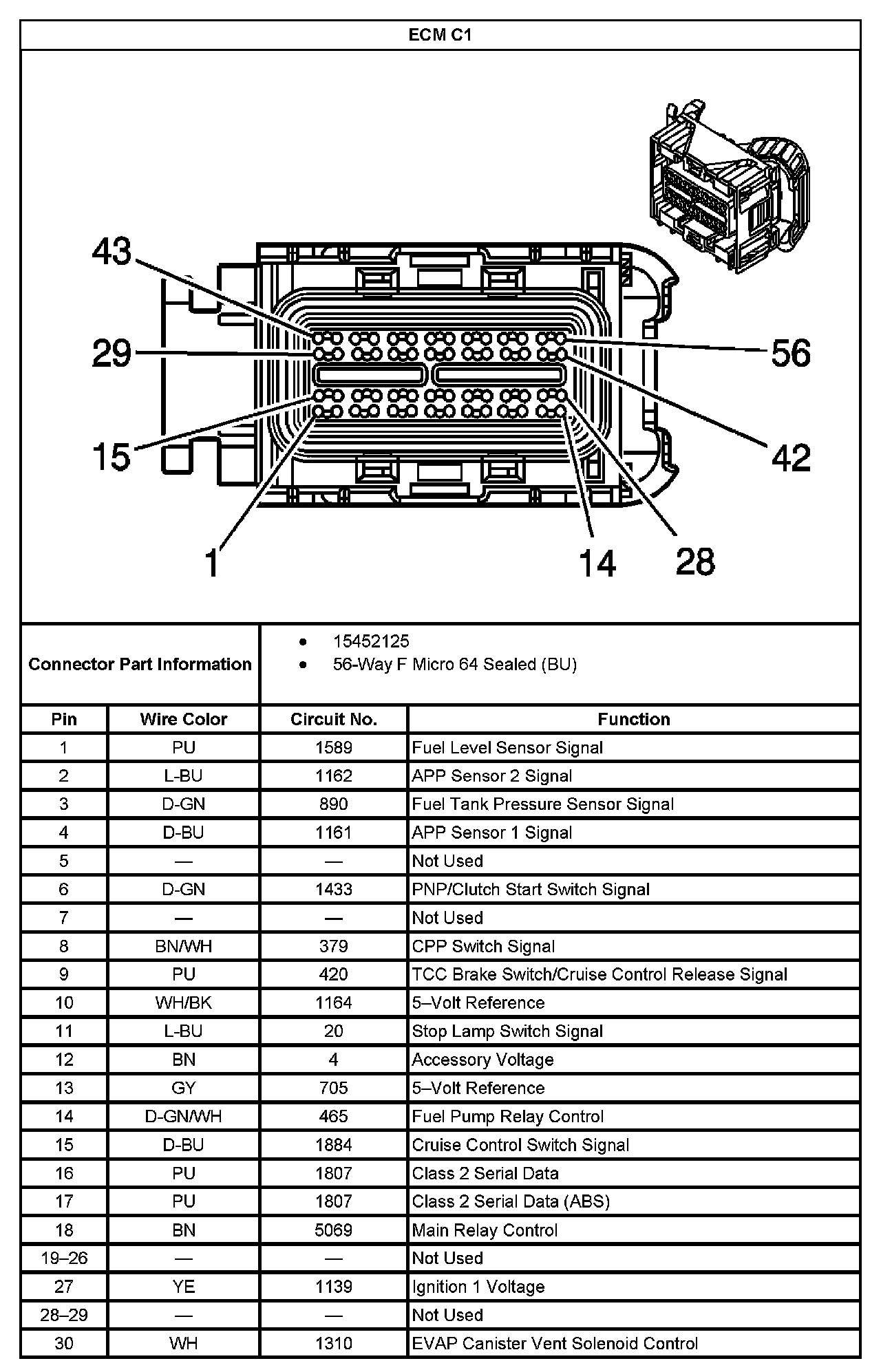

ECM C1 Part 1:

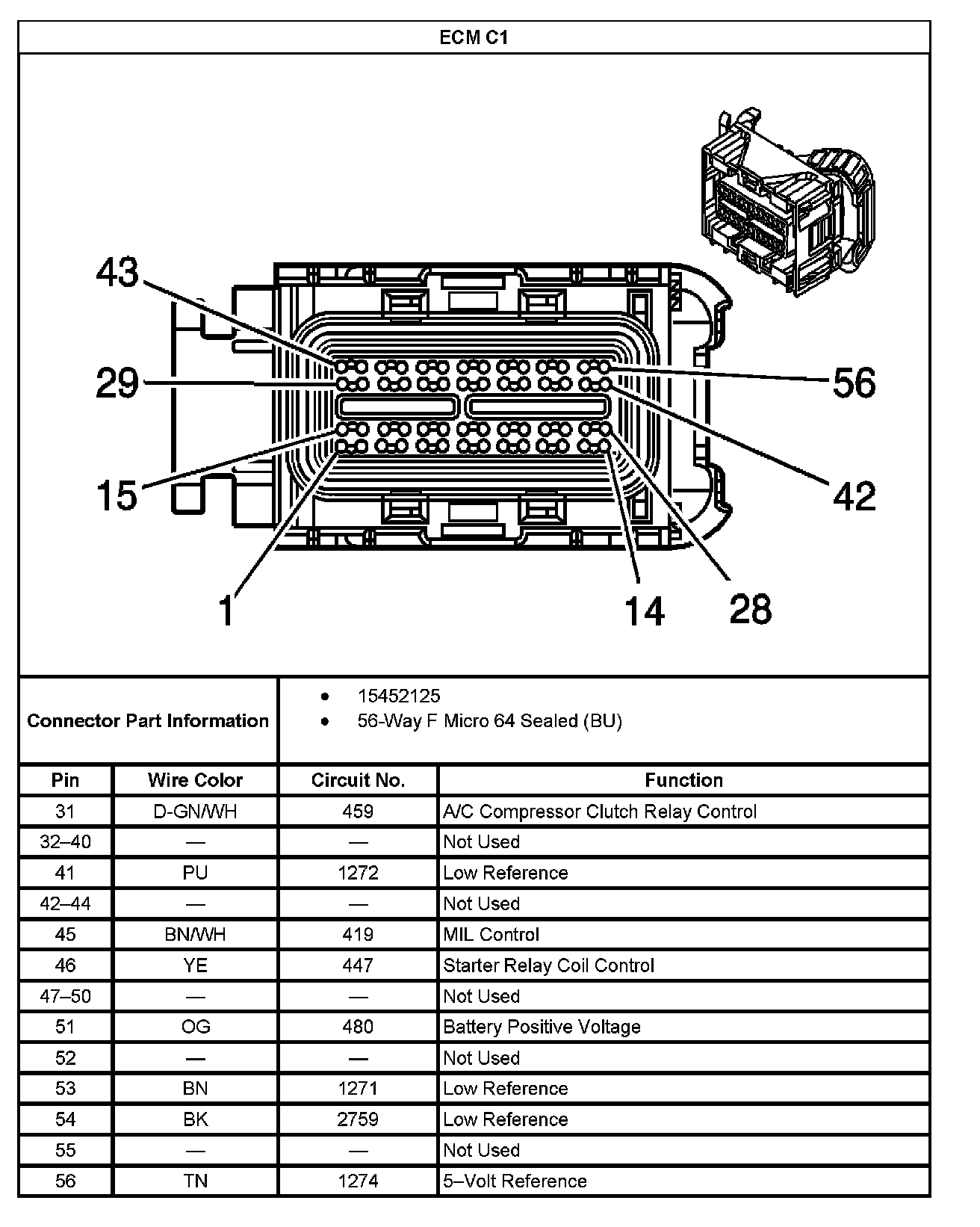

ECM C1 Part 2:
