Home >> Saturn >> 2005 >> ION L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Components

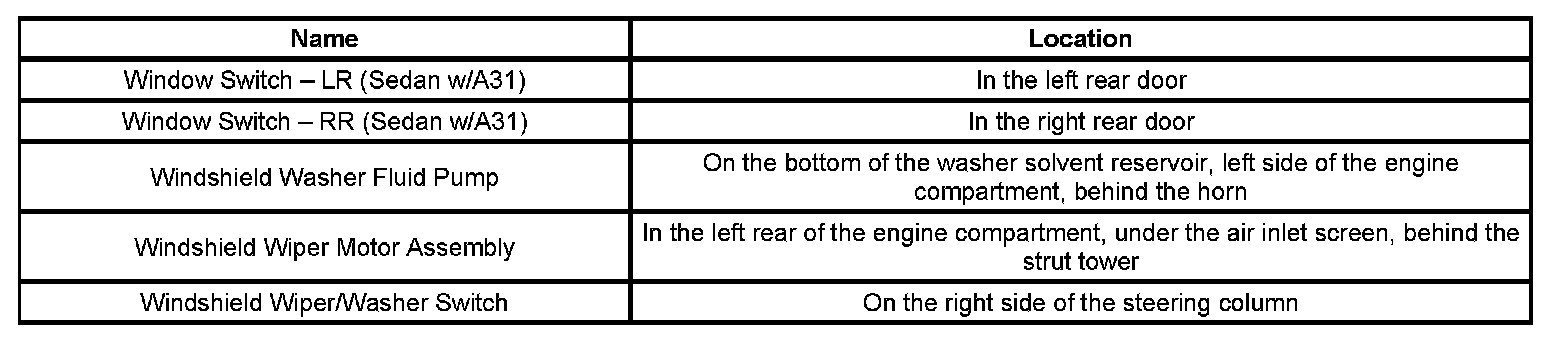

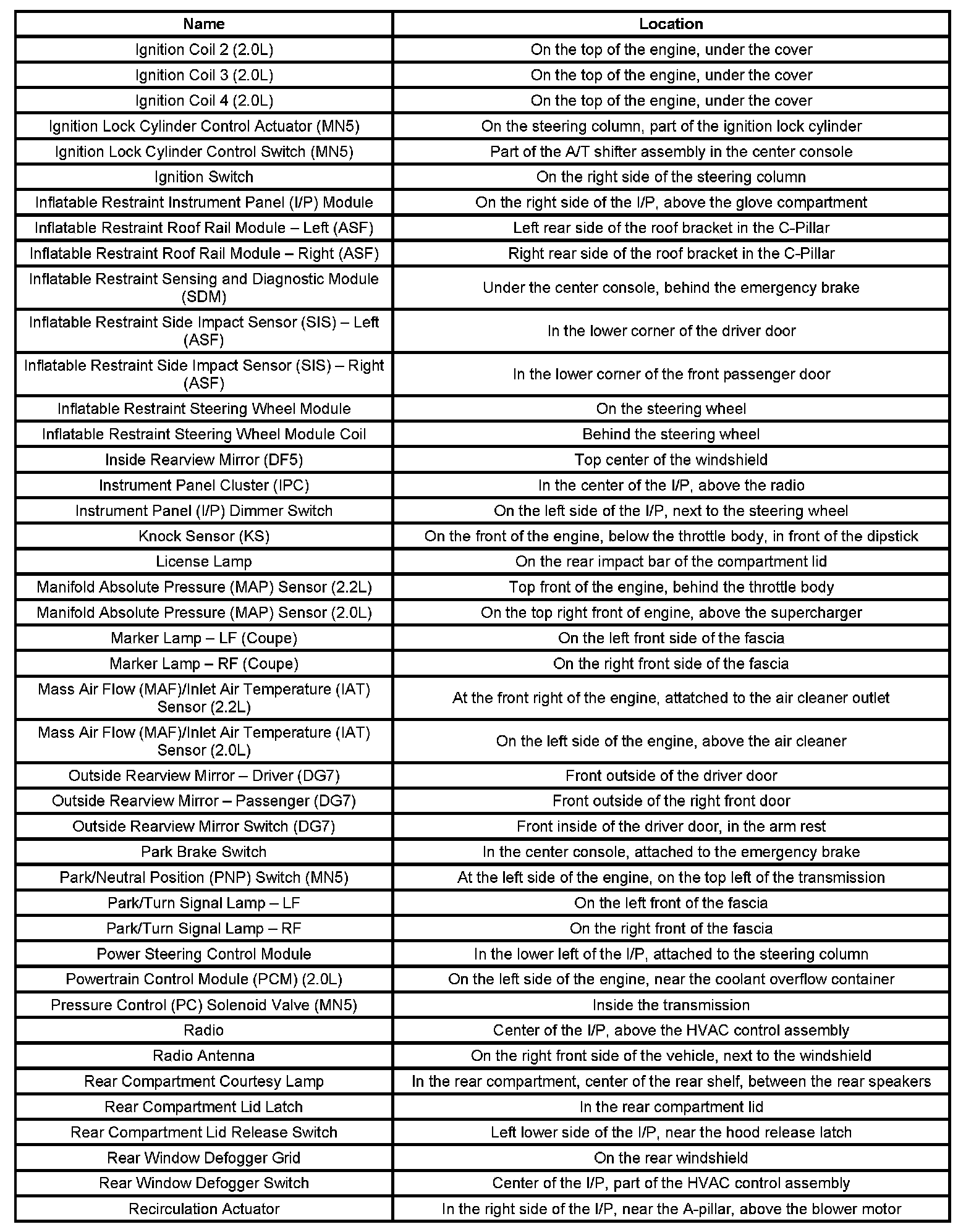

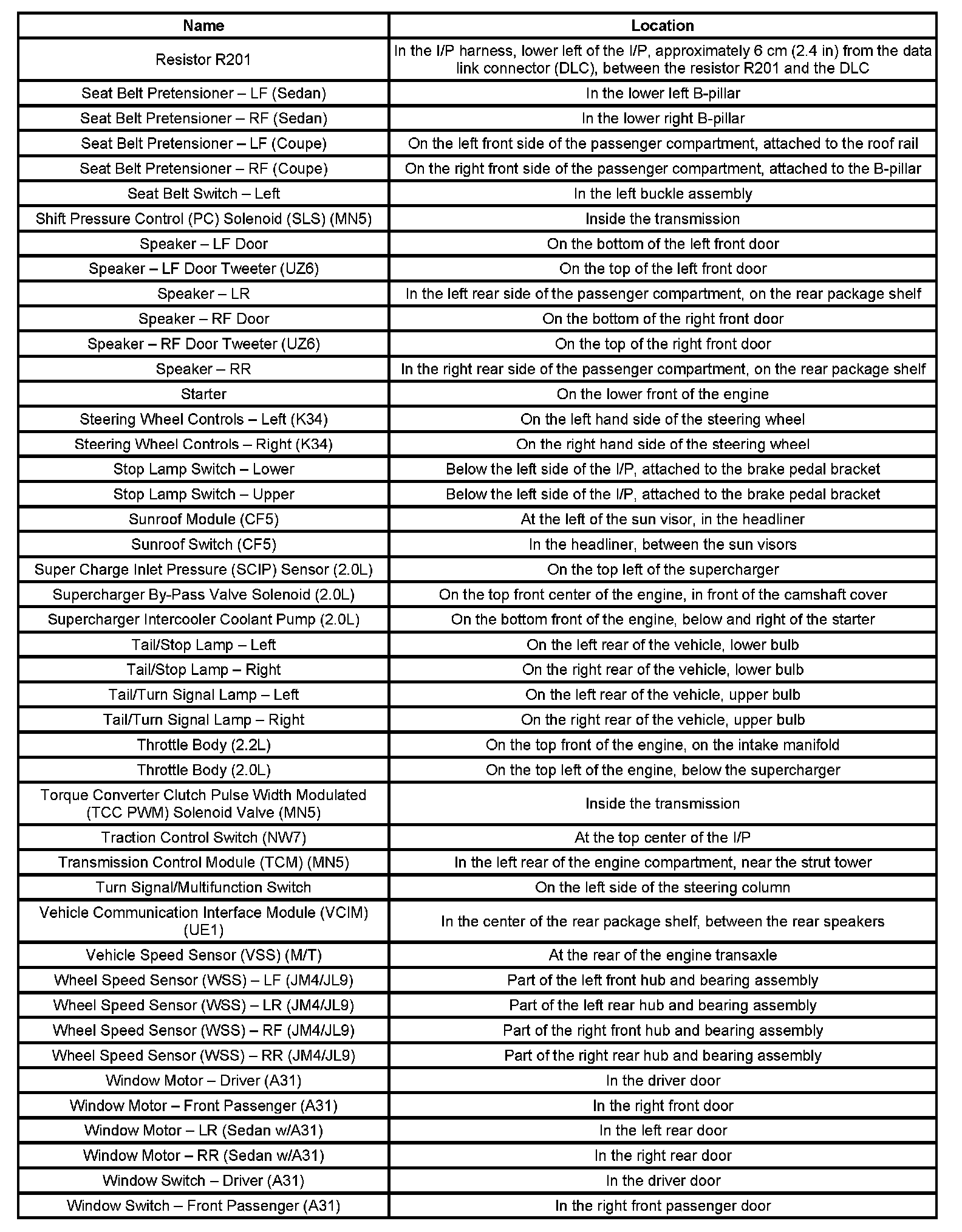

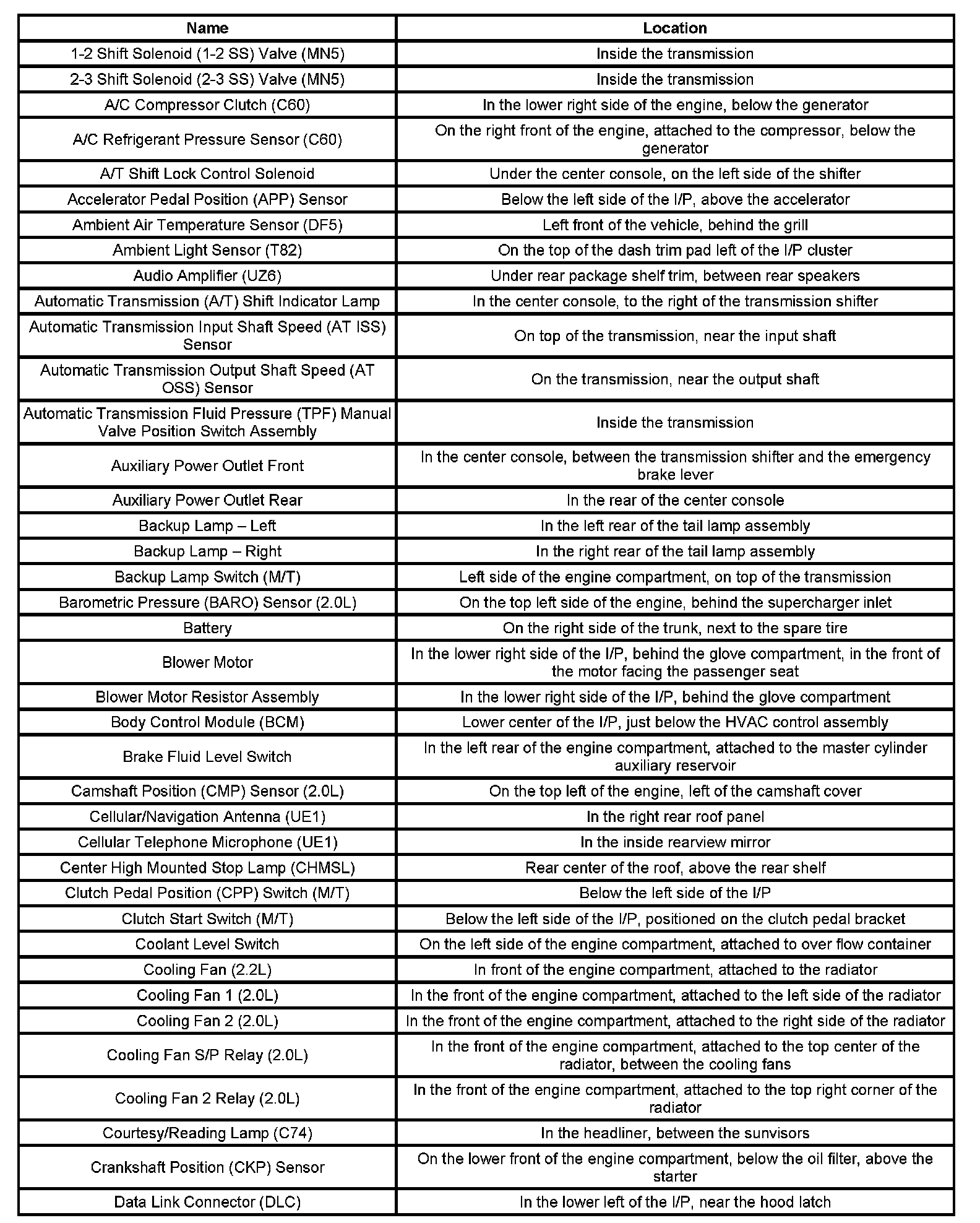

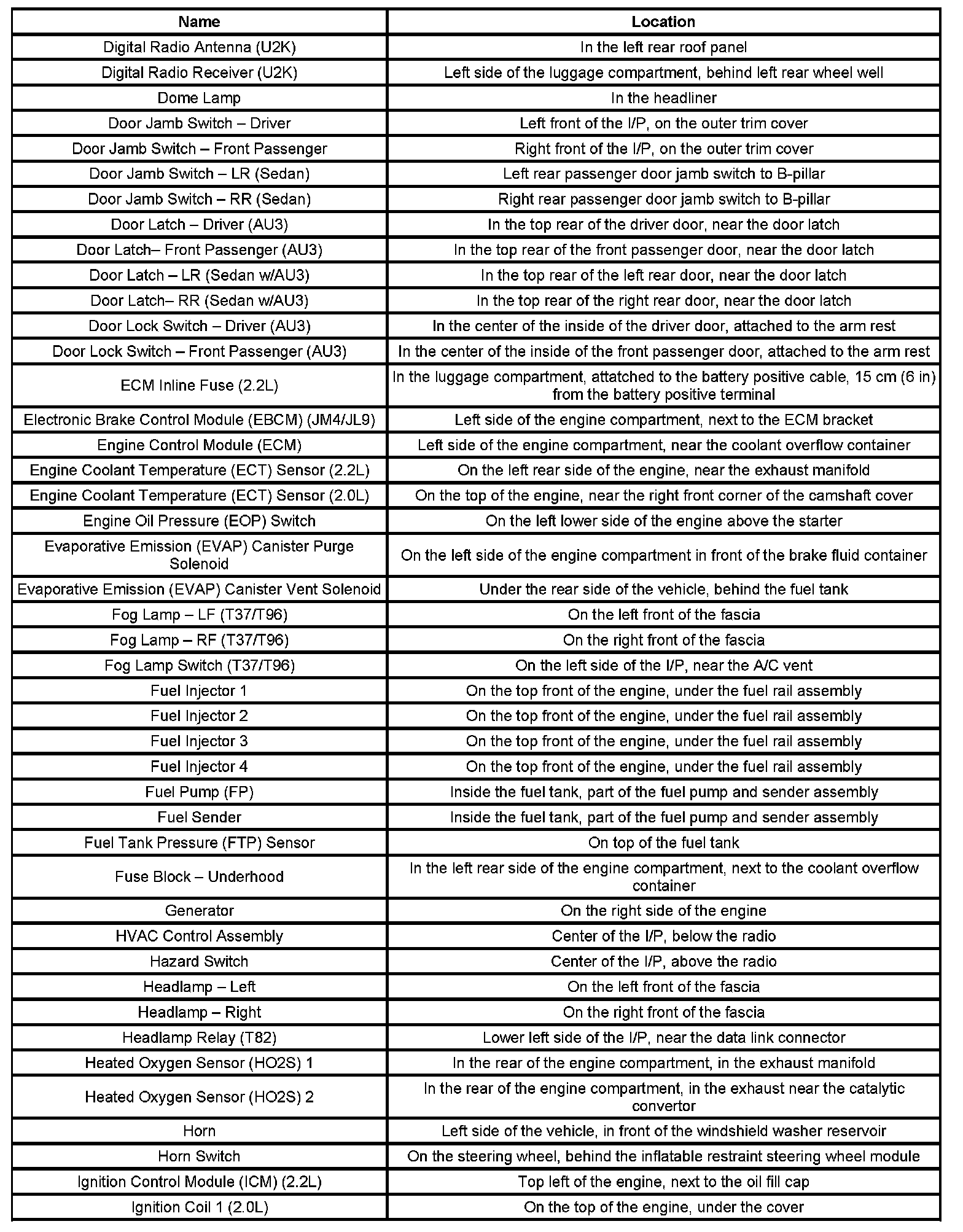

Components

1-2 - Da:




Di - Ig:




Ig - Re:




Re - Wi:




Wi - Wi:
