Mode 6 Data Vehicles With CAN System

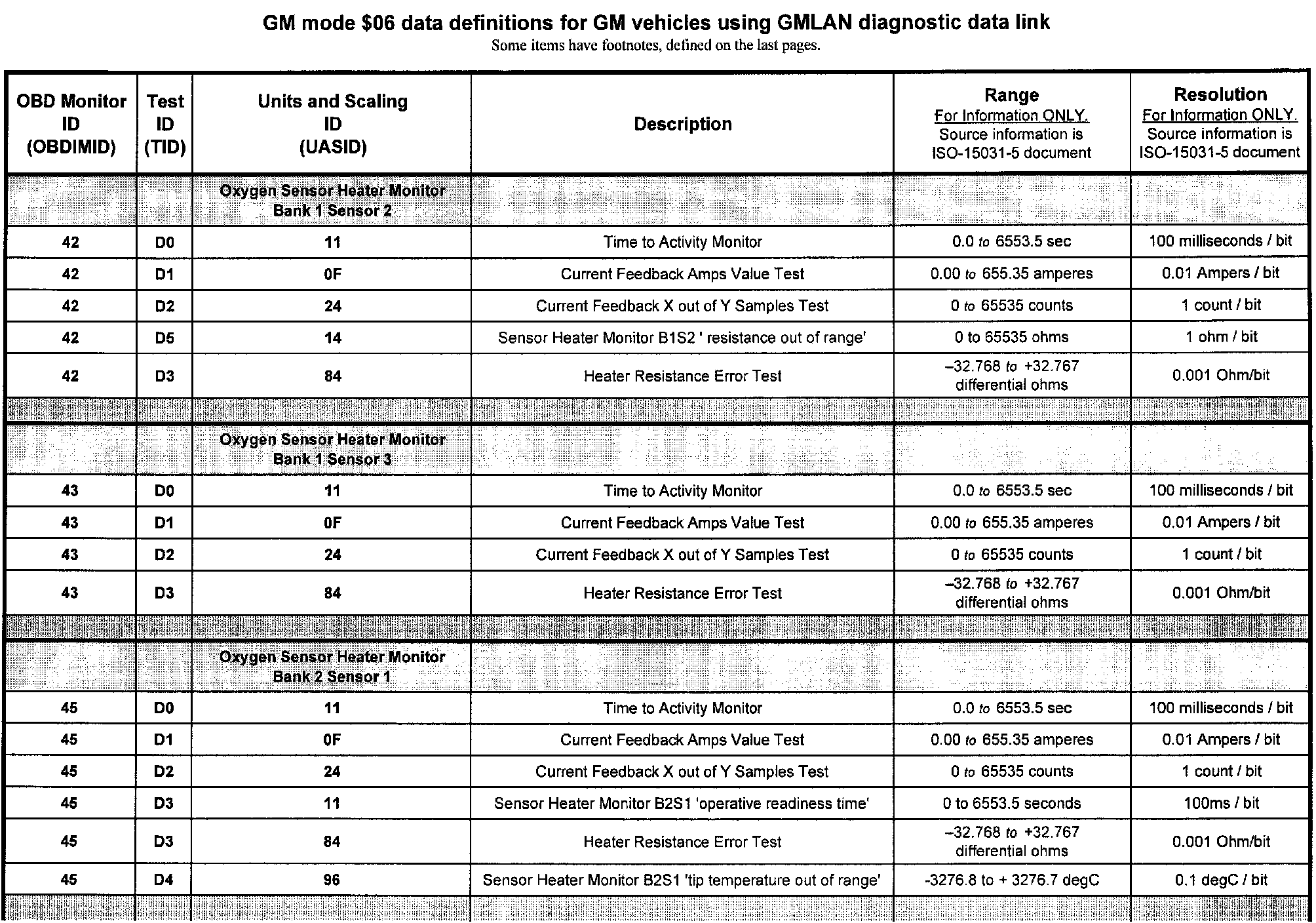

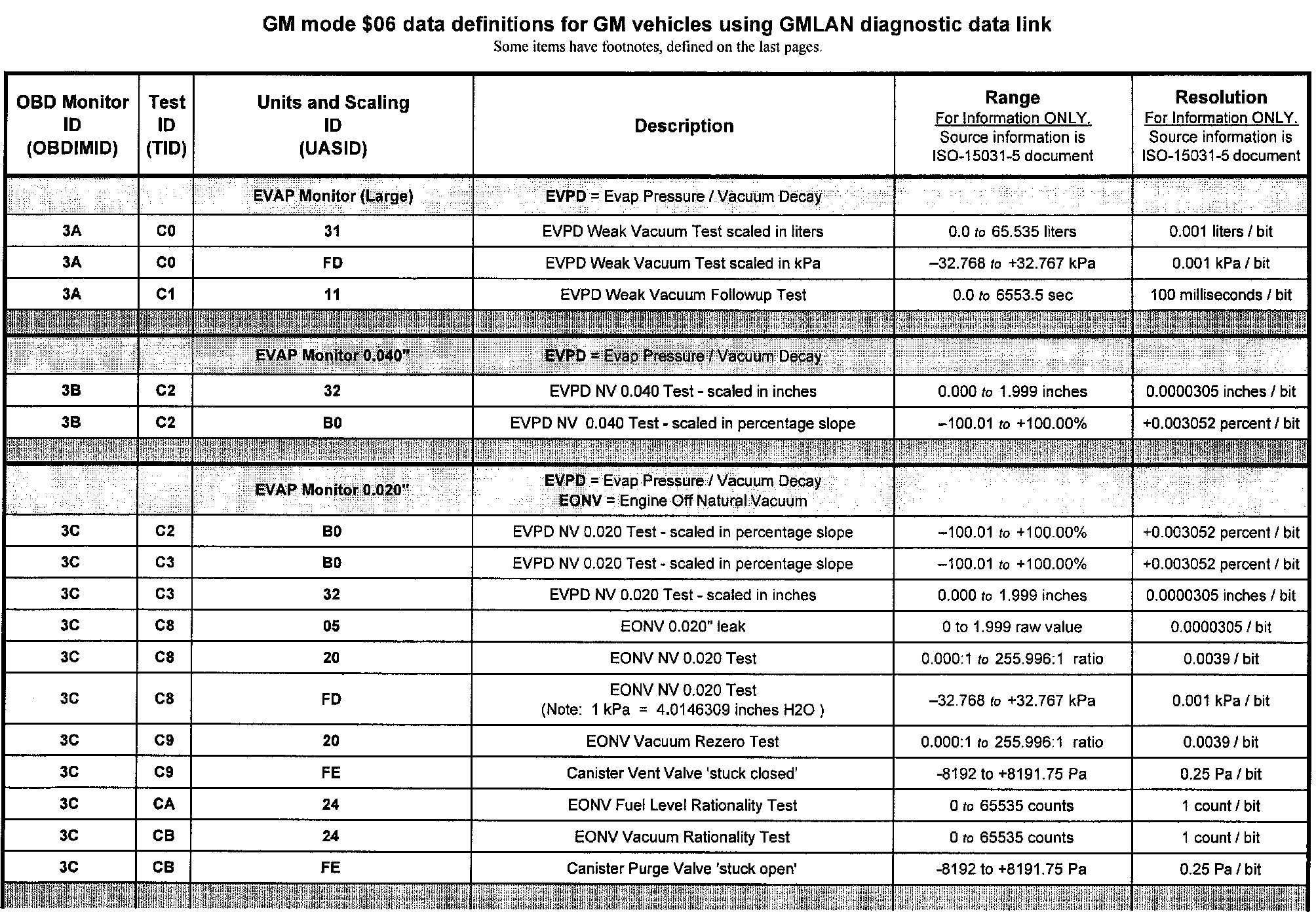

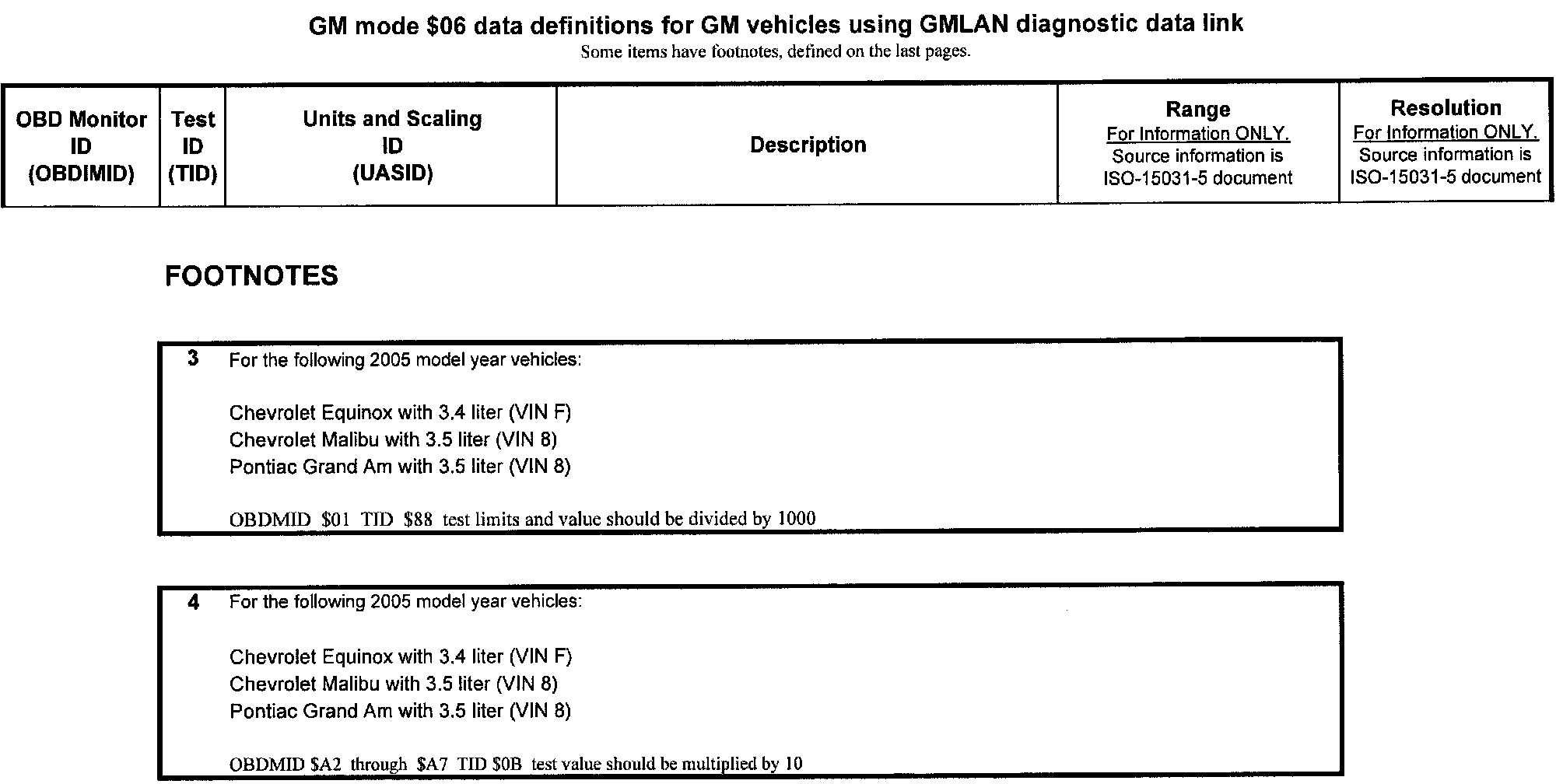

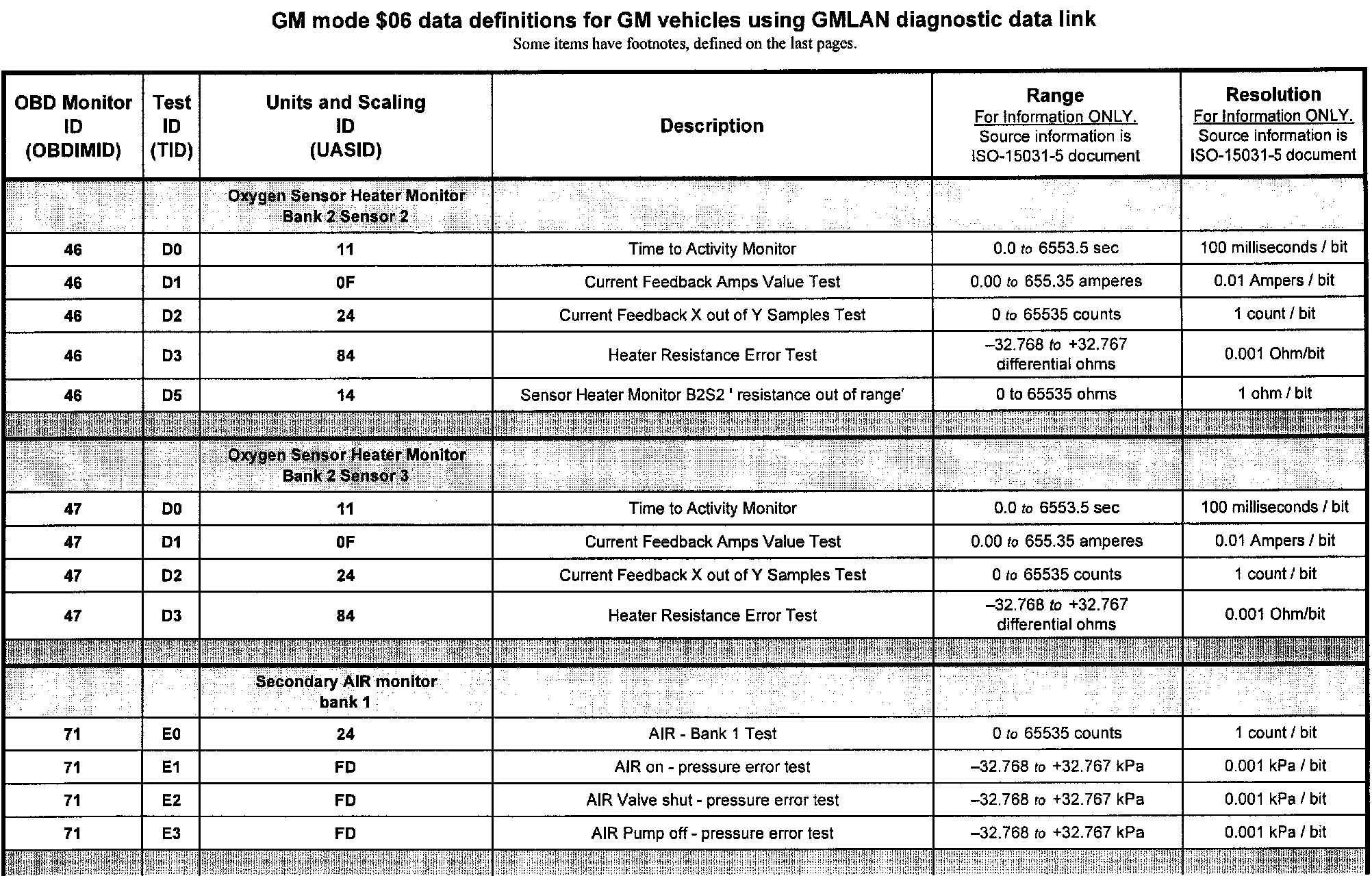

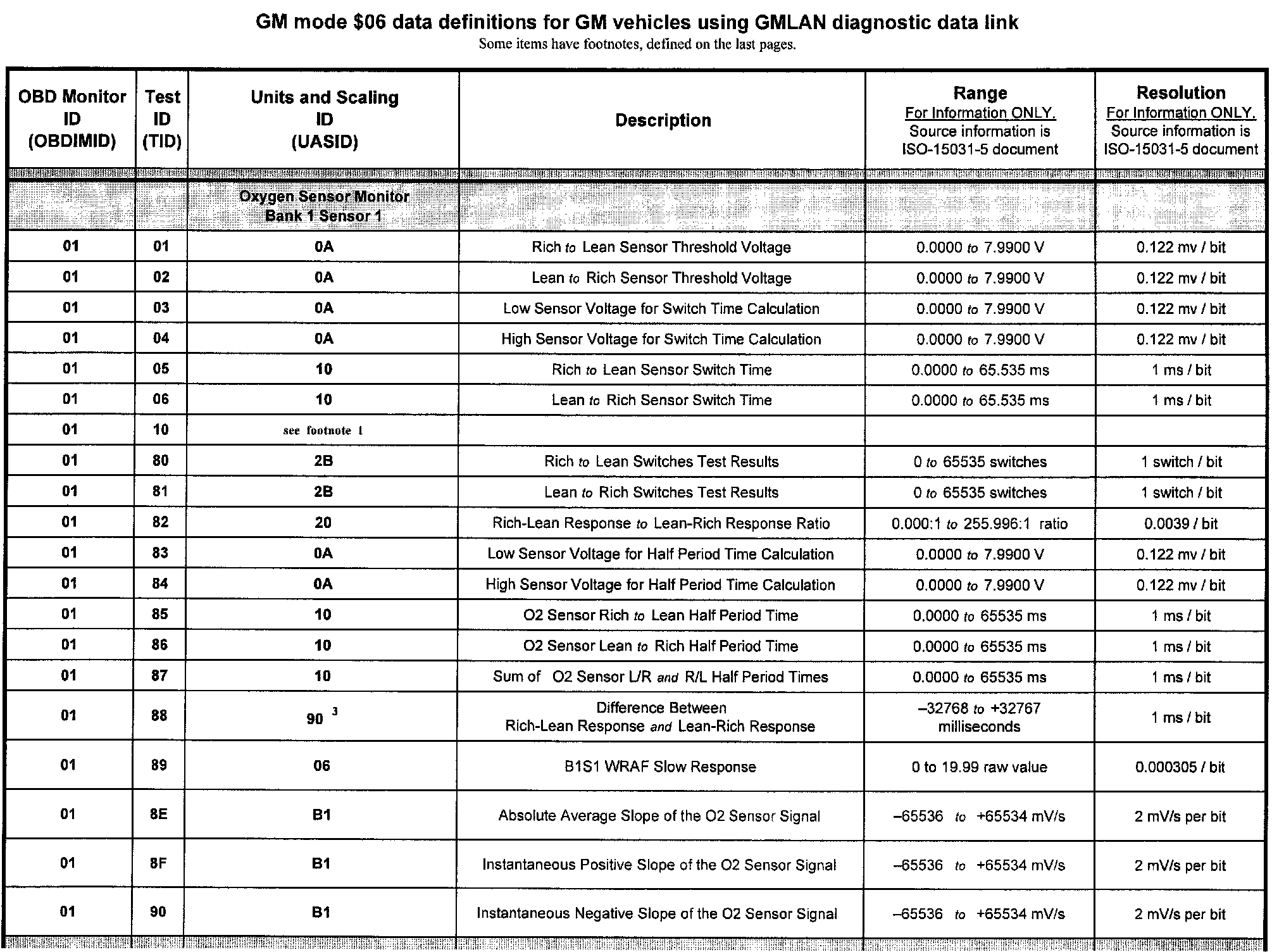

GMLAN Mode 6 Data Description Page 1:



GMLAN Mode 6 Data Description Page 2:



GMLAN Mode 6 Data Description Page 3:



GMLAN Mode 6 Data Description Page 4:



GMLAN Mode 6 Data Description Page 5:



GMLAN Mode 6 Data Description Page 6:



GMLAN Mode 6 Data Description Page 7:



GMLAN Mode 6 Data Description Page 8:



GMLAN Mode 6 Data Description Page 9:



GMLAN Mode 6 Data Description Page 10:



GMLAN Mode 6 Data Description Page 11:



GMLAN Mode 6 Data Description Page 12:



GMLAN Mode 6 Data Description Page 13:

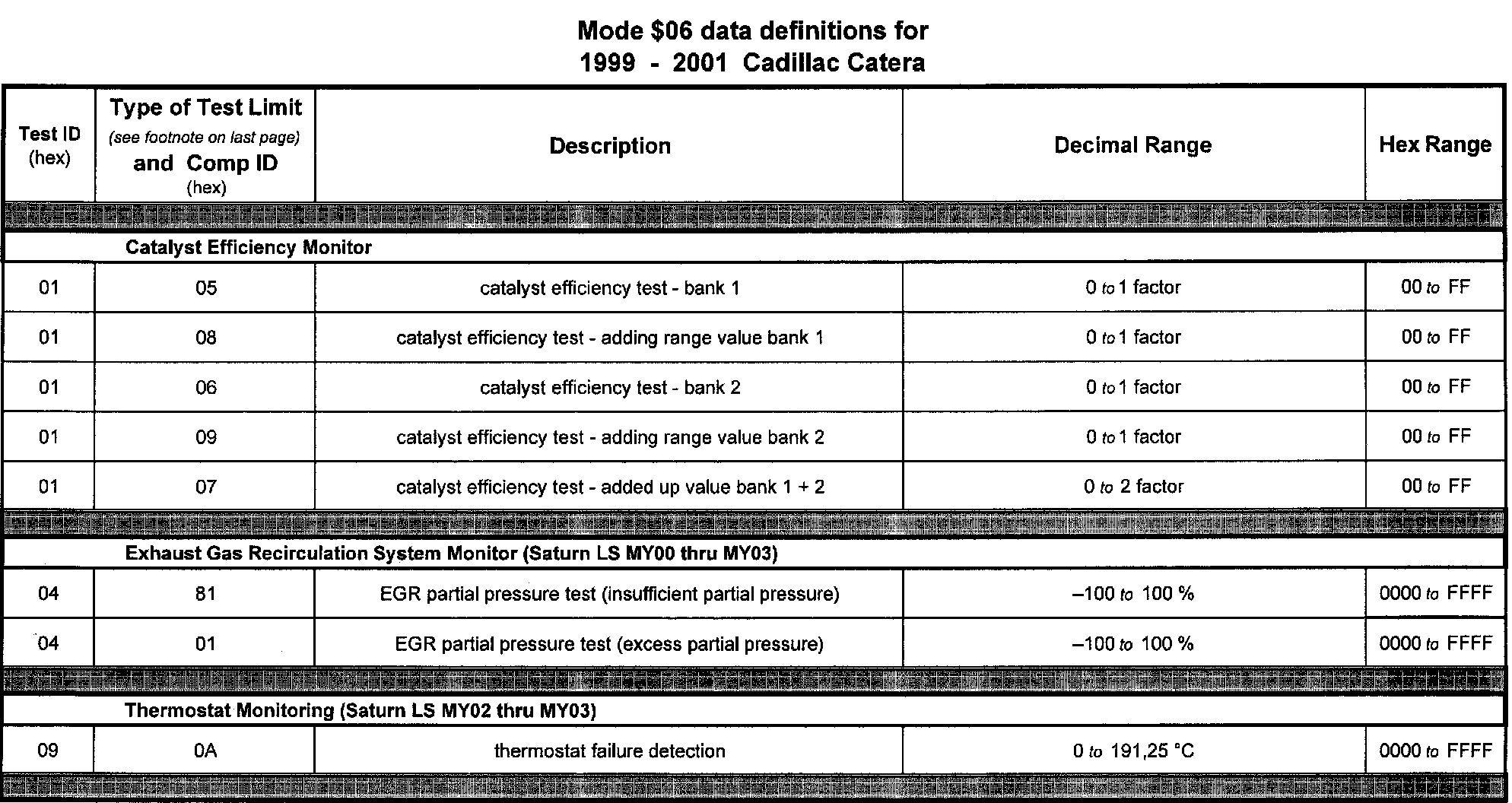

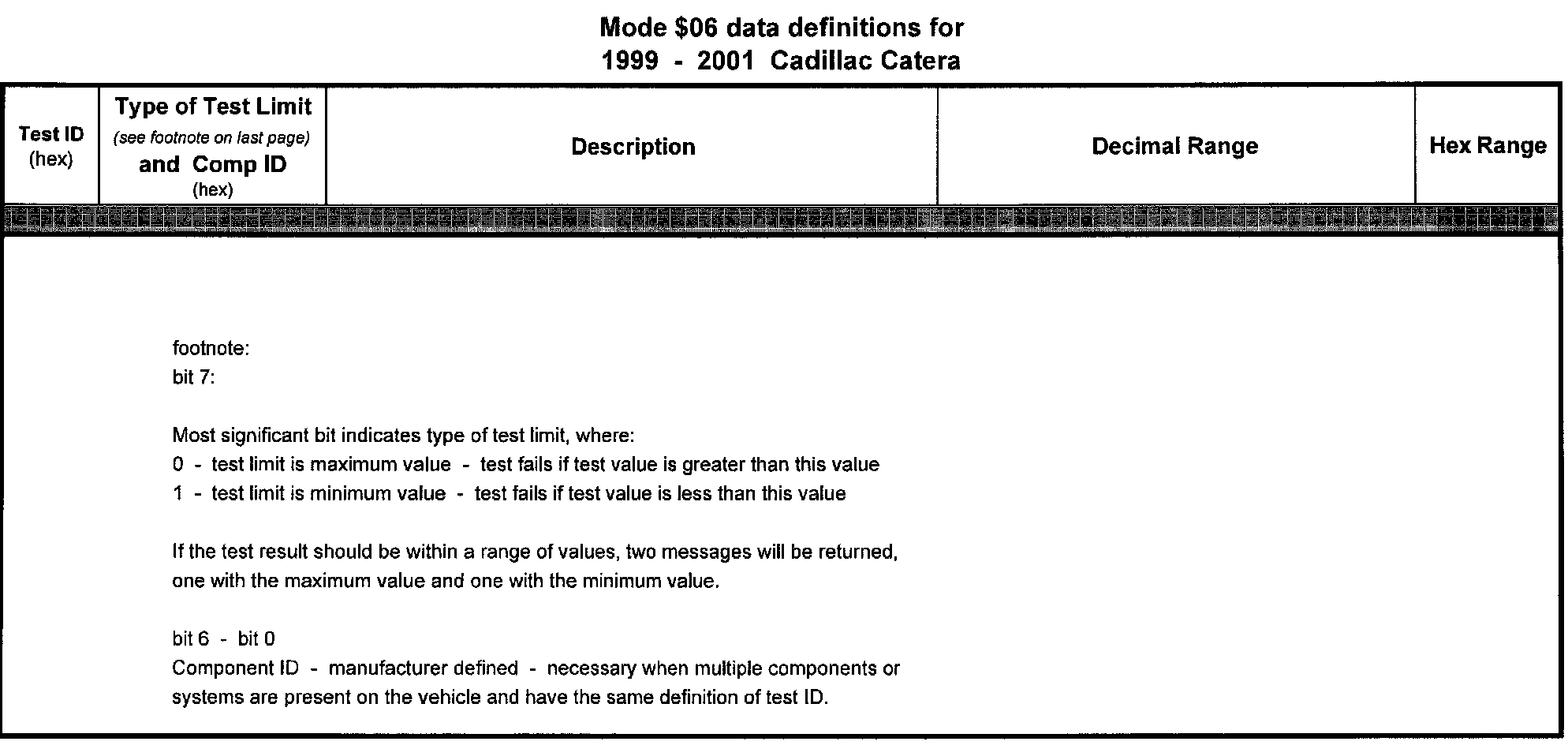

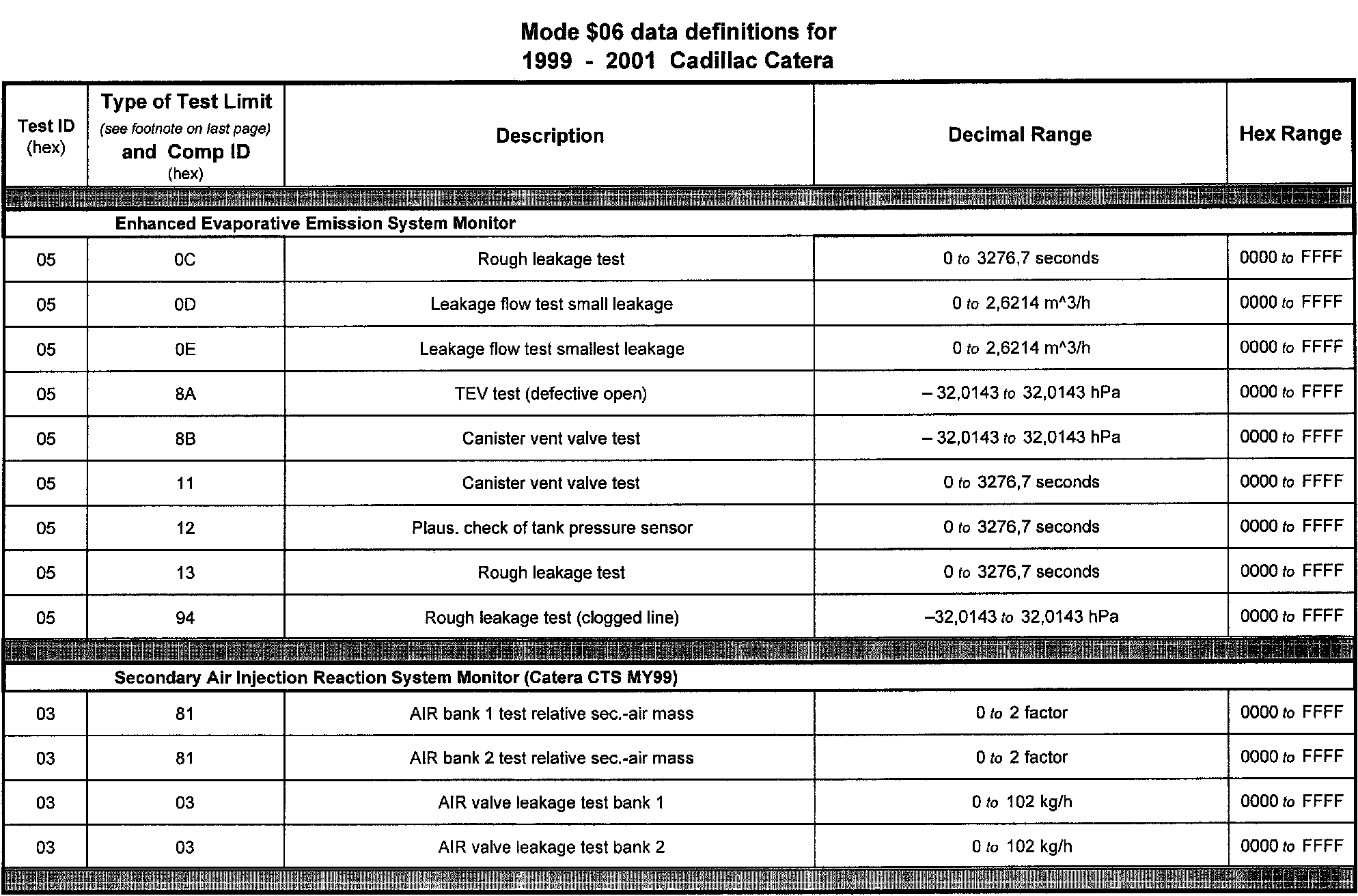

1999-2001 Cadillac Catera Mode 6 Description Page 1:



1999-2001 Cadillac Catera Mode 6 Description Page 2:



1999-2001 Cadillac Catera Mode 6 Description Page 3:
