Home >> Saturn >> 2004 >> ION L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle >> Control Valve Body Assembly

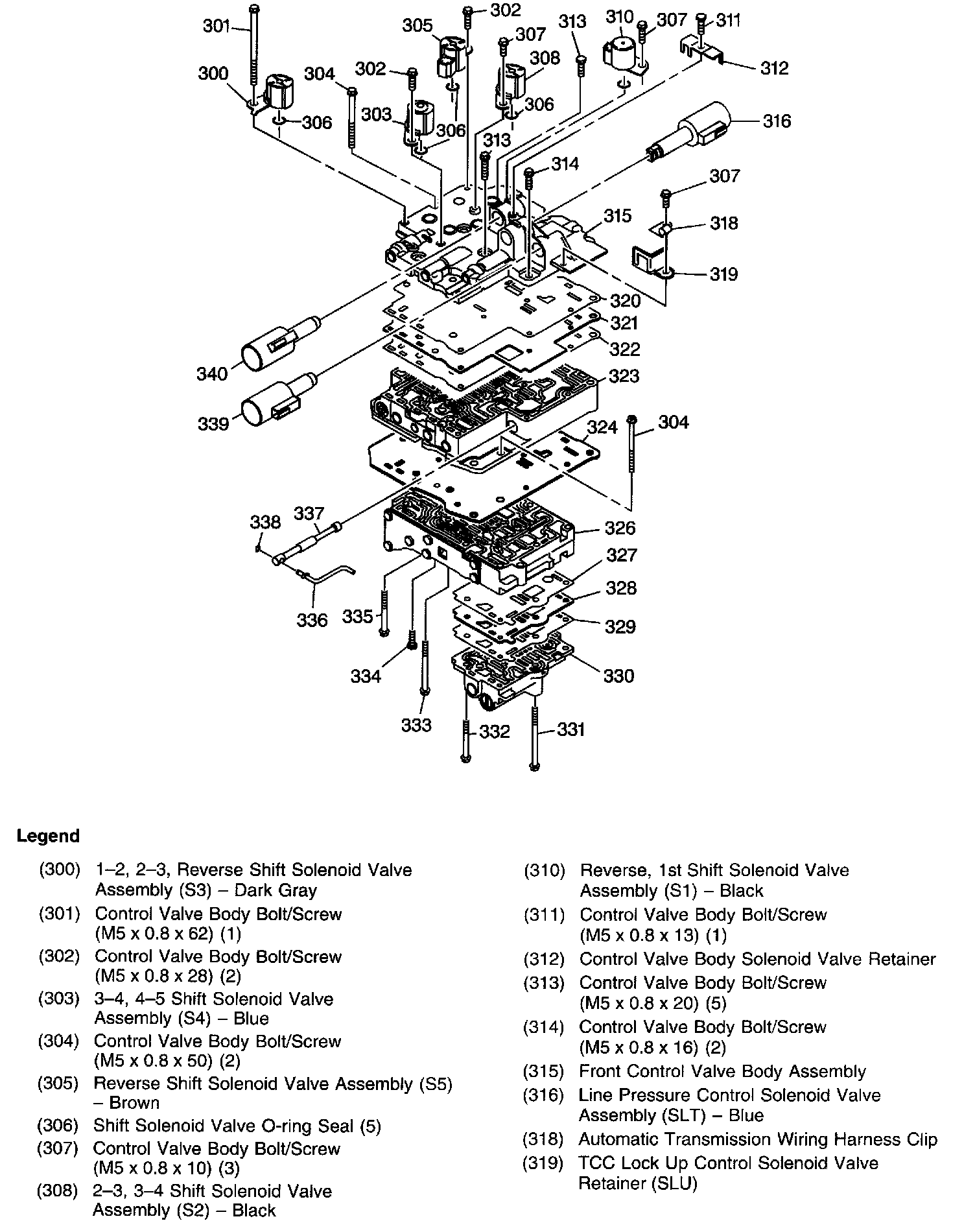

Control Valve Body Assembly

Control Valve Body Assembly








Control Valve Body Assembly

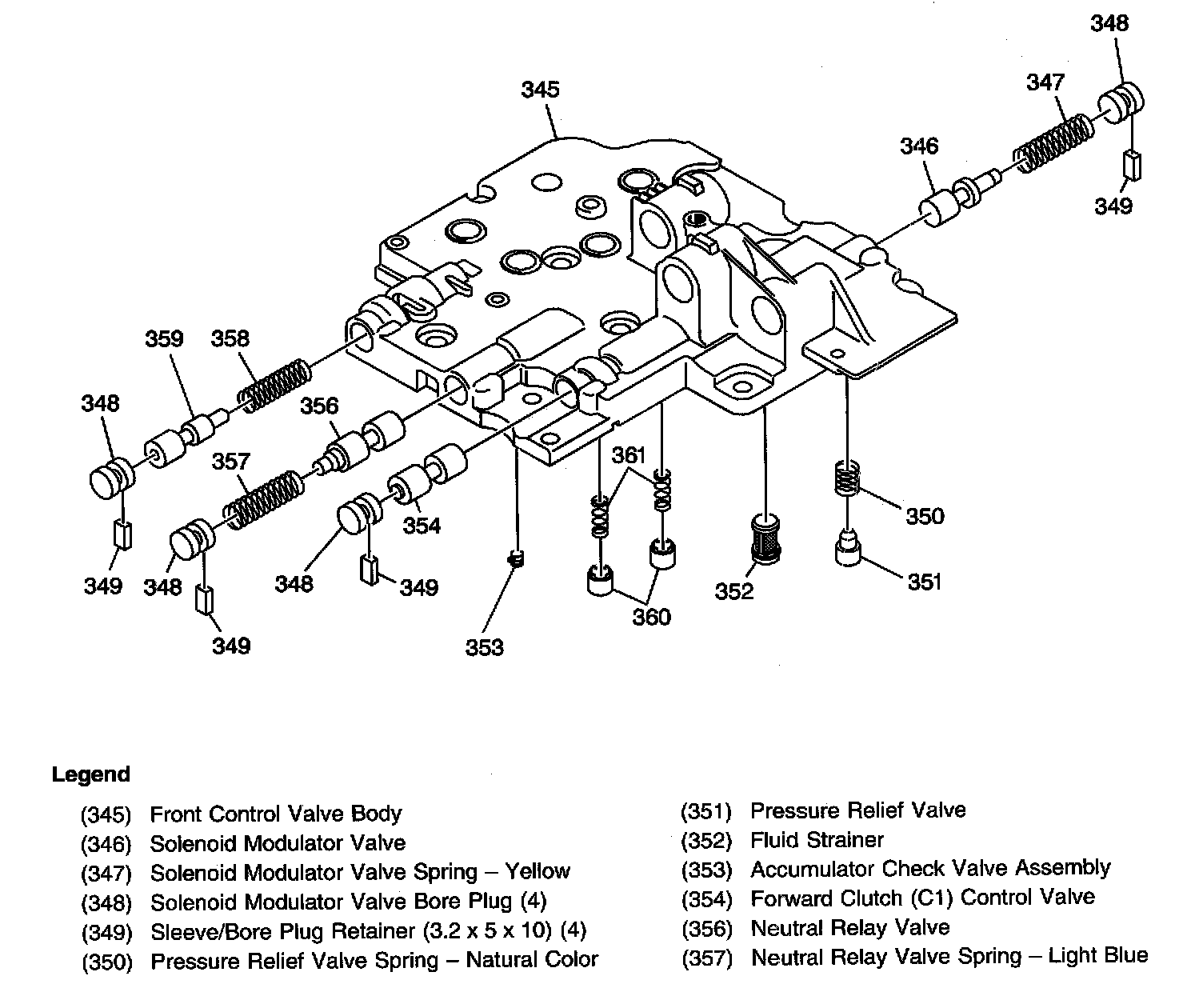

Front Control Valve Body Assembly

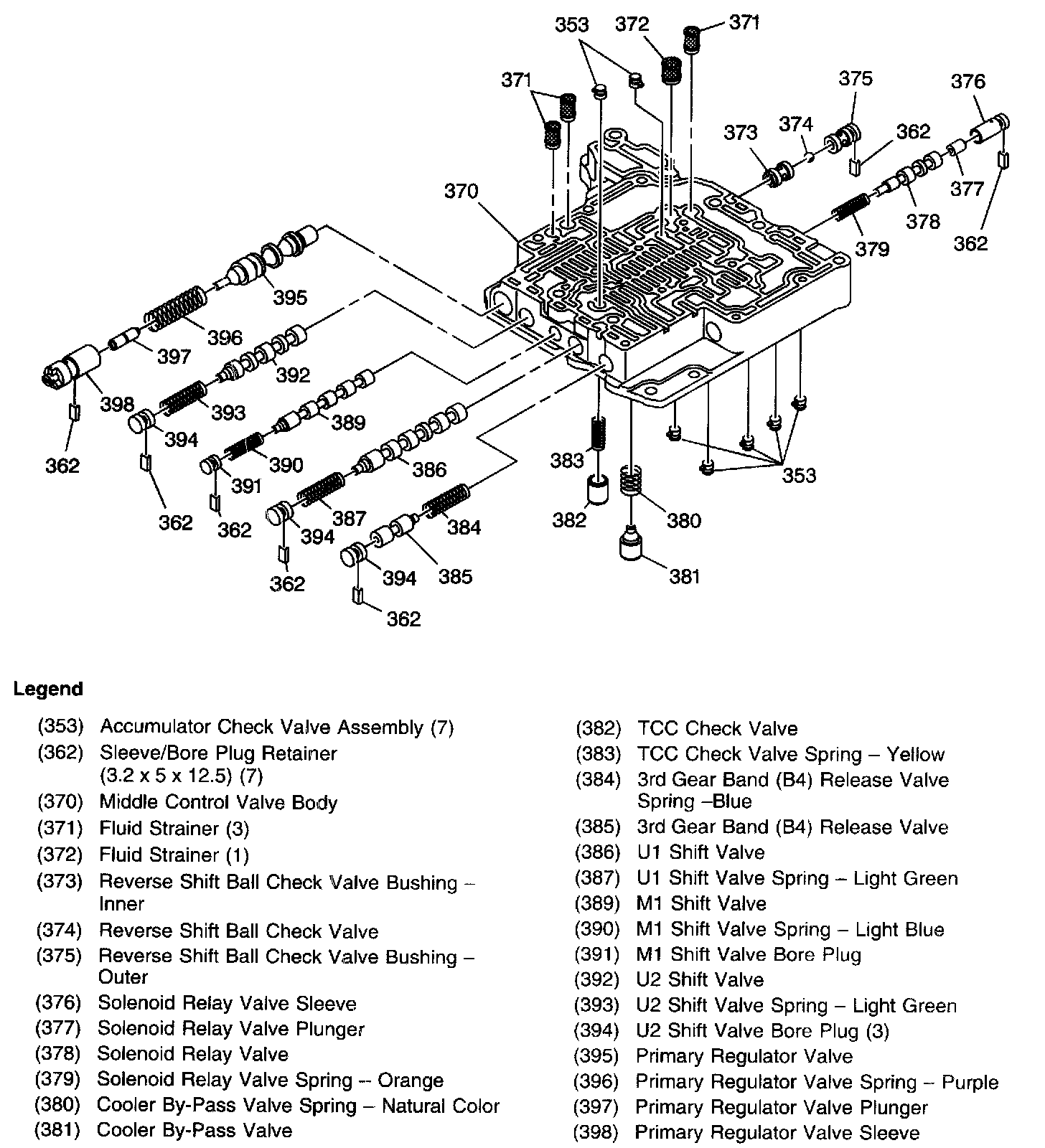

Middle Control Valve Body Assembly

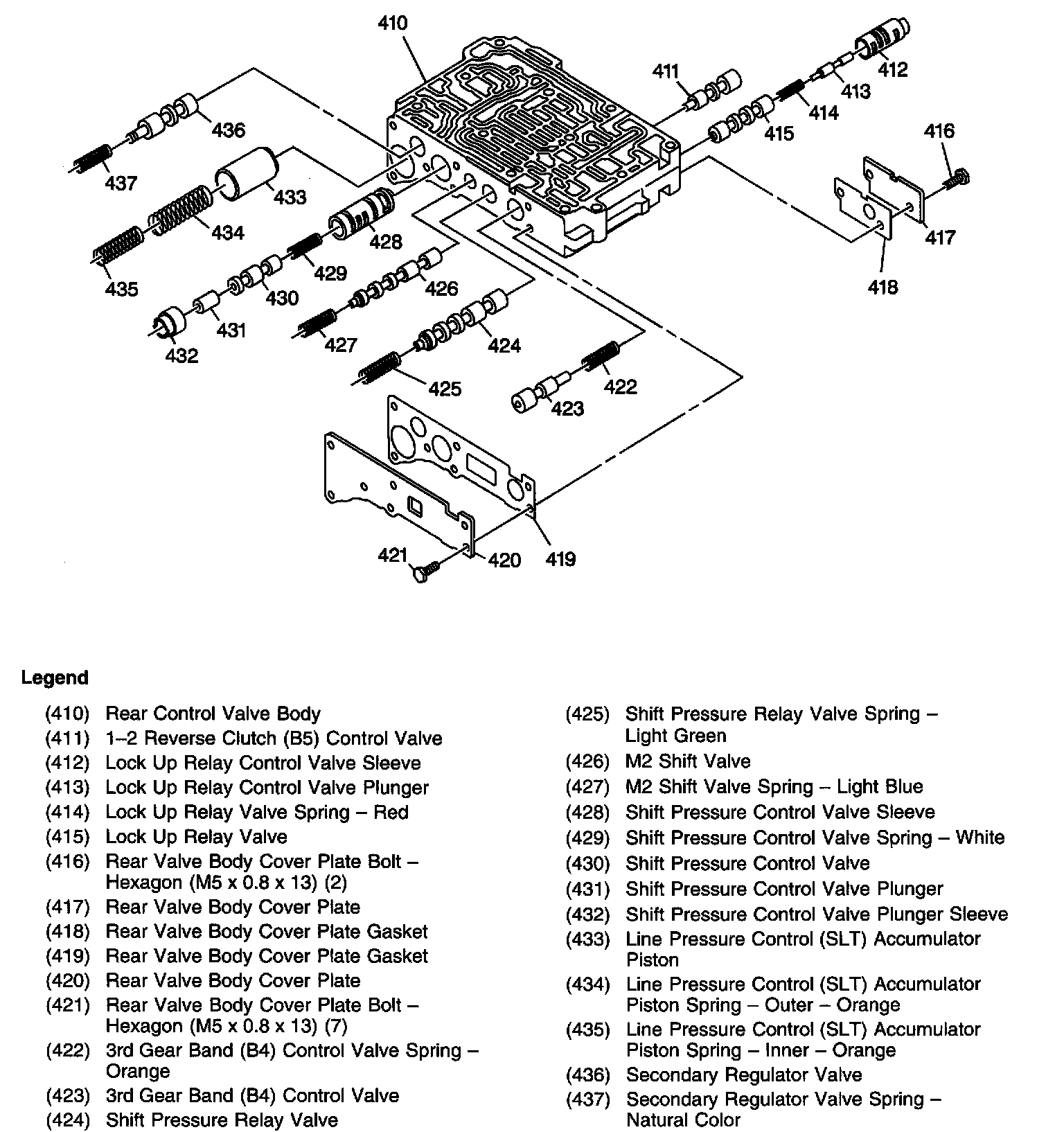

Rear Control Valve Body Assembly

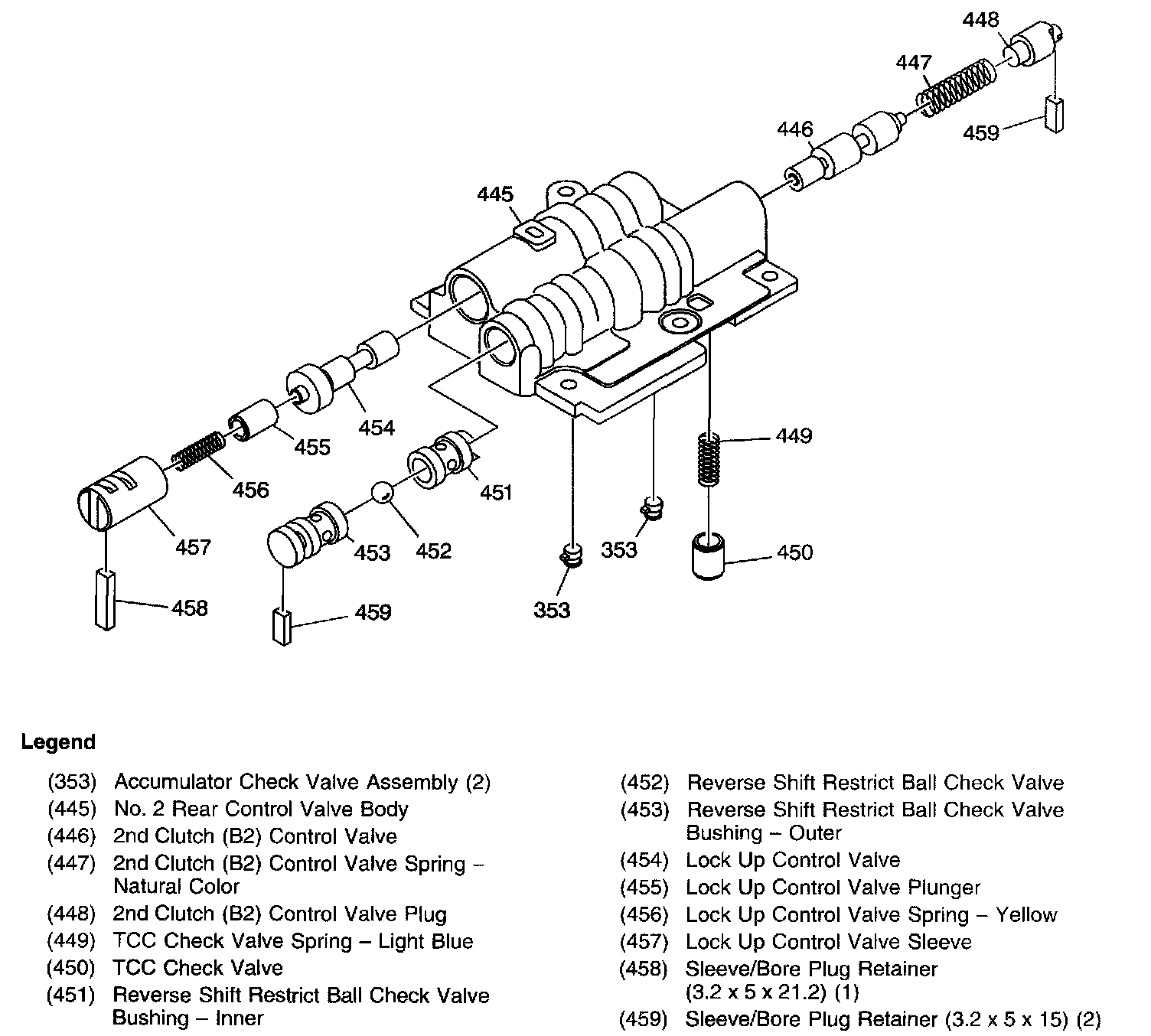

No. 2 Rear Control Valve Body Assembly
