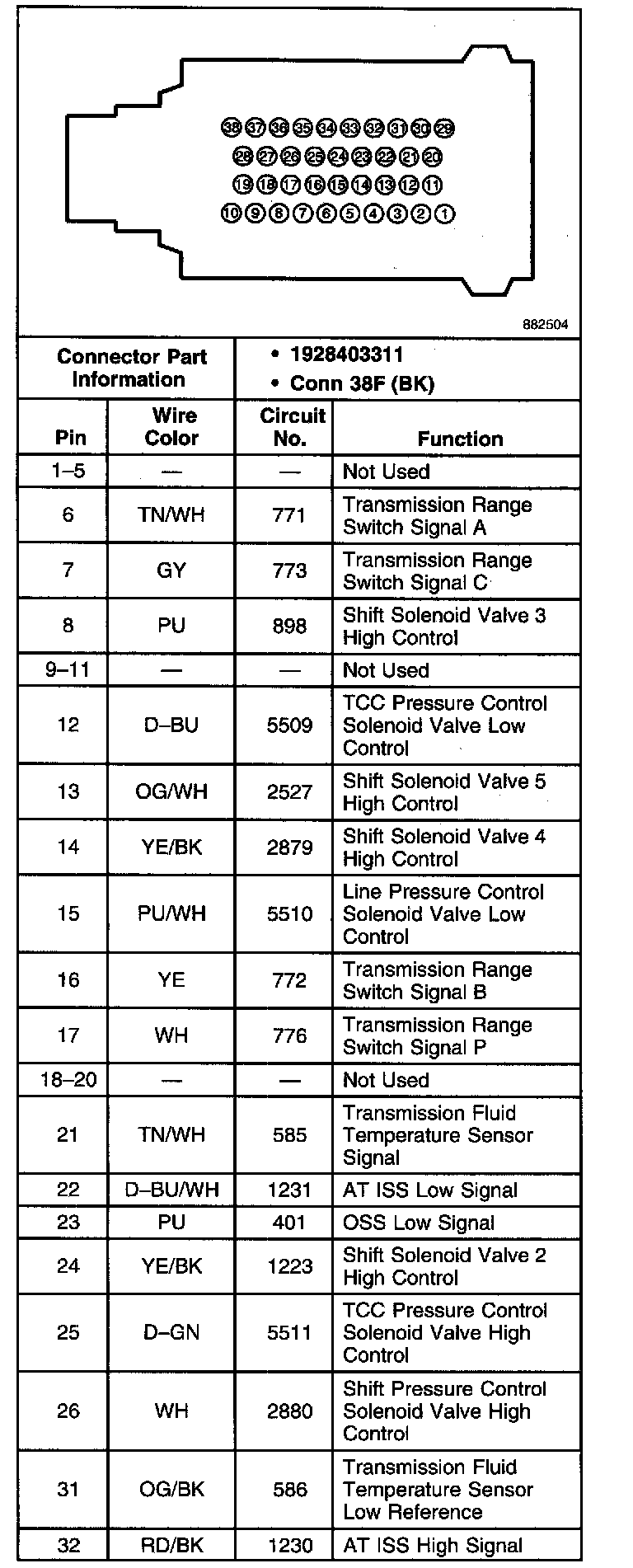

Transmission Control Module C2 Connector

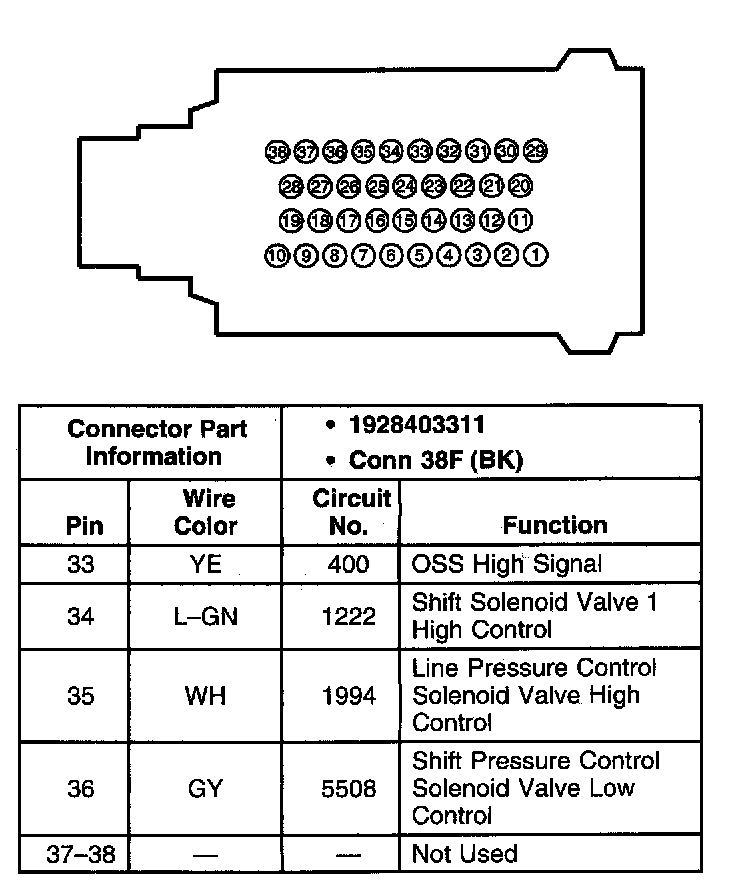

Transmission Control Module C2 Connector
Transmission Control Module C2 Connector
