Home >> Saturn >> 2004 >> ION L4-2.0L SC VIN P >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Absolute Pressure Sensor >> Diagrams

Absolute Pressure Sensor: Diagrams

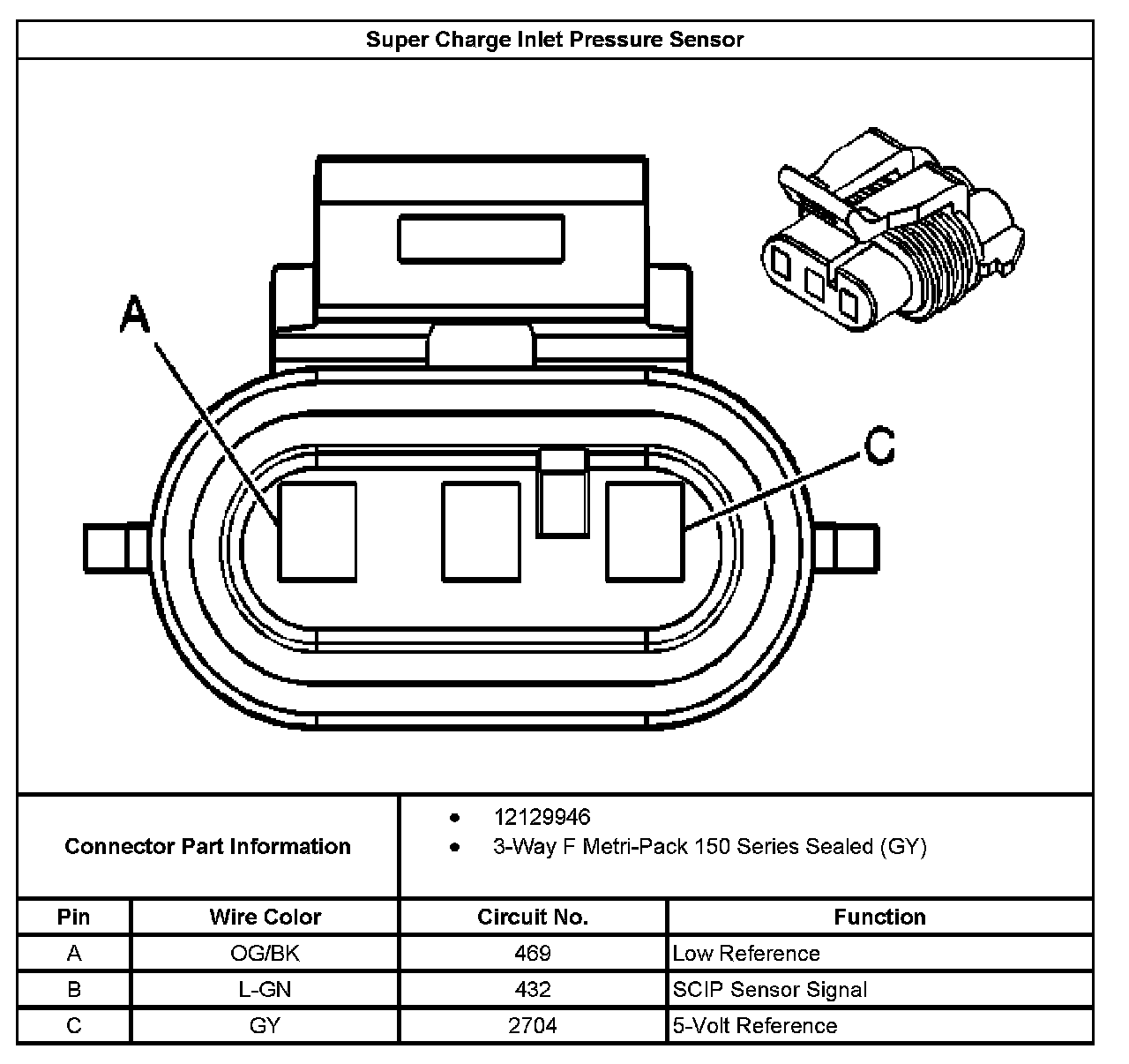

Super Charge Inlet Pressure Sensor:
