lemon-mirror
:
Home
>>
Saturn
>>
2003
>>
VUE L4-2.2L VIN D
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
>>

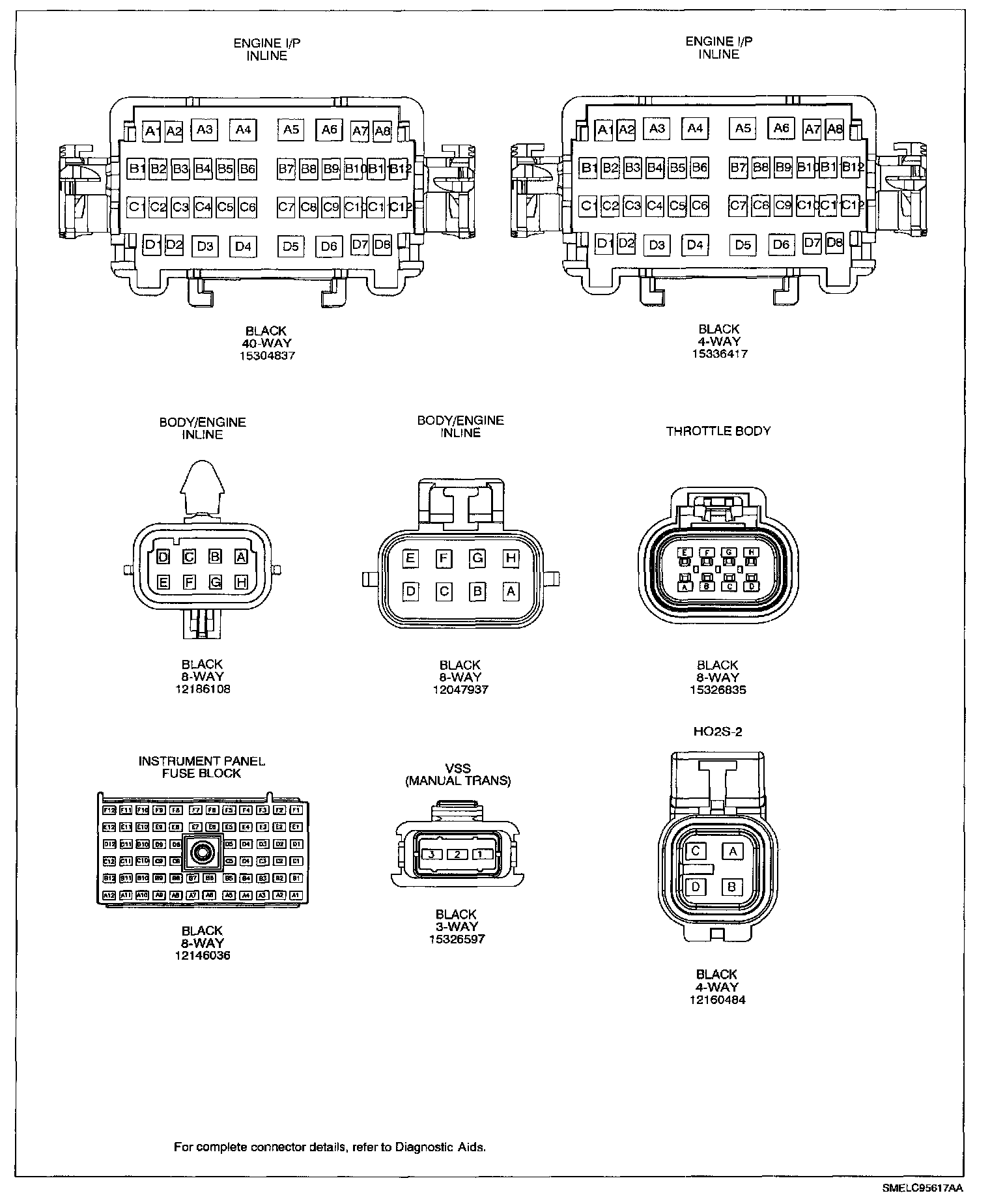

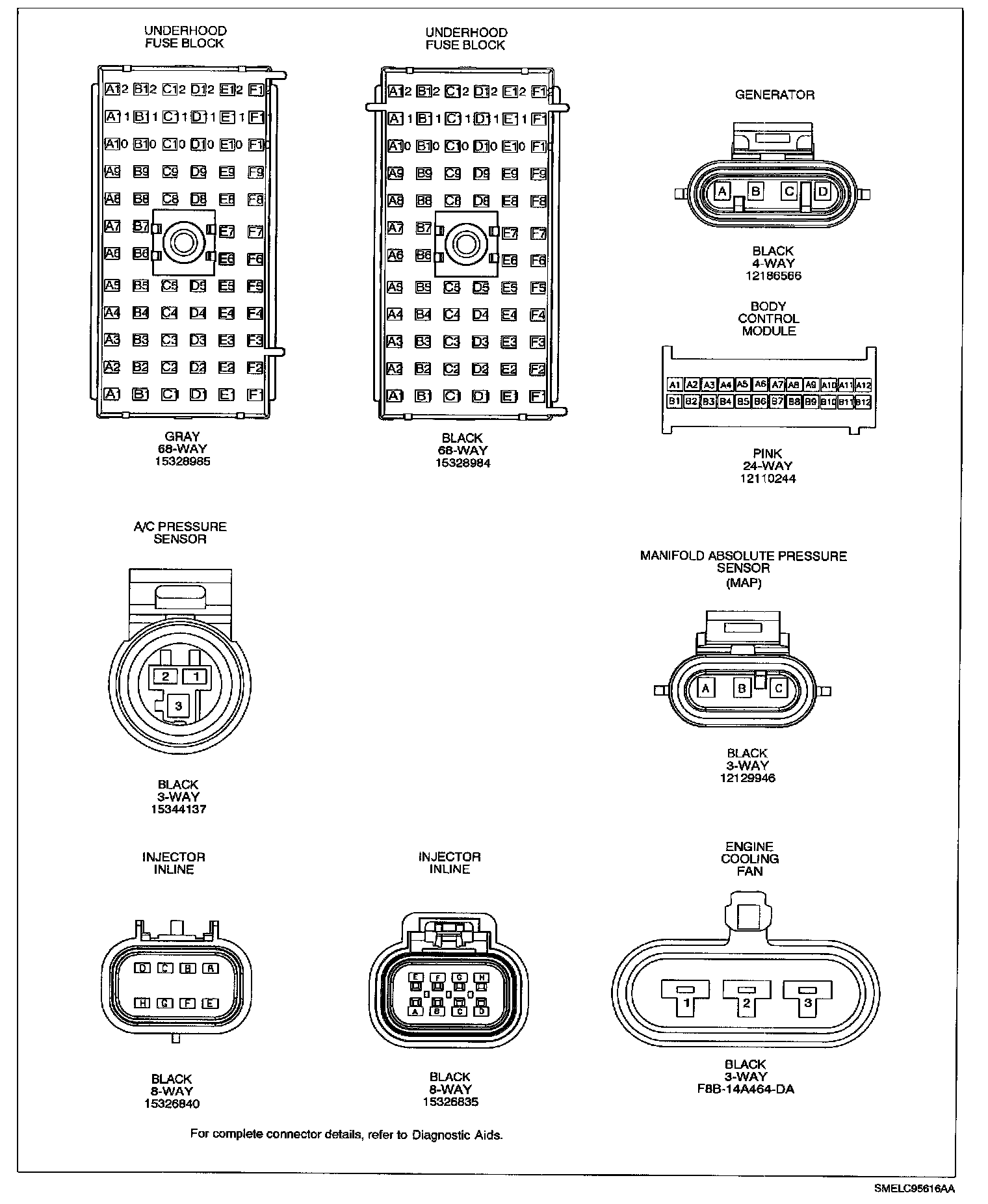

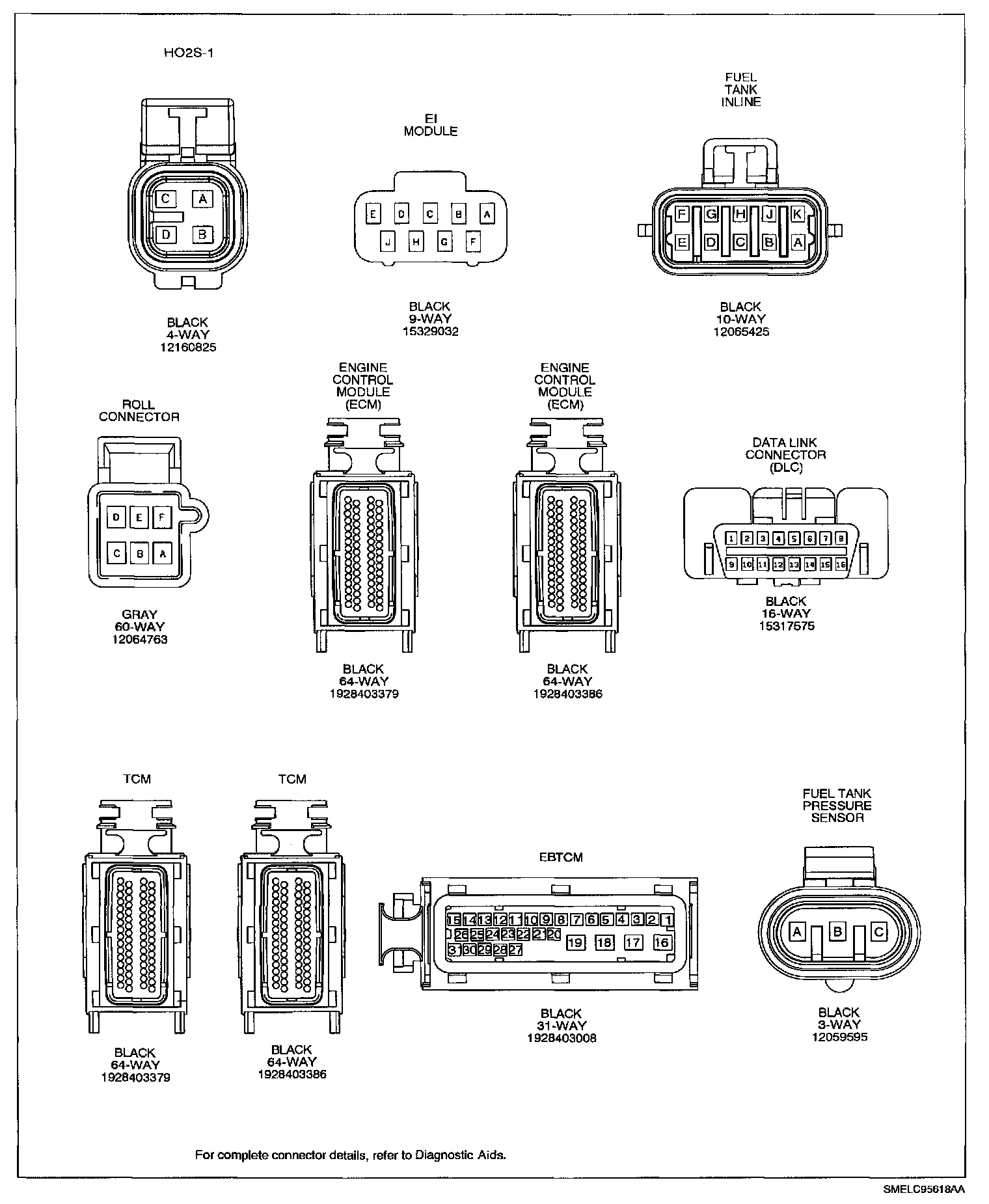

Engine Control Module Connector Face Views
Engine Control Module Connector Face Views
L61:
L61:
