Control Module: Diagrams


Automatic Transmission Related Connector End Views

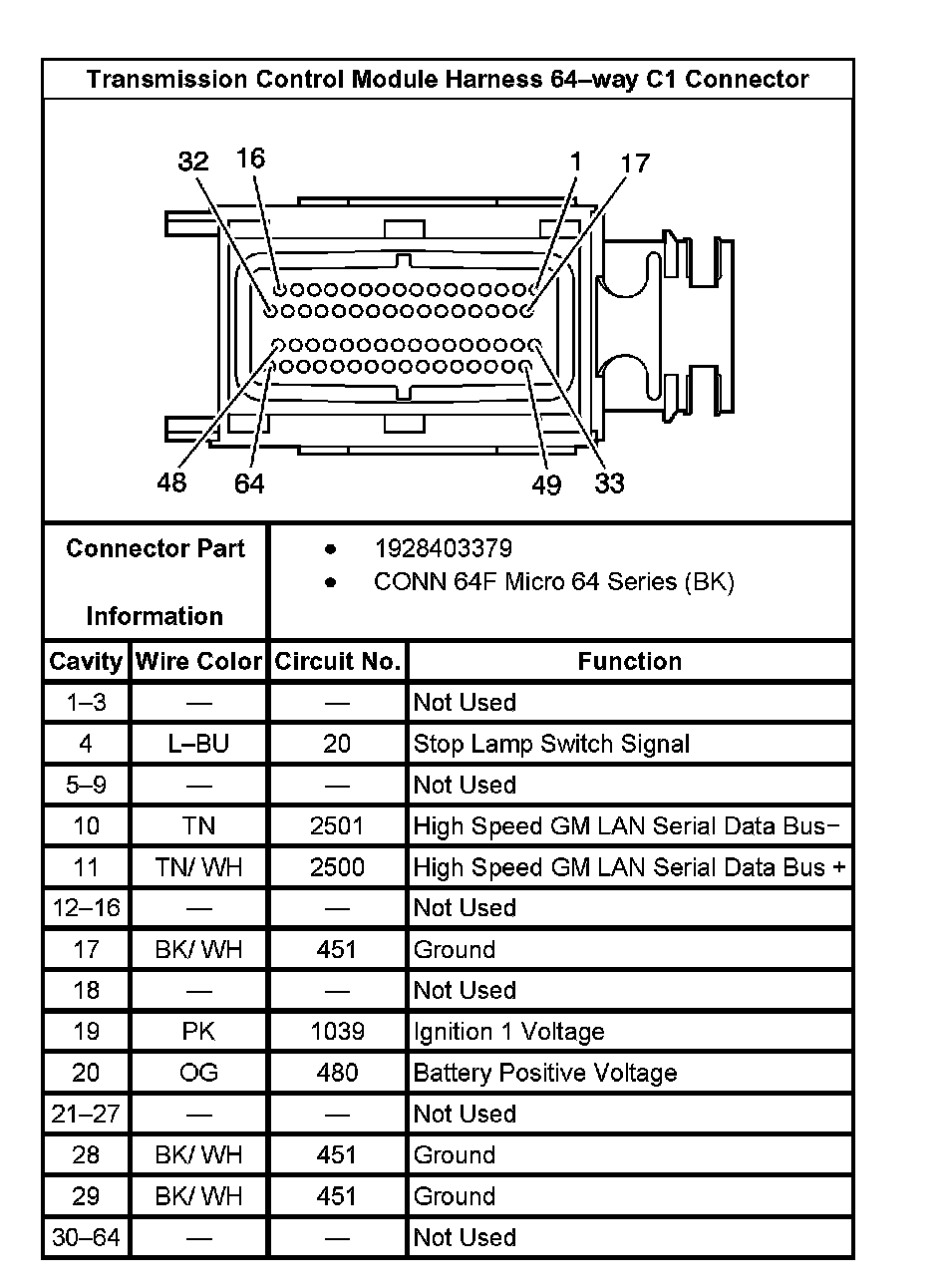

Transmission Control Module Harness 64-way C1 Connector

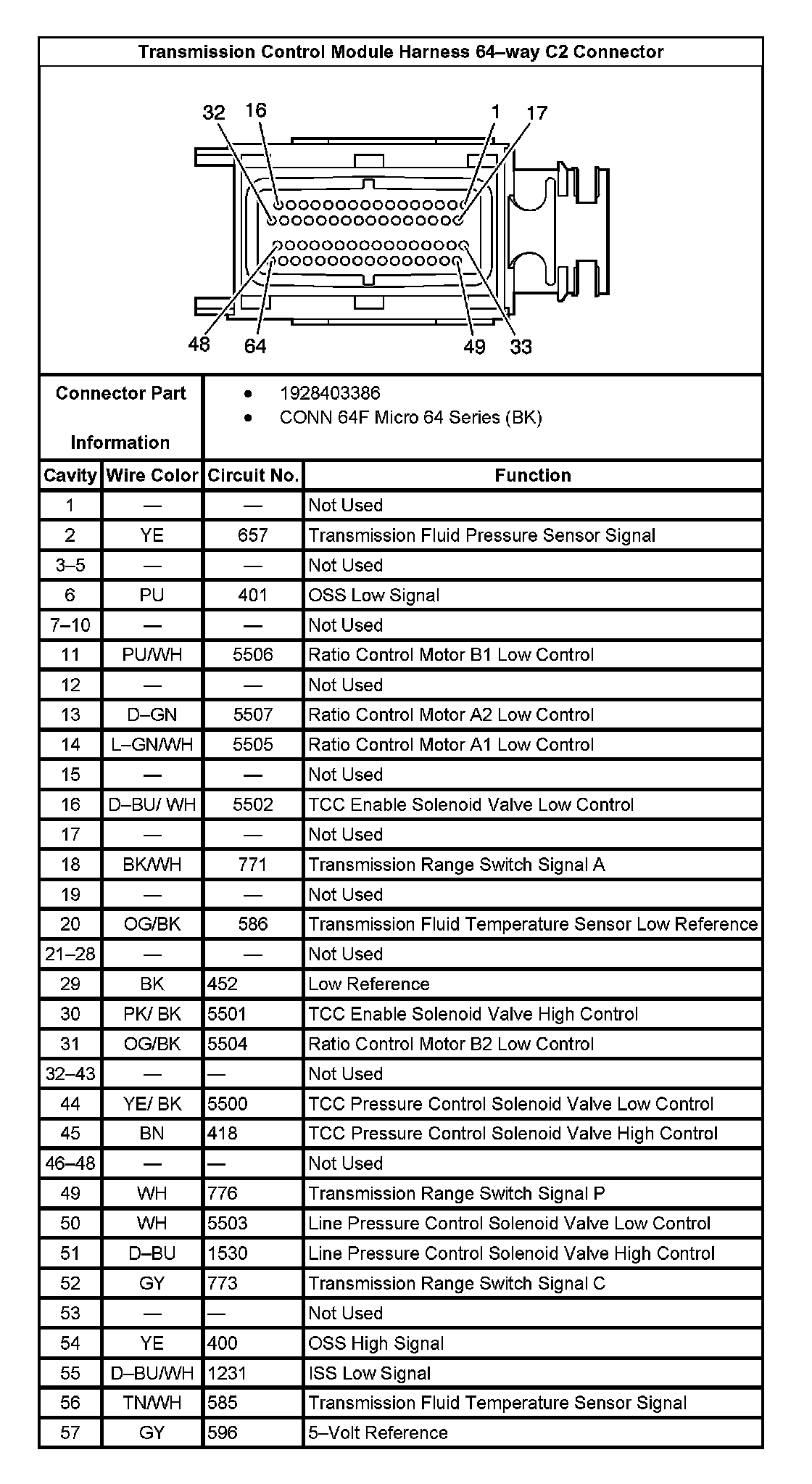

Transmission Control Module Harness 64-way C2 Connector

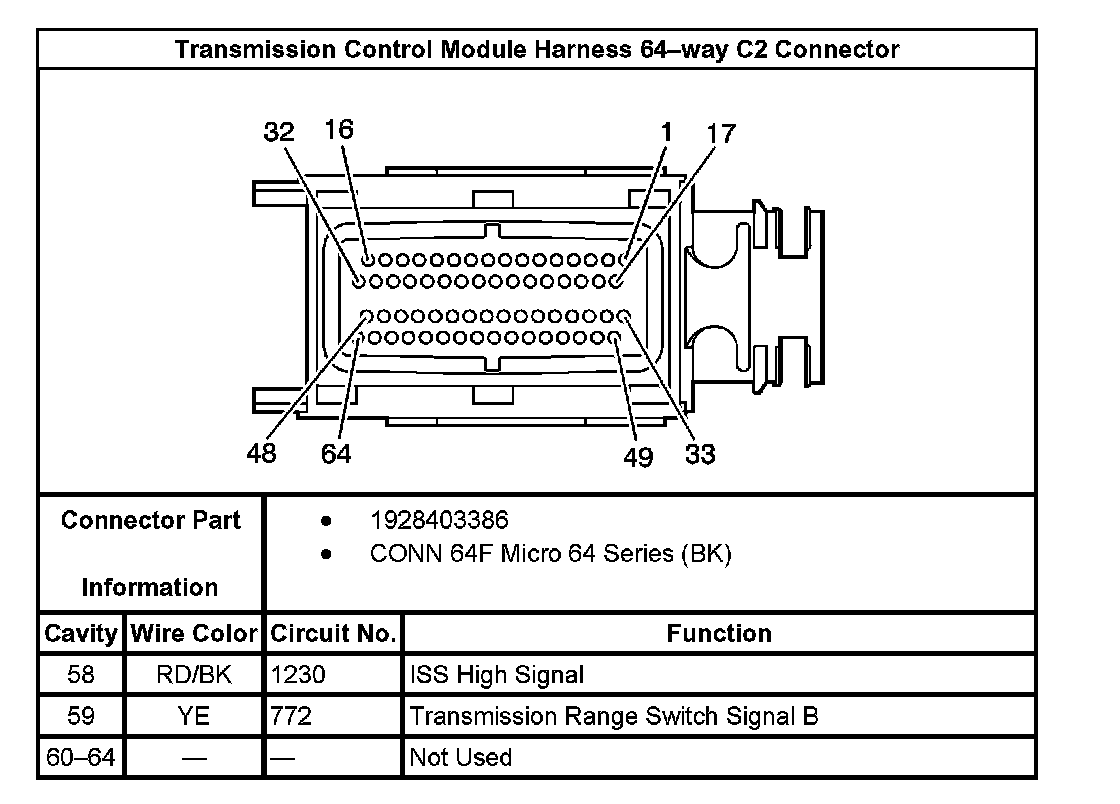

Transmission Control Module Harness 64-way C2 Connector
