lemon-mirror
:
Home
>>
Saturn
>>
2003
>>
ION L4-2.2L VIN F
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Throttle Position Sensor
>>
Diagrams
>>
Connector Views
Connector Views

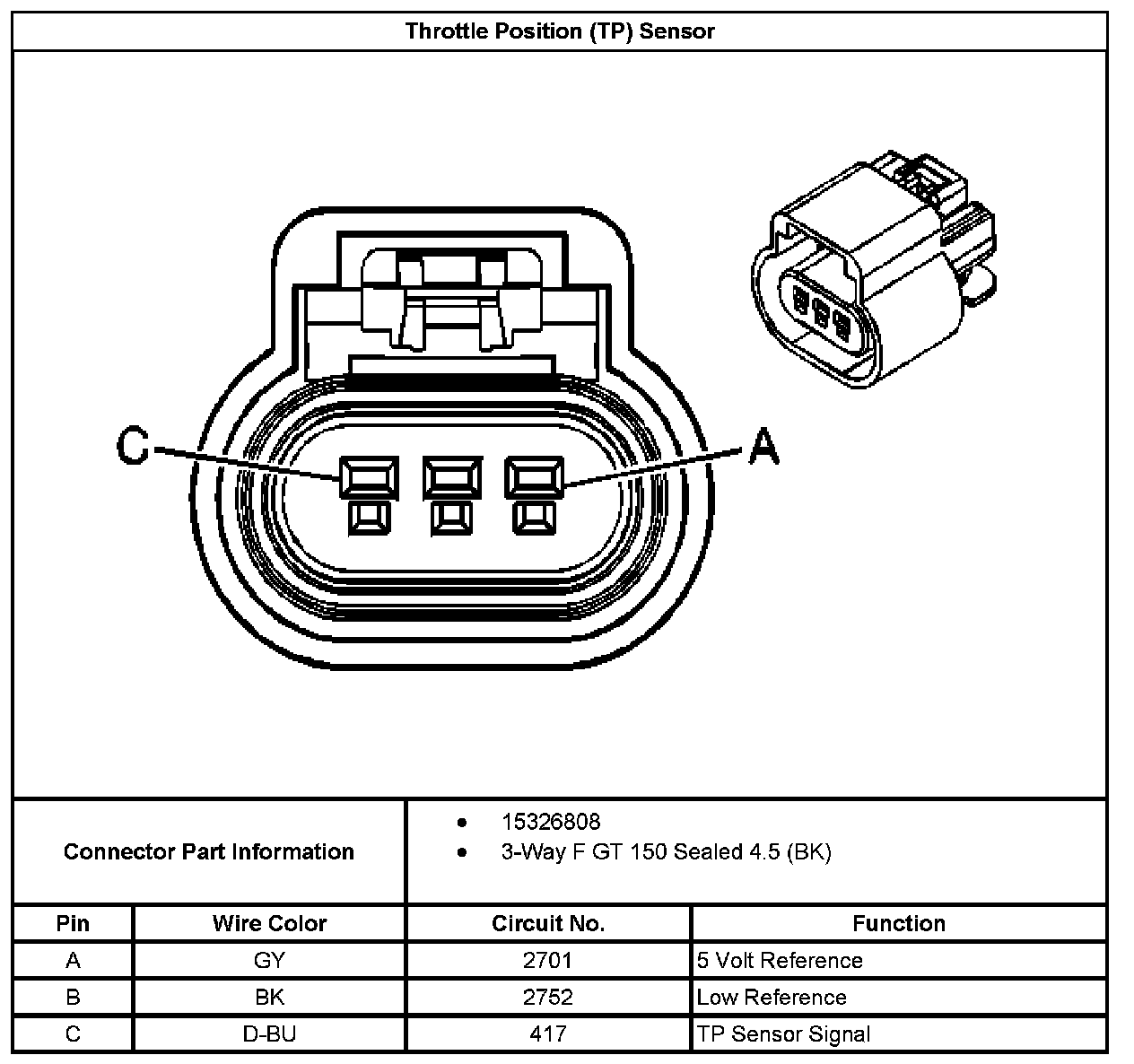

Throttle Position (TP) Sensor:
