Home >> Saturn >> 2003 >> ION L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> Engine Control Module (ECM) C1

Engine Control Module (ECM) C1

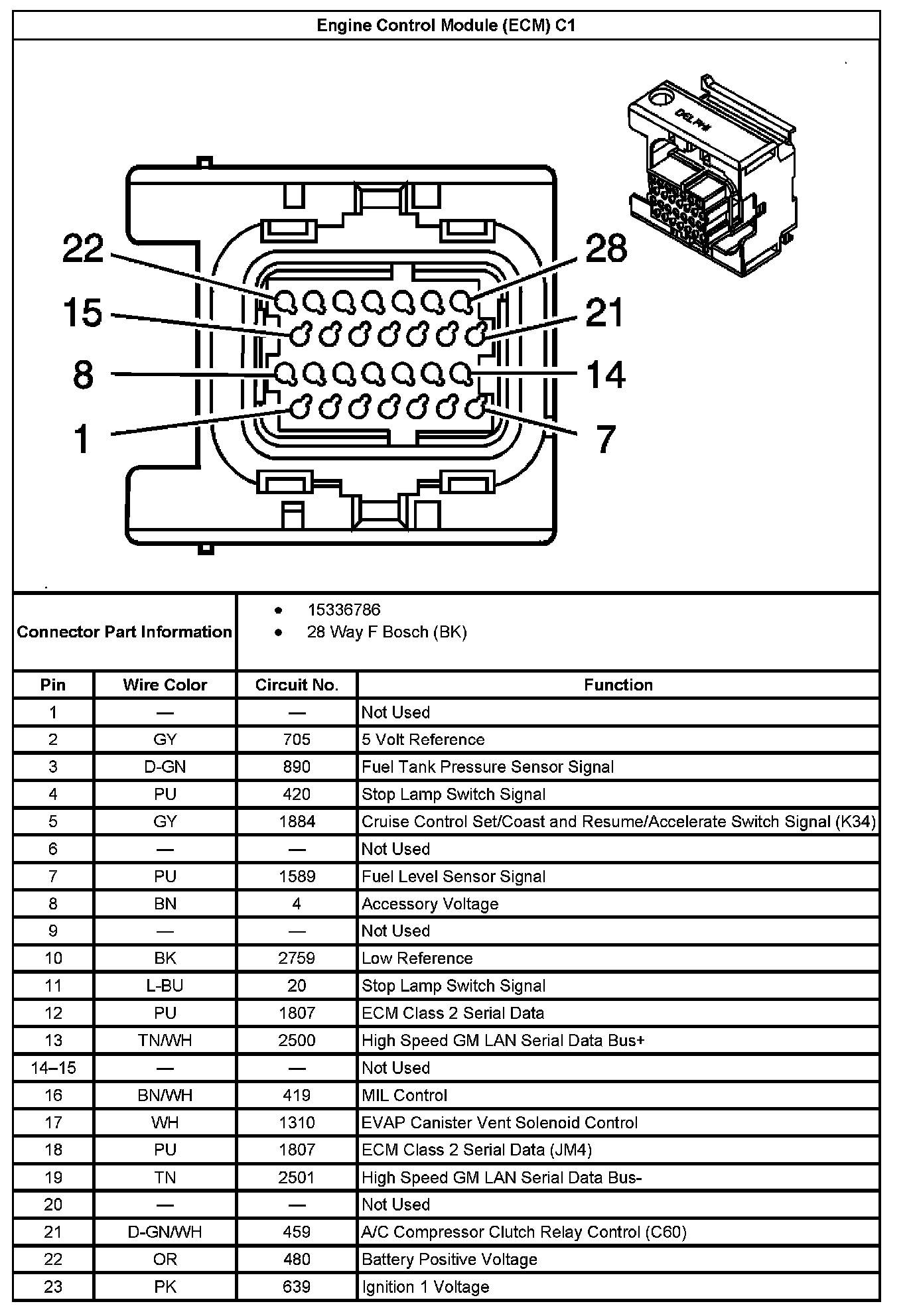

Engine Control Module (ECM) C1 Part 1:

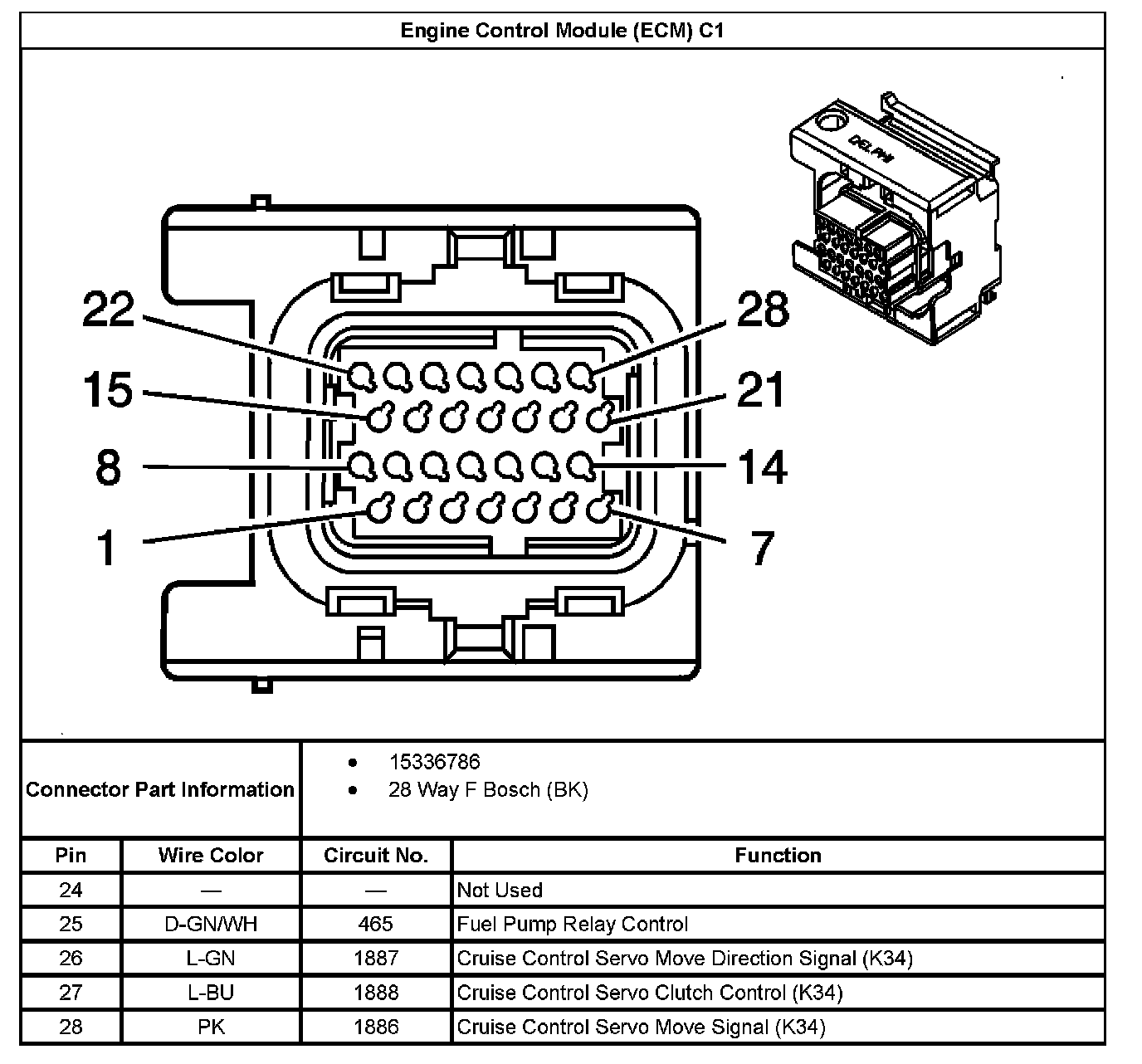

Engine Control Module (ECM) C1 Part 2:
