Home >> Saturn >> 2003 >> ION L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Assembly, HVAC

Control Assembly, HVAC

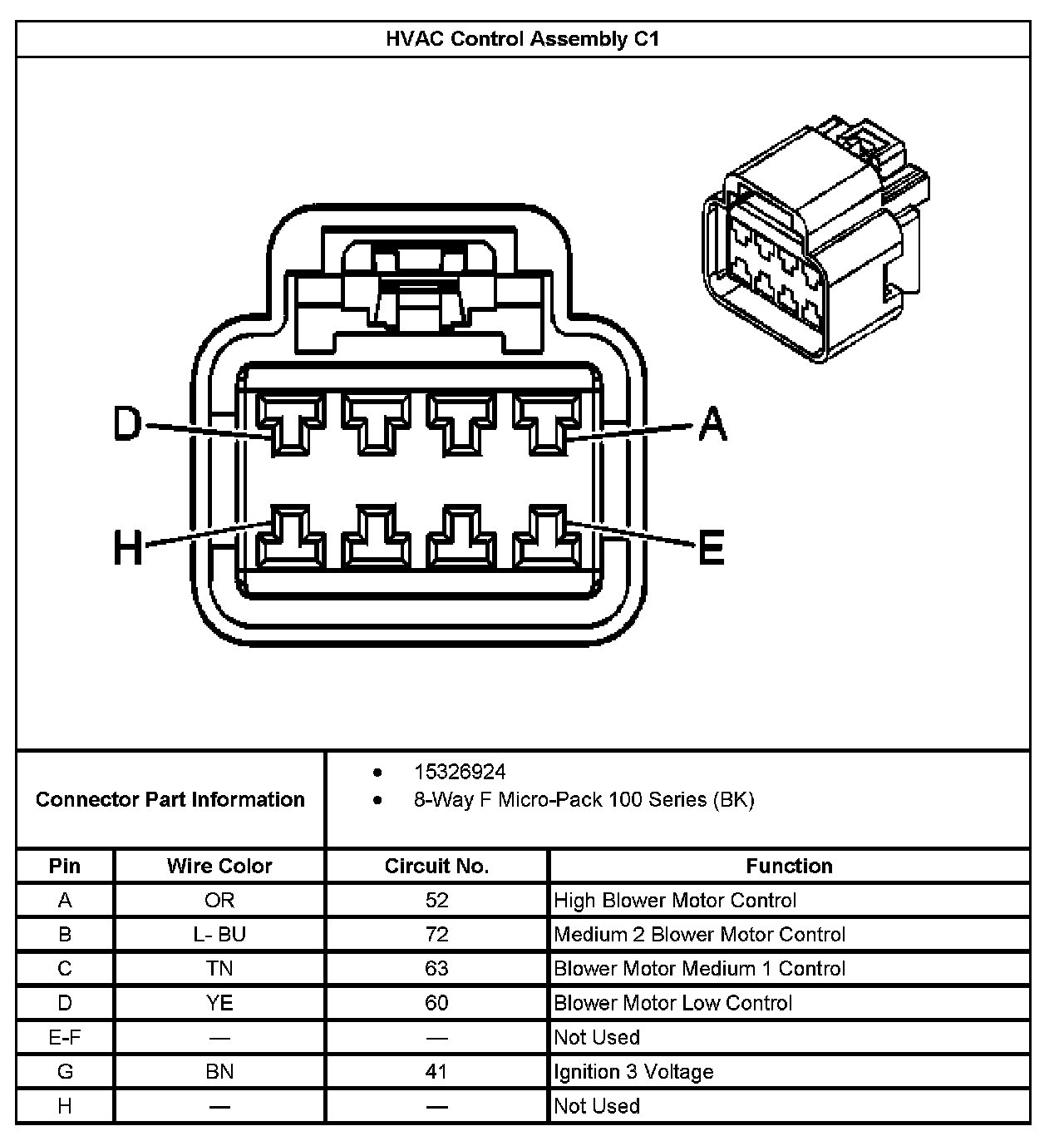

HVAC Control Assembly C1:

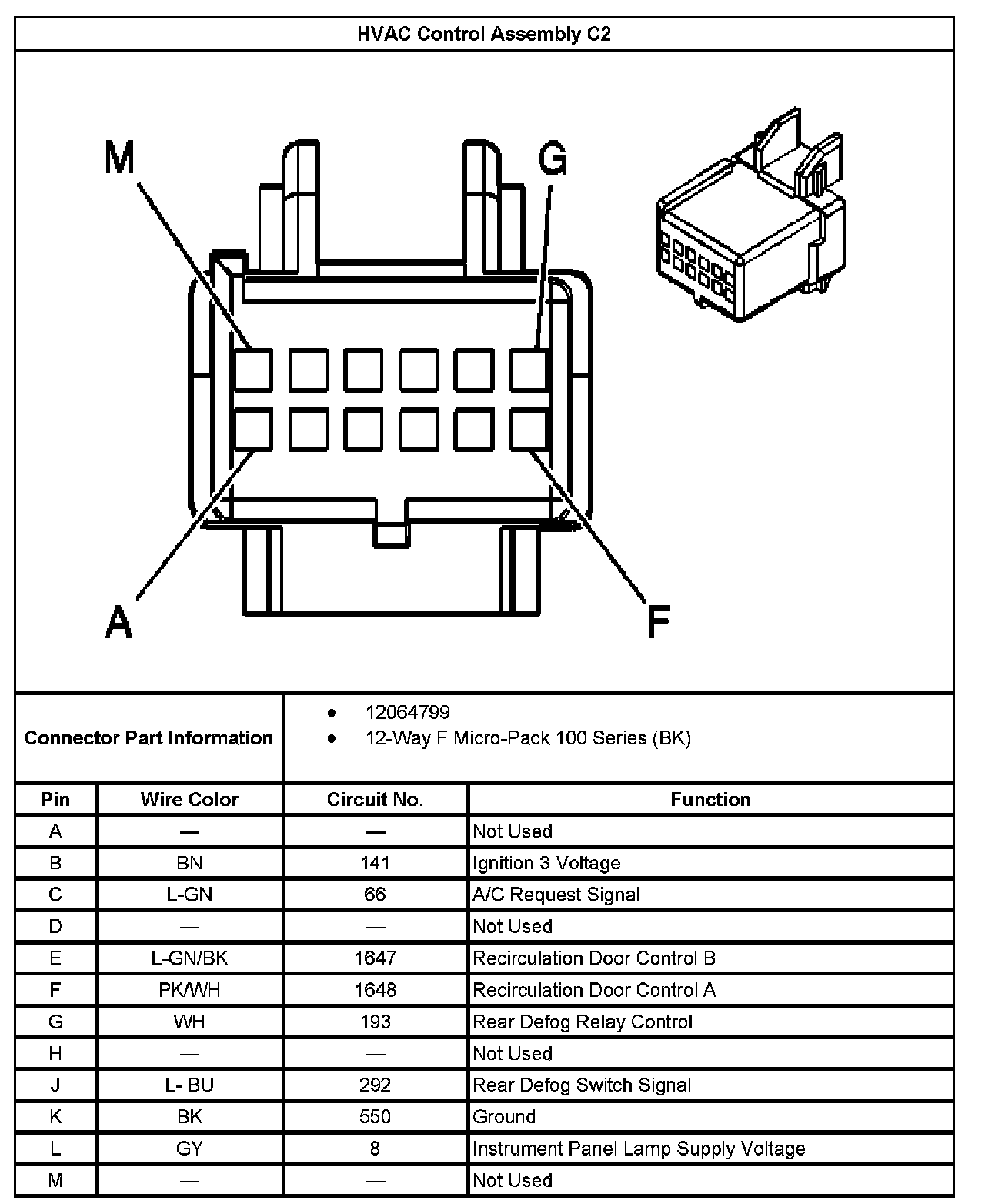

HVAC Control Assembly C2:
