Ignition Control Module
Ignition Control Module

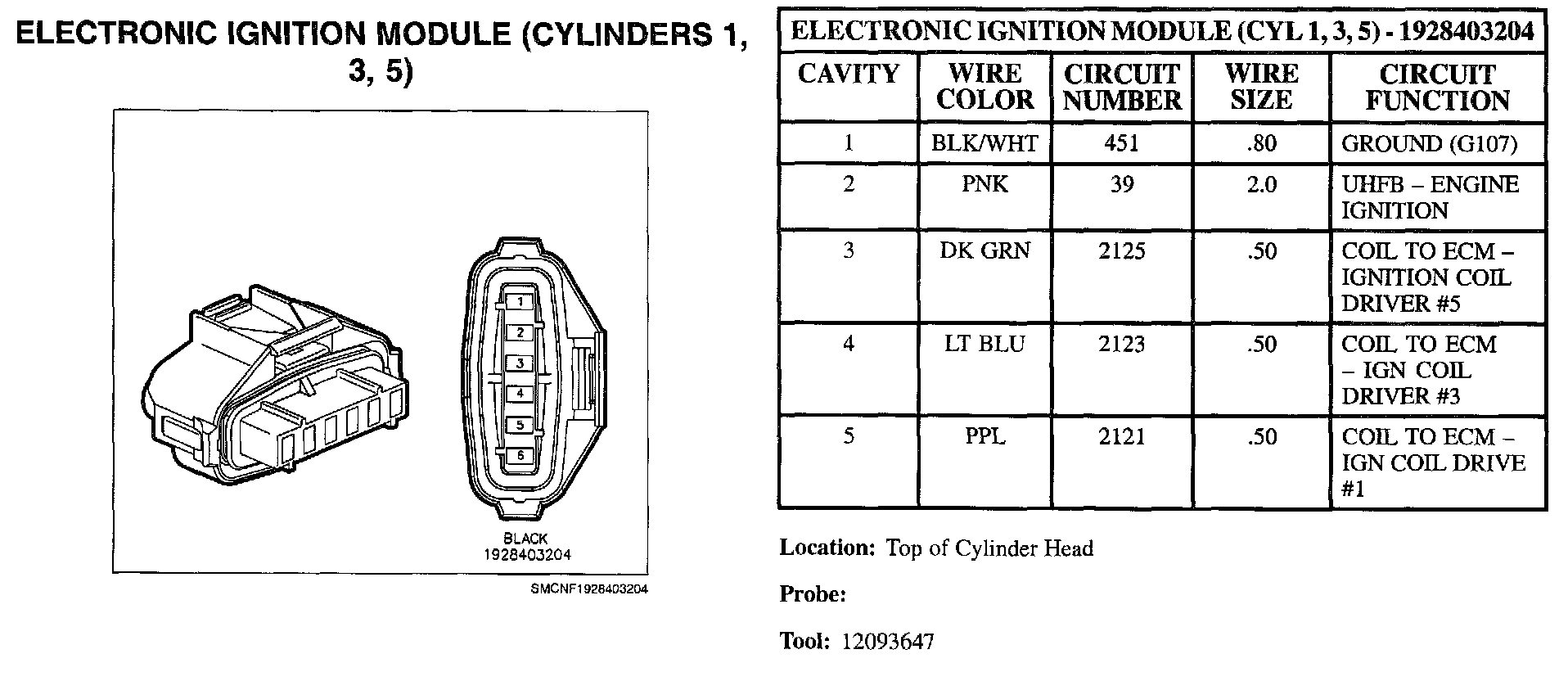

Electronic Ignition Module (Cylinders 1, 3, 5):

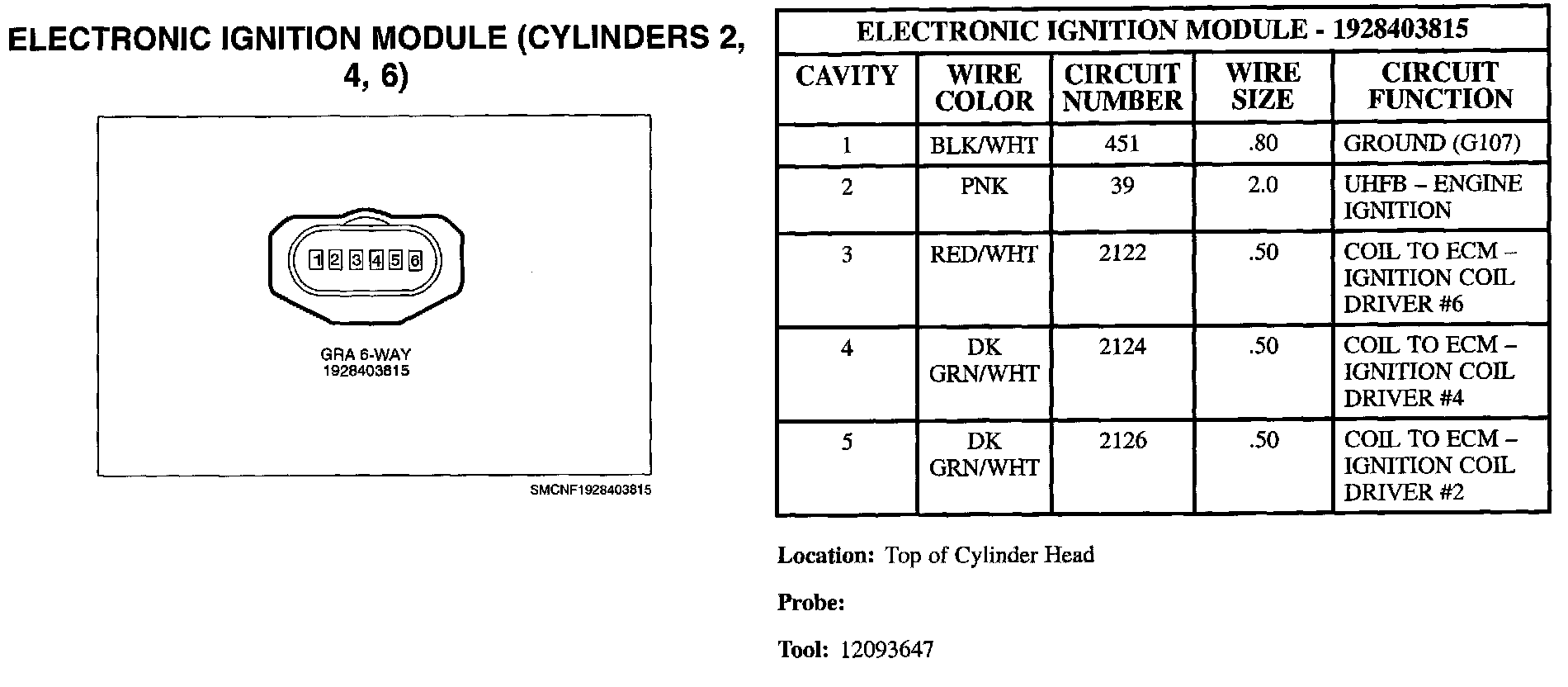

Electronic Ignition Module (Cylinders 2, 4, 6):
