Engine Control Module (ECM)

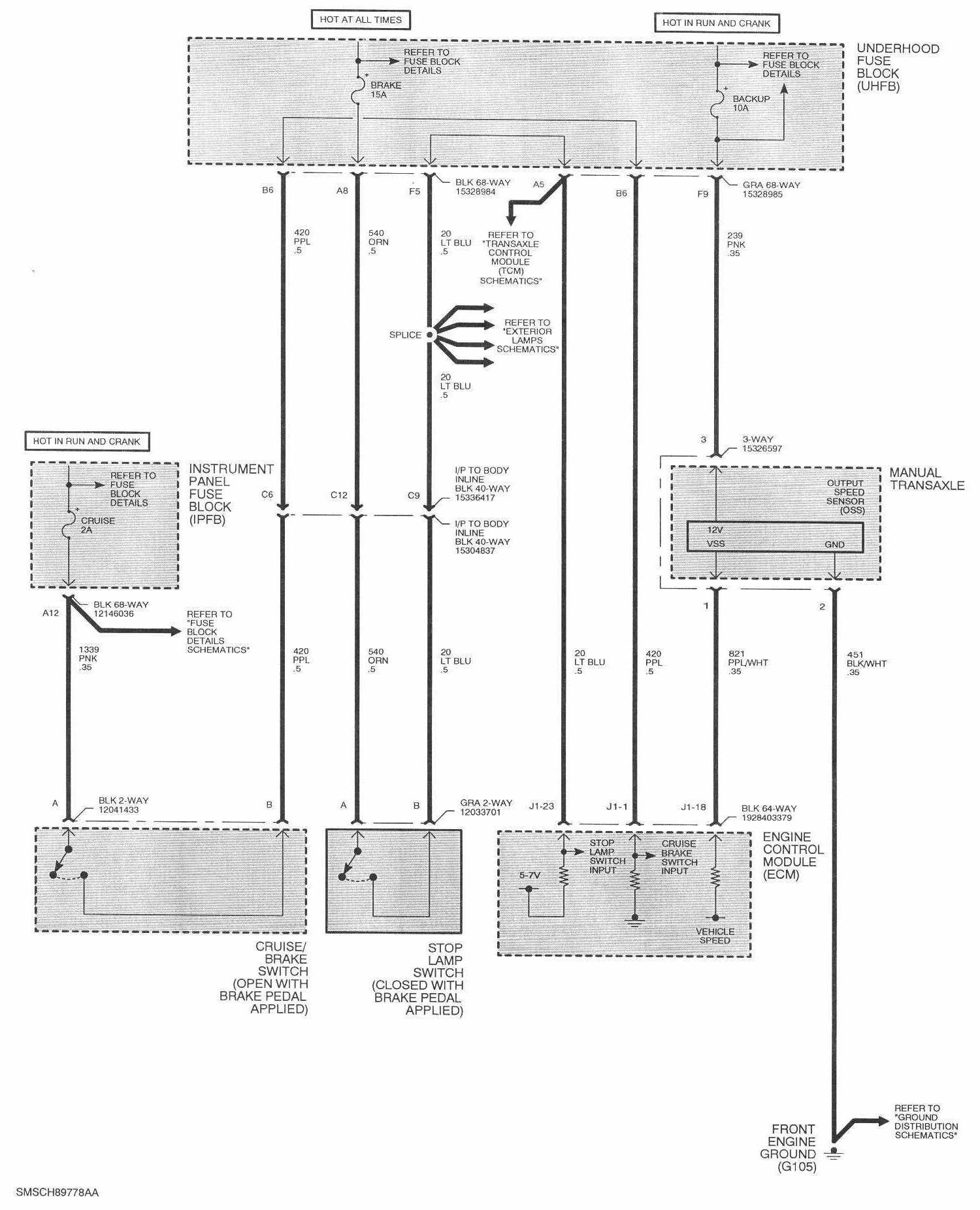

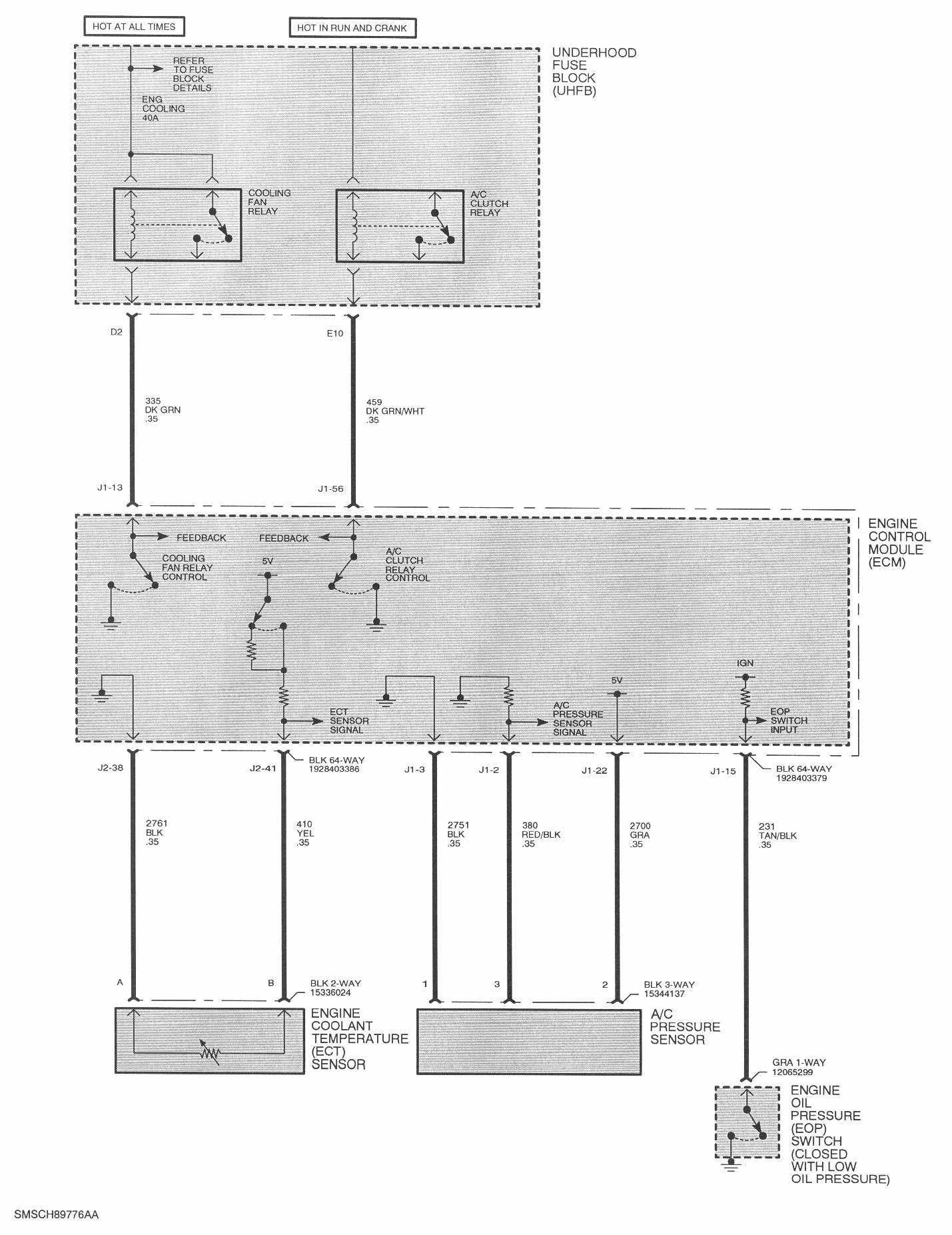

Engine Control Module (ECM) Schematics (L61) Part 1:

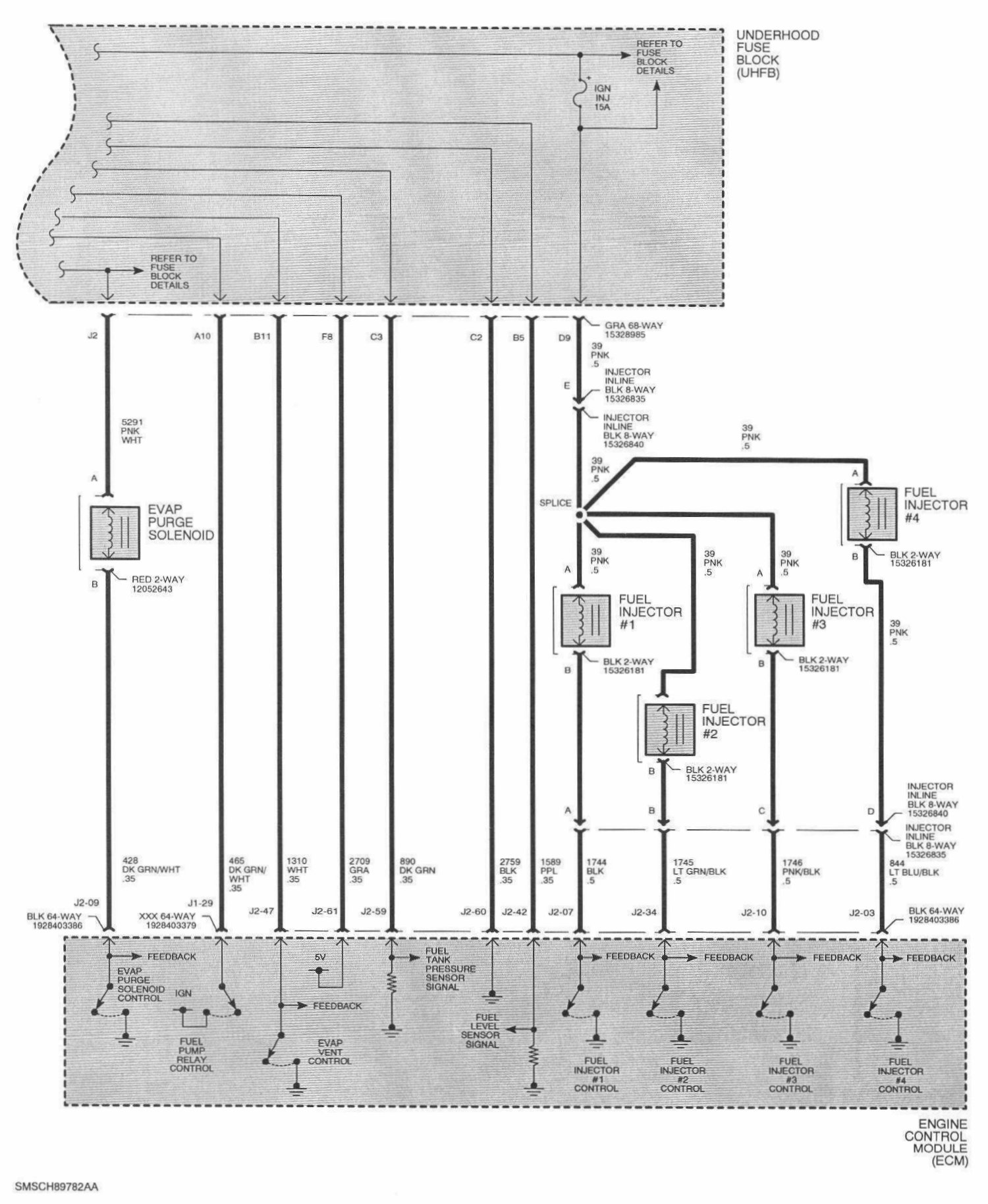

Engine Control Module (ECM) Schematics (L61) Part 2:

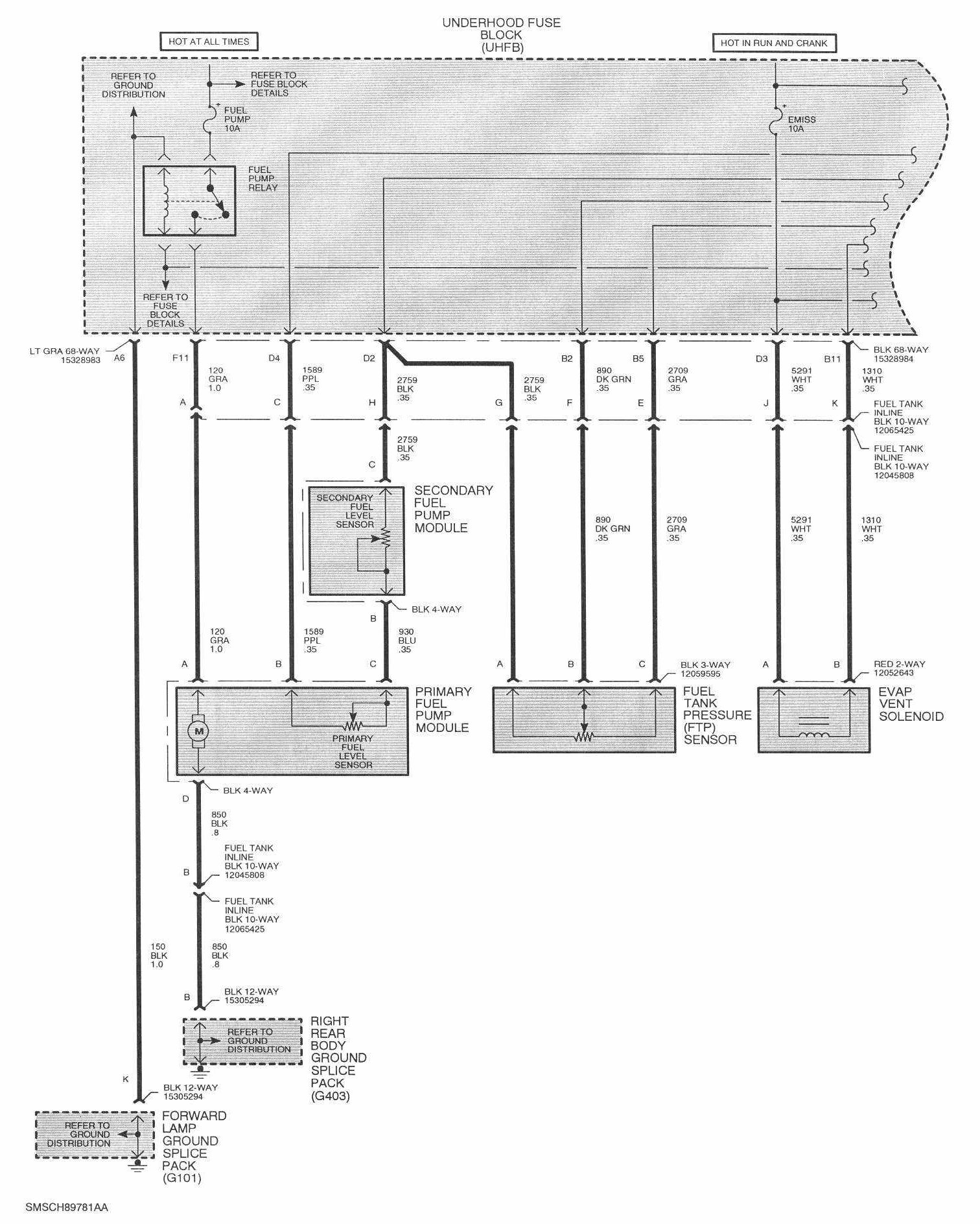

Engine Control Module (ECM) Schematics (L61) Part 3:

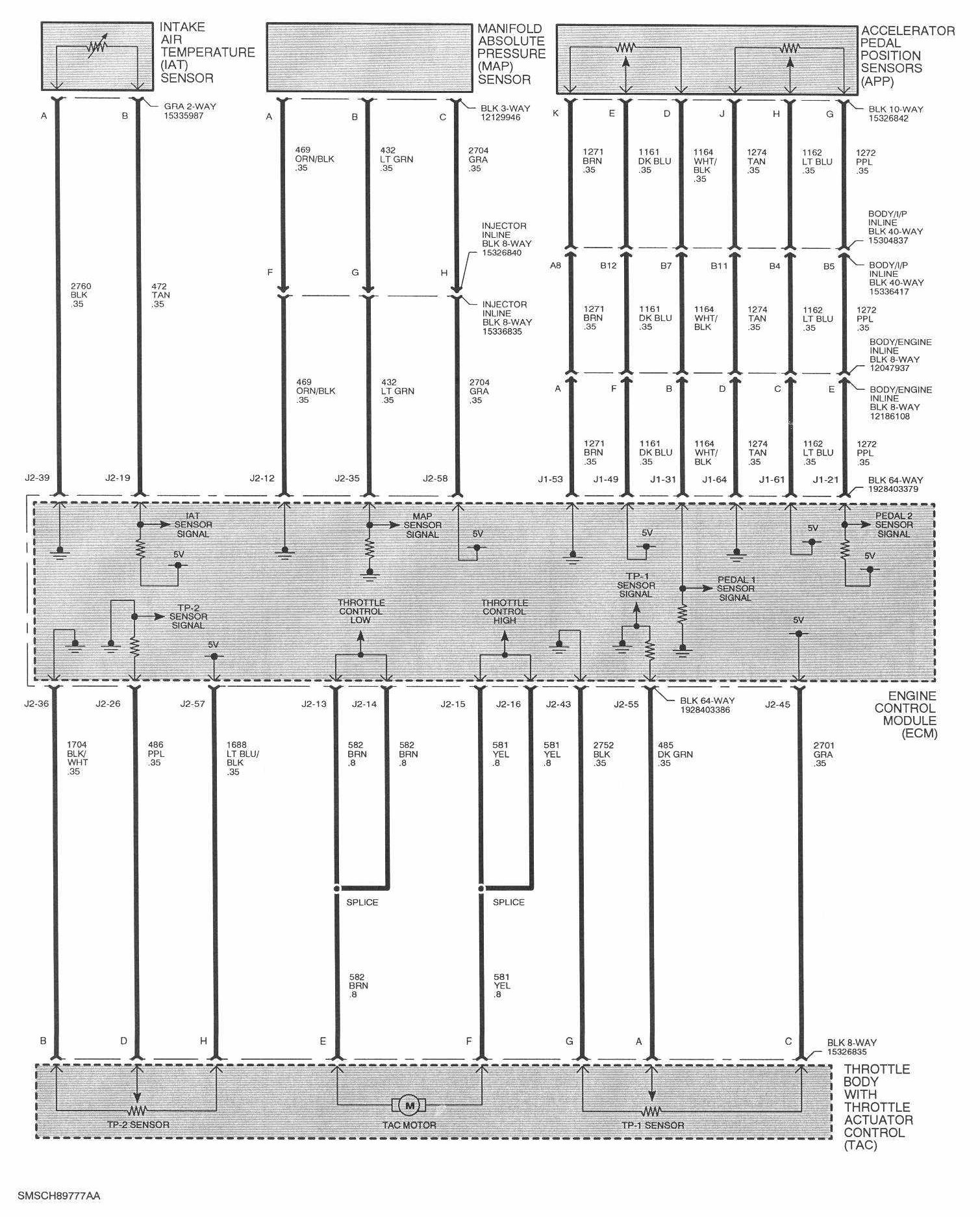

Engine Control Module (ECM) Schematics (L61) Part 4:

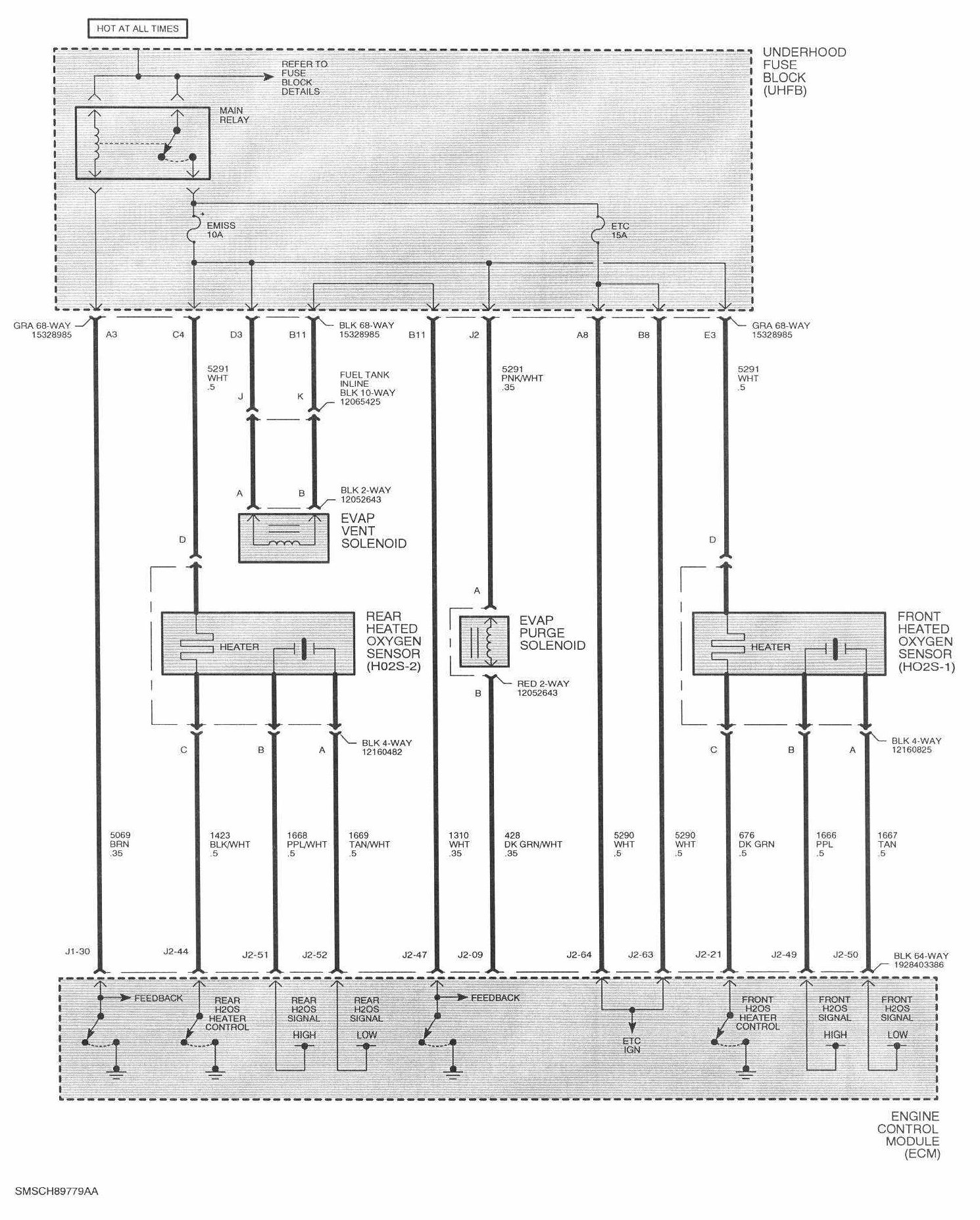

Engine Control Module (ECM) Schematics (L61) Part 5:

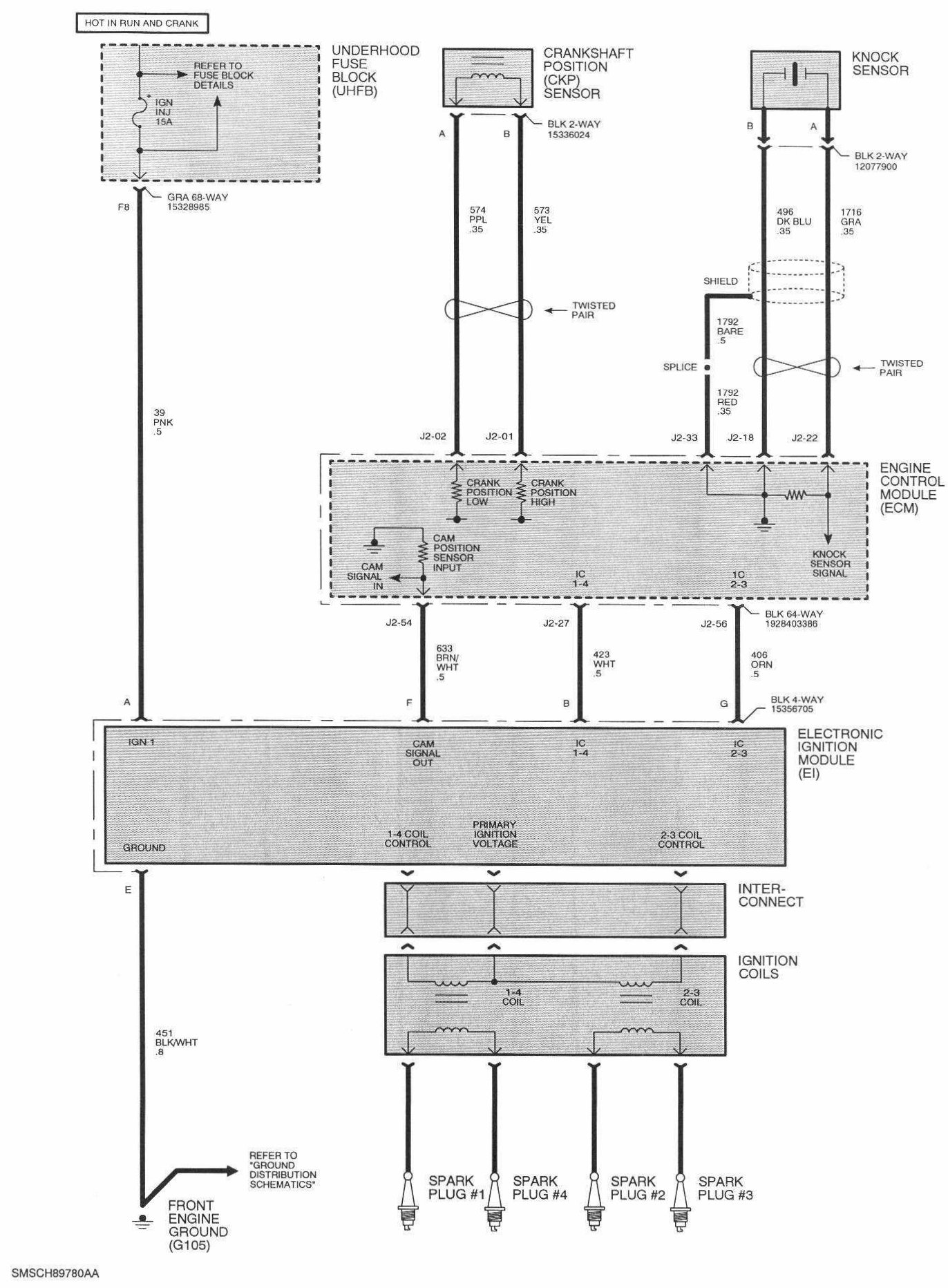

Engine Control Module (ECM) Schematics (L61) Part 6:

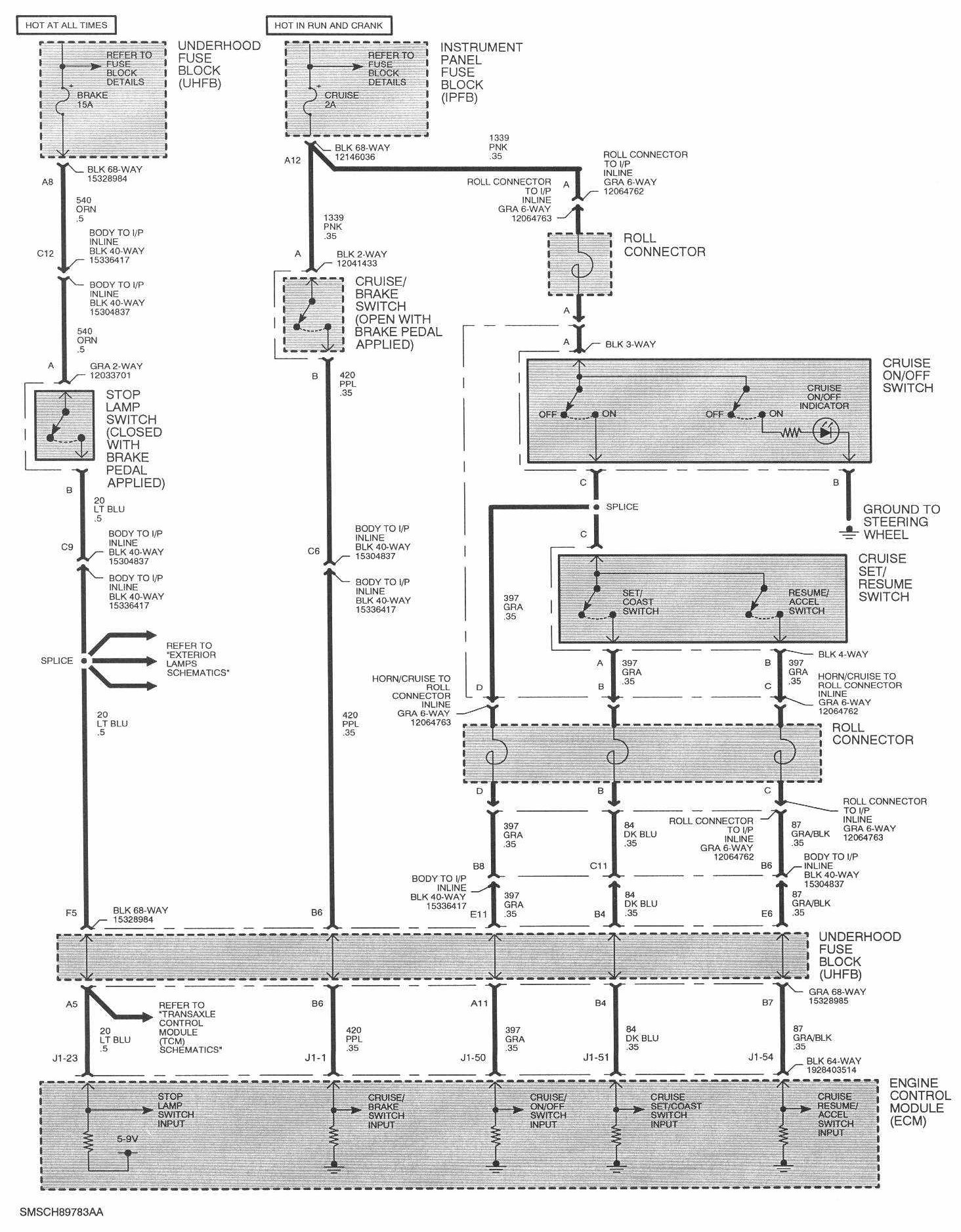

Engine Control Module (ECM) Schematics (L61) Part 7:

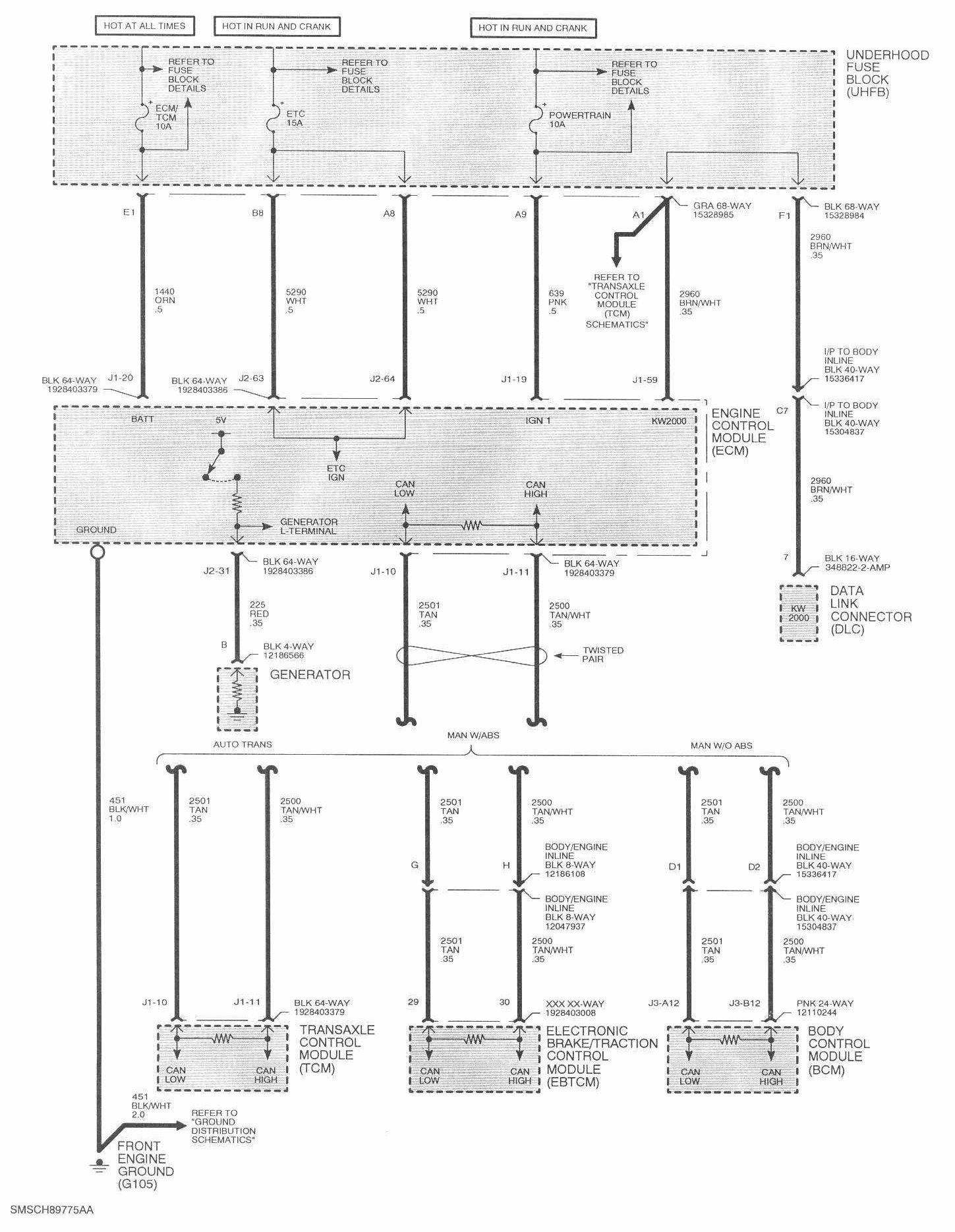

Engine Control Module (ECM) Schematics (L61) Part 8:




Engine Control Module (ECM) Schematics (L61) Part 9:
