Scan Tool Testing and Procedures

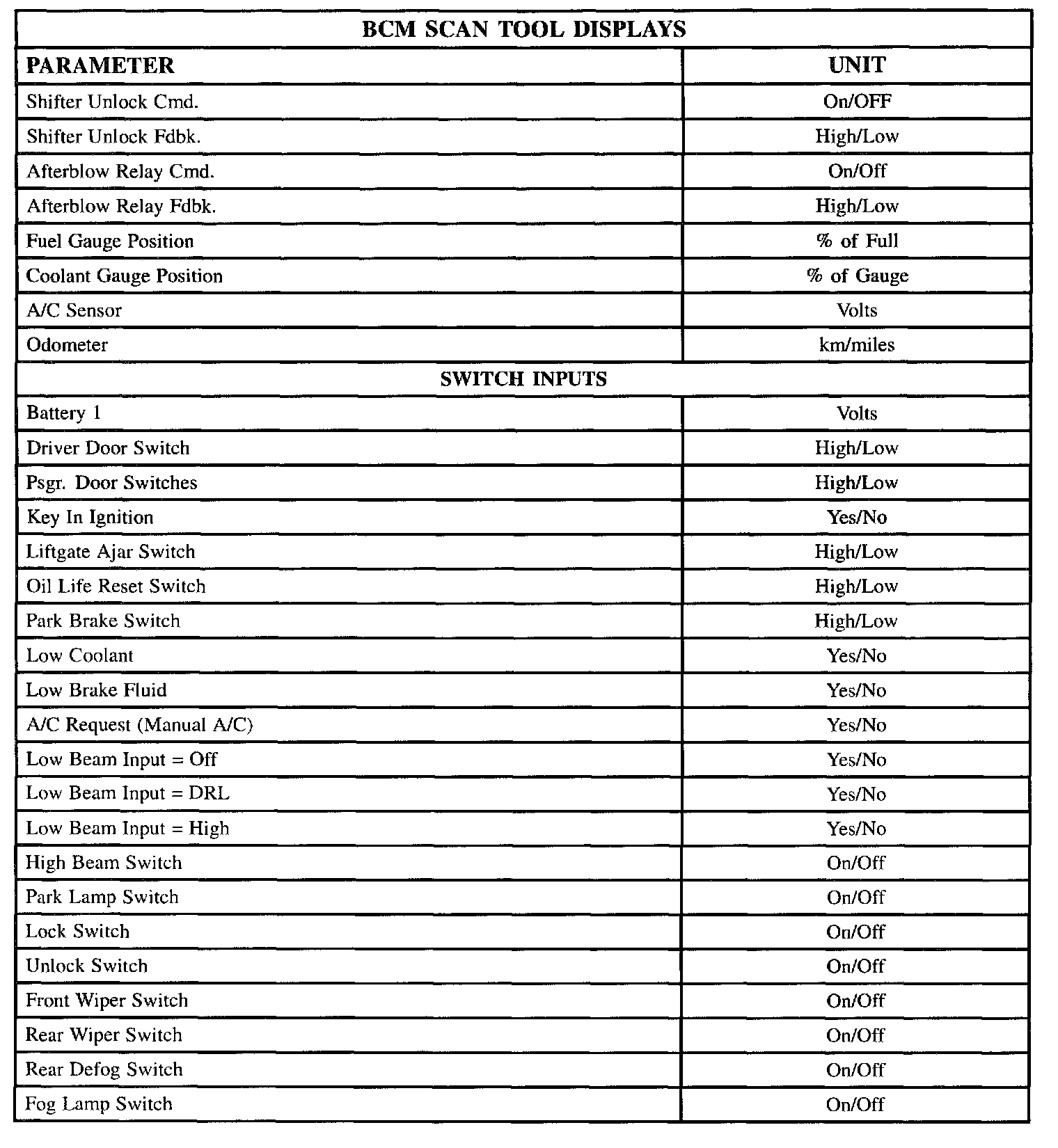

Scan Tool Displays Part 1:

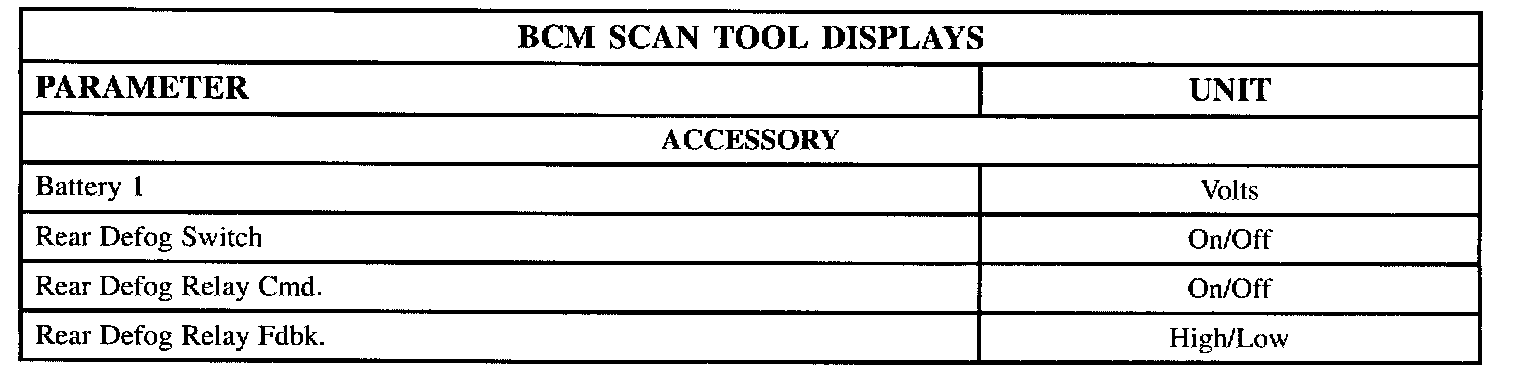

Scan Tool Displays Part 2:

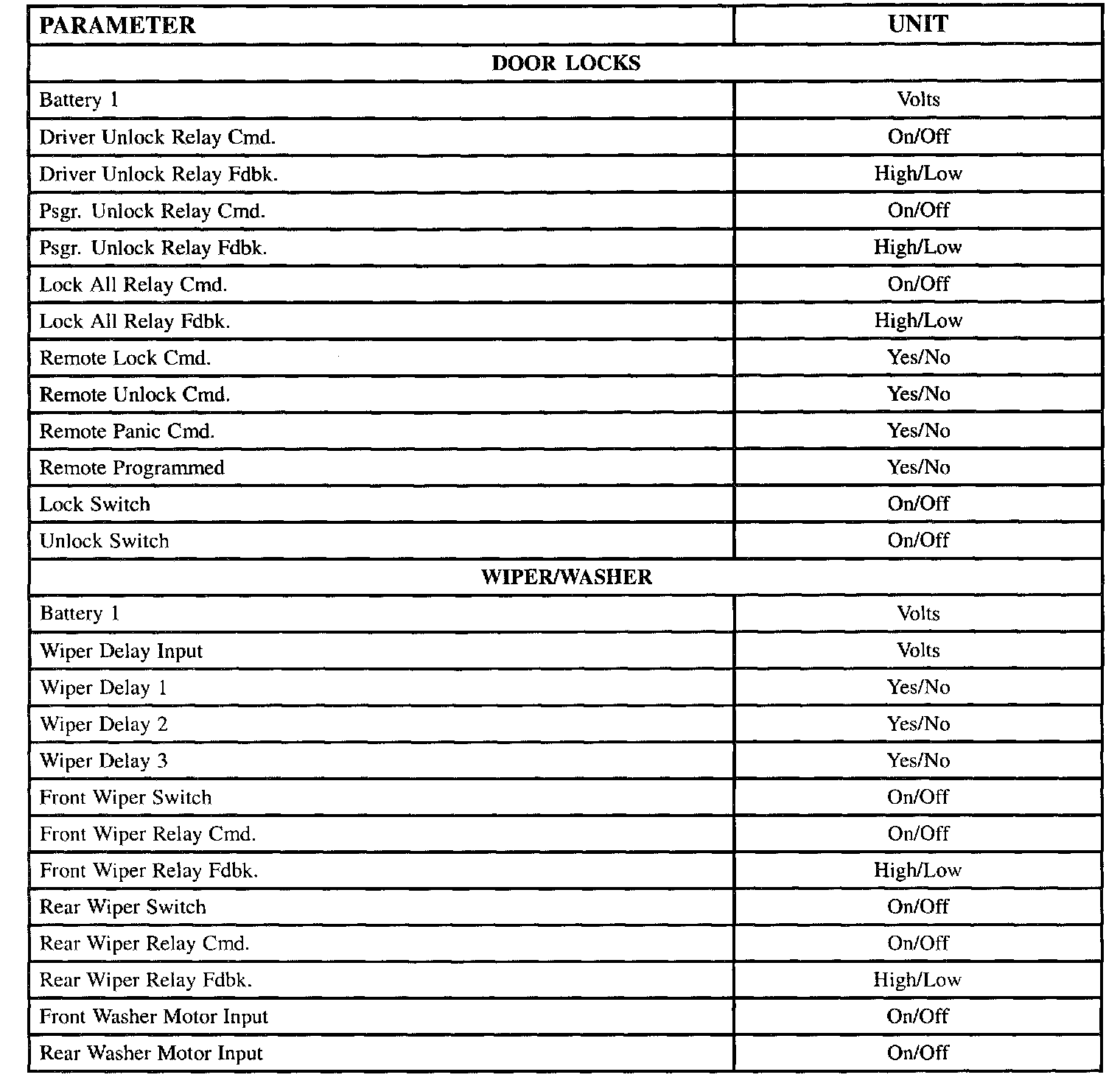

Scan Tool Displays Part 3:

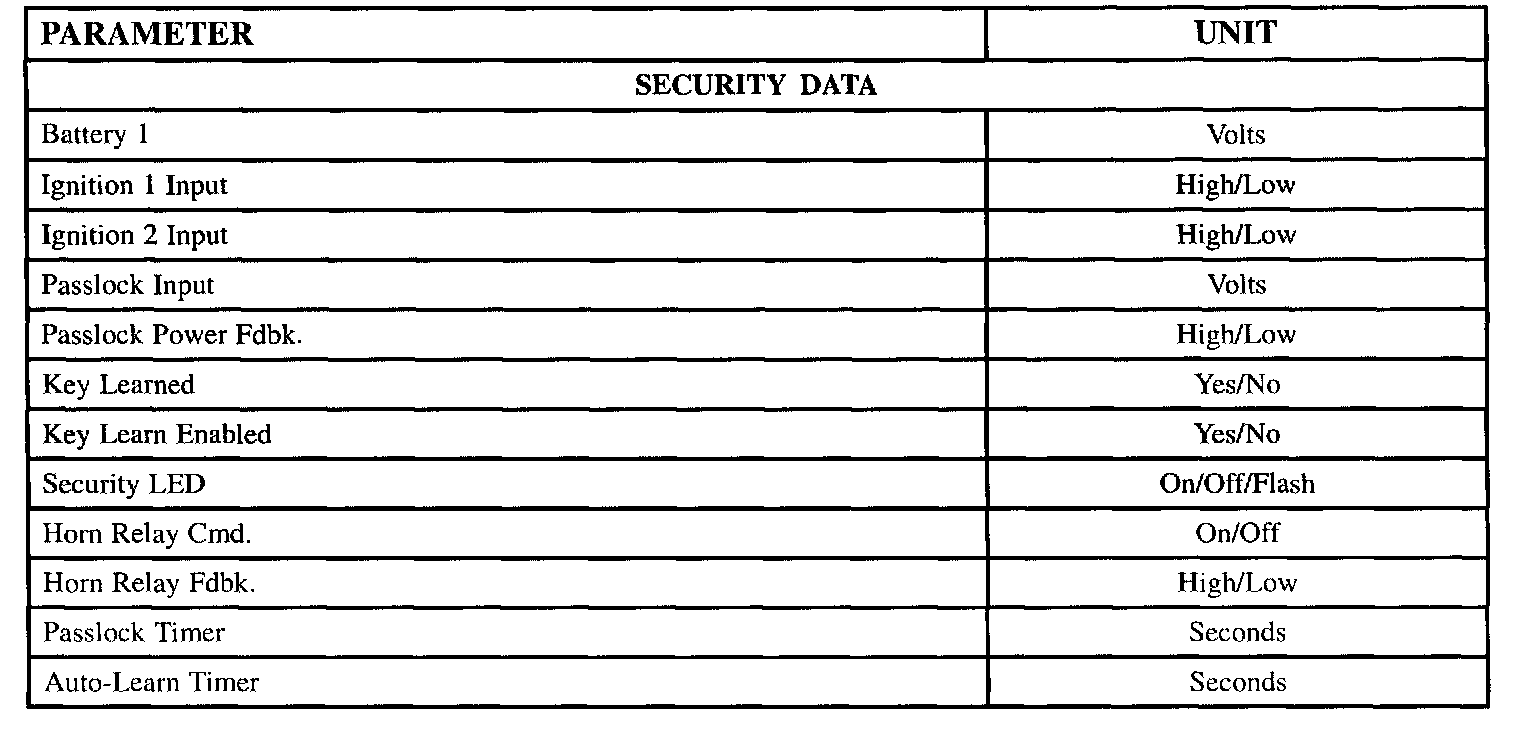

Scan Tool Displays Part 4:

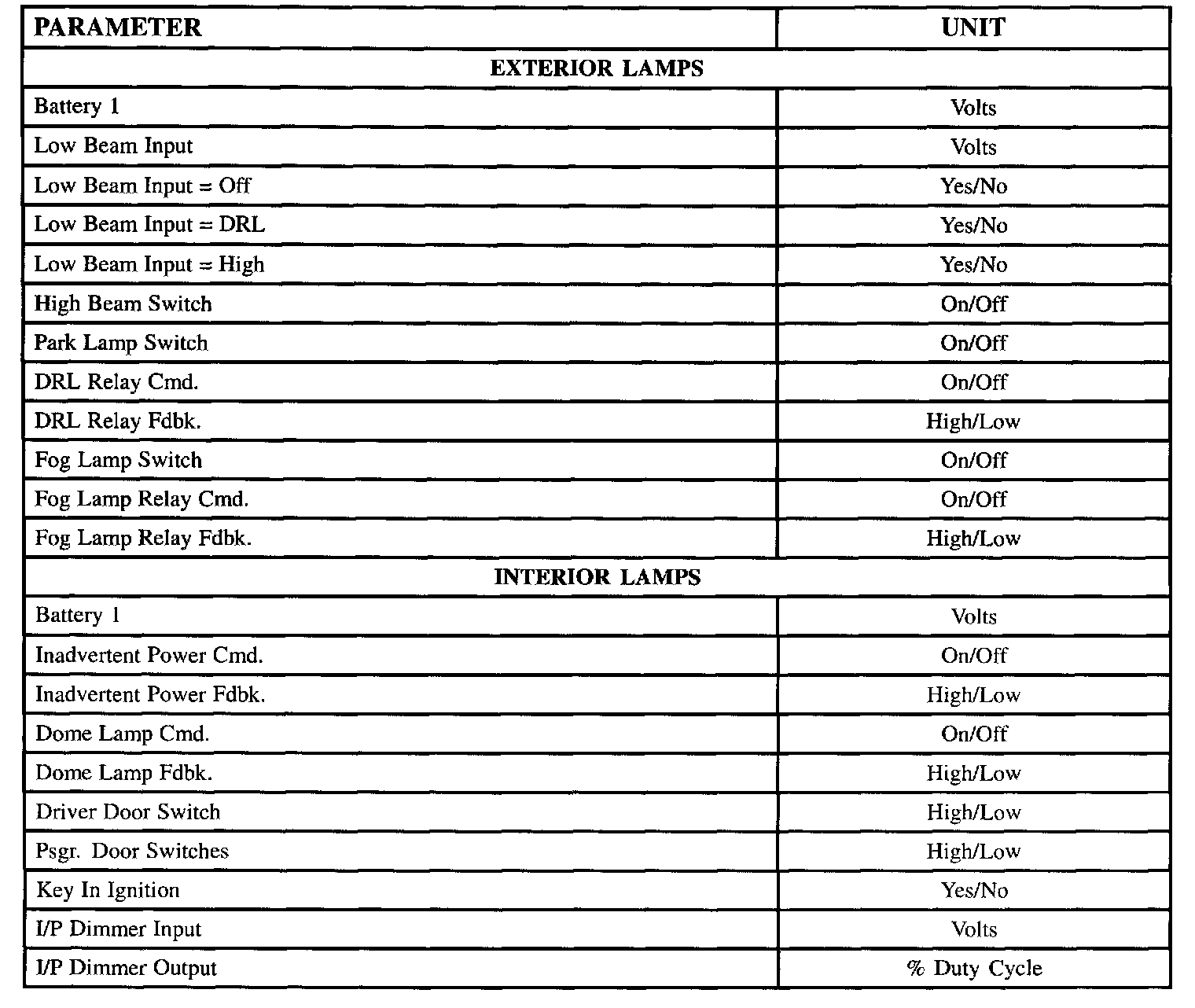

Scan Tool Displays Part 5:

The tables lists the parameters displayed by the Scan tool. The parameters are displayed by ABS/TCS data, switch inputs, exterior lamps, interior lamps, door locks, wiper/washer and security data groups.
