Home >> Saturn >> 2002 >> VUE L4-2.2L VIN D >> Repair and Diagnosis >> Diagrams >> Connector Views >> Powertrain Management >> Engine Control Module >> C2

C2

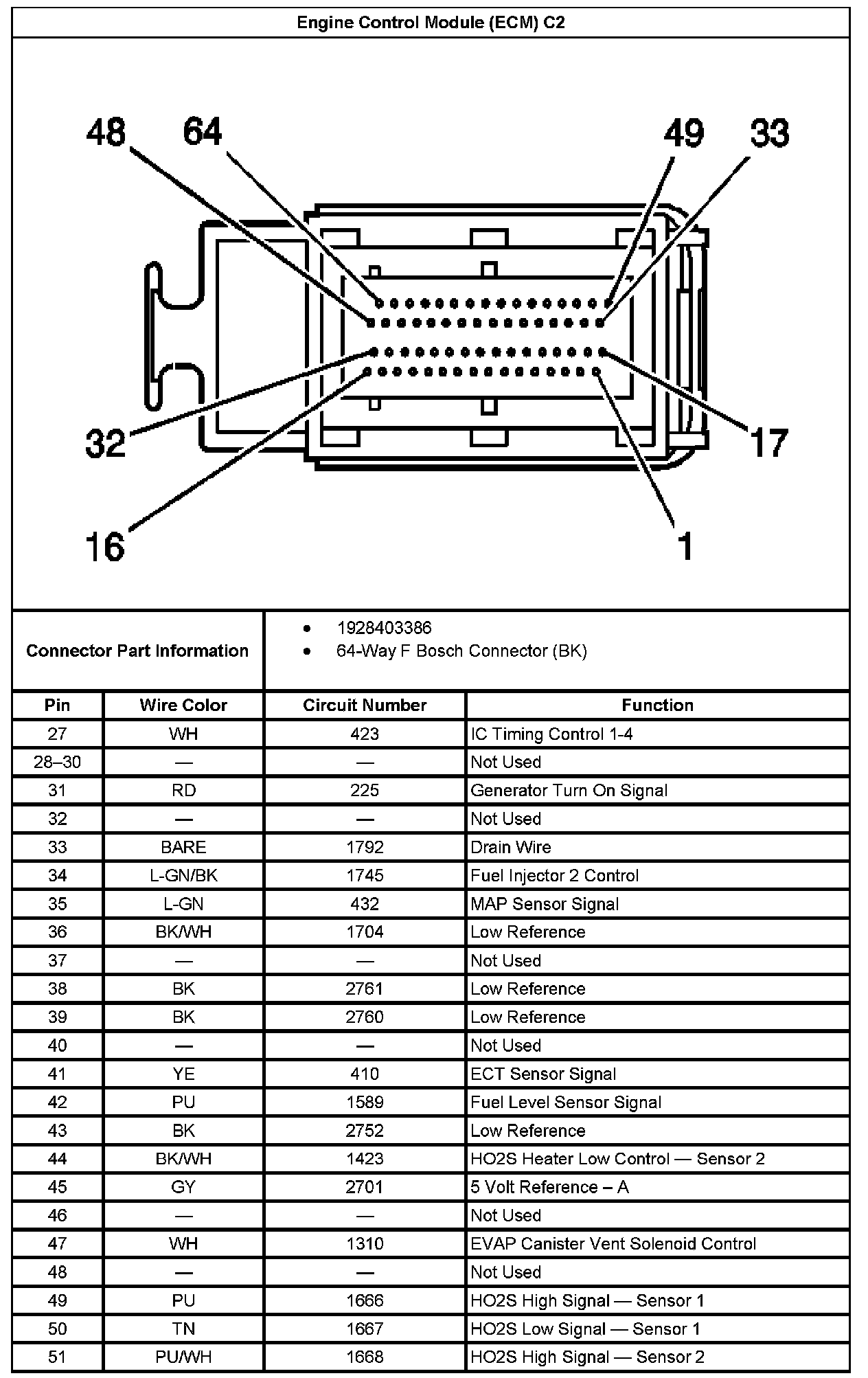

Engine Control Module (ECM) C2 Part 1:

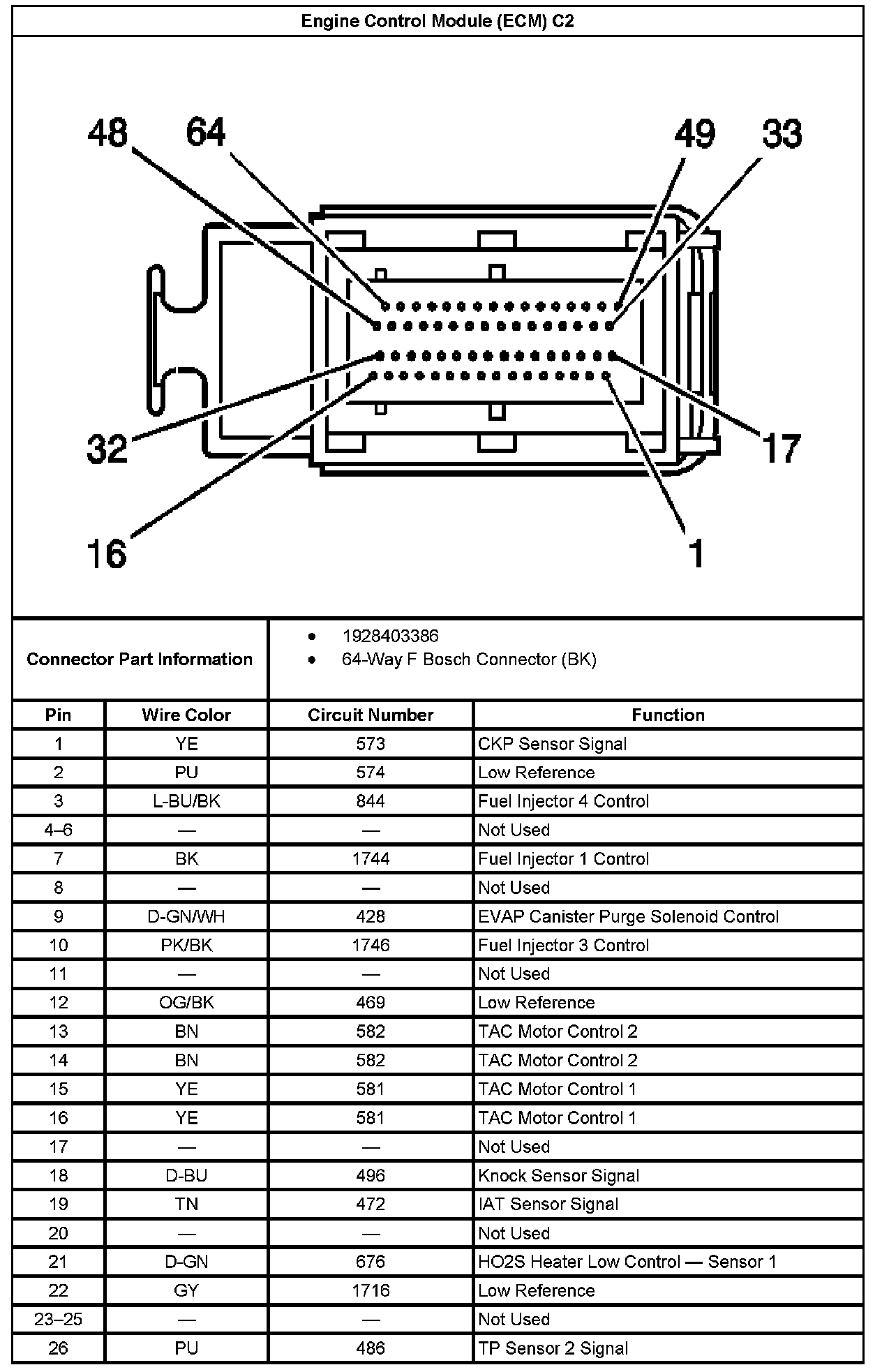

Engine Control Module (ECM) C2 Part 2:

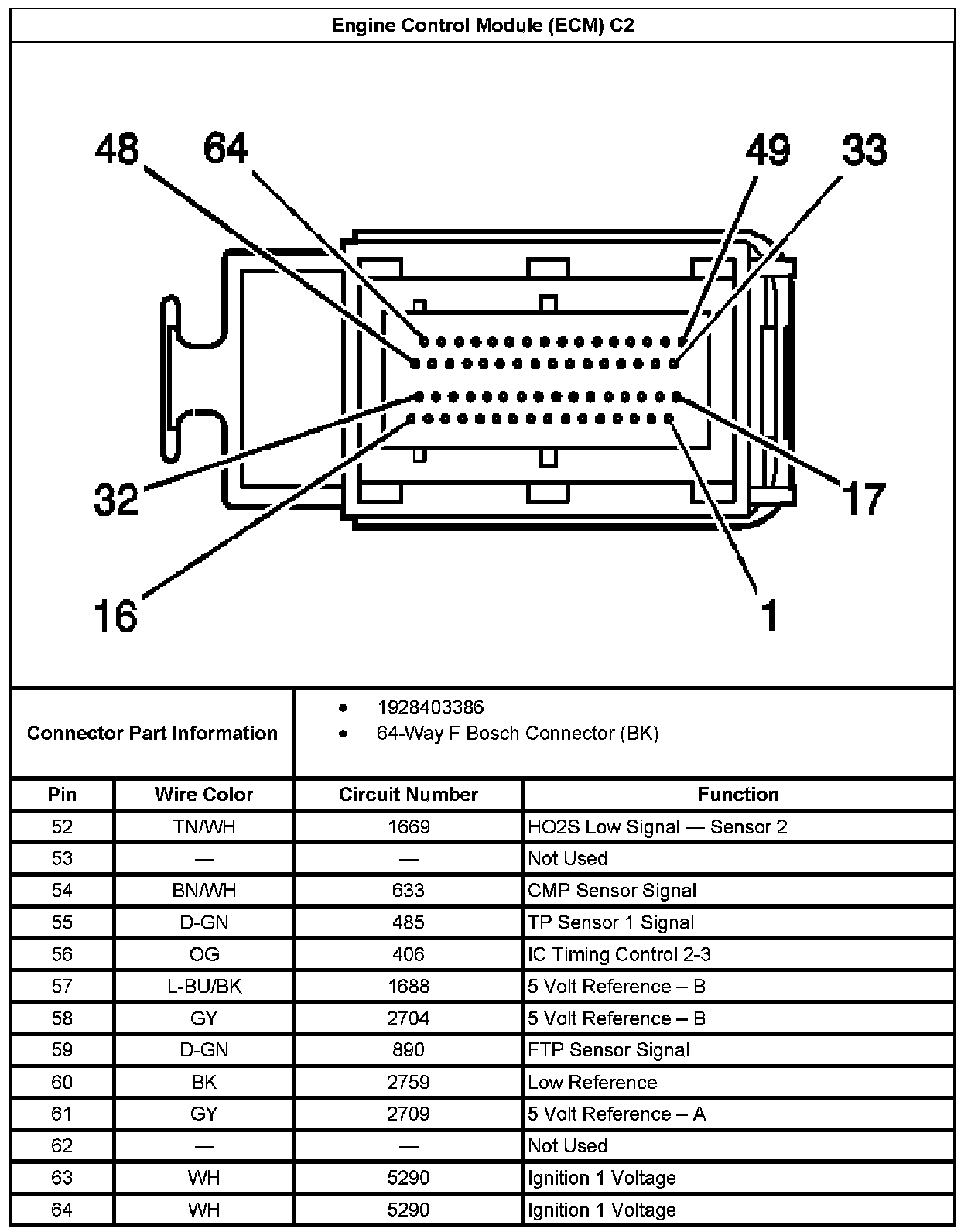

Engine Control Module (ECM) C2 Part 3:
