Engine Control Module (ECM)

Engine Control Module Schematics

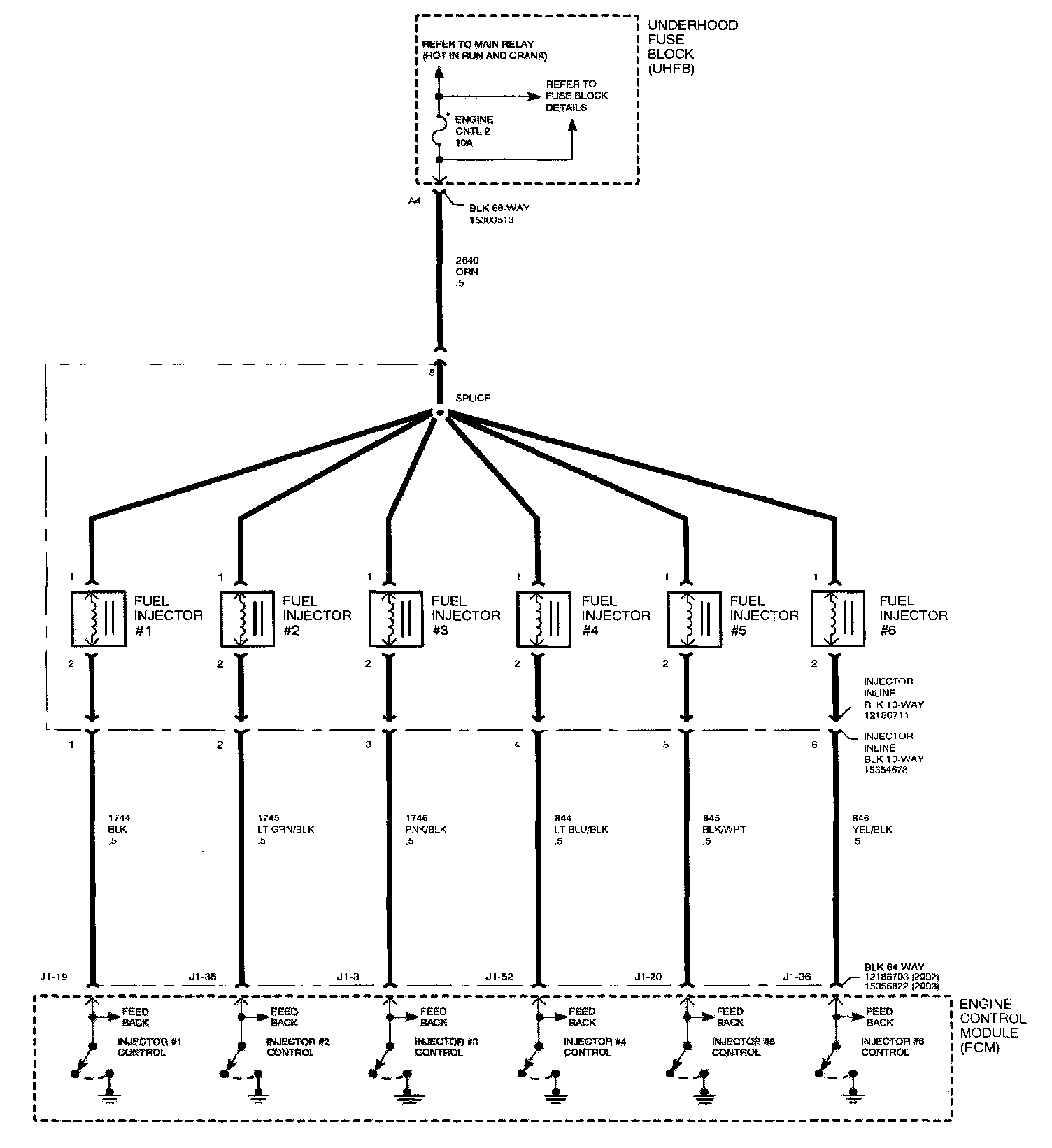

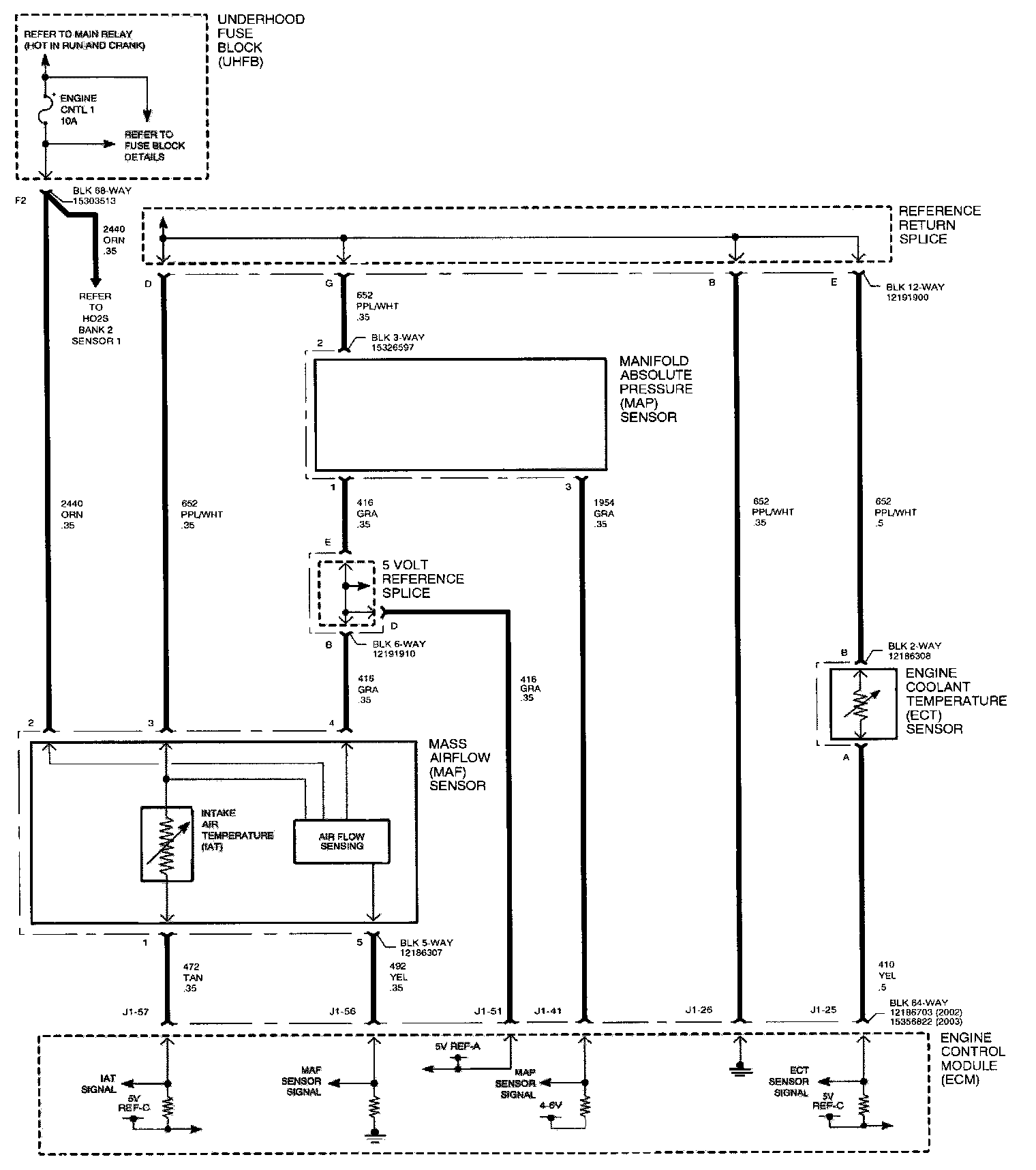

Engine Control Module (ECM) Schematics:

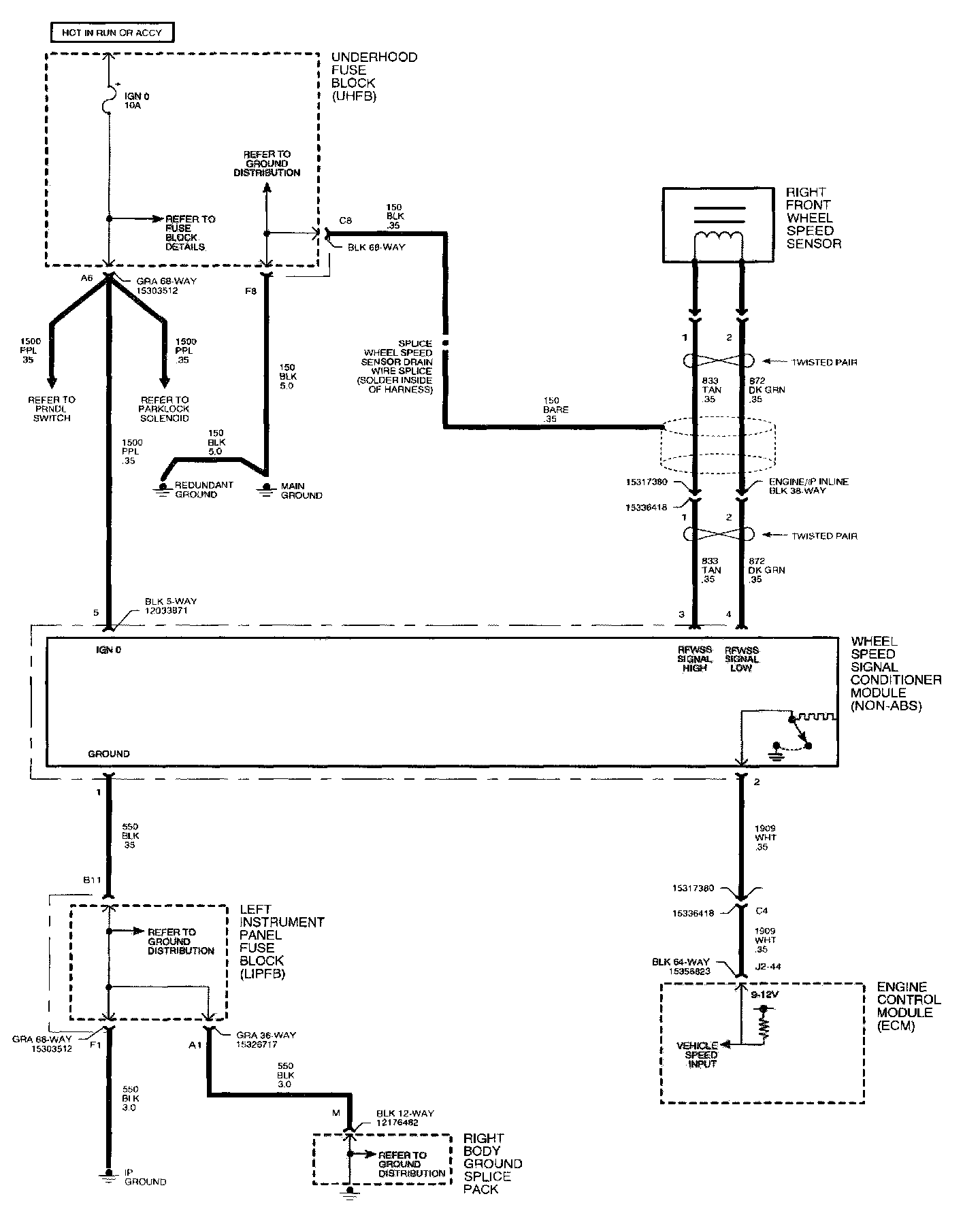

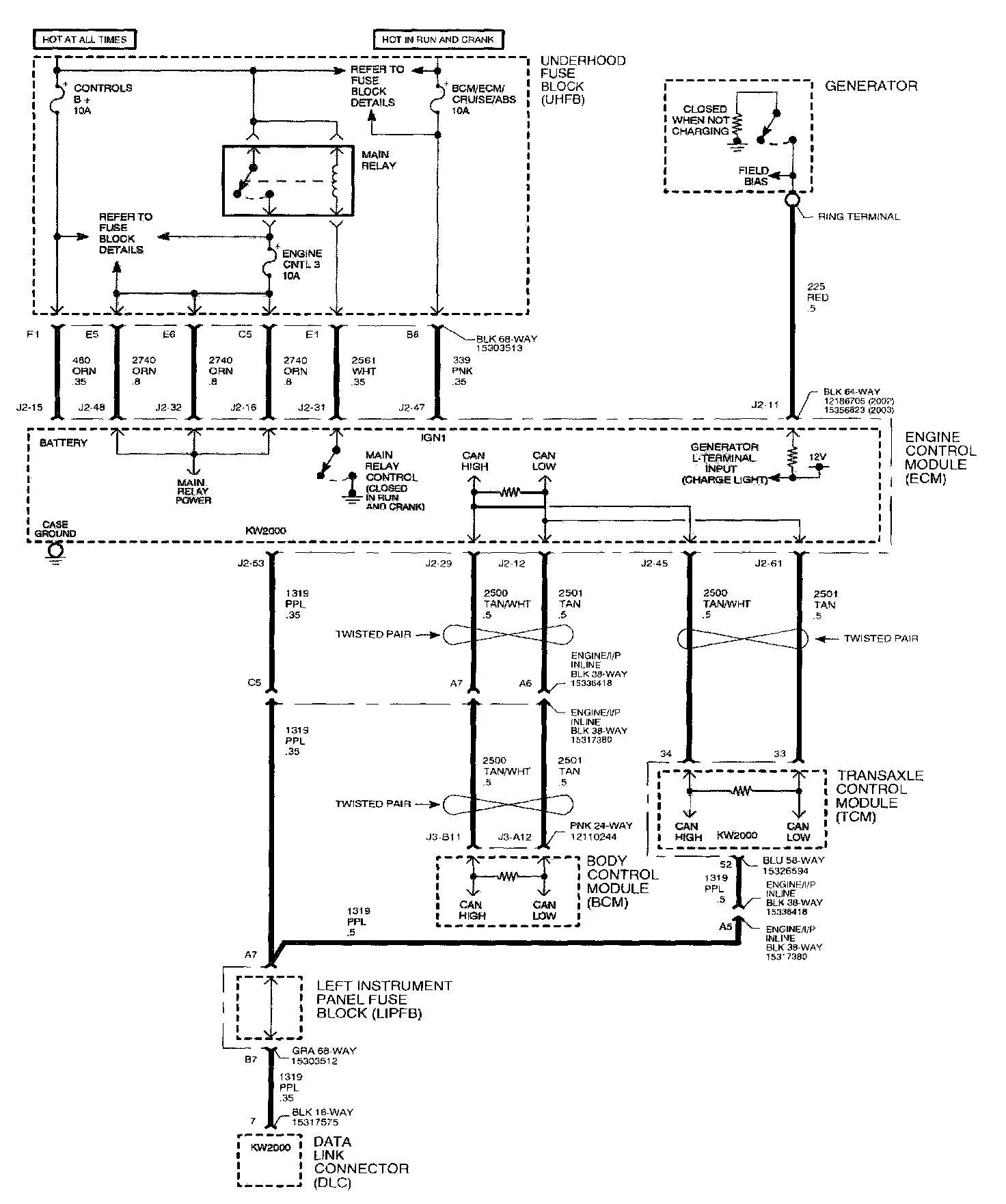

Engine Control Module (ECM) Schematics (cont'd):

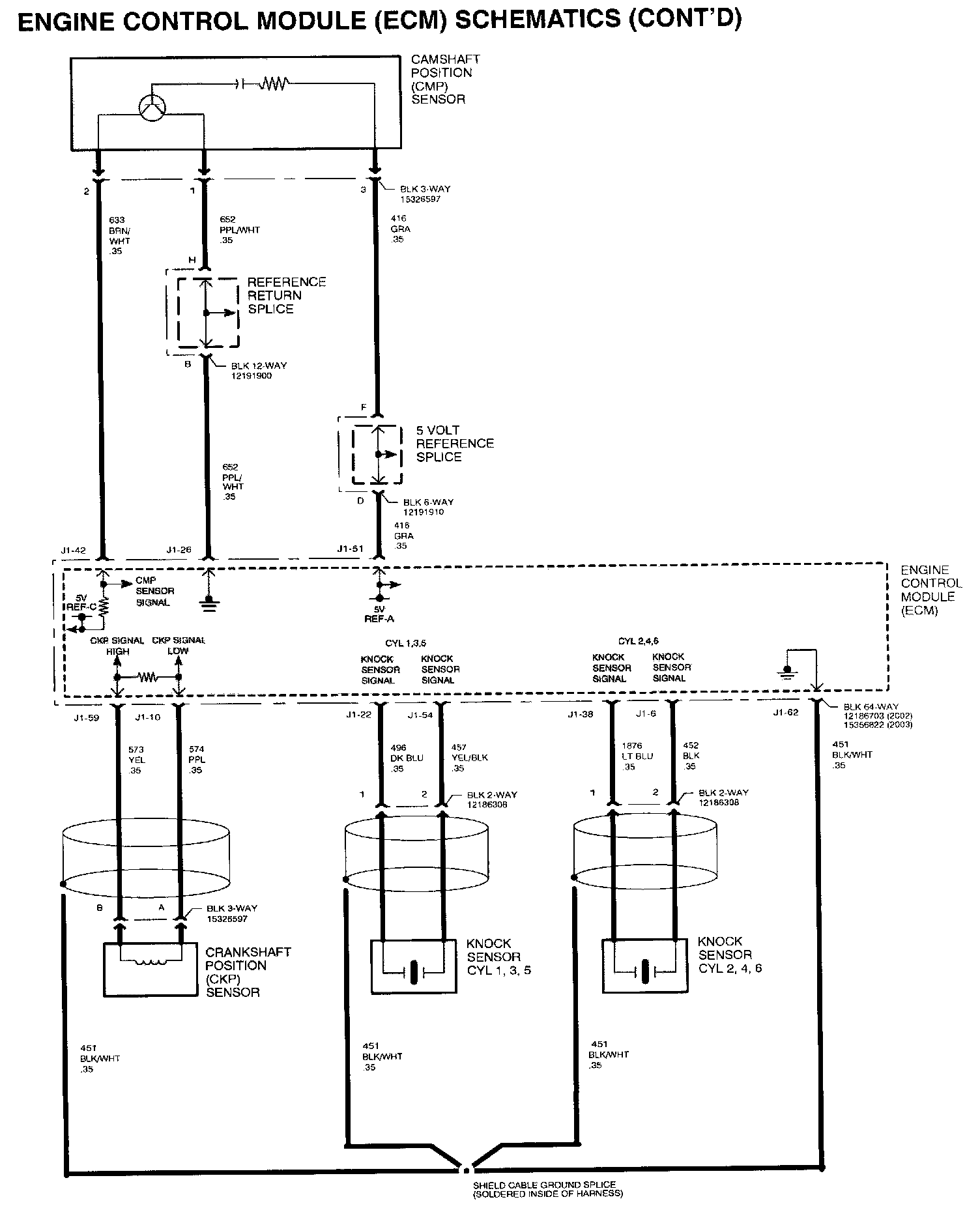

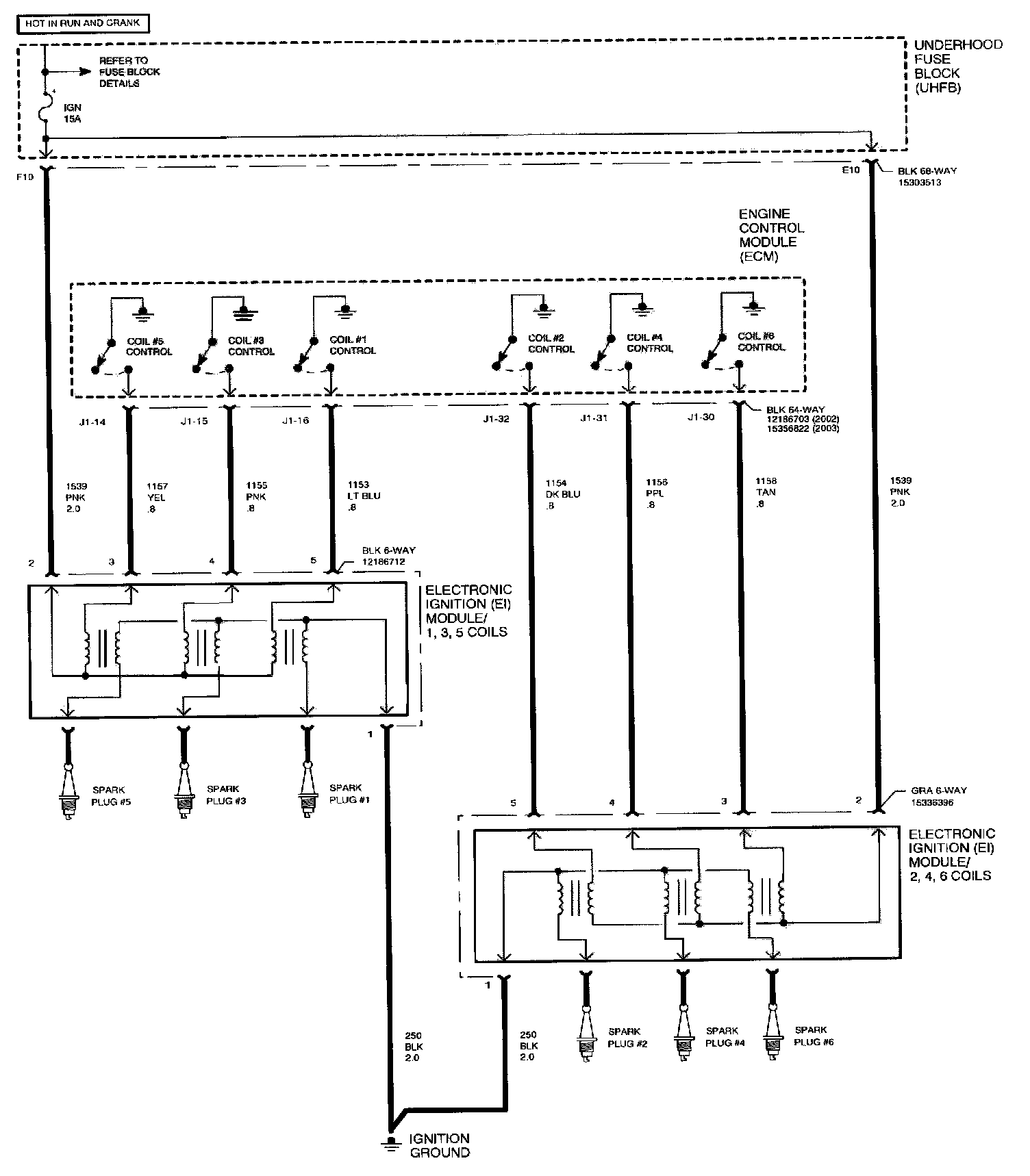

Engine Control Module (ECM) Schematics (cont'd):

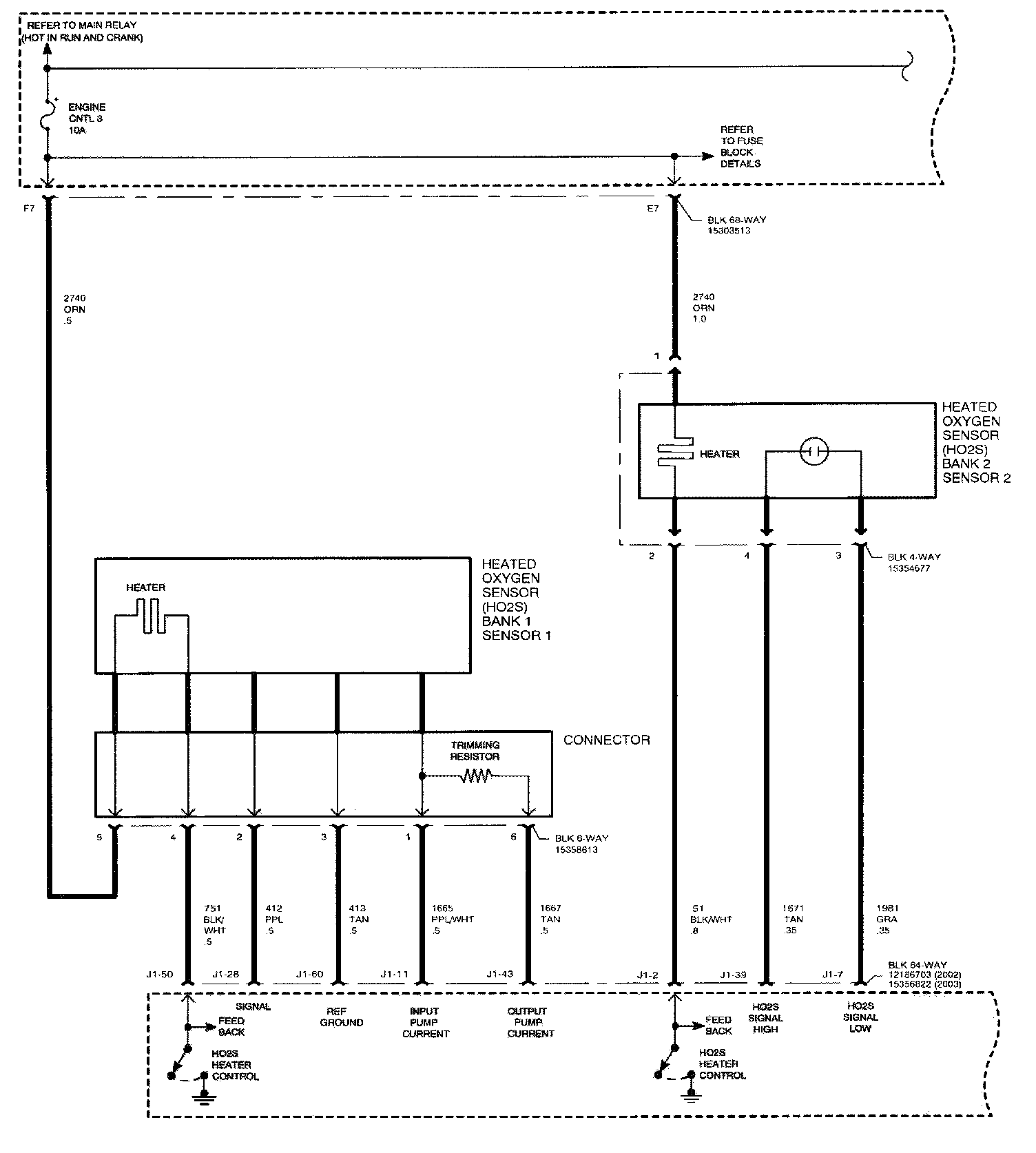

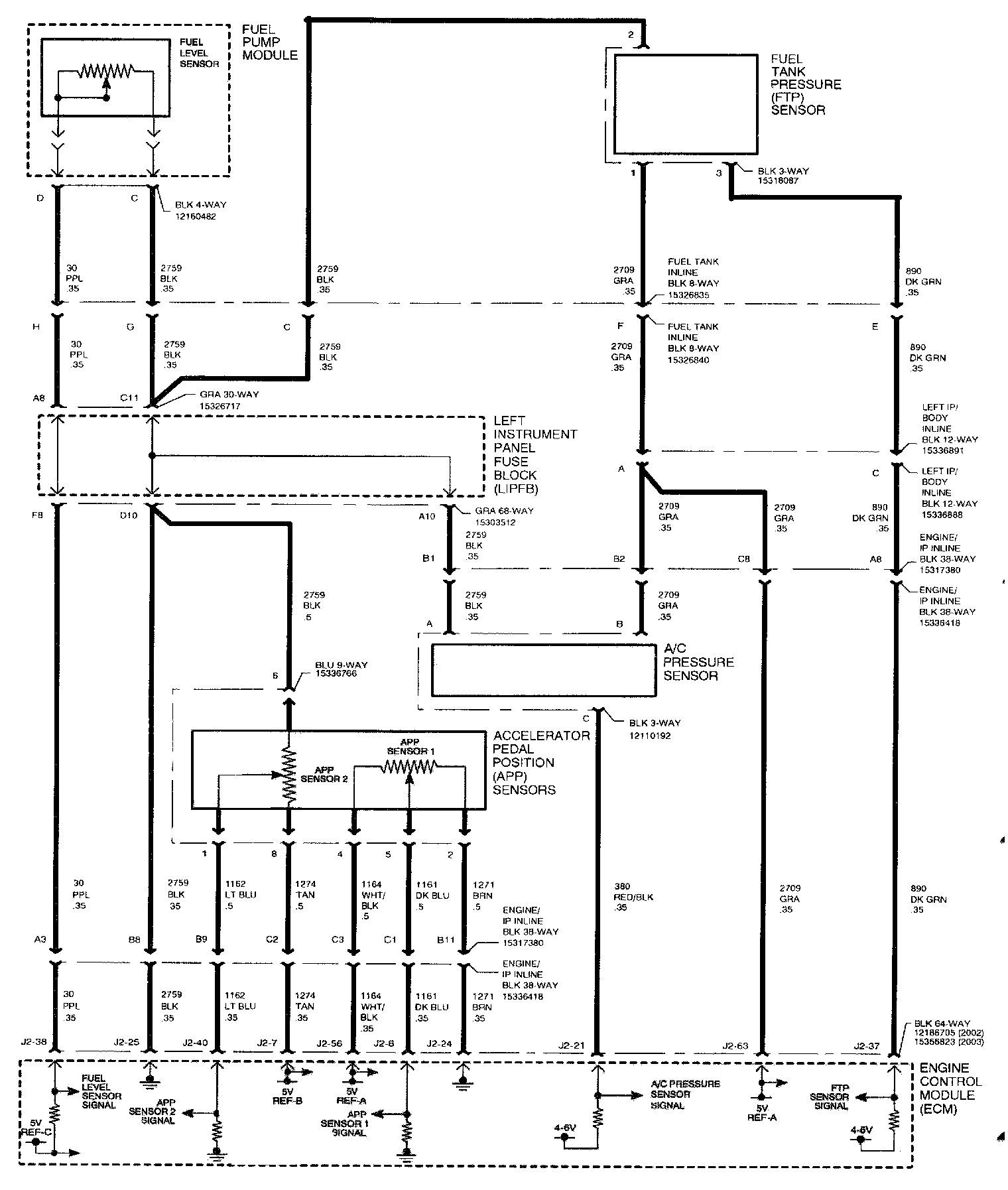

Engine Control Module (ECM) Schematics (cont'd):

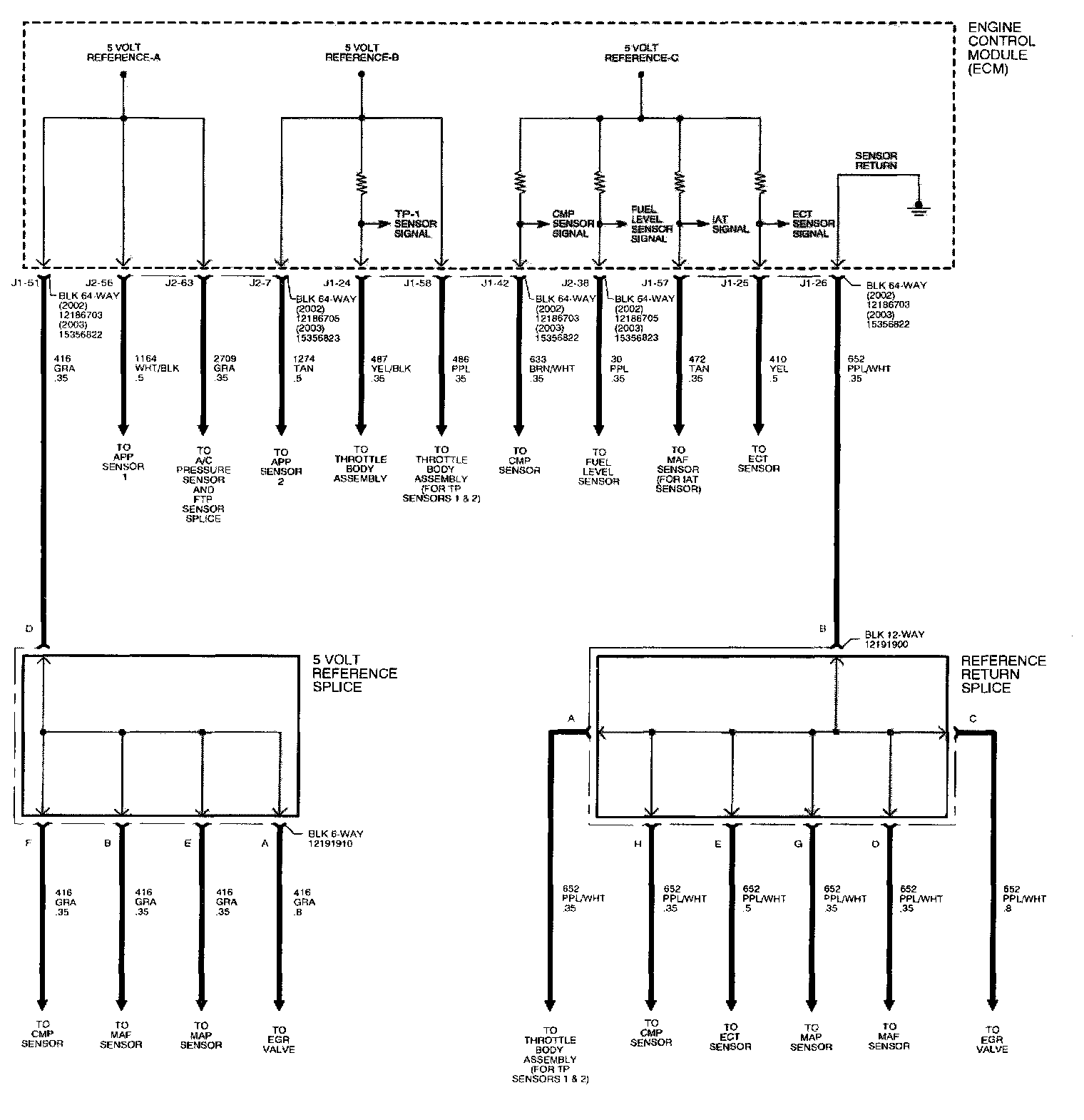

Engine Control Module (ECM) Schematics (cont'd):

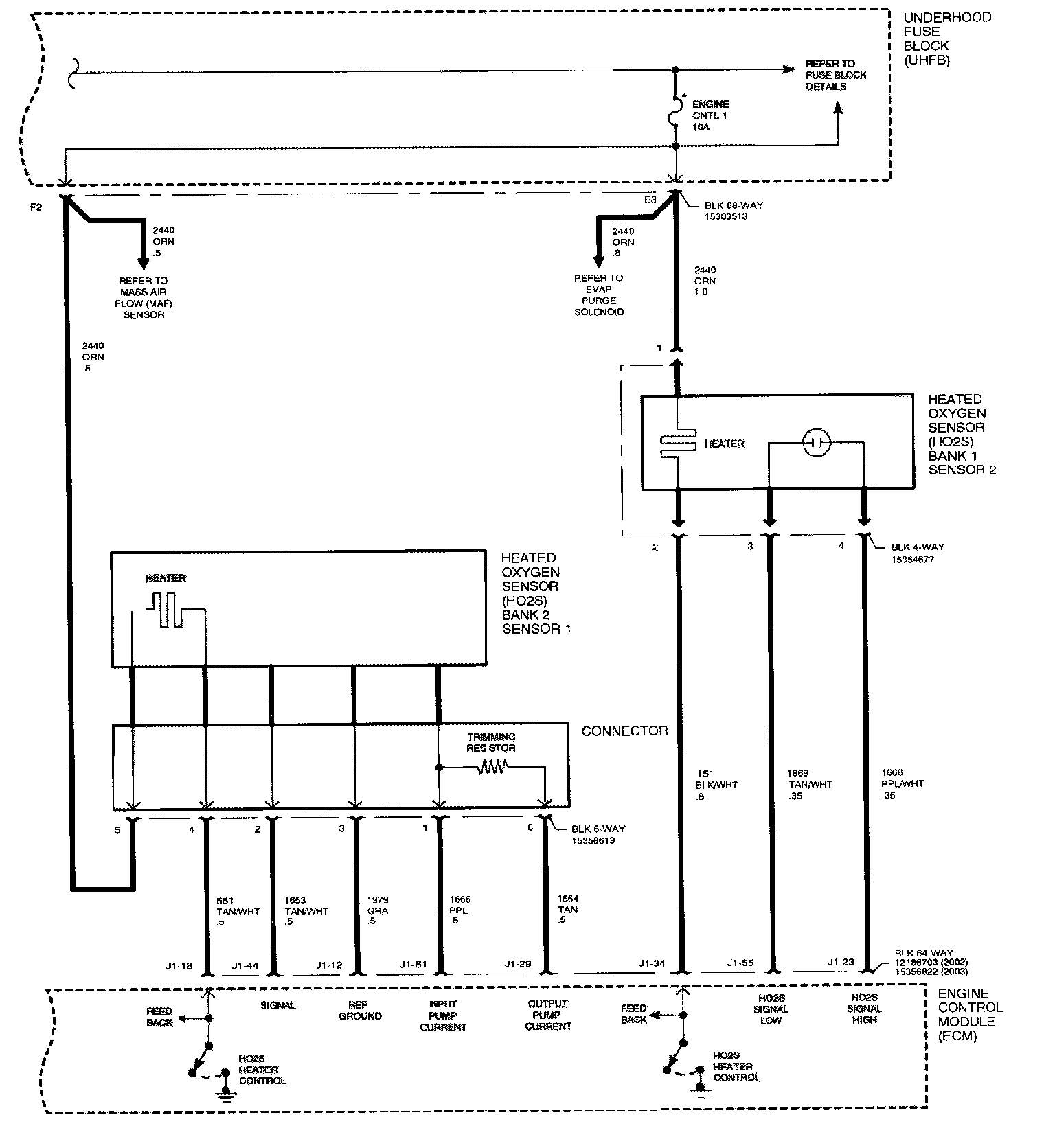

Engine Control Module (ECM) Schematics (cont'd):

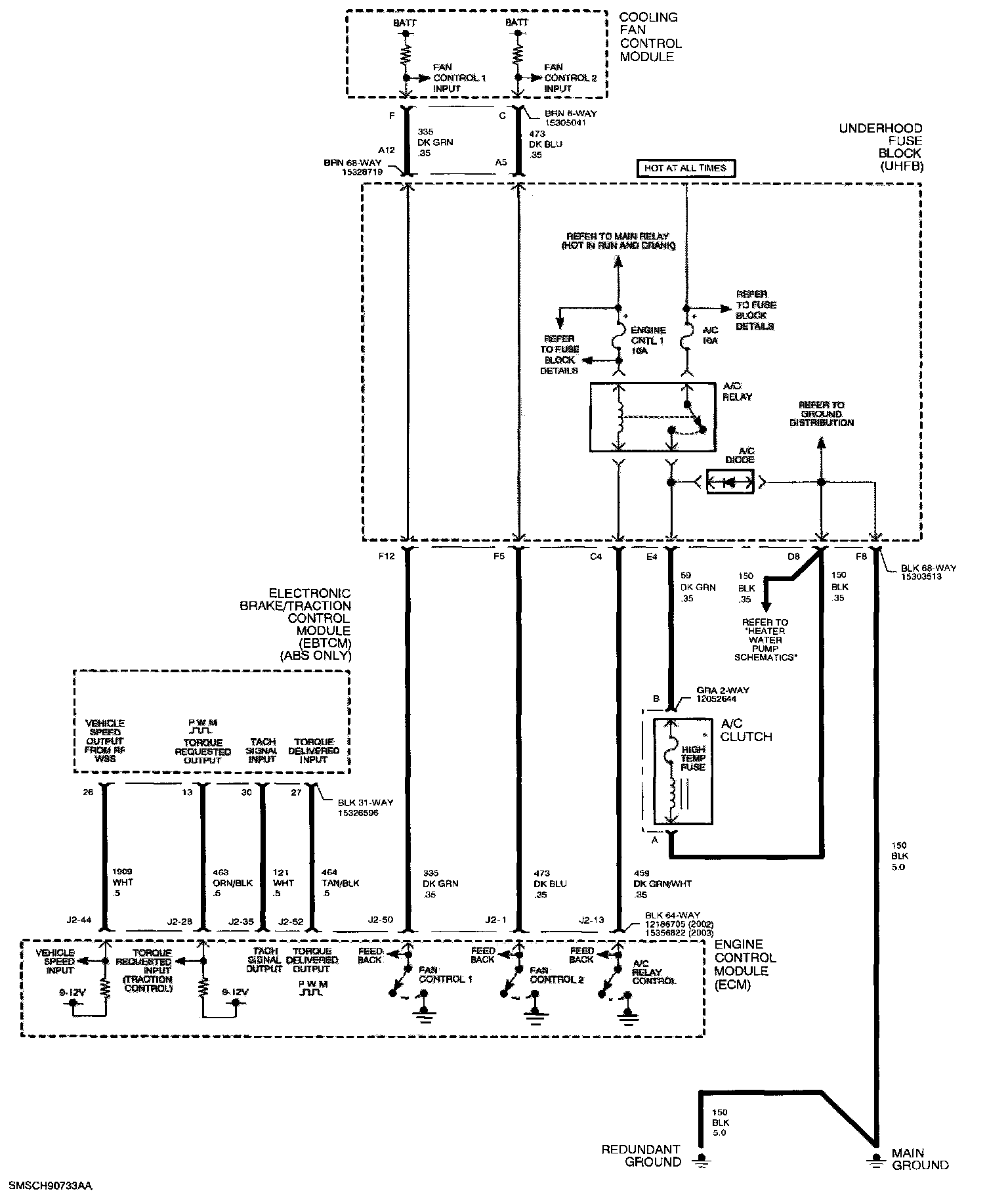

Engine Control Module (ECM) Schematics (cont'd):

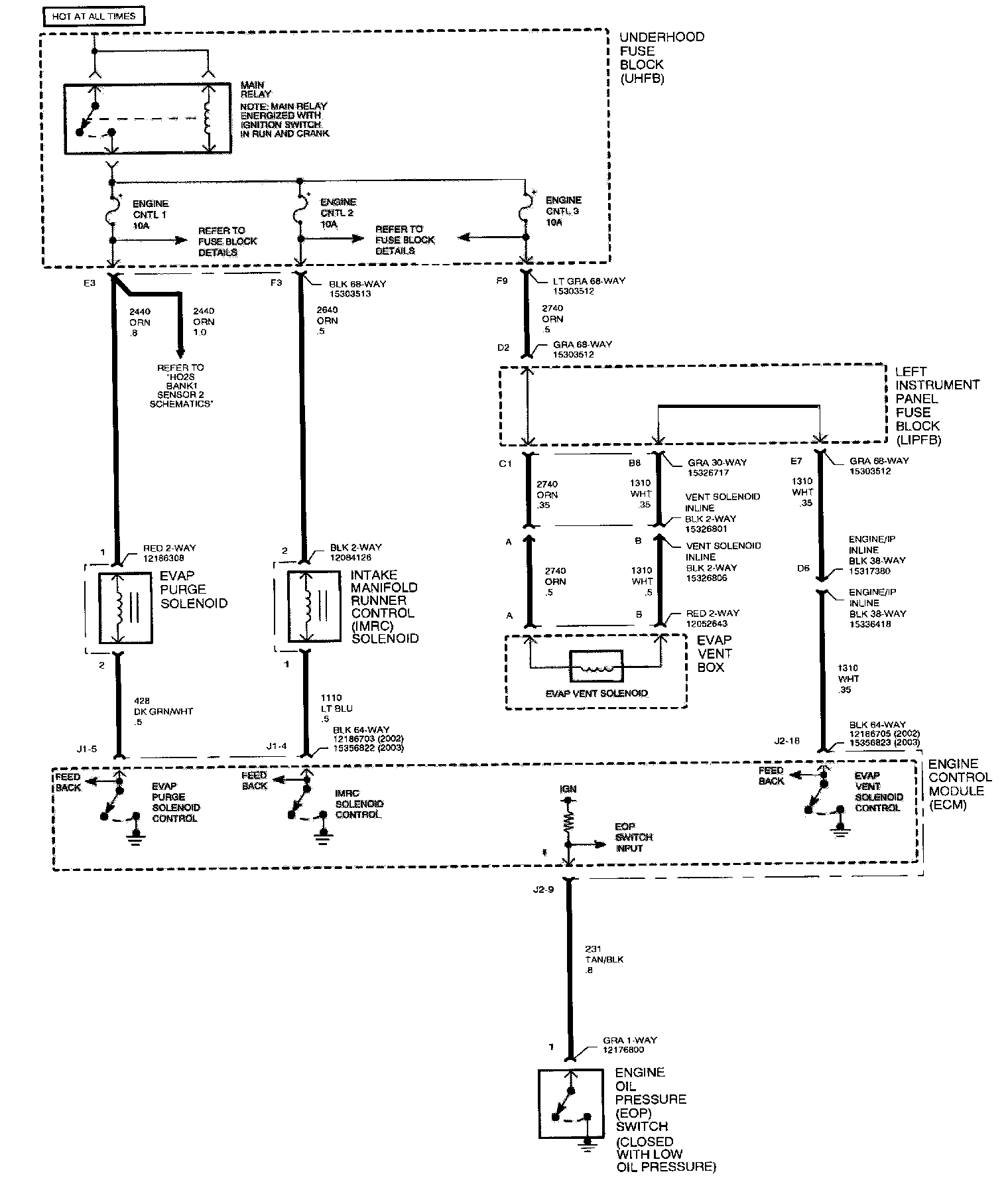

Engine Control Module (ECM) Schematics (cont'd):




Engine Control Module (ECM) Schematics (cont'd):




Engine Control Module (ECM) Schematics (cont'd):




Engine Control Module (ECM) Schematics (cont'd):




Engine Control Module (ECM) Schematics (cont'd):




Engine Control Module (ECM) Schematics (cont'd):




Engine Control Module (ECM) Schematics (cont'd):




Engine Control Module (ECM) Schematics (cont'd):
