Scan Tool Data, Normal Values and Definitions

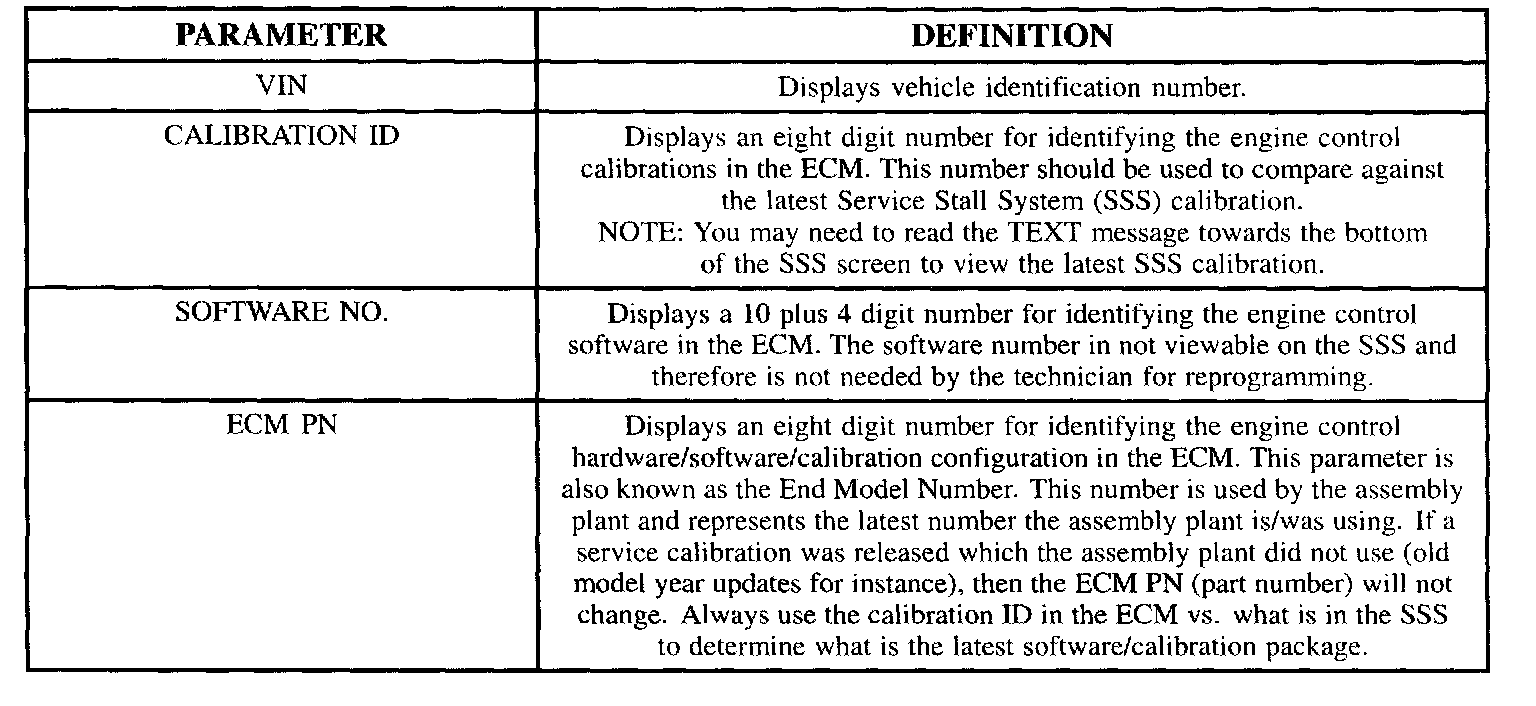

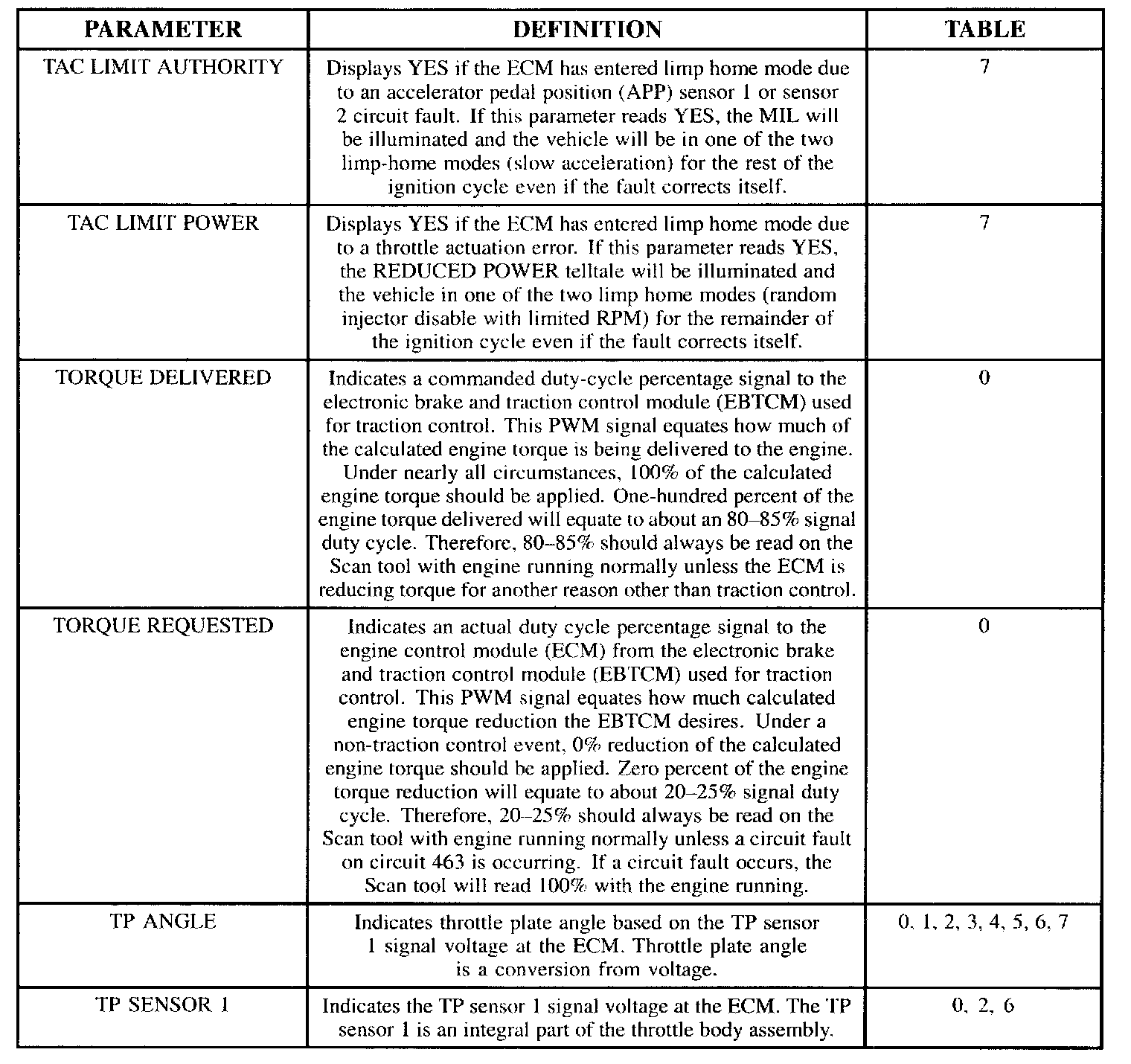

Scan Tool Data Definitions For Powertrain - Engine Data

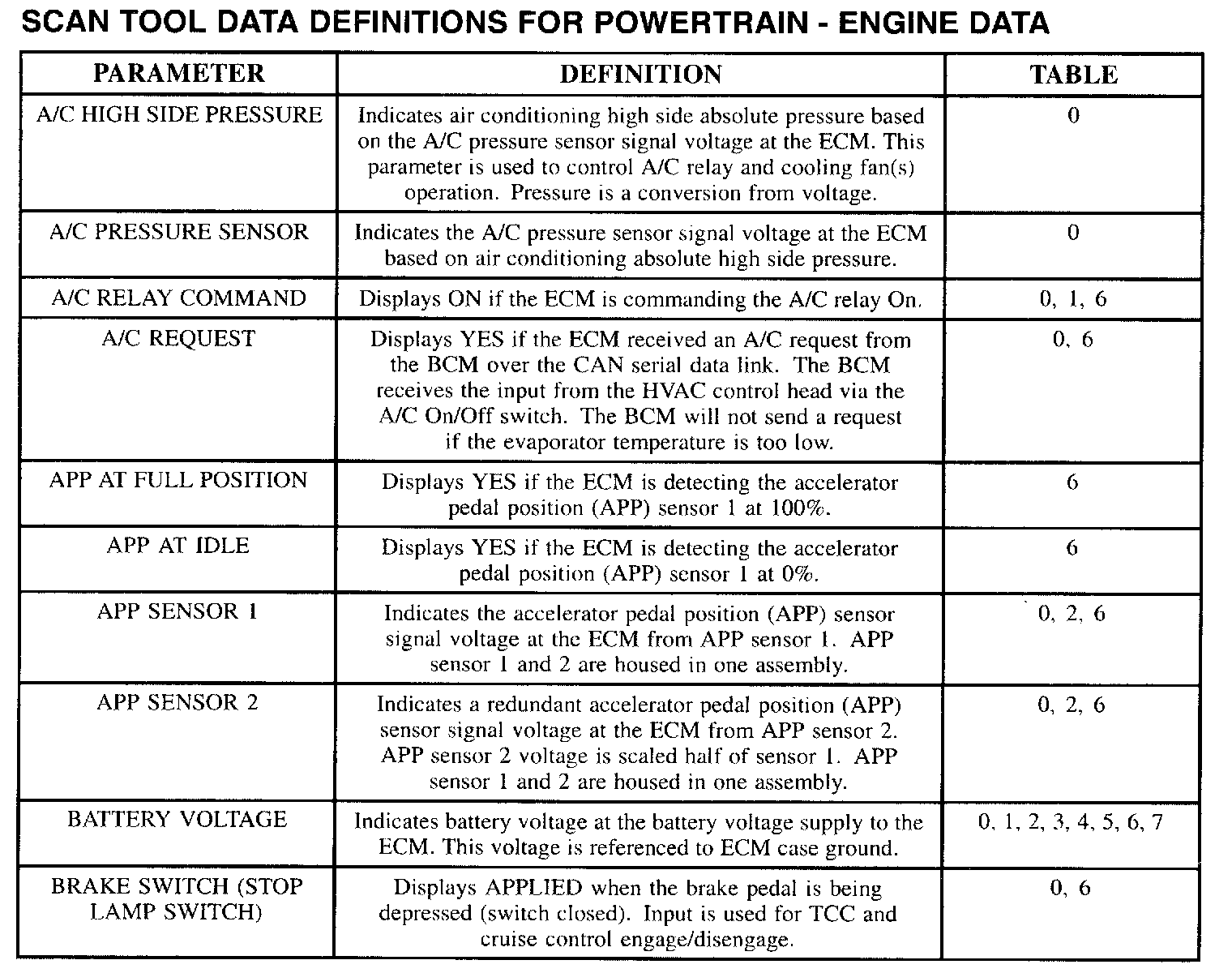

Scan Tool Data Definitions For Powertrain - Engine Data:




Scan Tool Data Definitions For Powertrain - Engine Data (cont'd):

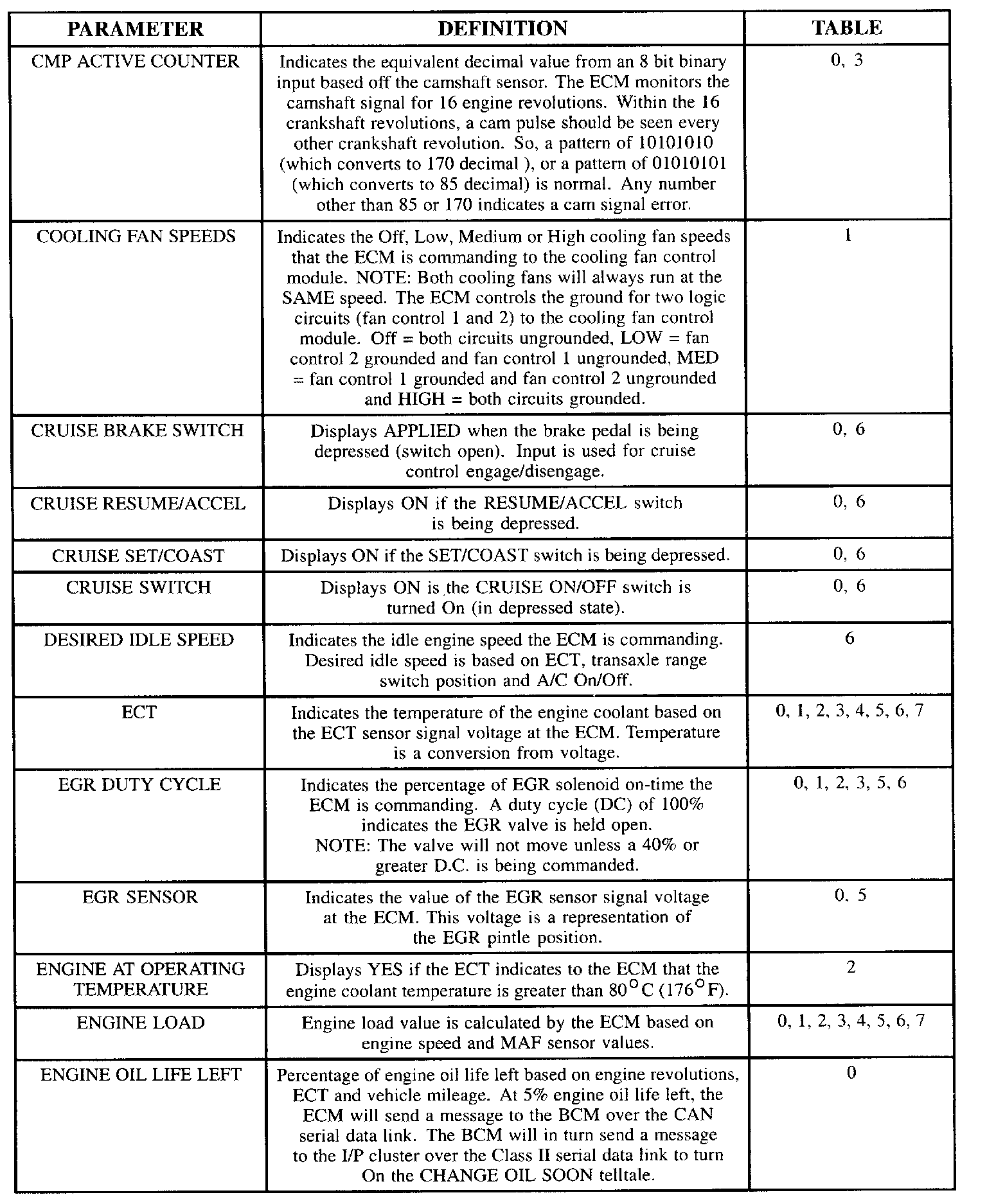

Scan Tool Data Definitions For Powertrain - Engine Data (cont'd):

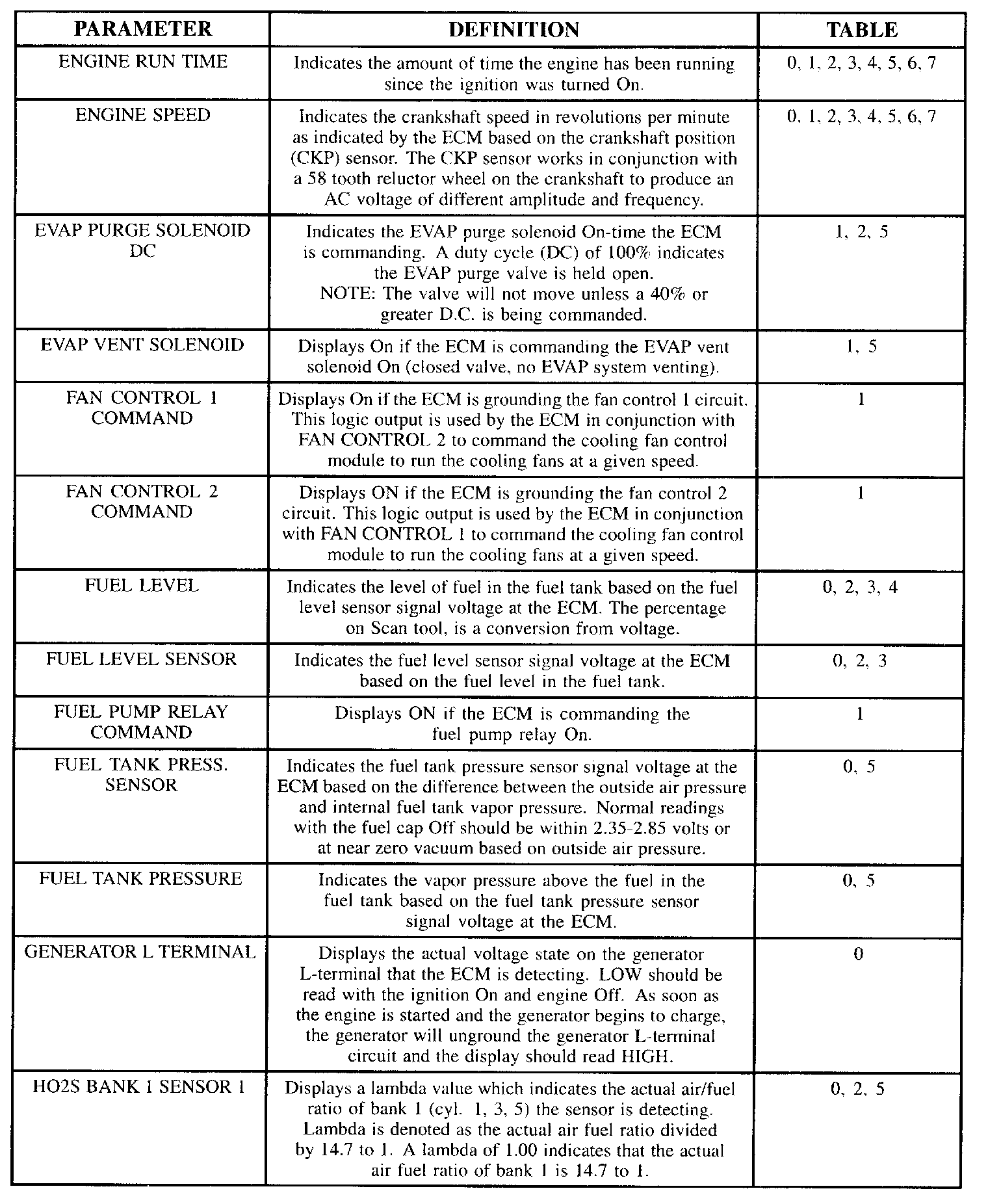

Scan Tool Data Definitions For Powertrain - Engine Data (cont'd):

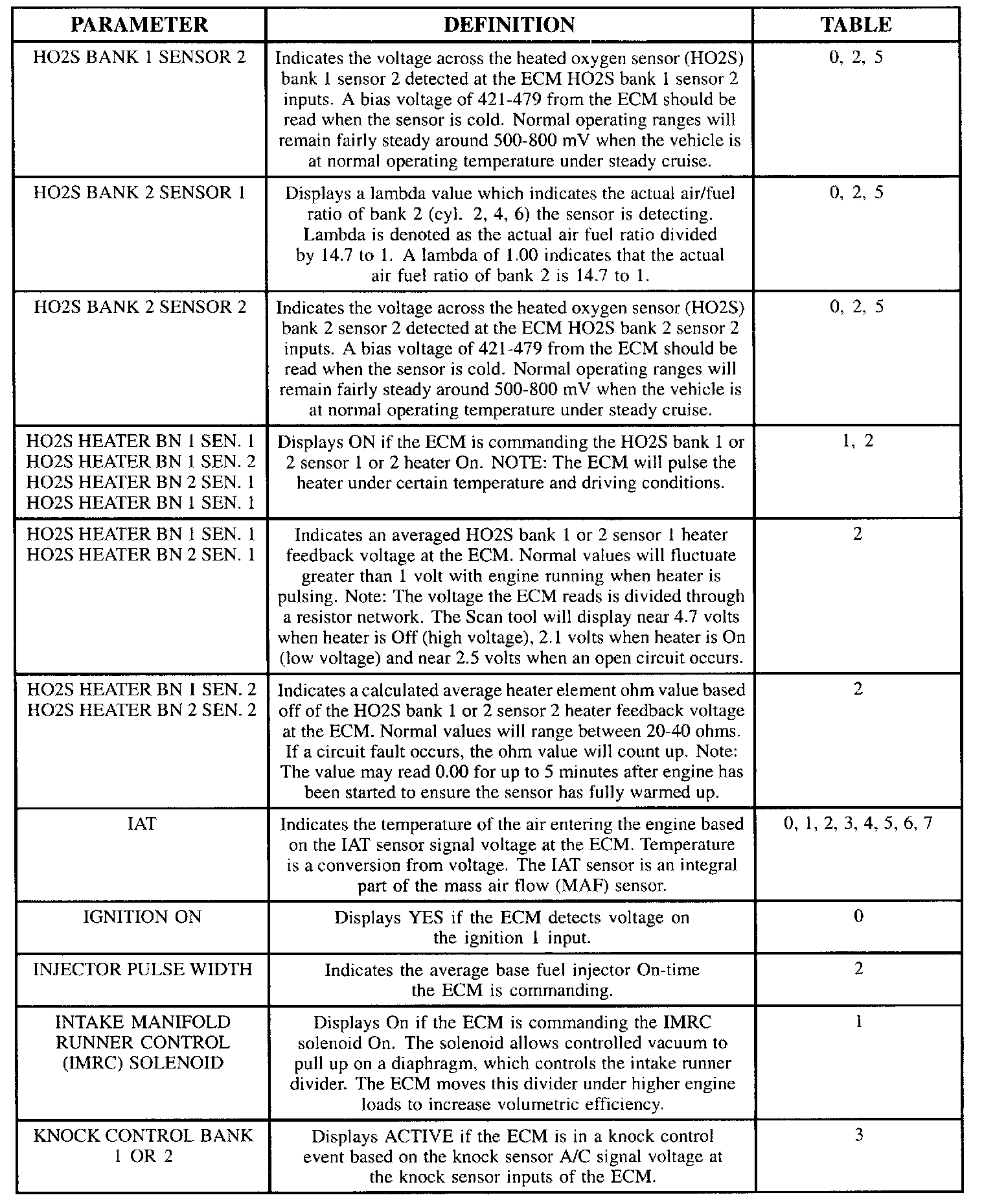

Scan Tool Data Definitions For Powertrain - Engine Data (cont'd):

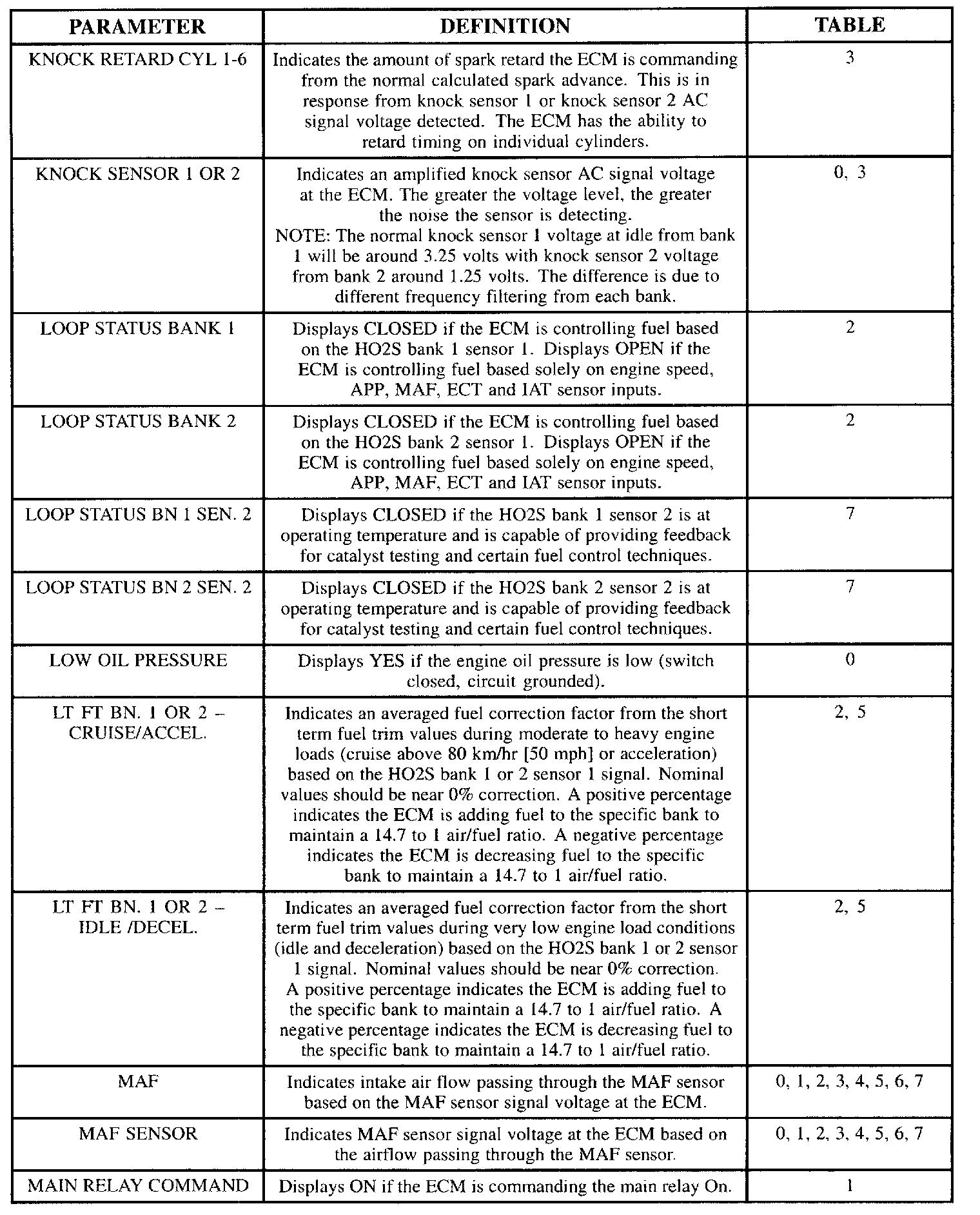

Scan Tool Data Definitions For Powertrain - Engine Data (cont'd):




Scan Tool Data Definitions For Powertrain - Engine Data (cont'd):

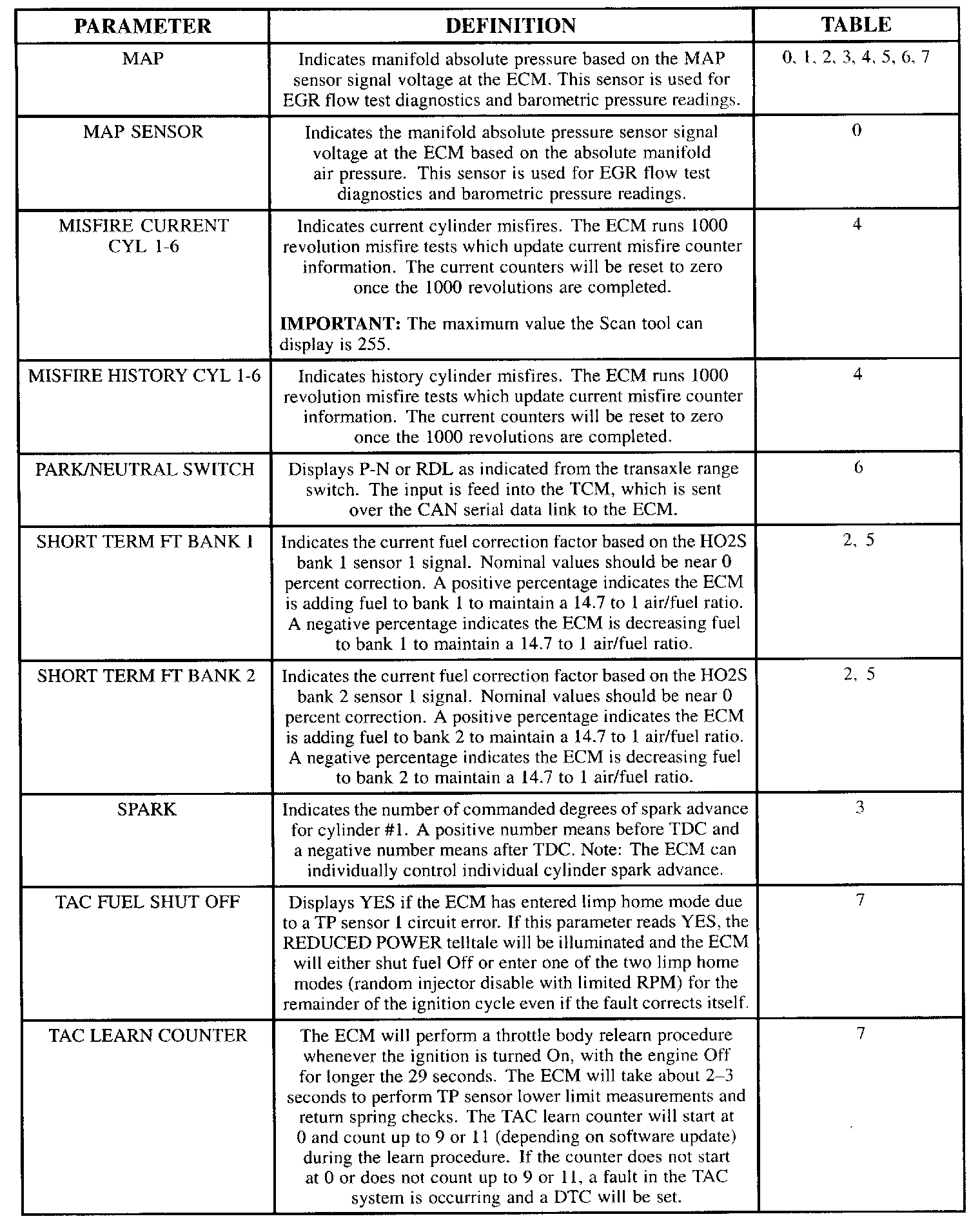

Scan Tool Data Definitions For Powertrain - Engine Data (cont'd):

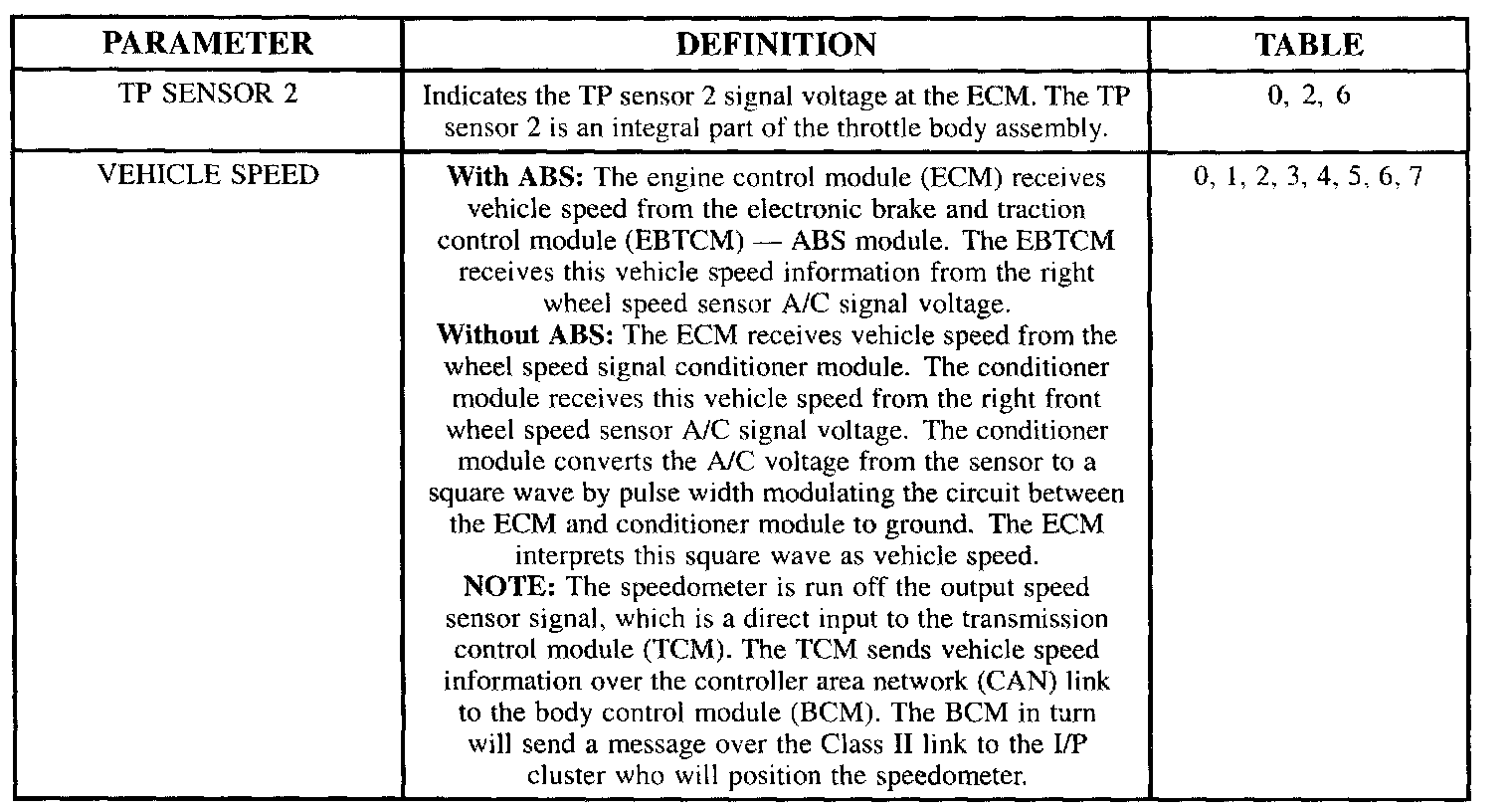

Scan Tool Data Definitions For Powertrain - Engine Data (cont'd):
