Home >> Saturn >> 2002 >> L300 V6-3.0L VIN R >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Diagrams >> Connector Views >> J2

J2

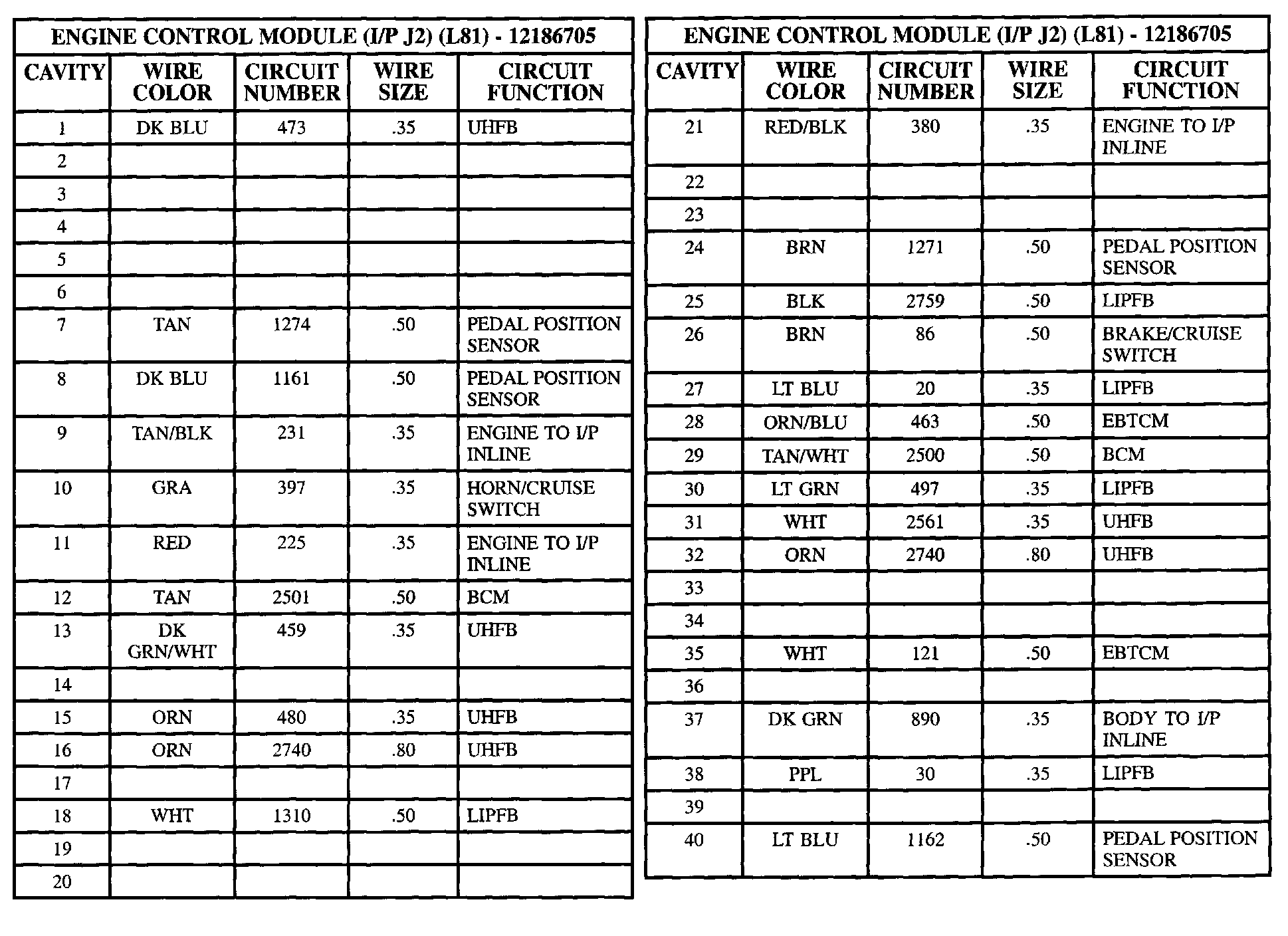

Engine Control Module (I/P J2) Part 1:

Engine Control Module (I/P J2) Part 2:

Engine Control Module (I/P J2) Part 3:
