Cylinder Head Specifications

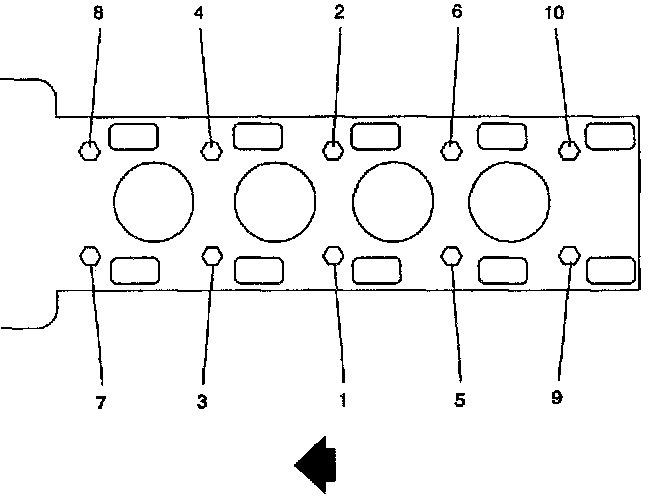

Install and tighten cylinder head bolts in sequence.
Torque:
Cylinder Head Bolts: 30 Nm (22 ft. lbs.) + 155°

Cylinder Head Front Chaincase Bolts:






Install front cylinder head bolts.
Torque:
Cylinder Head Front chain case Bolts: 25 Nm (18 ft. lbs.)
