Powertrain Control Module (PCM)

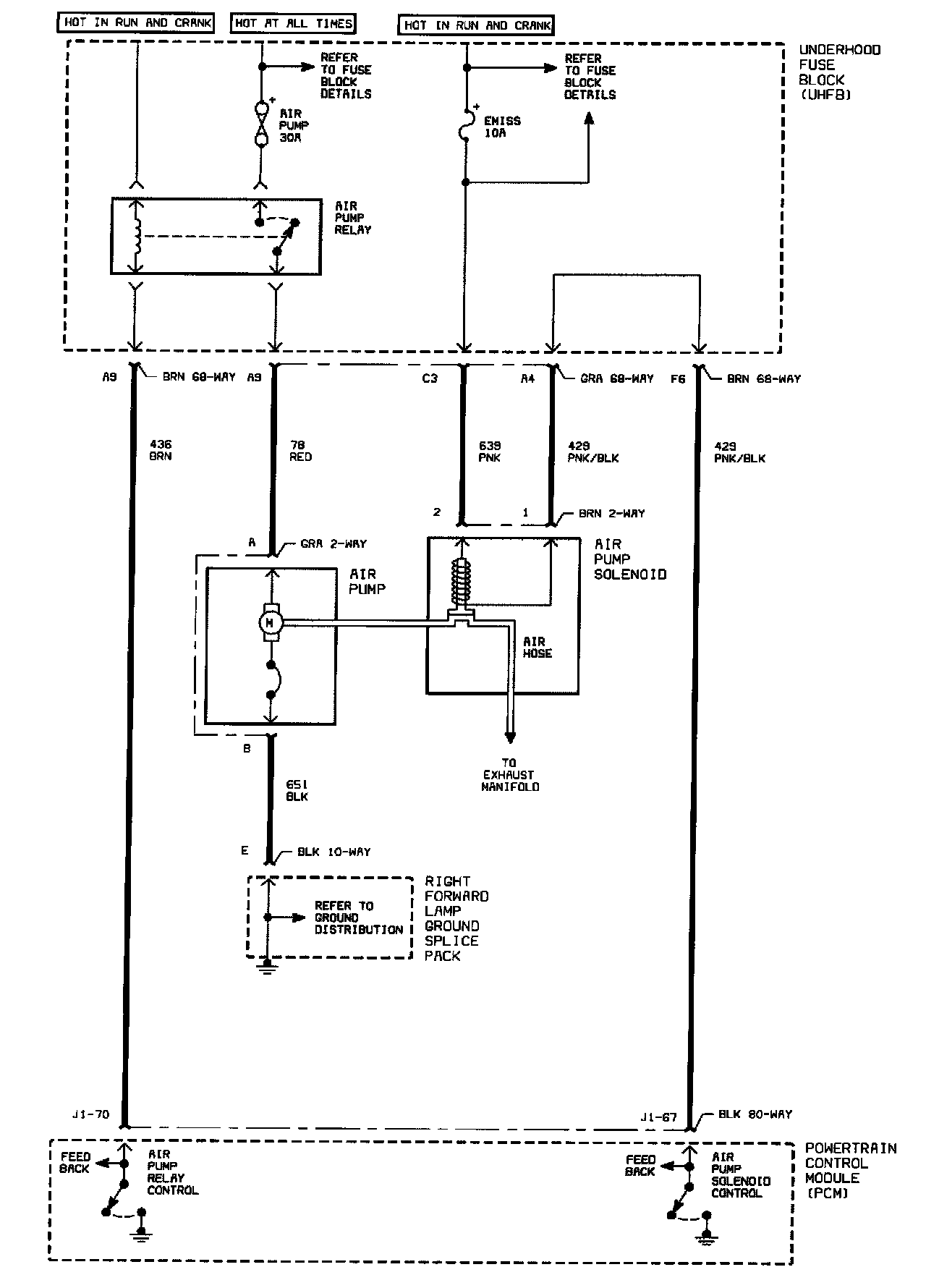

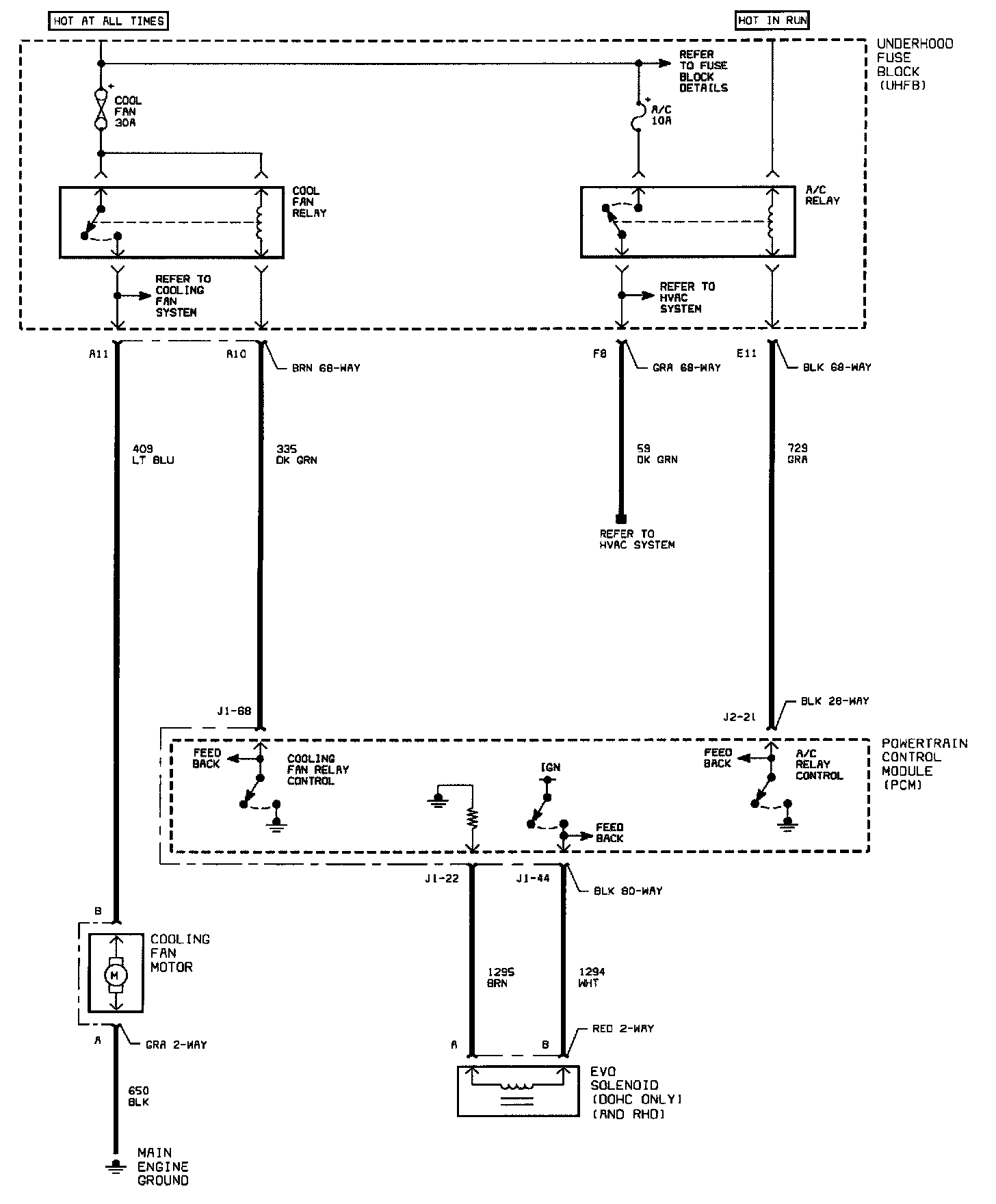

Powertrain Control Module (PCM) Schematics (Part 1 Of 11):

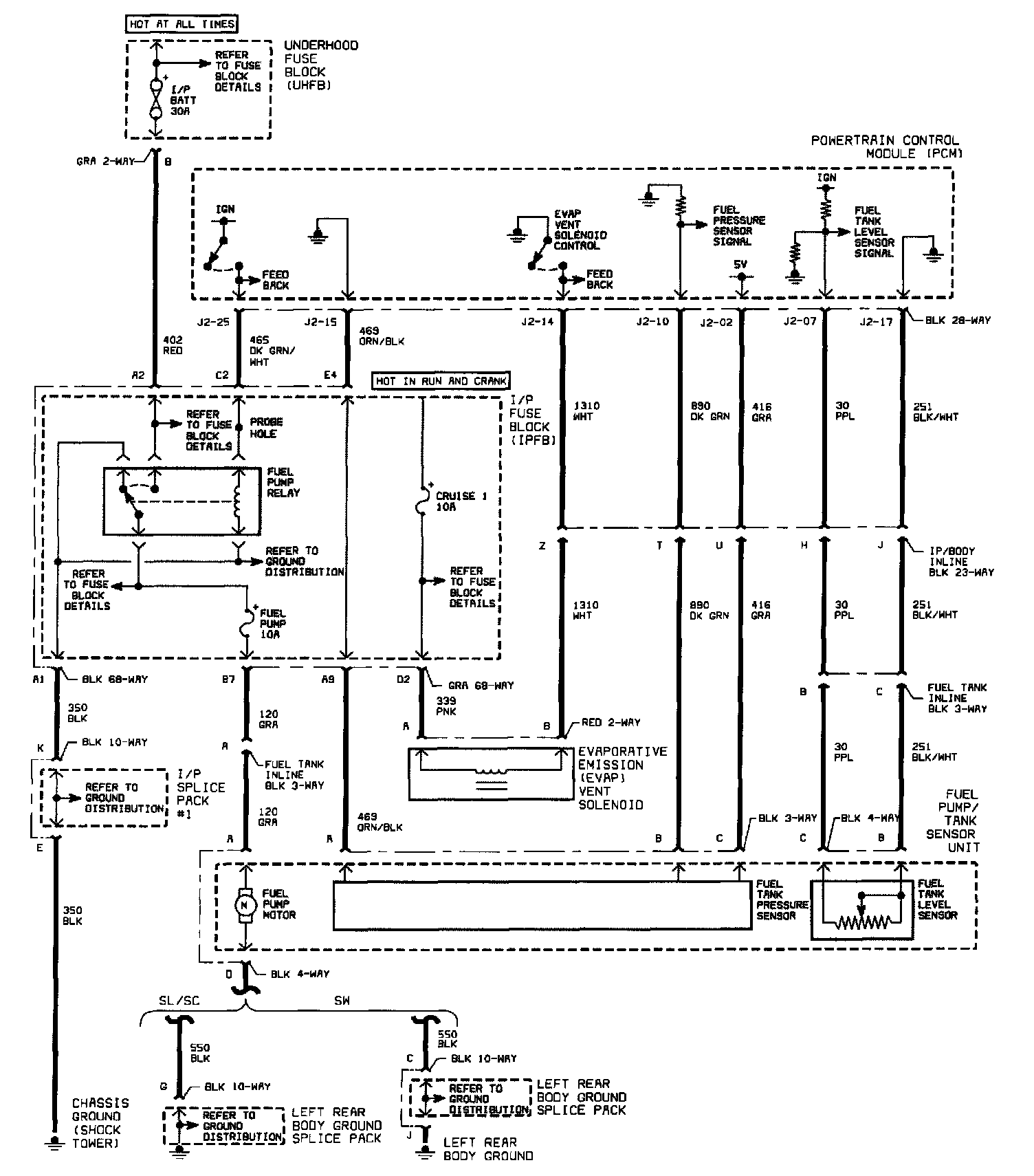

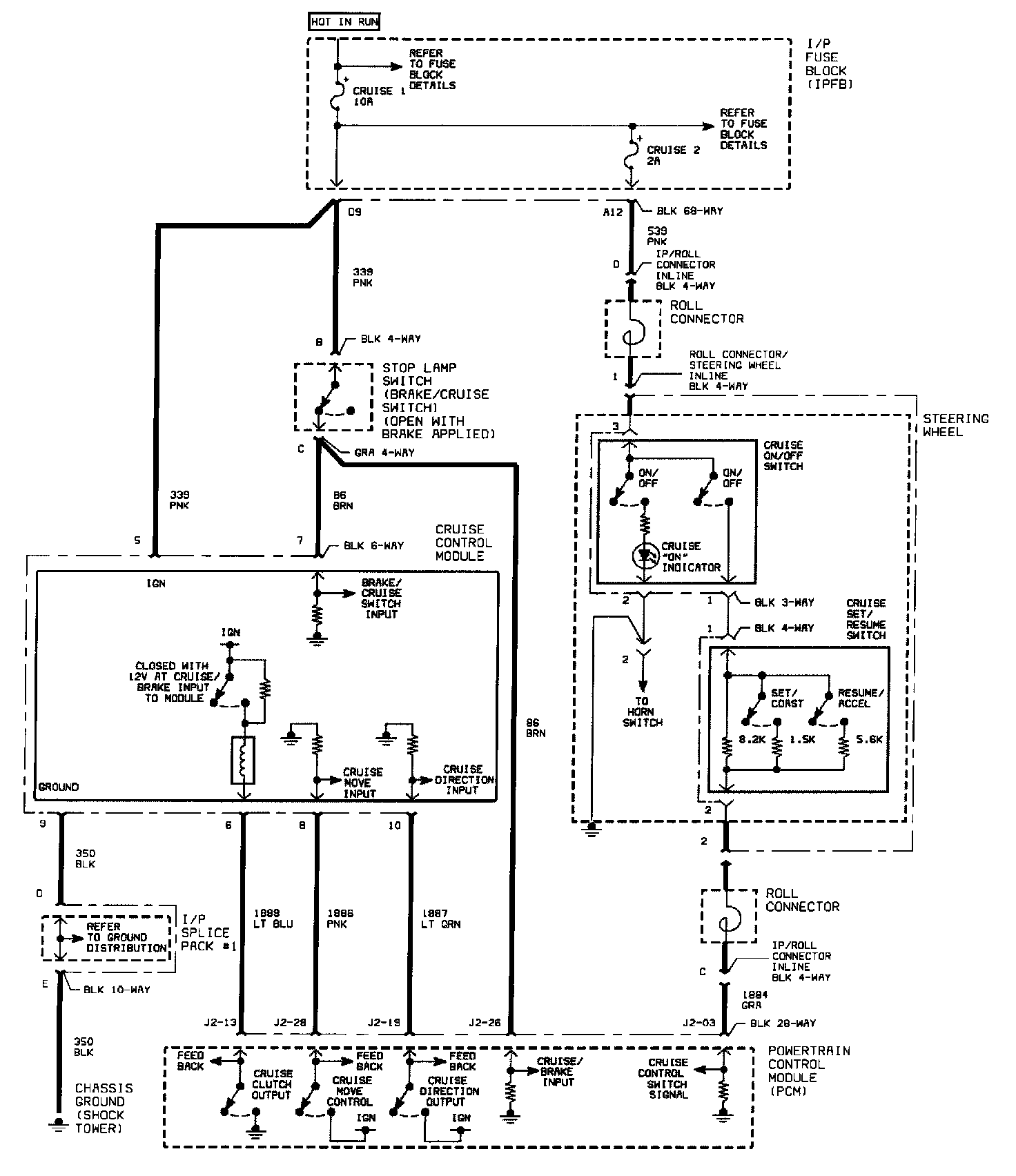

Powertrain Control Module (PCM) Schematics (Part 2 Of 11):

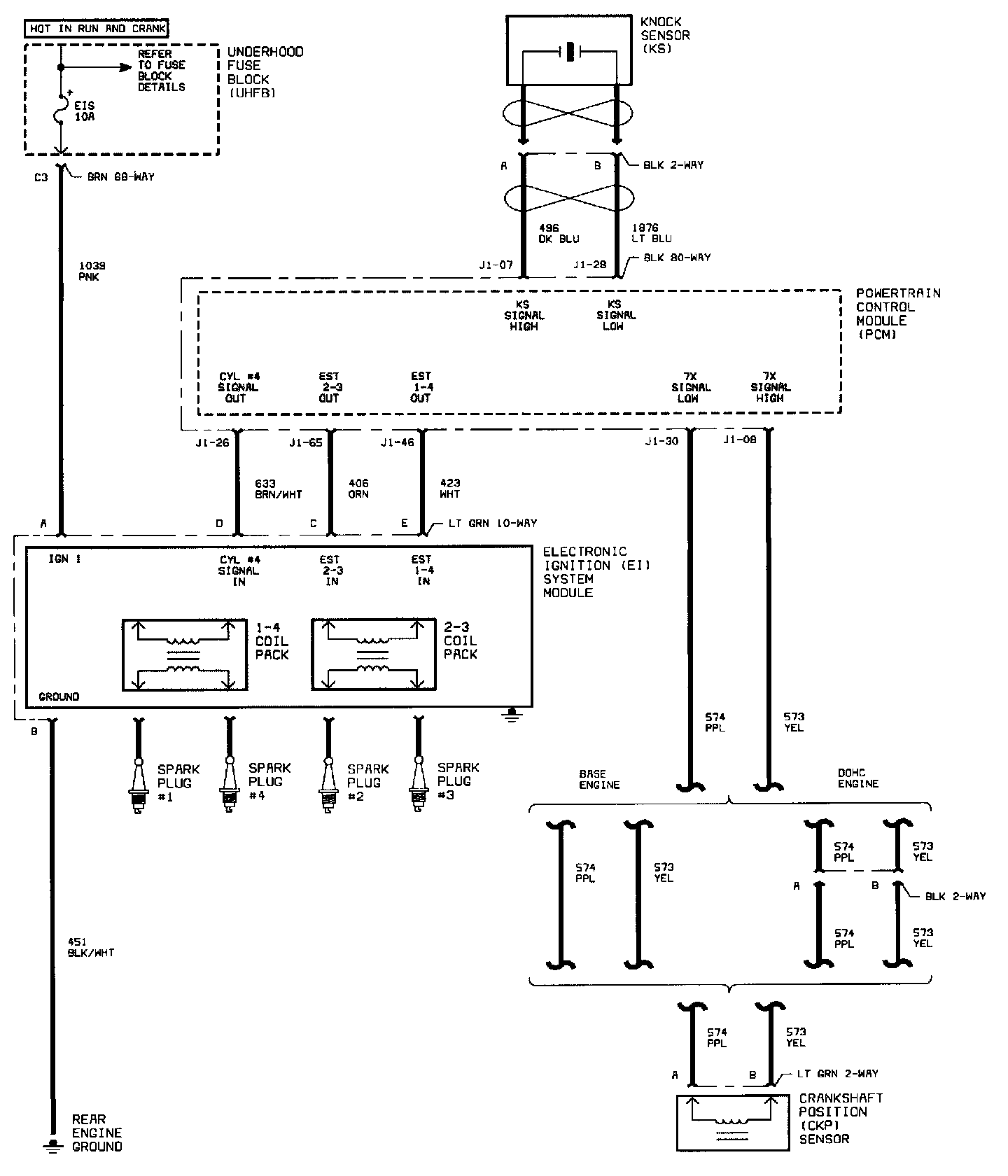

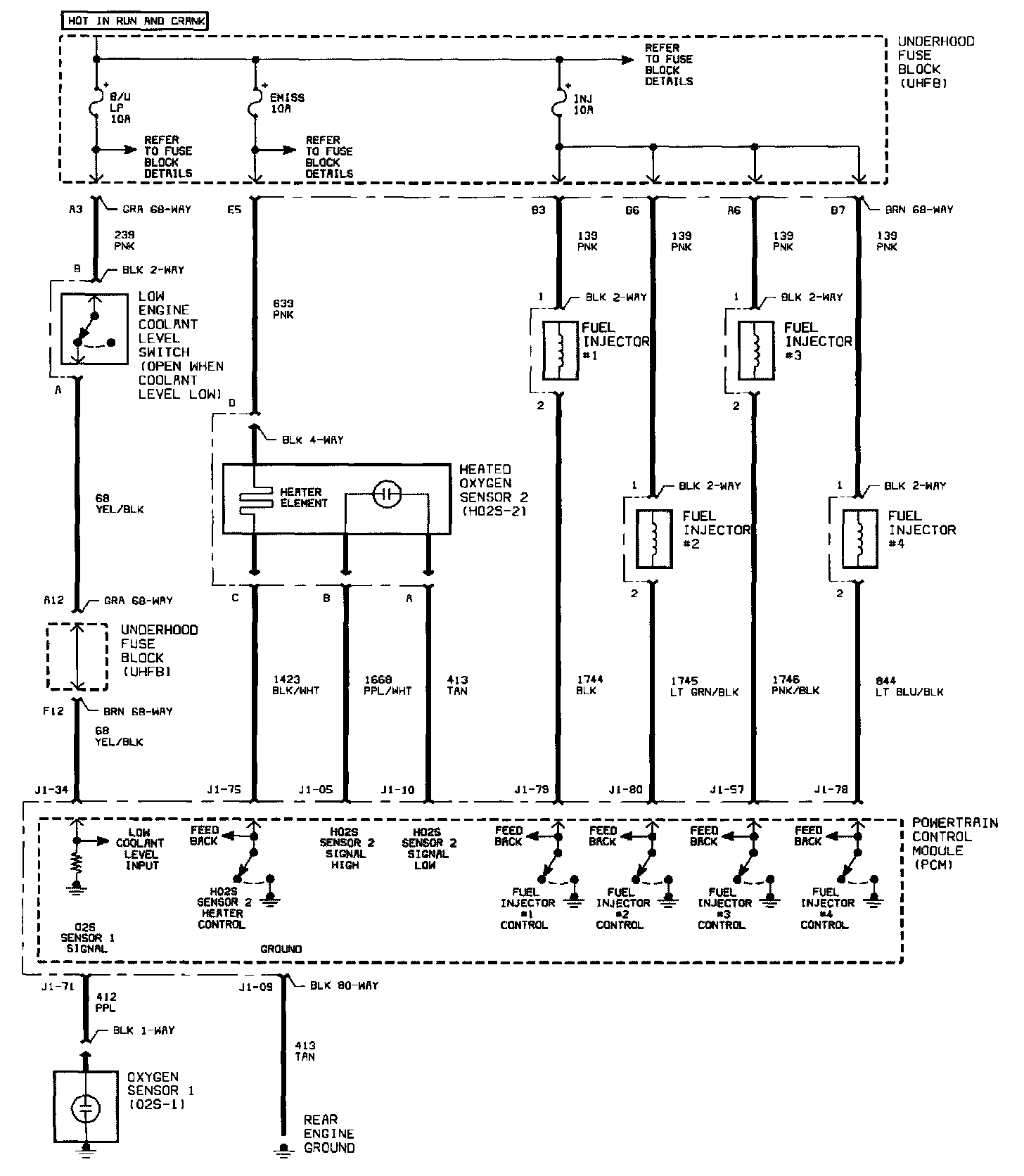

Powertrain Control Module (PCM) Schematics (Part 3 Of 11):

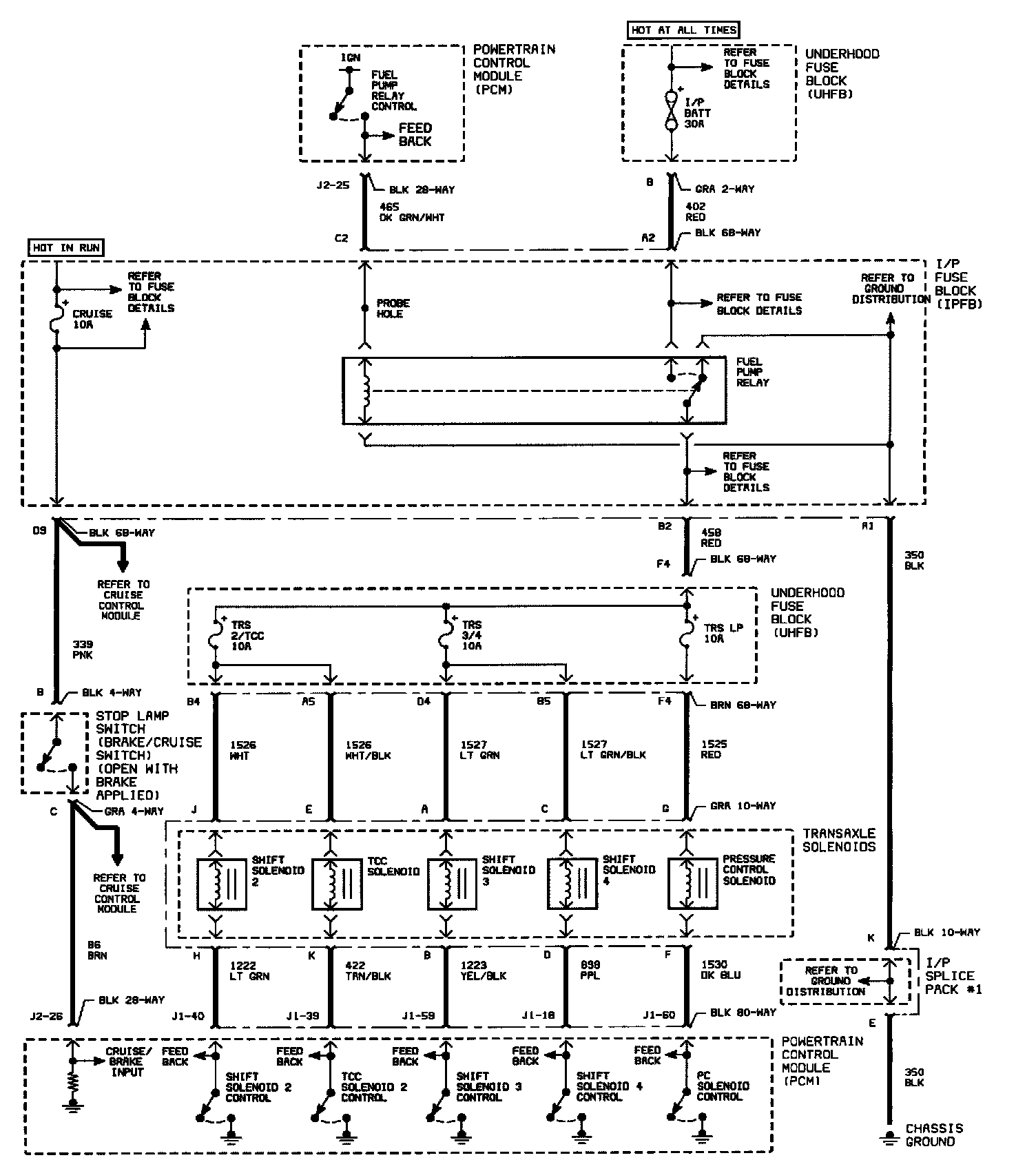

Powertrain Control Module (PCM) Schematics (Part 4 Of 11):

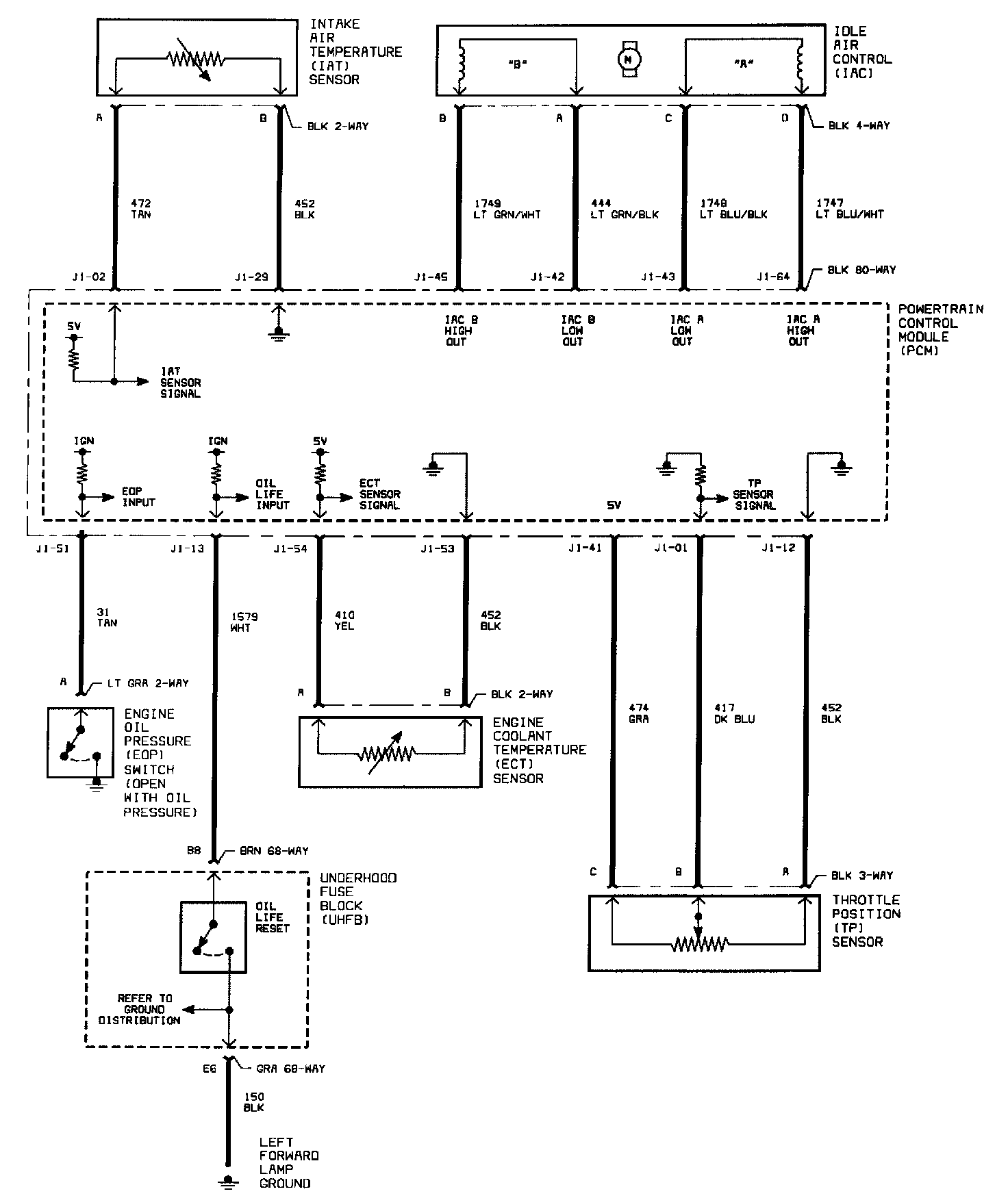

Powertrain Control Module (PCM) Schematics (Part 5 Of 11):

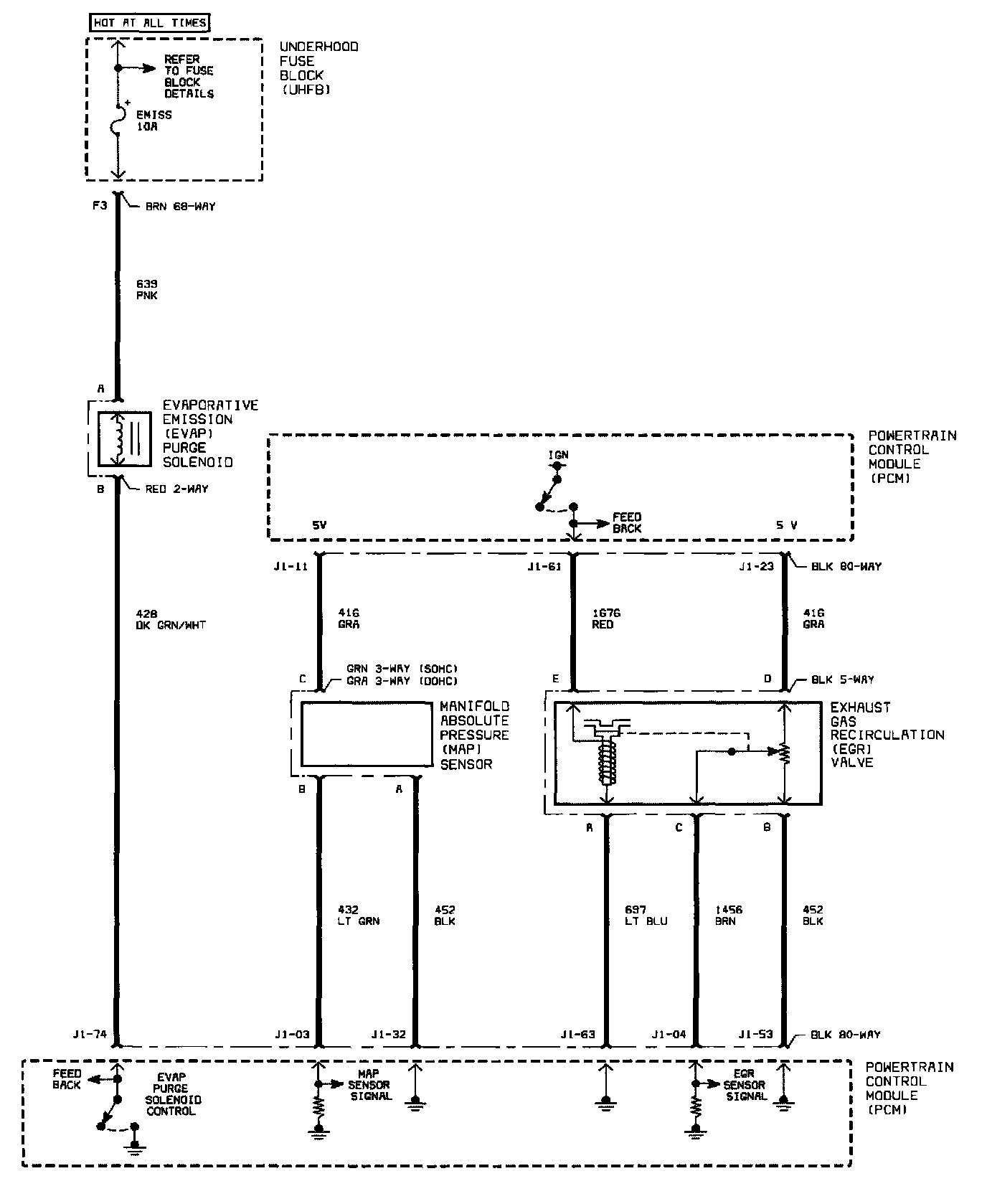

Powertrain Control Module (PCM) Schematics (Part 6 Of 11):

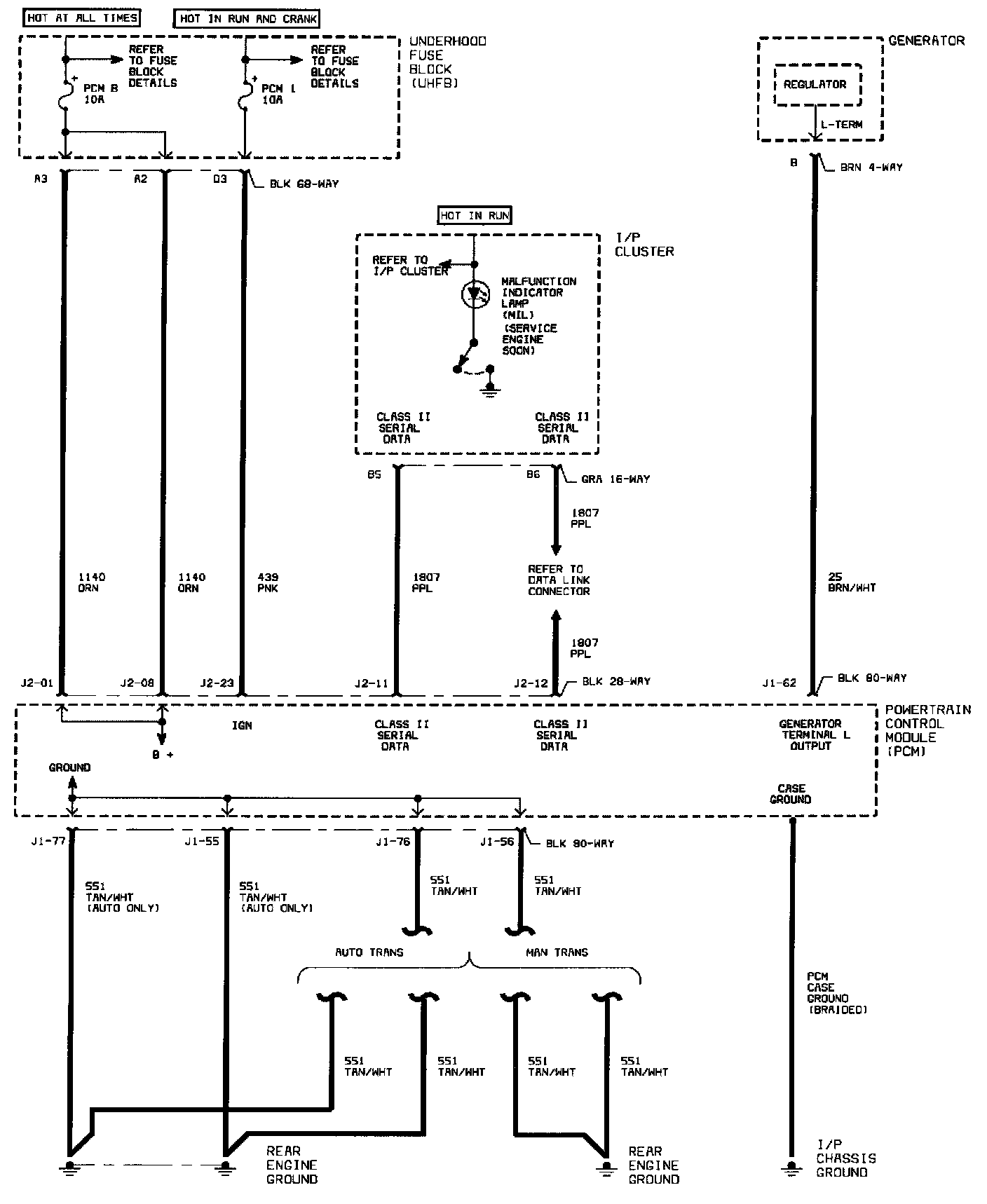

Powertrain Control Module (PCM) Schematics (Part 7 Of 11):

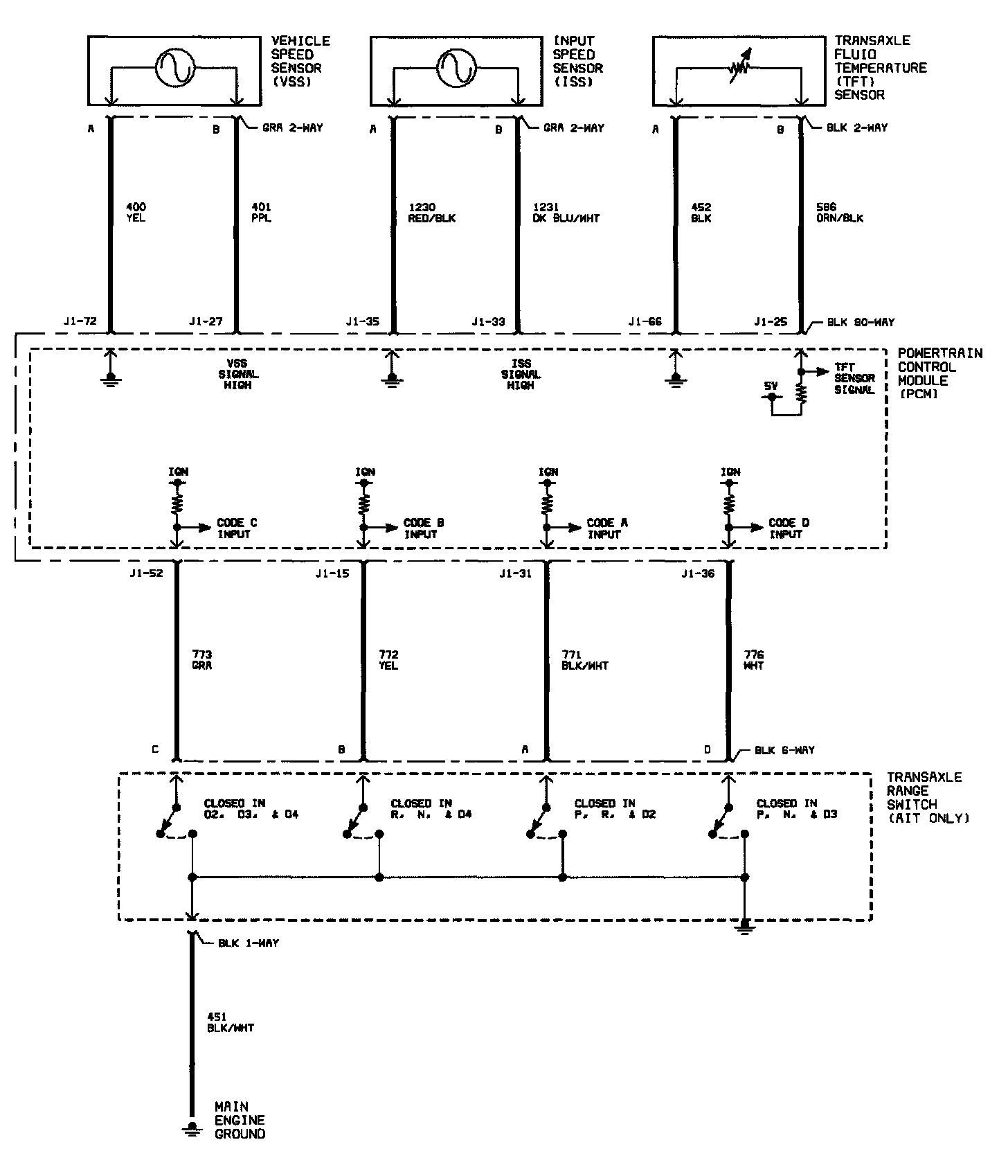

Powertrain Control Module (PCM) Schematics (Part 8 Of 11):





Powertrain Control Module (PCM) Schematics (Part 9 Of 11):





Powertrain Control Module (PCM) Schematics (Part 10 Of 11):





Powertrain Control Module (PCM) Schematics (Part 11 Of 11):
