lemon-mirror
:
Home
>>
Saturn
>>
2000
>>
SW2 L4-1.9L DOHC VIN 7
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Powertrain Management
>>
Body Control Module
>>
J3
J3

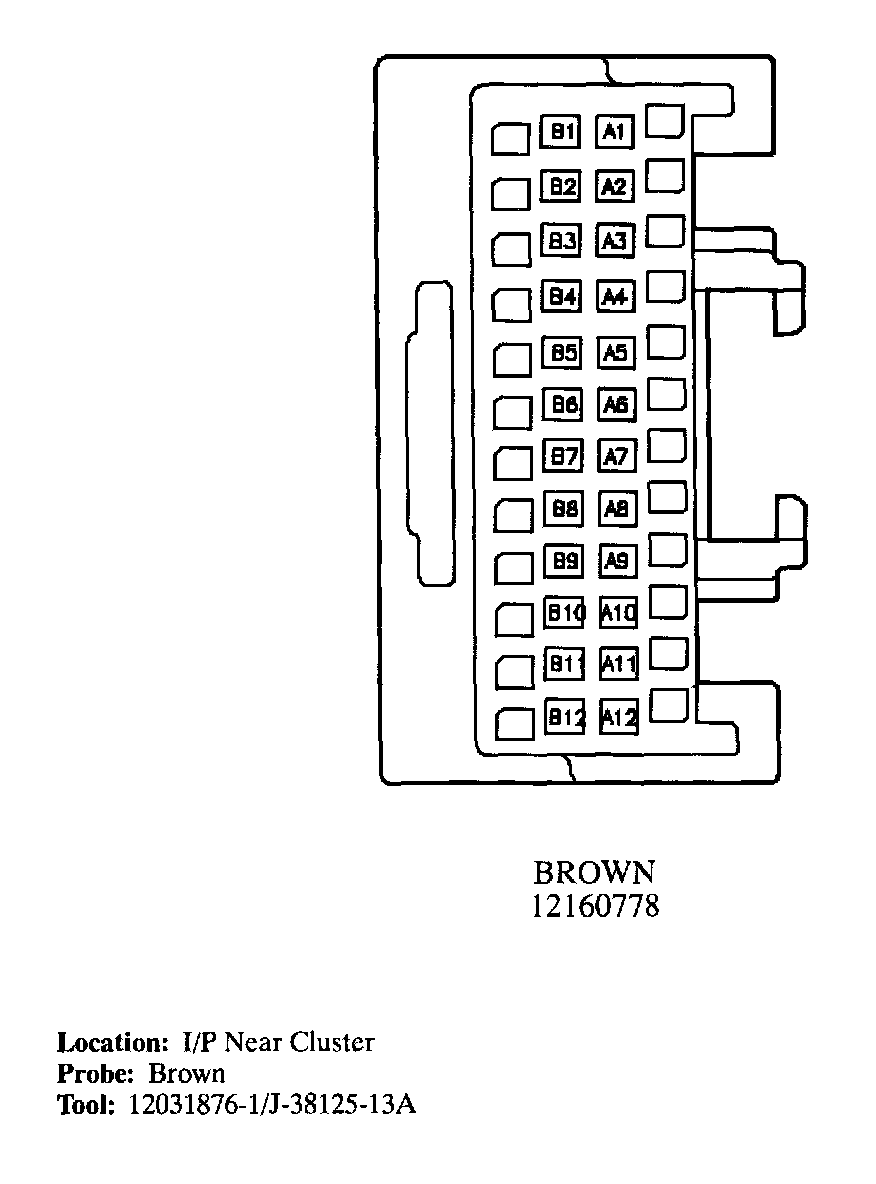

Body Control Module (BCM) - J3 (Part 1 Of 2):

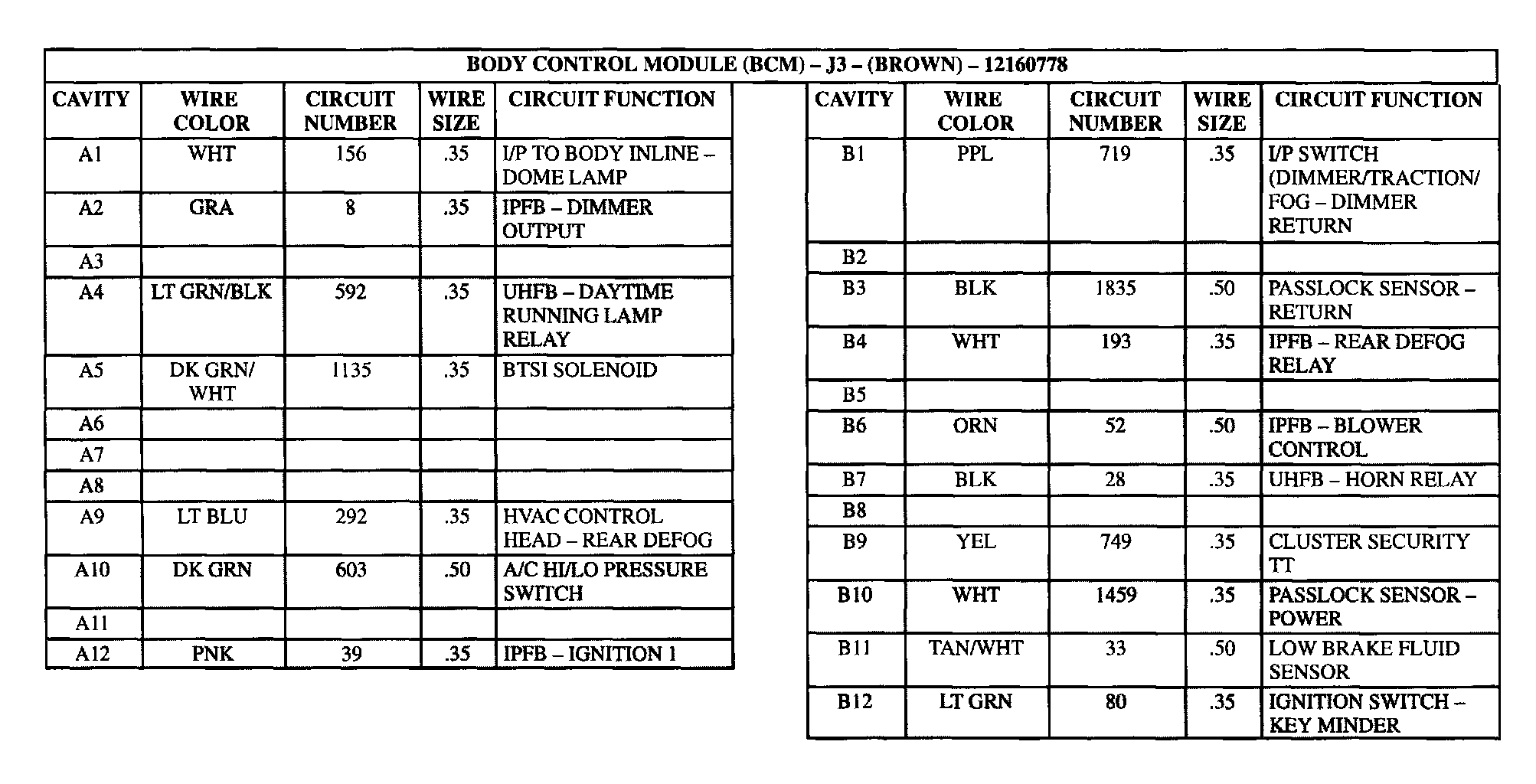

Body Control Module (BCM) - J3 (Part 2 Of 2):
